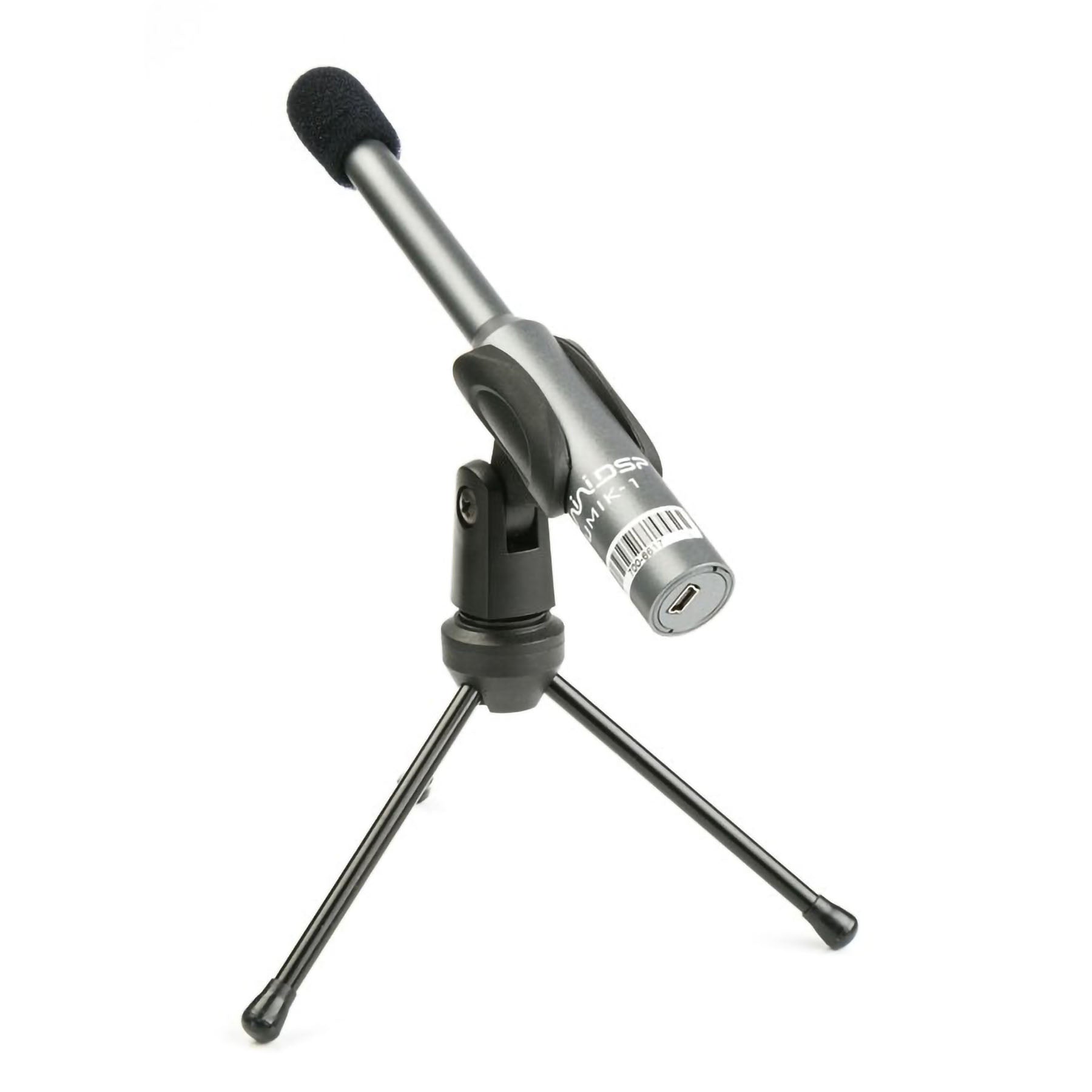

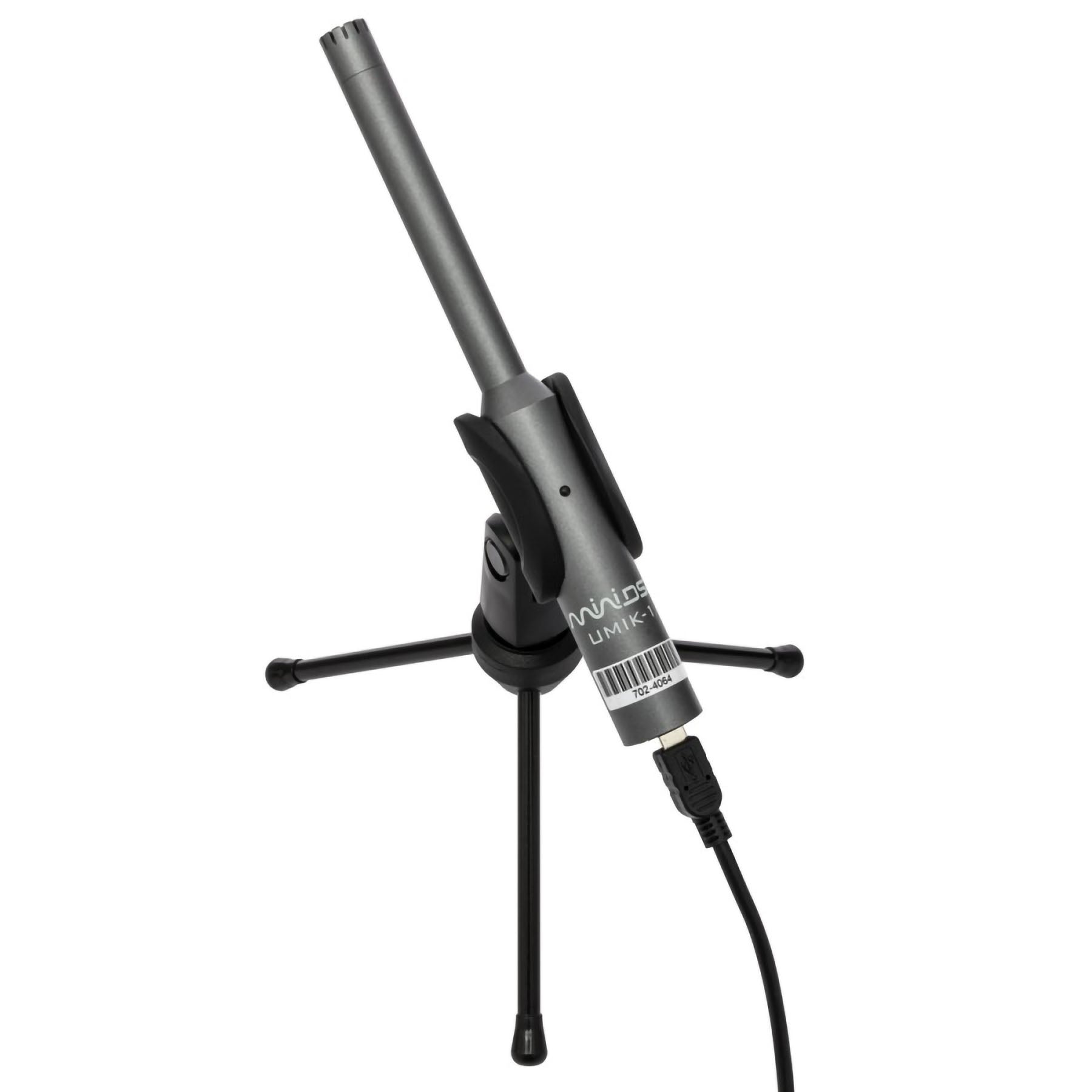

MiniDSP UMIK-1

Low Noise Omnidirectional USB Microphone

The UMIK-1 is an omni-directional USB measurement microphone providing Plug & Play acoustic measurement. From speaker & room acoustic measurement to recording, this microphone provides low noise and accurate results you can rely on. Forget about driver installation, OS compatibility and un-calibrated mics. The Umik-1 is a USB Audio class 1 device automatically recognized by all Operating Systems (Windows/Mac) and Ipad with Camera Connection Kit. It is provided with a unique calibration file based on the serial number to insure an accurate measurement. Combined with our recommended acoustic measurement software, it is the perfect match for a plug&play measurement system.

Features

• Windows/Mac/Linux
• All measurement software
• Special features such as calibrated SPL measurement enabled under free Room EQ Wizard (REW) software
• Frequency response: 20 Hz - 20kHz +/-1dB with calibration loaded
• USB Audio: USB Audio class 1.0 Driverless interface for Windows, Mac & Linux

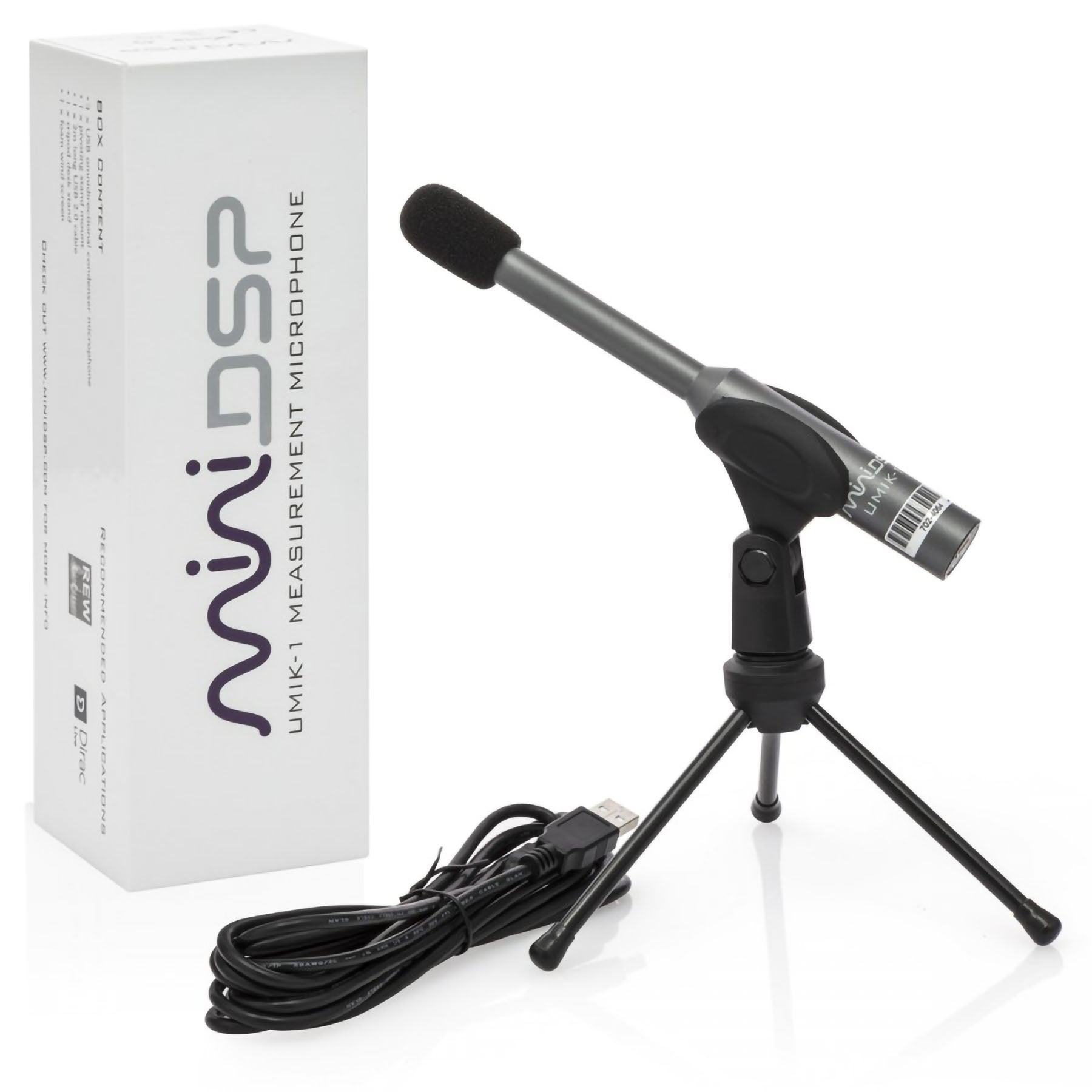

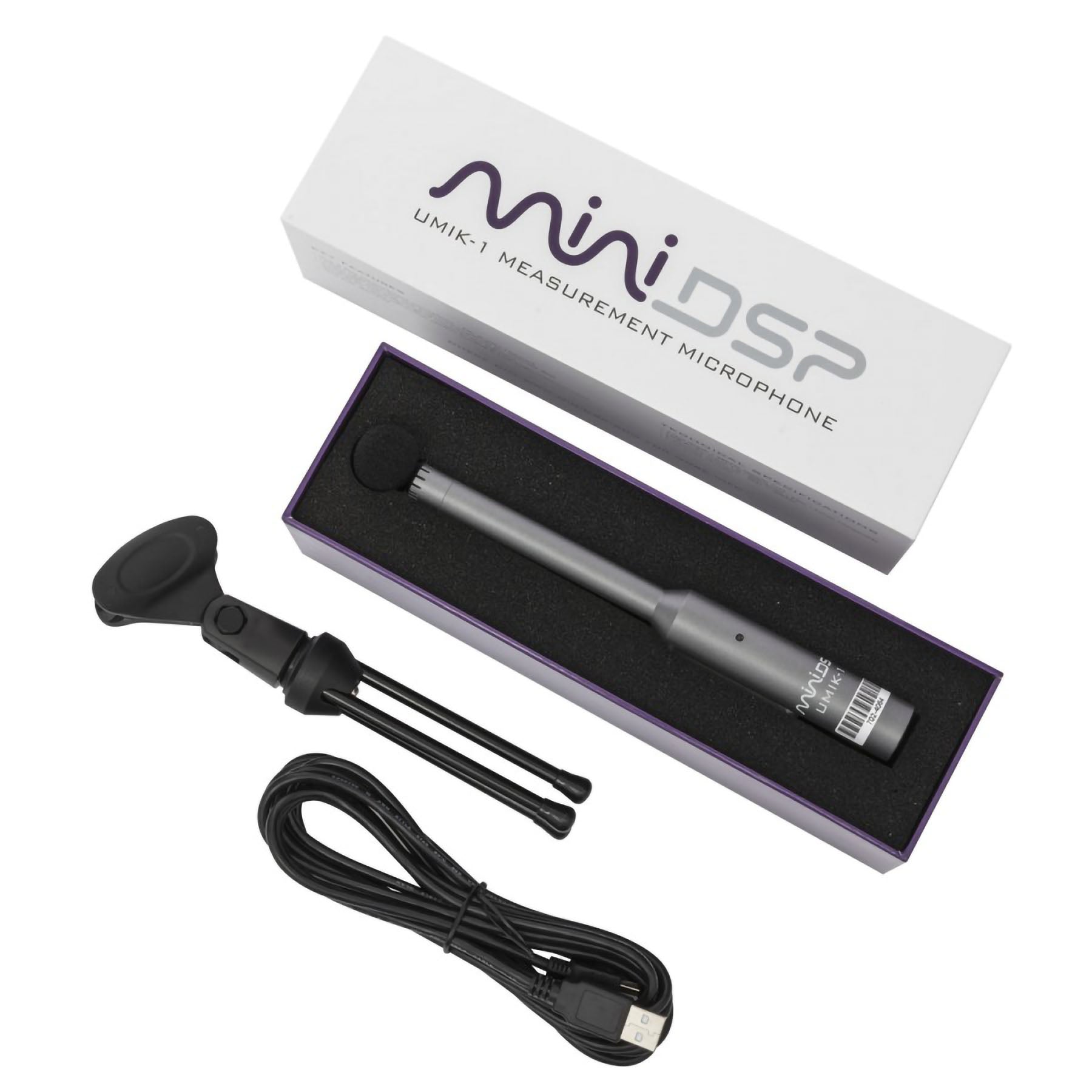

What's in the box?

• 1 x UMIK-1 microphone
• 1 x shielded USB cable (1.5m)
• 1 x mini Tripod
• 1 x foam wind screen

Product type

Measuring microphone

Microphone type

Electret 6mm

Directivity

Omnidirectional

Frequency response

20Hz - 20kHz ±1dB

Resolutions and sampling rates

24bit ADC@44.1 ou 48kHz

Sound pressure

133dB SPL @ 0dB, 1% THD, 1kHz

Noise level

74dBFS

Compatibility

Windows
Mac
Linux

Connector system

USB-C

General

Power supply

USB 5V

Weight

120g

Package

1x MiniDSP Umik-1
1x USB Cable 2m
1x Mini tripod
