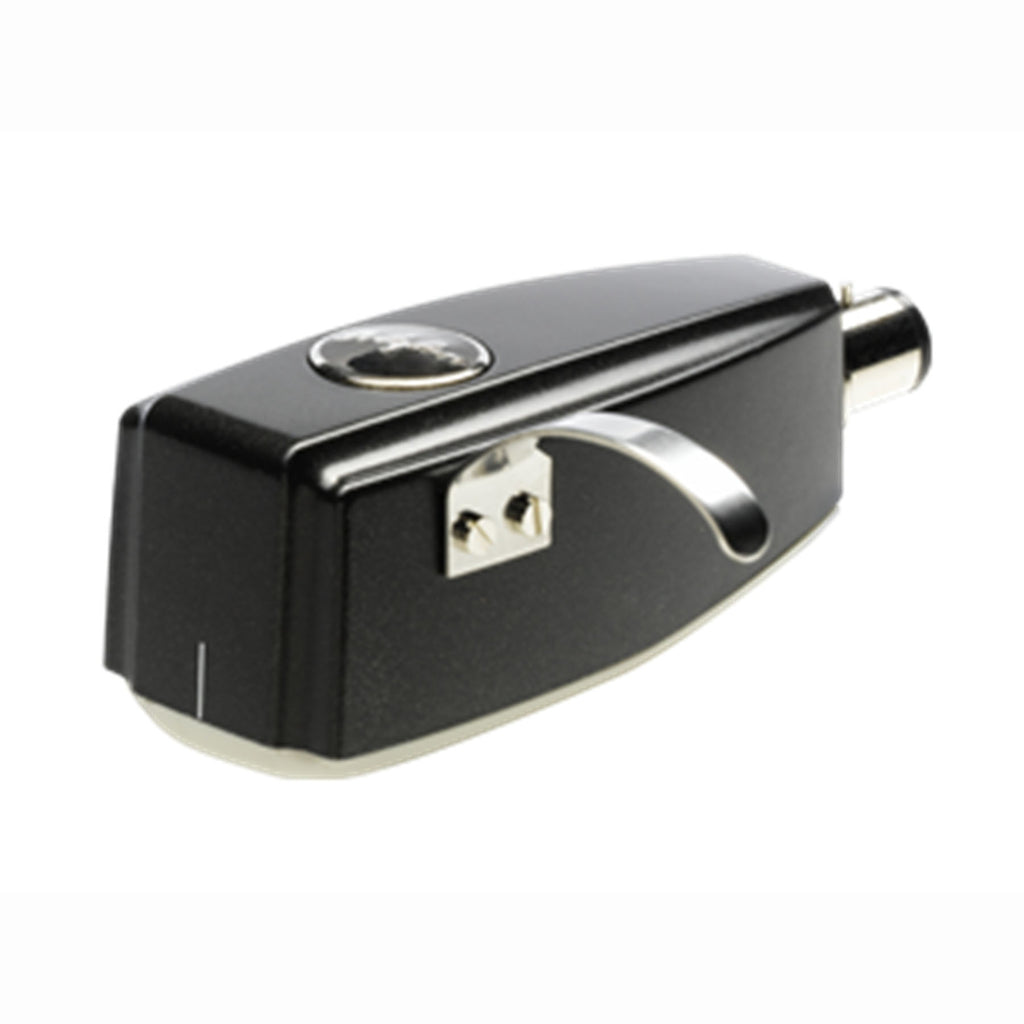

SPU Classic G MkII

The SPU Classic G MkII is known for its dynamic and powerful sound reproduction

The SPU Classic G MkII is a Moving Coil cartridge with an 18 µm spherical stylus profile.
The SPU Classic series embodies the essence of the original Moving Coils and are a perfect solution for the playback of both early and modern and contemporary stereo recordings.

The ST-7 transformer is a perfect match for the SPU Classic G MkII cartridge.

Output voltage at 1000 Hz, 5cm/sec.

0.2 mV

Channel balance at 1 kHz

< 1 dB

Channel separation at 1 kHz

> 20 dB

Channel separation at 15 kHz

> 10 dB

Frequency response

20-20.000 Hz + 3/-3 dB

Tracking ability at 315Hz at recommended tracking force *) >

60 µm

Compliance, dynamic, lateral

8 µm/mN

Stylus type

Nude Spherical

Stylus tip radius

R 18 µm

Tracking force range

3.0-5.0 g (30-50 mN)

Tracking force, recommended

4.0 g (40 mN)

Tracking angle

20°

Internal impedance, DC resistance

2 ohm

Recommended load impedance

> 10 ohm

Cartridge body material

Ground wood and resin composite

Coilwire material

High Purity Copper (OFC)

Cartridge colour

Black matte

Cartridge weight

28 g
