Rotel RMB-1587MKII Multi-Channel Power Amplifier

RMB-1587MKII

Multichannel Amplifier

Rotel’s new RMB-1587MKII 7-channel amplifier furthers our heritage of producing high powered, high current, exceptionally manufactured Class AB amplifiers for multi-channel systems. The RMB-1587MKII delivers 7 channels of Class AB amplification at 155 Watts per channel into 8 ohms and drives 4 ohm speakers with over 250 Watts per channel, all channels driven

Rotel’s new RMB-1587MKII 7-channel amplifier continues our heritage of producing high powered, perfectionist amplifiers for multi-channel systems.

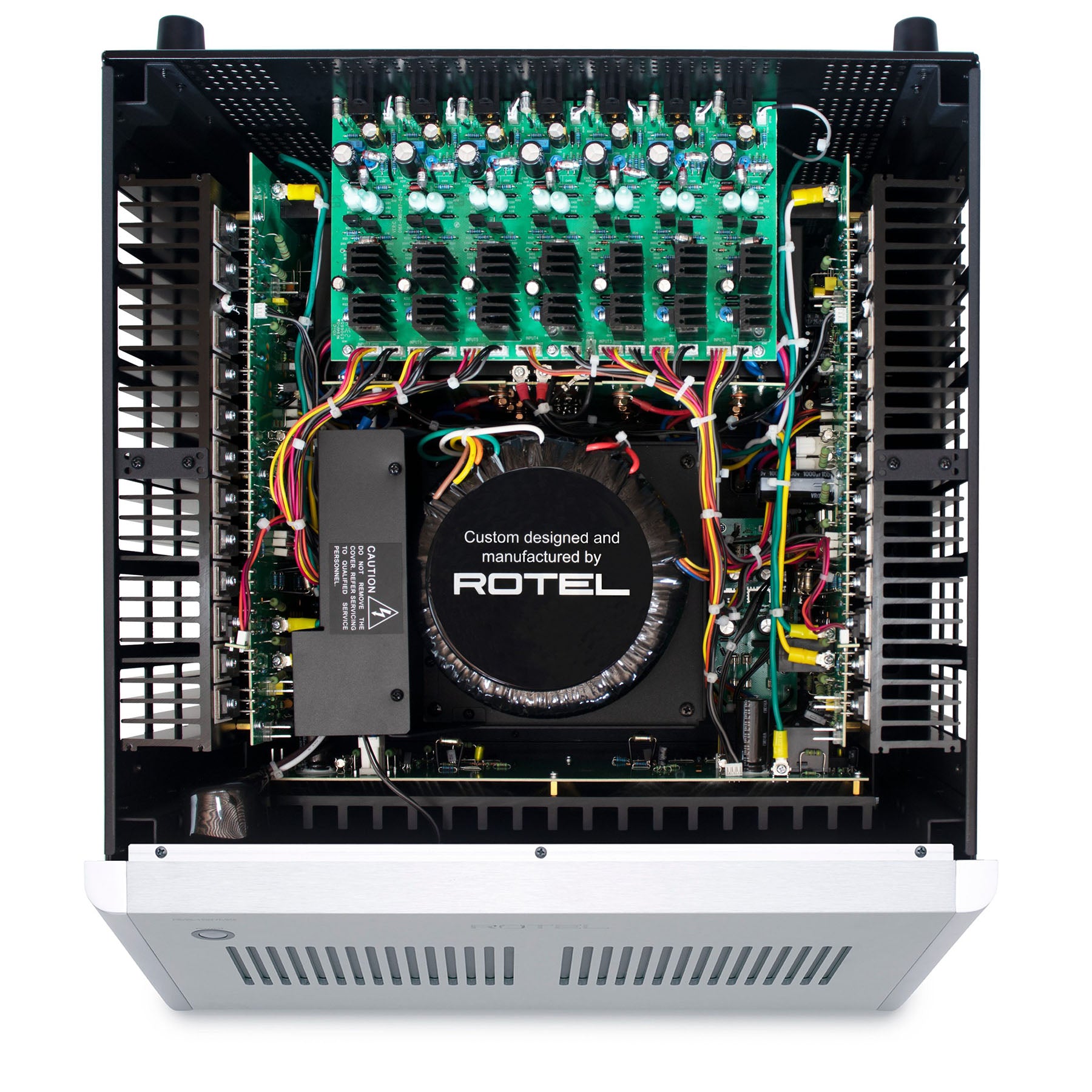

Following Rotel's MKII design architecture, the RMB-1587MKII incorporates significant circuit and component upgrades in both the power supply and amplifier stages achieving ultra-low distortion, signal isolation, and high-gain output power efficiently packaged in a single, multi-channel amplifier chassis.

Differing from multi-channel amplifiers whose output drops when driving multiple channels simultaneously, the RMB-1587MKII delivers all 7 channels of Class AB amplification at 155 Watts per channel into 8 ohms, and 250 Watts per channel into 4 ohms with all channels driven.

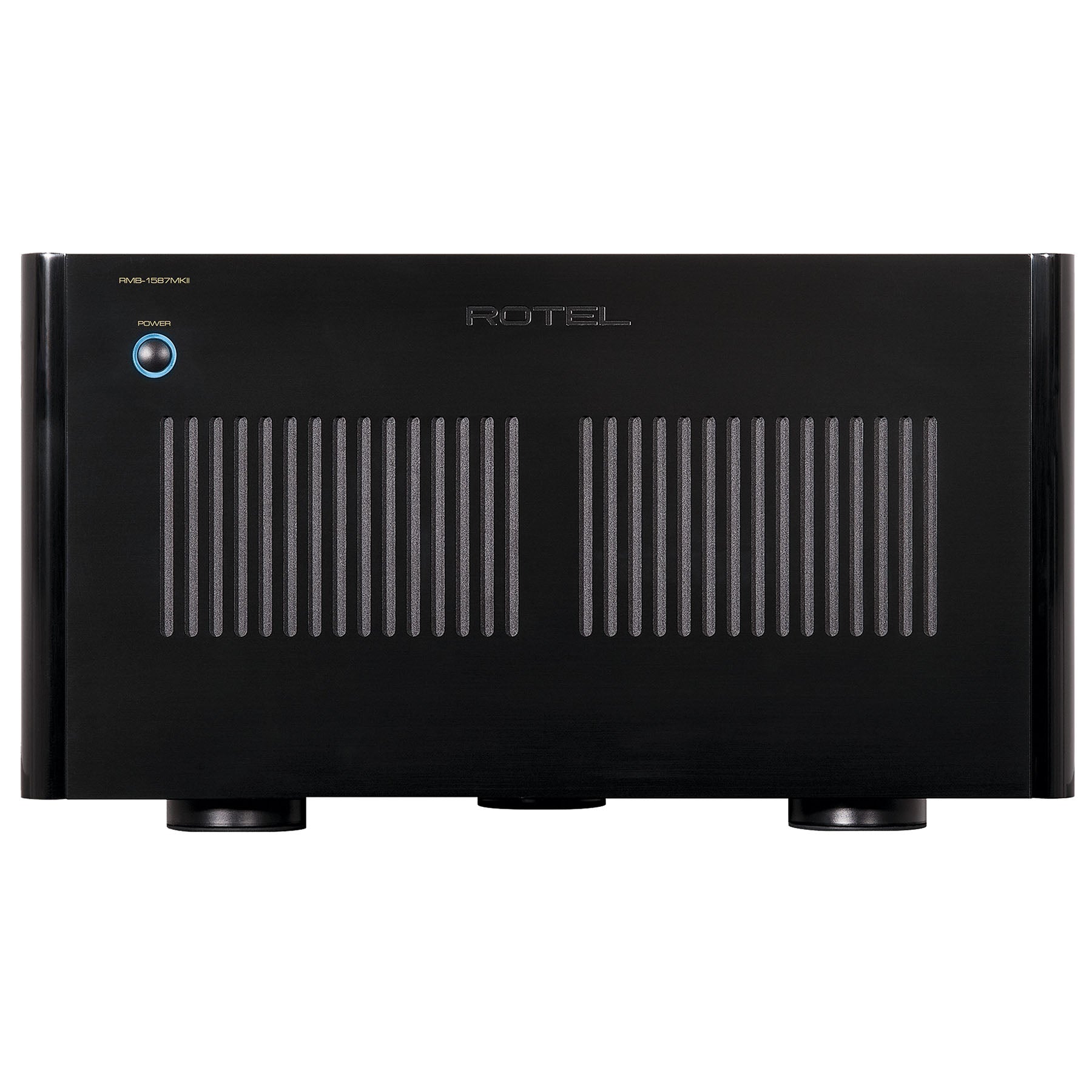

The RMB-1587MKII is available in both black and silver colors.

Engineered with care.

Dimensions (W × H × D)

431 × 237 × 456mm

17" × 9.4" × 18"

Front Panel Height

5U / 221mm (8.75")

Power Requirements

120V, 60Hz

Power Consumption

1400W

Net Weight

37.6kg (82.9lbs.)

BTU Rating (4Ω, 1/8th power)

4016 BTU/h

Continuous Power Output

155W/Ch (7 channels driven, 8Ω)

250W/Ch (7 channels driven, 4Ω)

335W/Ch (2 channels driven, 4Ω)

Total Harmonic Distortion (THD)

(20Hz–20kHz) <0.03%

Frequency Response

10Hz - 100kHz +0, -3dB

S/N Ratio (IHF "A" Weighted)

111dB

Gain

26.6dB

Crosstalk/Separation

>55dB

Intermodulation Distortion (60Hz:7kHz, 4:1)

<0.03%

Damping Factor

330

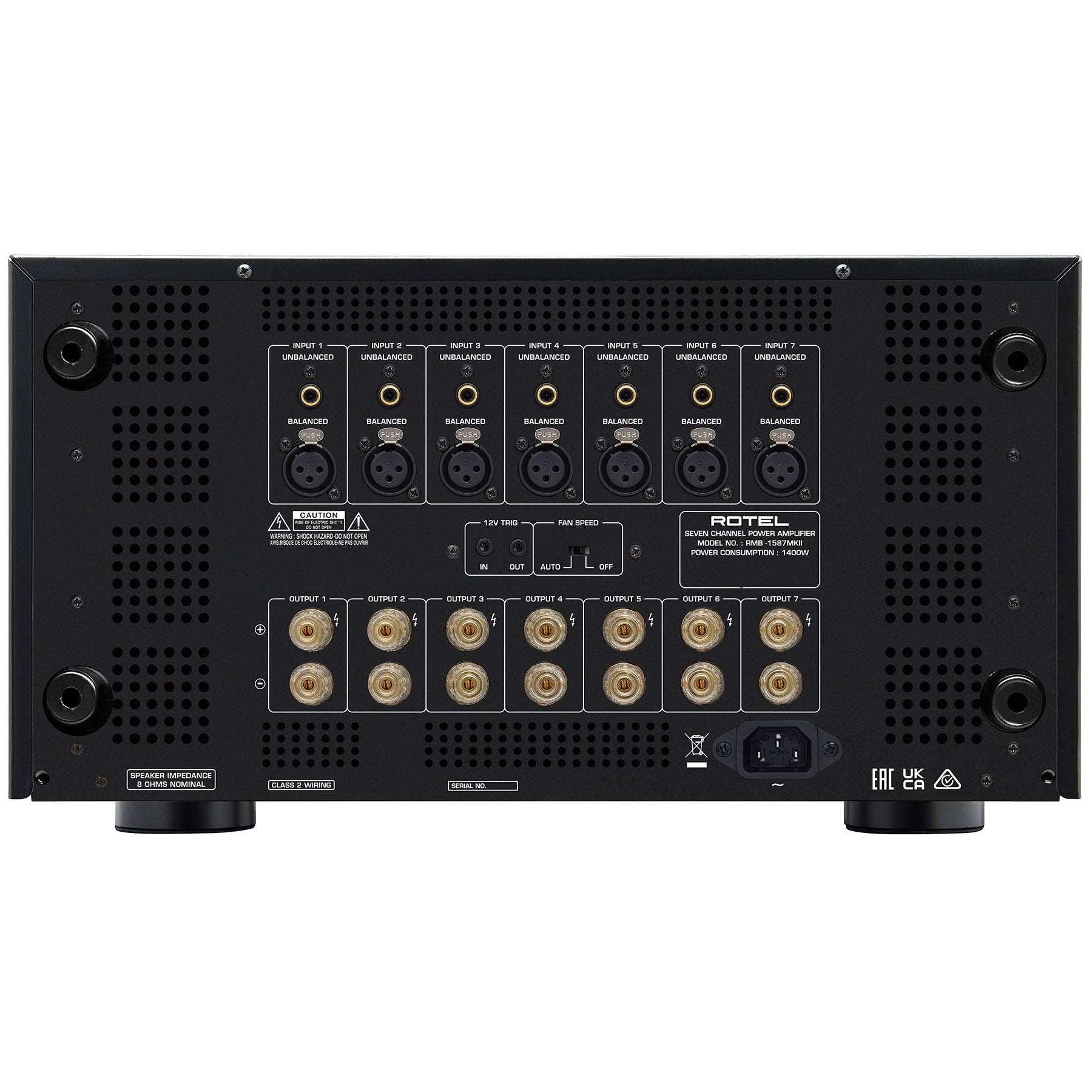

Input Sensitivity

Line Level Inputs (RCA): 1.61V

Line Level Inputs (XLR): 3.4V

Input Impedance

Line Level Inputs (RCA): 12kΩ

Line Level Inputs (XLR): 50kΩ
