Description

modern home theater, high-end sound

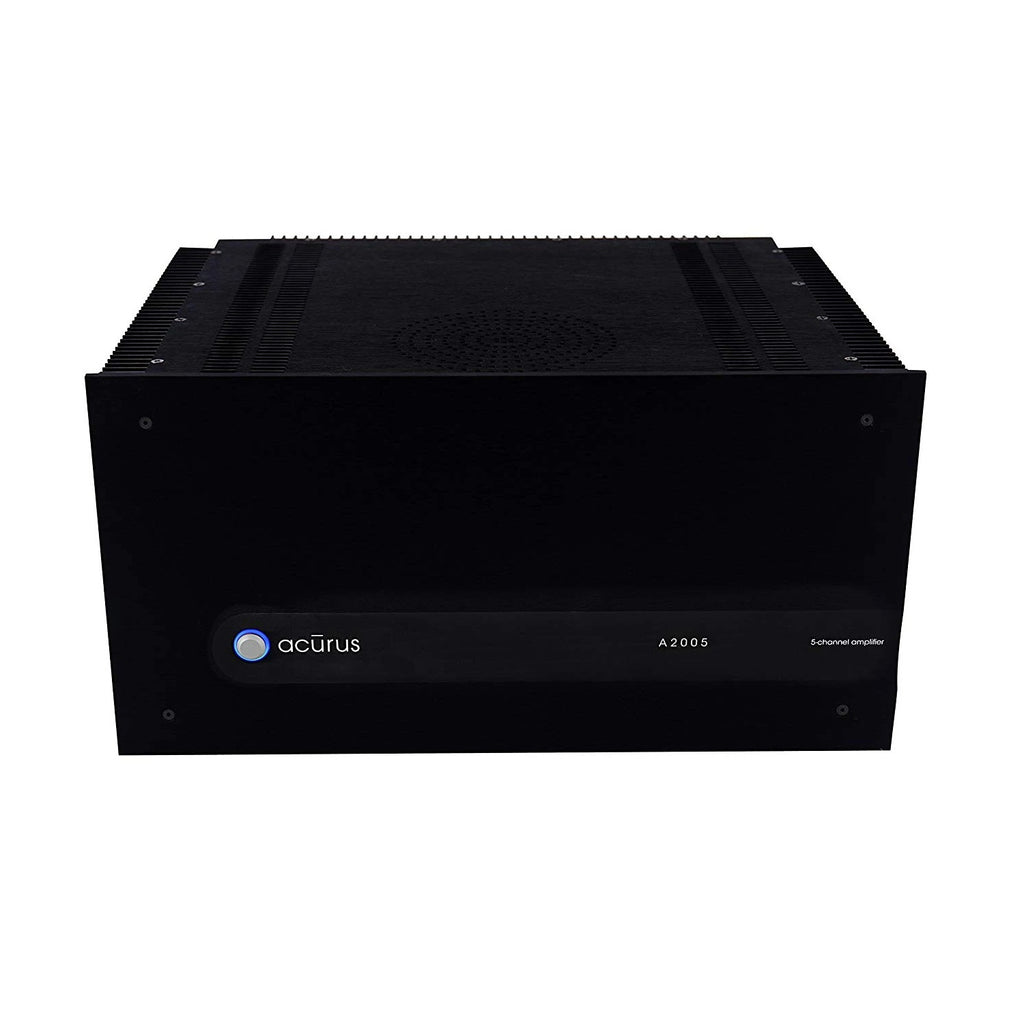

The A2005 is the five-channel home theater amplifier in the Acurus series. The A2005 is the core of a high-value home theater system that still delivers an uncompromising 5-channel music experience.

The A2005's ethernet status and control port provides a powerful tool for optimizing and enjoying a modern multi-channel home entertainment system.

Applications

  • Residential home theater
  • Multipurpose home theater/2-channel systems
  • Corporate media rooms
  • Professional multichannel mastering studios

Solutions

  • Detailed, neutral sound, ideal for music or movies
  • Cool-running in rack or shelf placements
  • Integrates multiple ways with automation systems
  • Installation and setup simplified with web app
  • Made in the USA
  • 5 year warranty
  • 5-channel, 200Wx5 smart power amplifier

Features

  • High-current output stage
  • Fully discrete class AB analog audio circuitry
  • Ethernet, RS-232, 12V trigger
  • Temperature monitoring via web

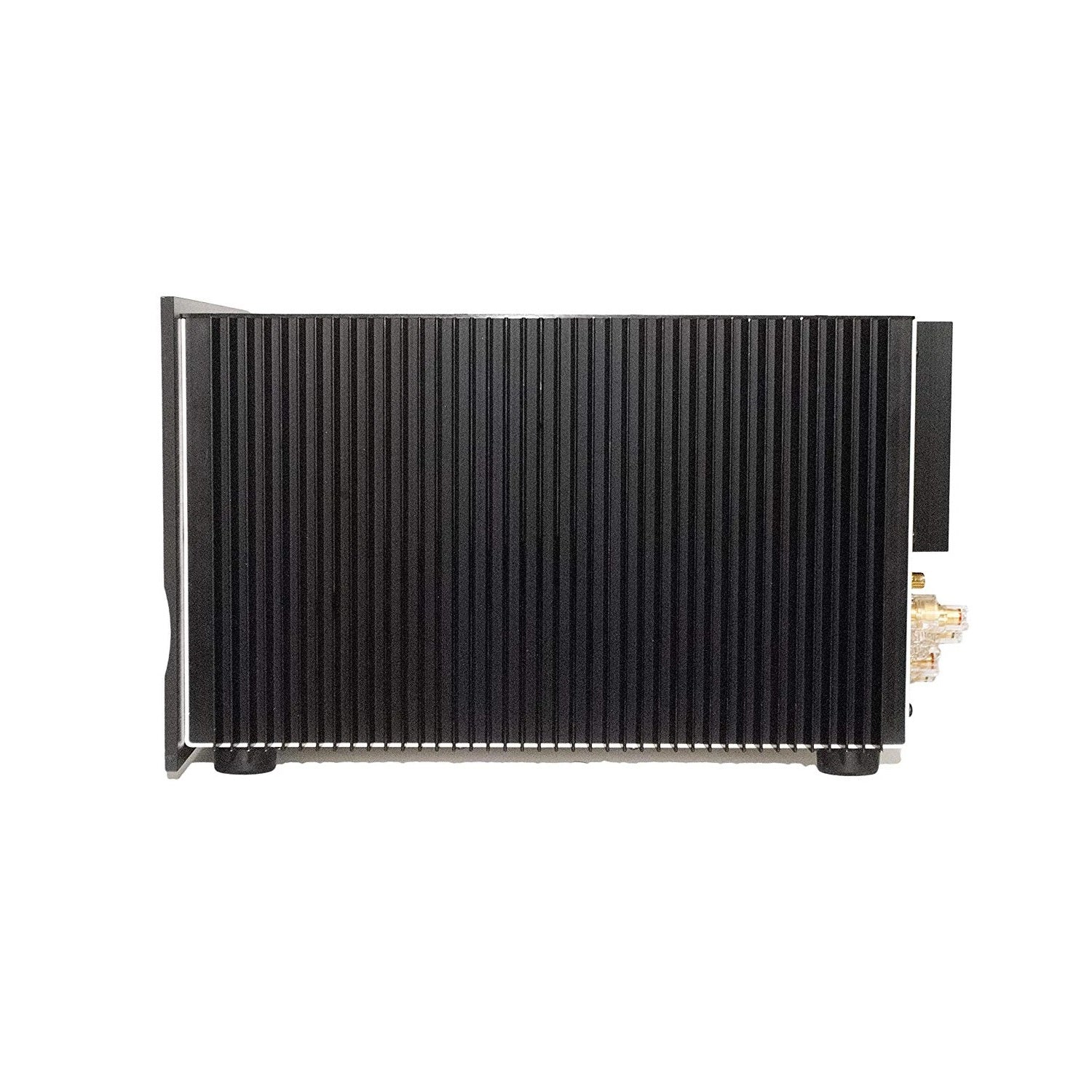

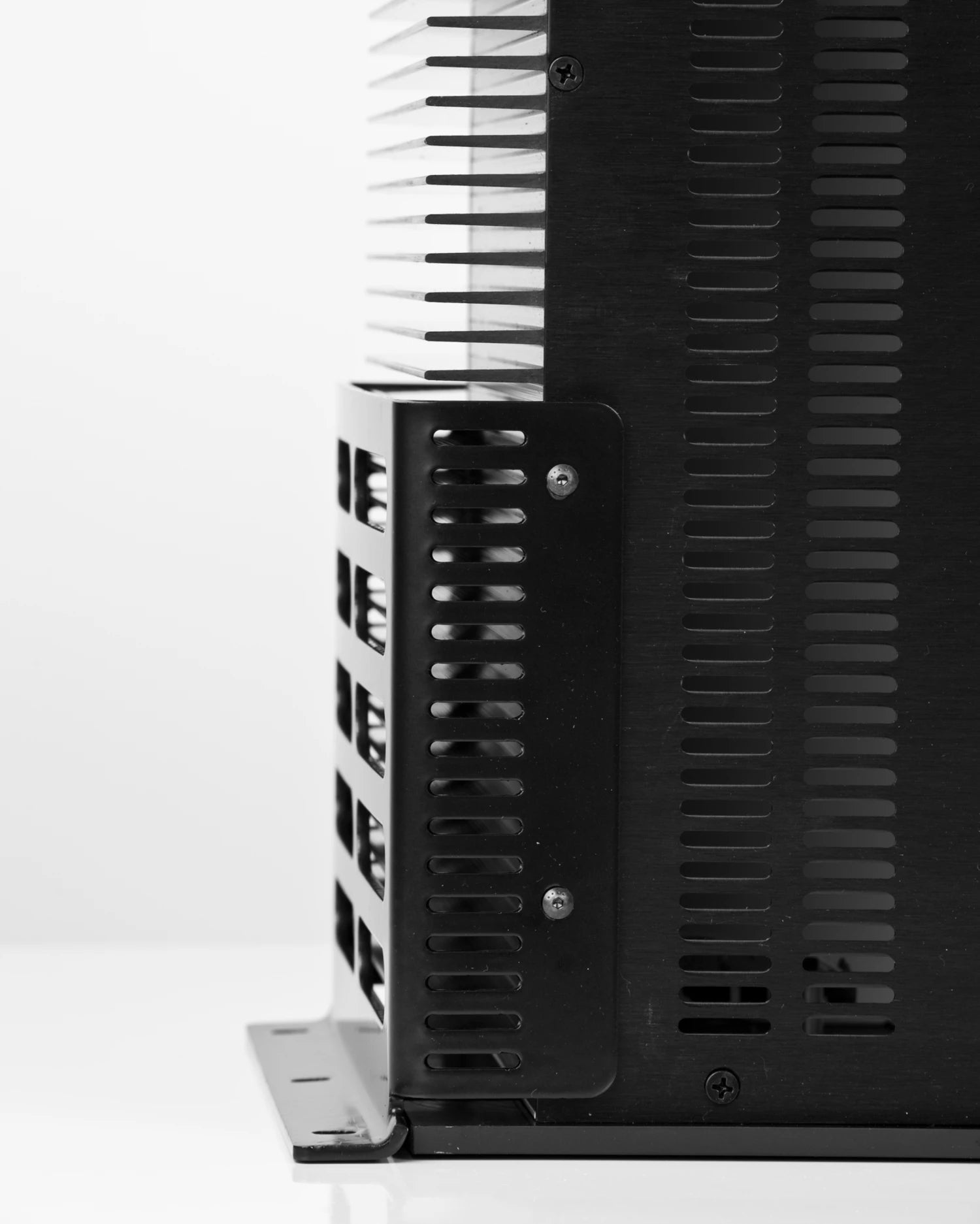

  • Rack-mount chassis designed for optimum cooling
  • Mobile device controllable
  • Remote monitor-ready

Optional accessories

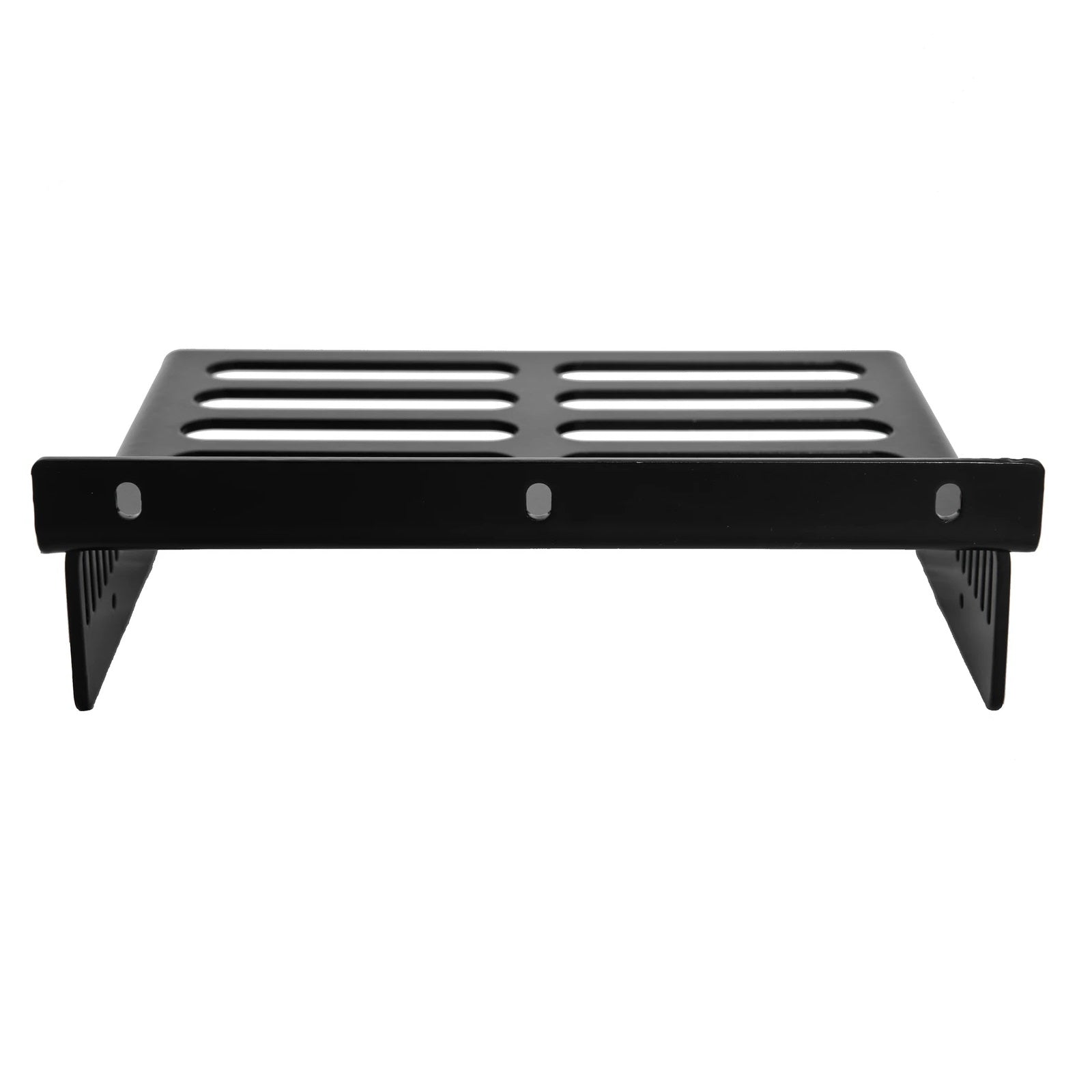

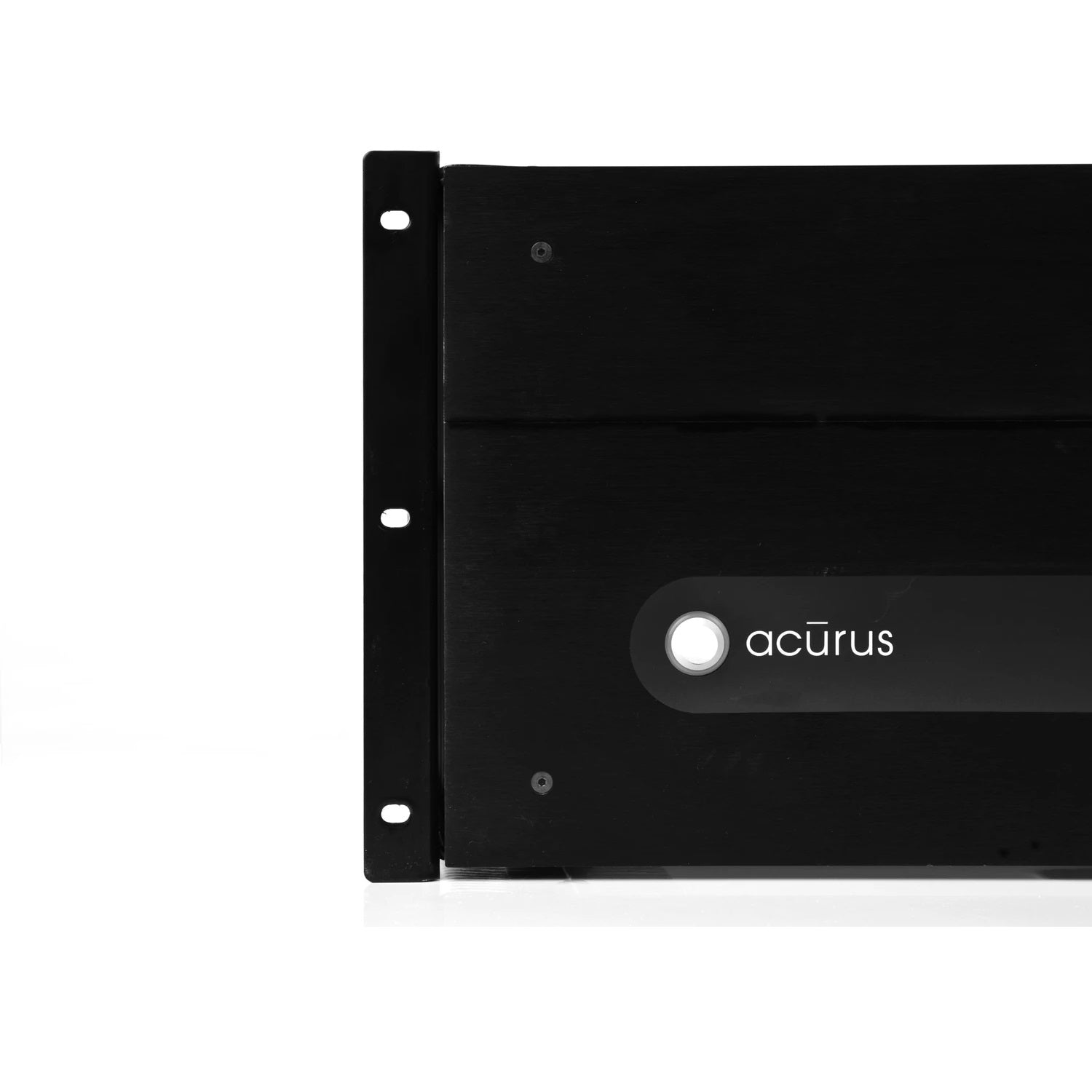

  • Rack ear kit (ARM-2)

Included

  • User guide
  • 14 AWG power cord
  • Warranty card

Supporting documentation

  • Ethernet and RS-232 control protocol
  • 2-D CAD files
  • Service guide
  • International safety reports

Specifications

Electrical

Power output
  • 200W (8Ω), 300W (4Ω), all channels driven
THD
  • < 0.03% (200W,8Ω), < 0.05% (300W, 4Ω)
Current capability
  • >18A (2.2Ω)
Frequency response
  • 20 – 20kHz ± 0.1dB
Tim/dim distortion
  • <0.003%
SNR
  • 106dB (A-wt.)
Damping factor
  • 500, 8Ω @ 50Hz
Input sensitivity
  • 1W: 100mV, 200W: 1.42V
Input impedance
  • 20kΩ
Power consumption
  • 23W (idle), 1200W (max), <1W (standby)

Control

Ethernet/RS-232
  • status and control of standby/on, channel configuration
12V
  • standby/on control

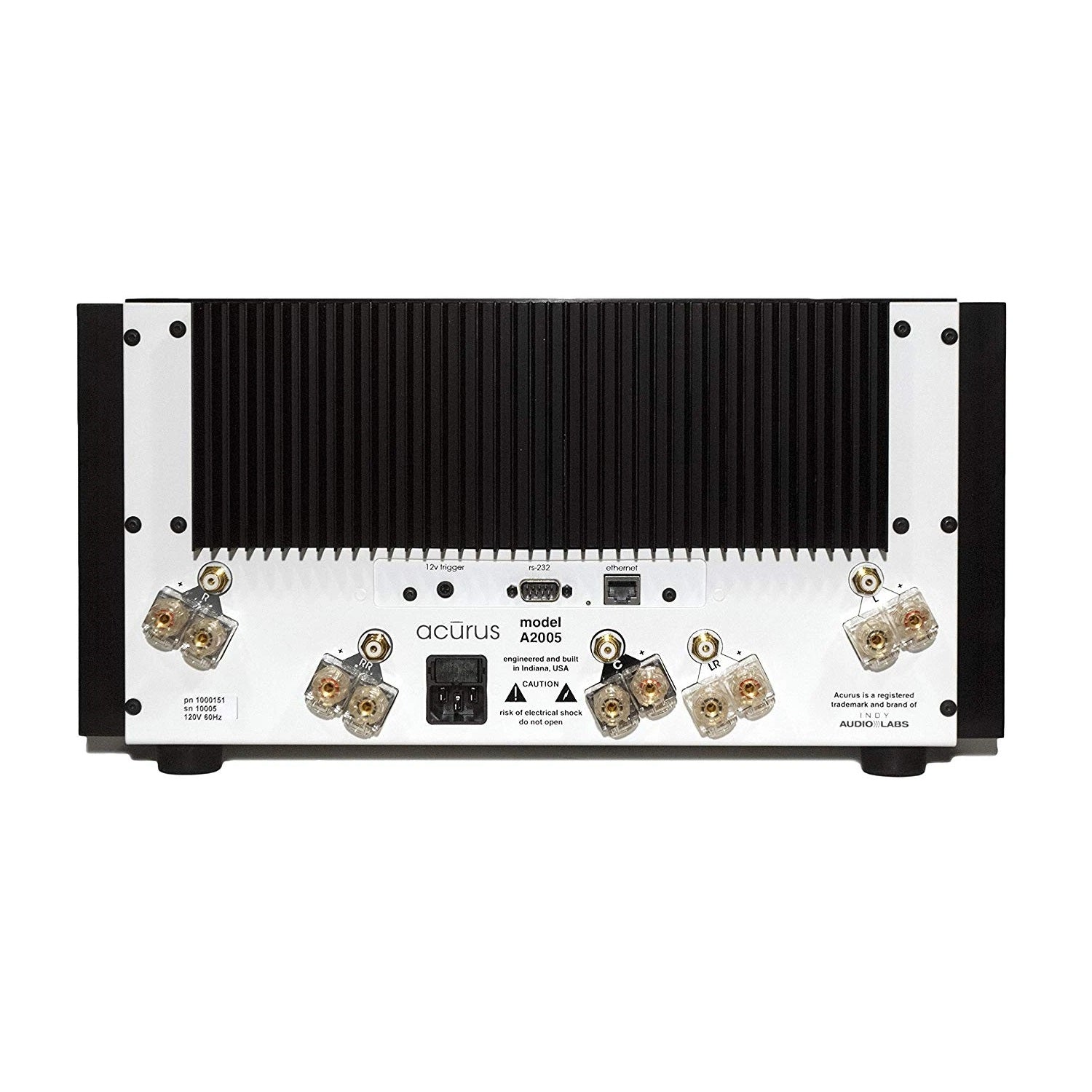

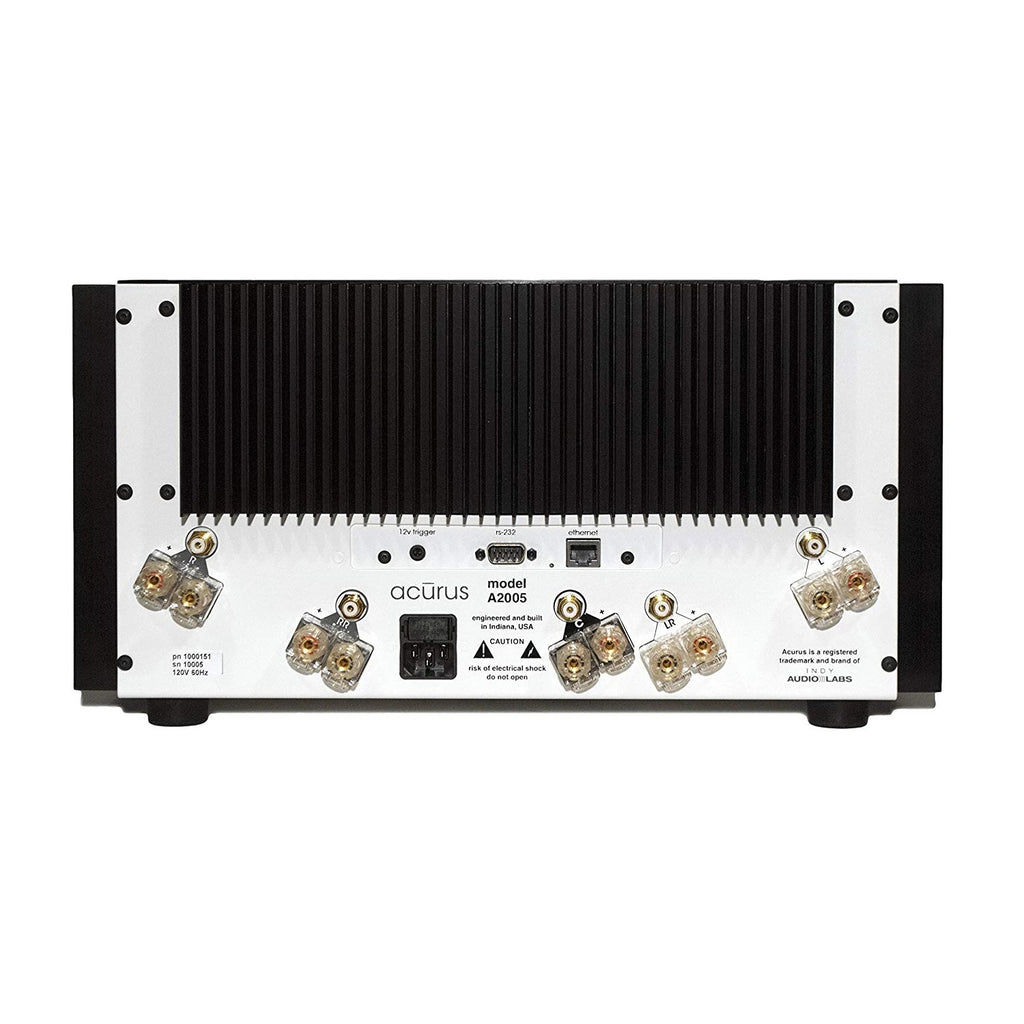

Audio Inputs /Outputs
Audio in
  • gold-plated RCA (unbalanced) x 5
Loudspeaker out
  • gold-plated 60A 5-way binding posts x 5

Physical

Product dimensions
  • 8.5” (21.6cm) x 17” (43.2cm) x 15.0” (38.1cm)
Rack height
  • 5 RU
Product weight
  • 47 lbs. (21.3kg)
Finish
  • black satin anodized, laser-etched logo, white rear panel
Carton dimensions
  • 16” (40.6cm) x 22” (55.9cm) x 20” (50.8cm)
