Developed from the renowned award-winning 240 series.

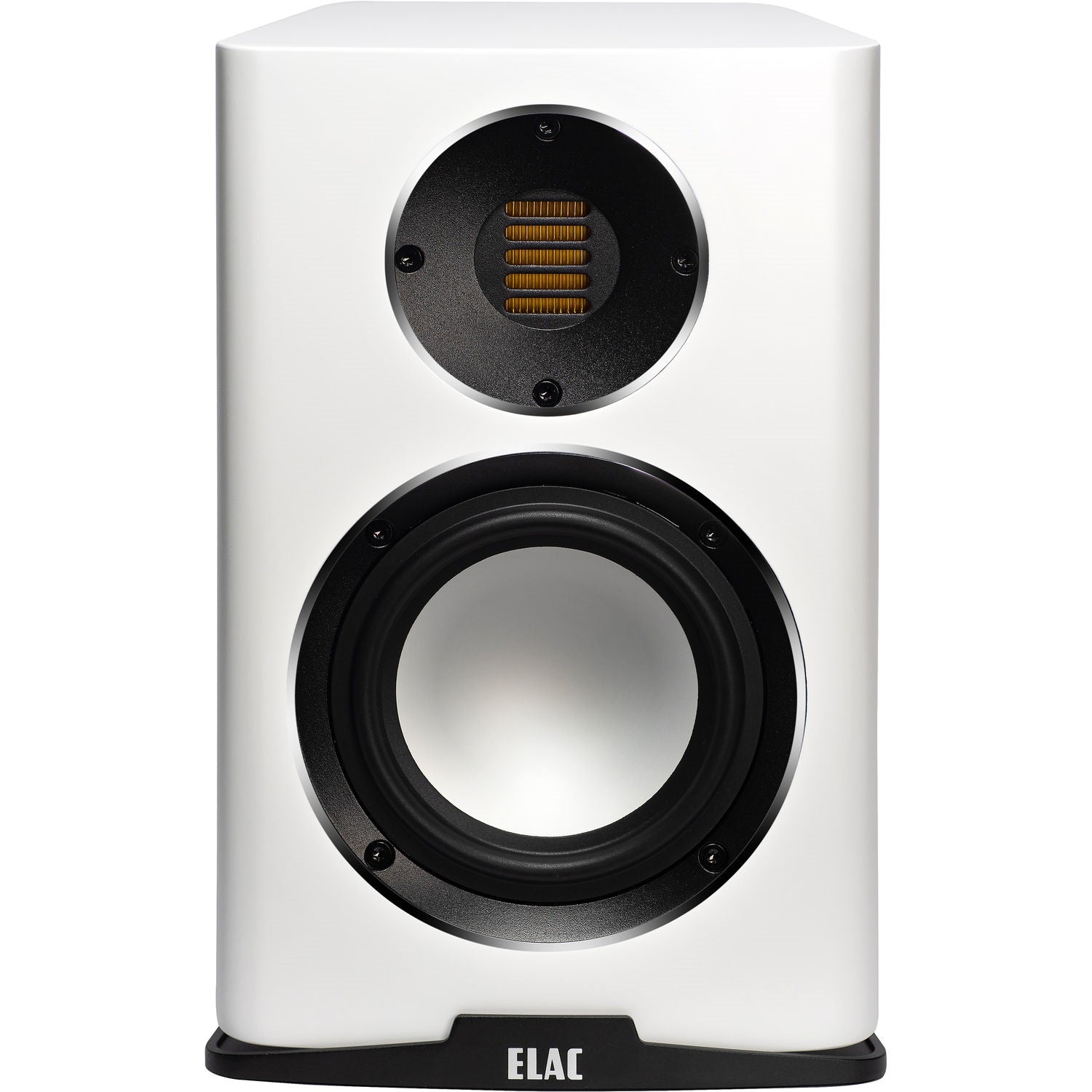

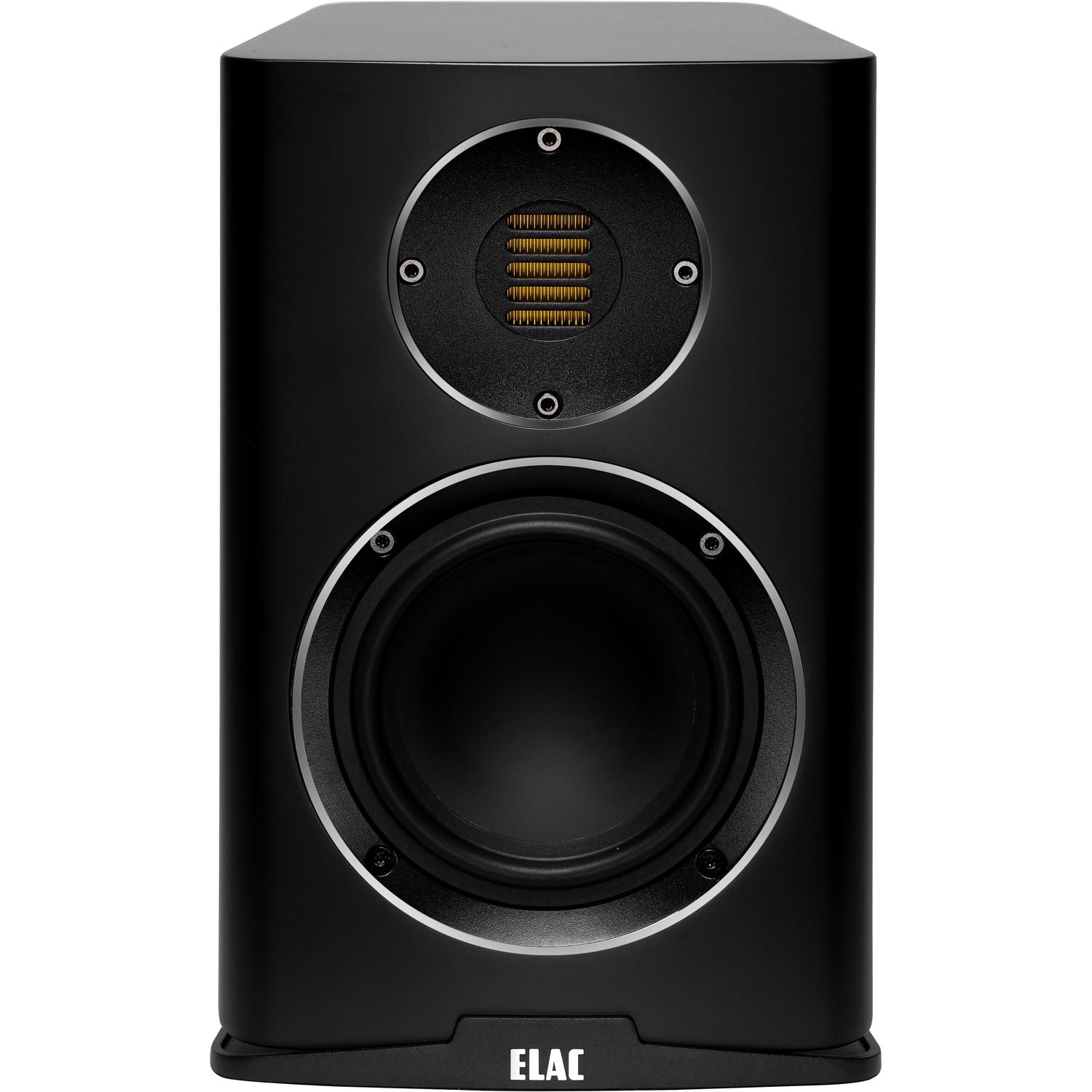

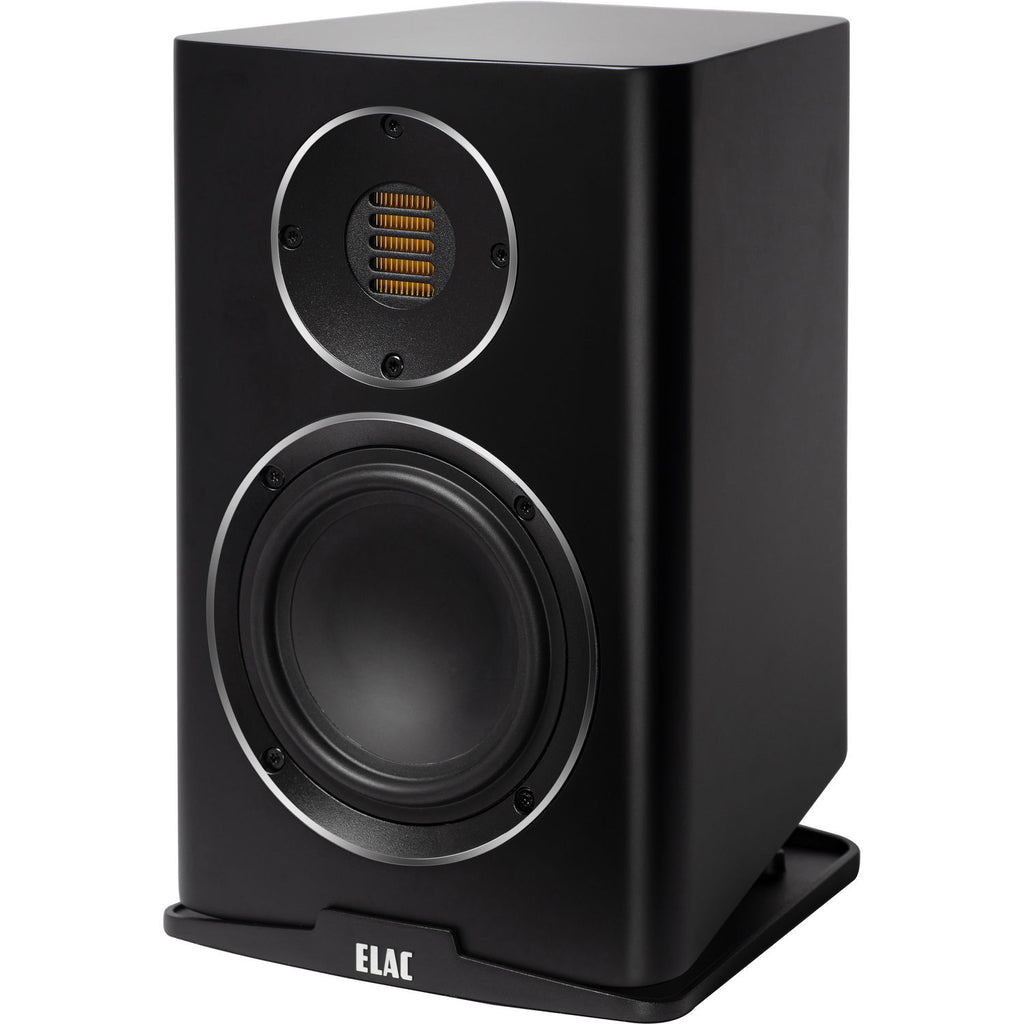

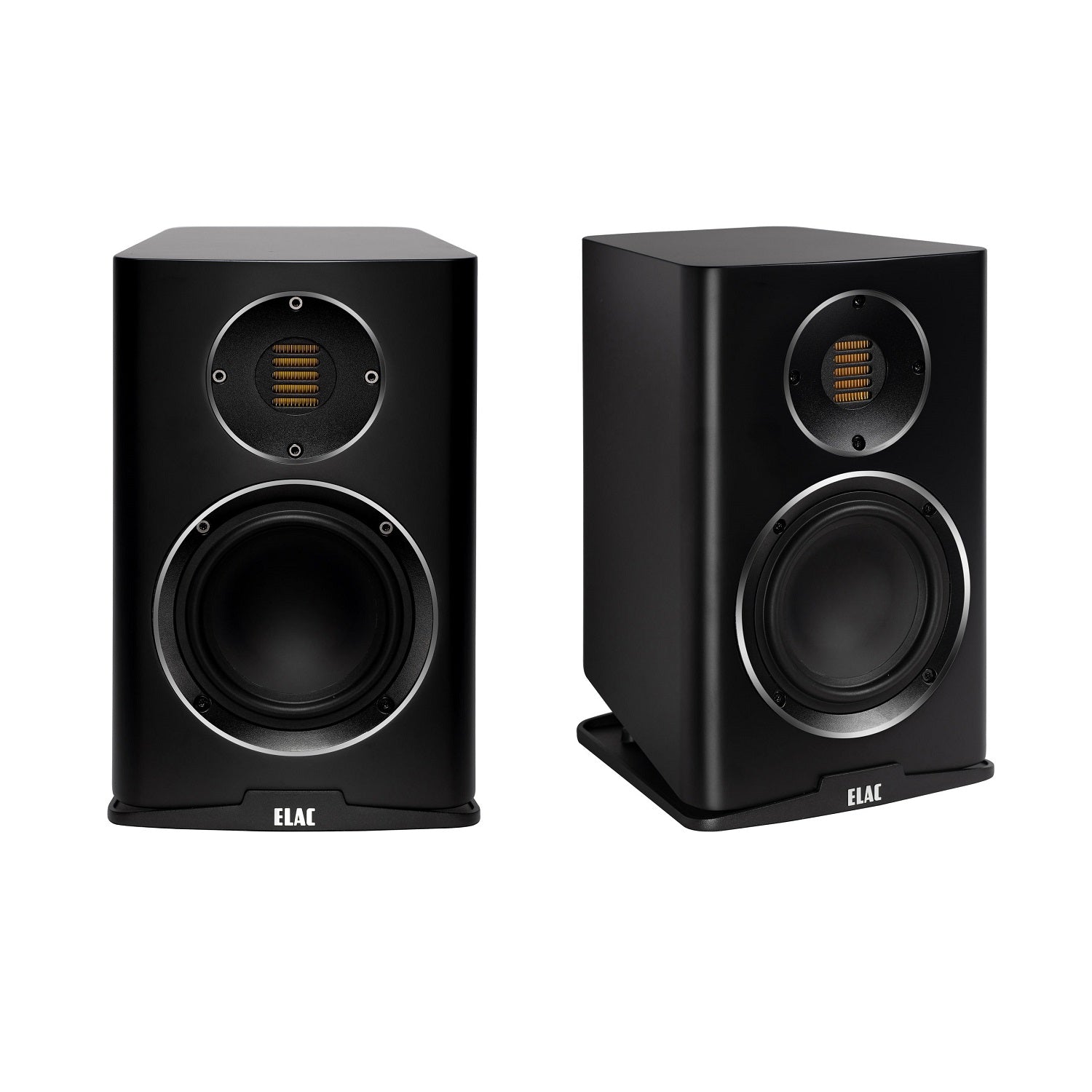

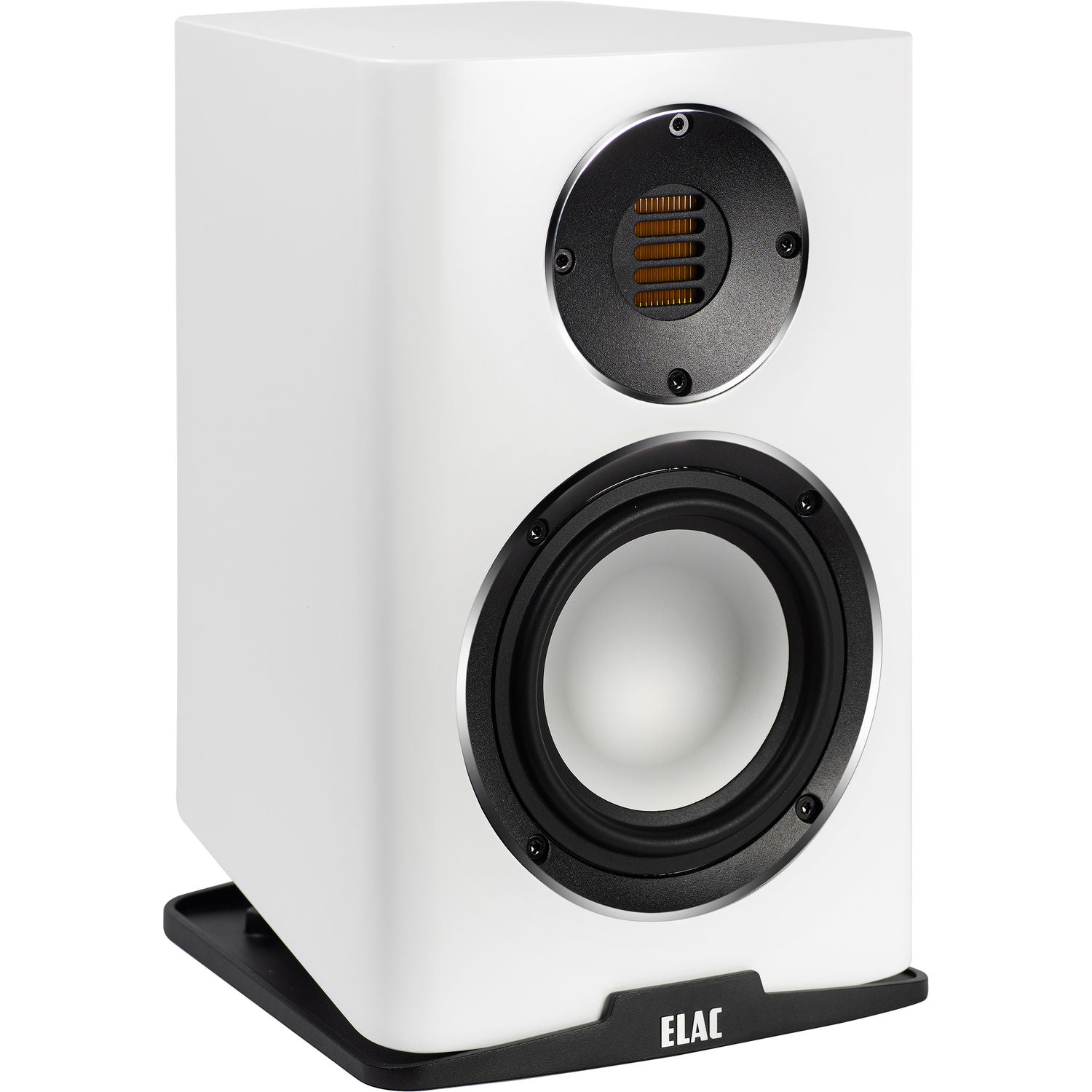

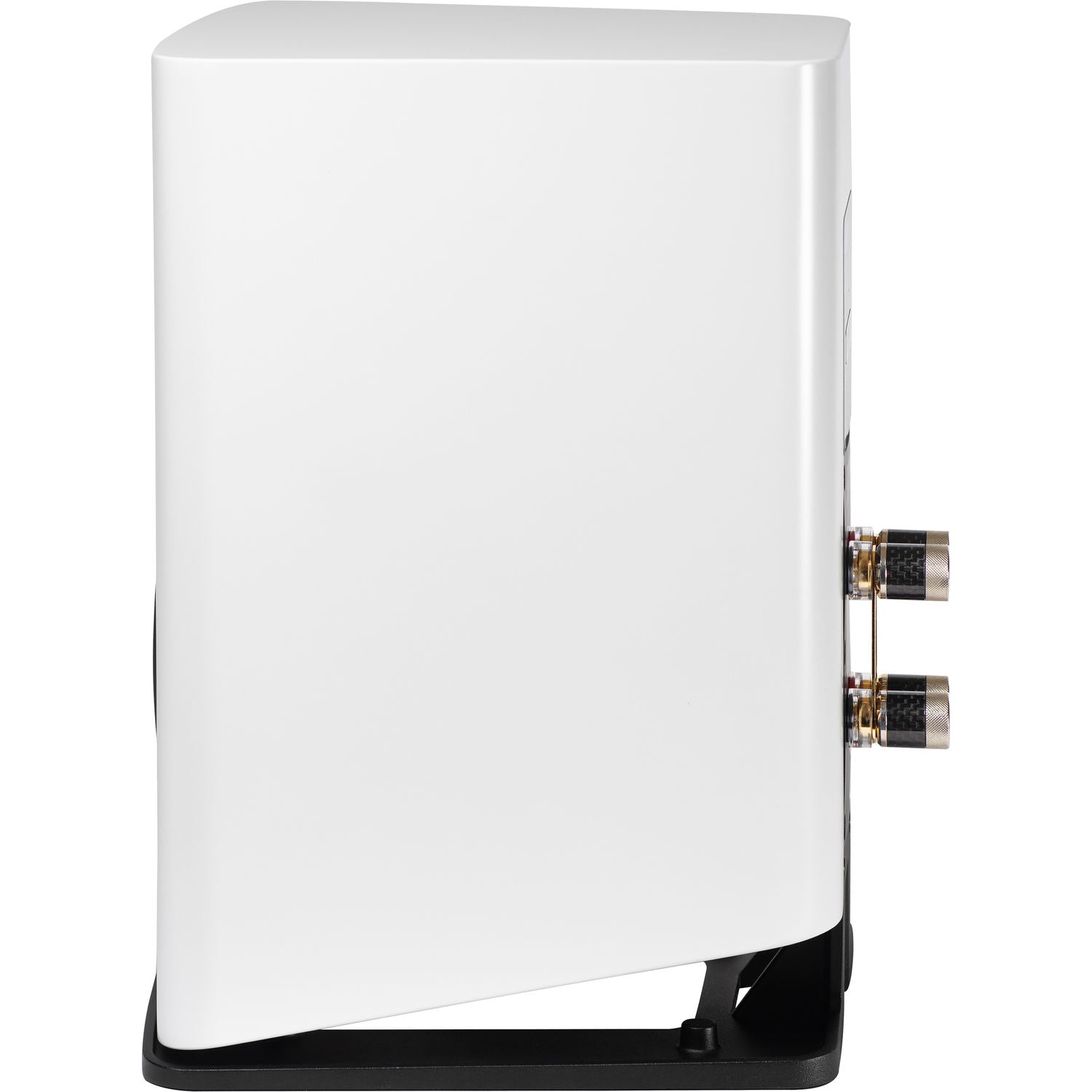

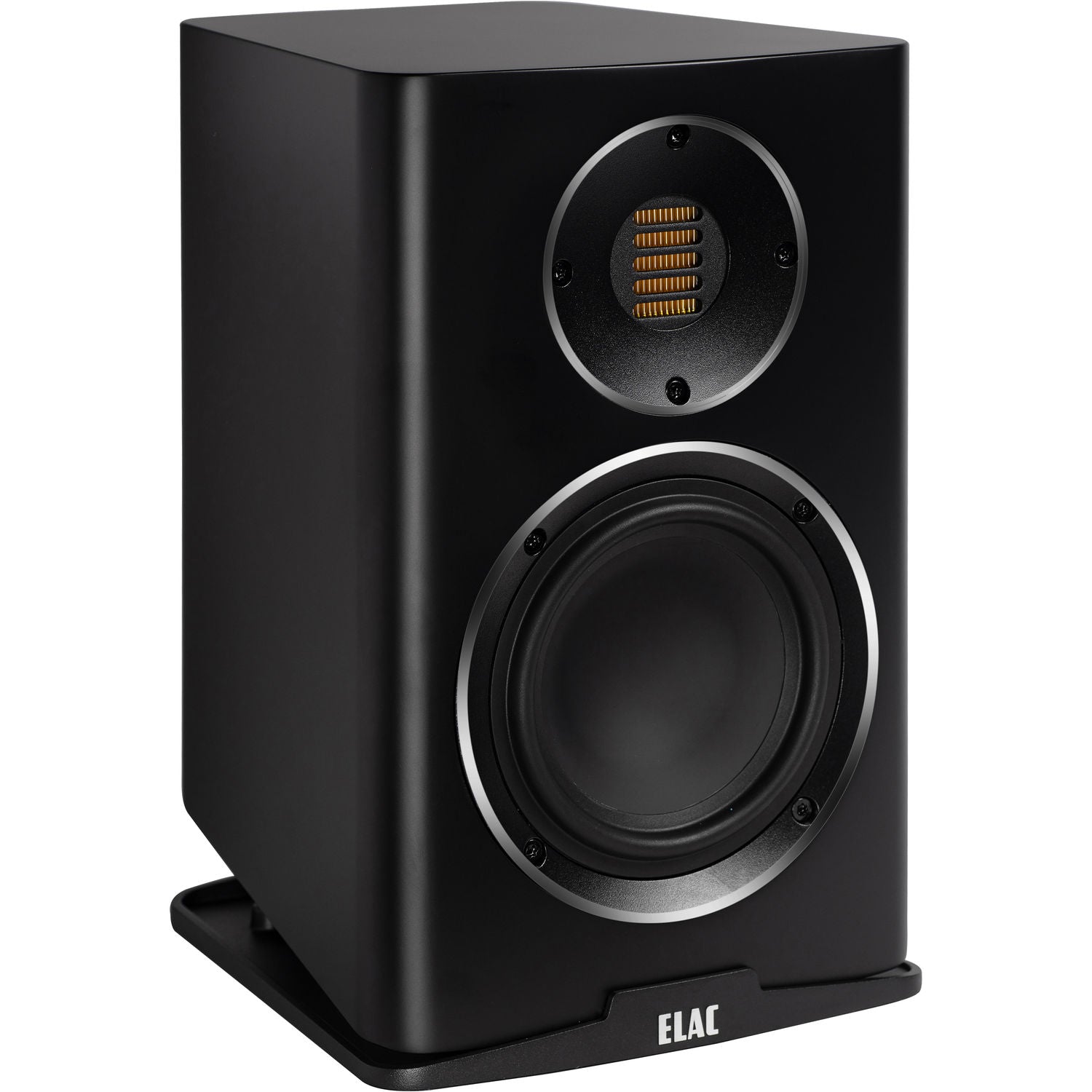

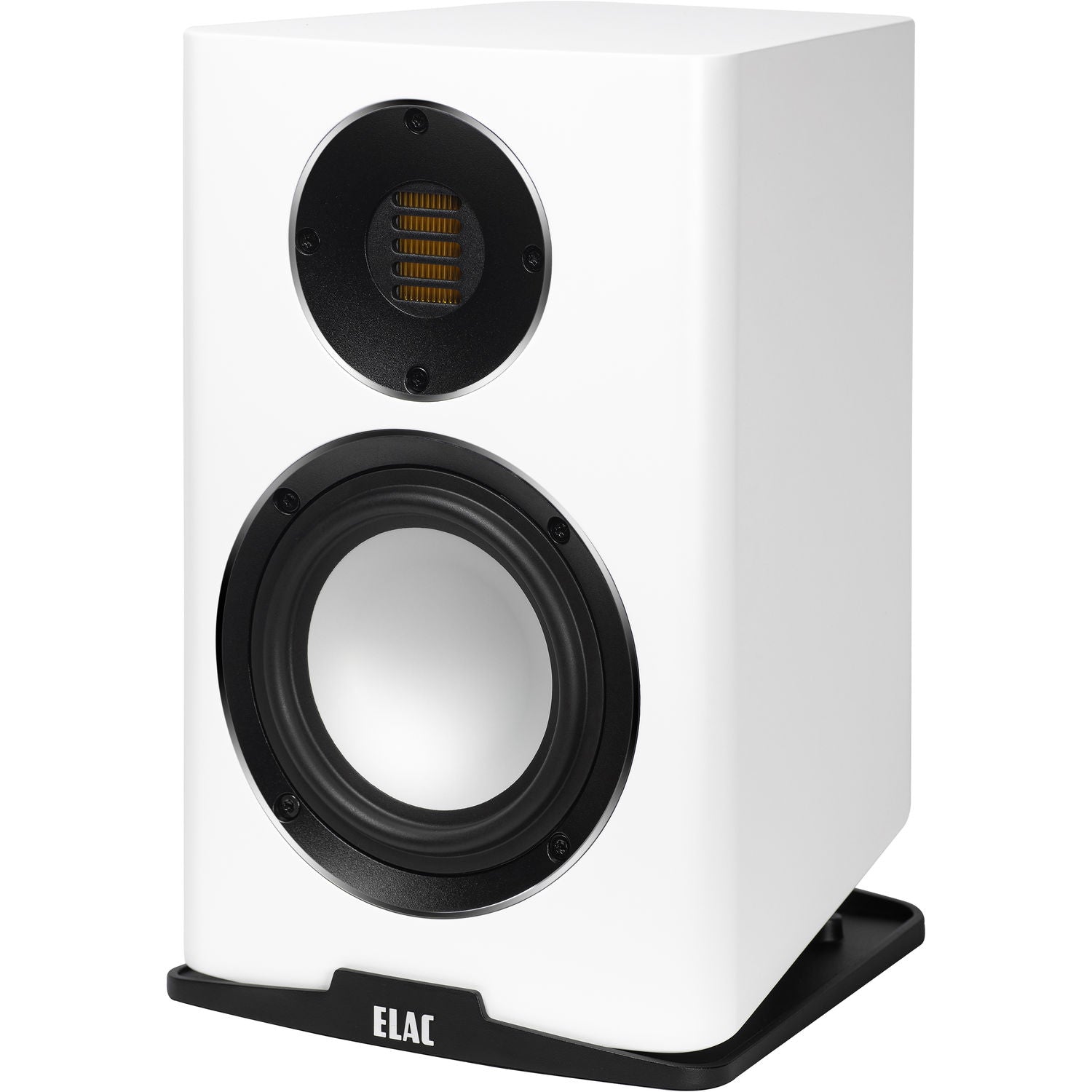

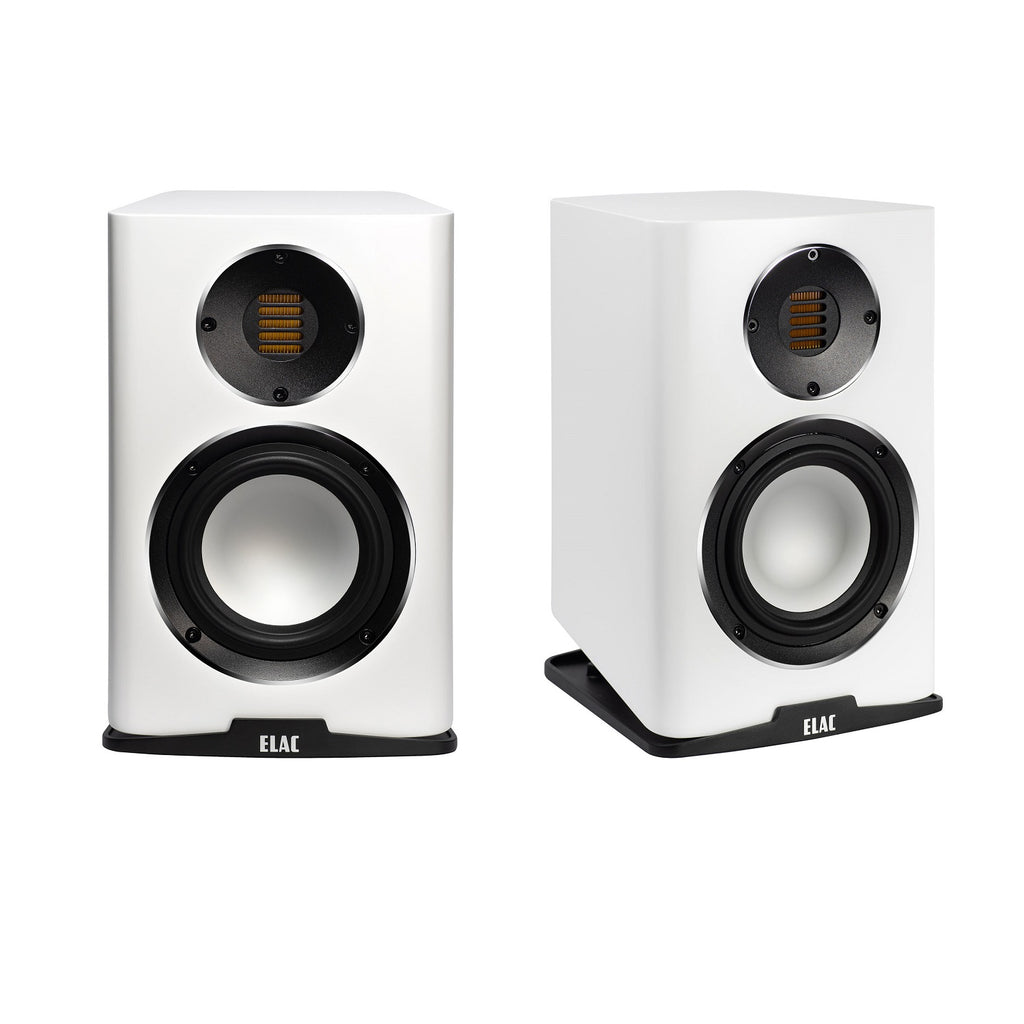

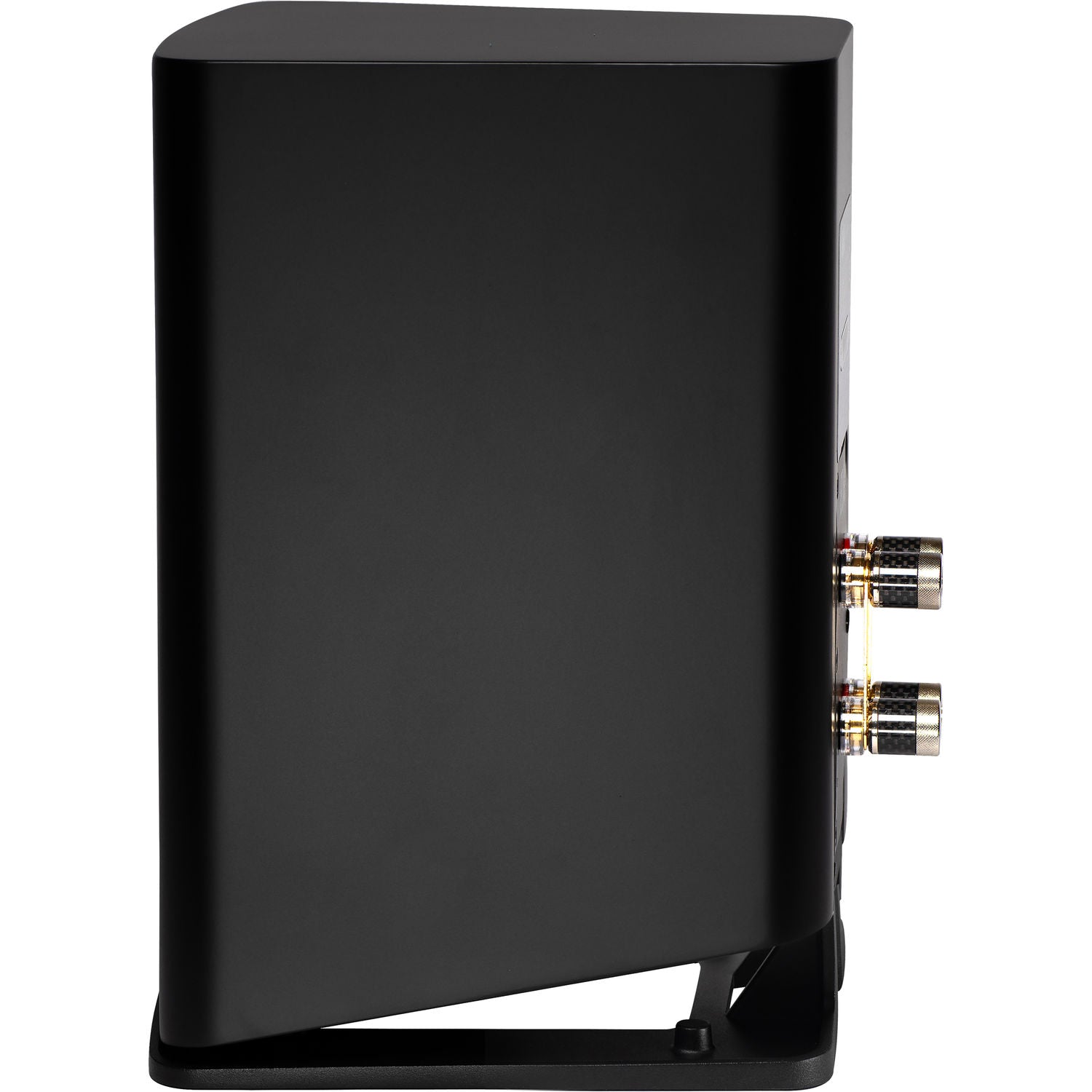

The Carina Bookshelf Speakers
Building upon its performance, Carina continues ELAC’s tradition of utilizing the JET tweeter, chosen for its amazing clarity, dynamics and attack. To match this capability, a new in-house developed proprietary compound curvature aluminum coned woofer is seamlessly blended via a sophisticated
multi-element xover to produce an organic life like sound experience. Fresh looks, fresh sound; the new Carina is destined to further enhance ELACs class leading reputation.
Type: 2-way Vented box
Woofer: 1 x Aluminum cone 5-1/4″
Tweeter: JET folded ribbon
Crossover frequency: 2.7kHz
Frequency range (IEC 268-5): 46Hz – 30kHz
Recommended amplifier power: 30 to 150 wpc
Peak power handling: 100W
Nominal | Minimum impedance: 6 Ohm / 4.8 Ohm
Finishes: Satin Black, Satin White
Net Weight (each): 14.73 lbs

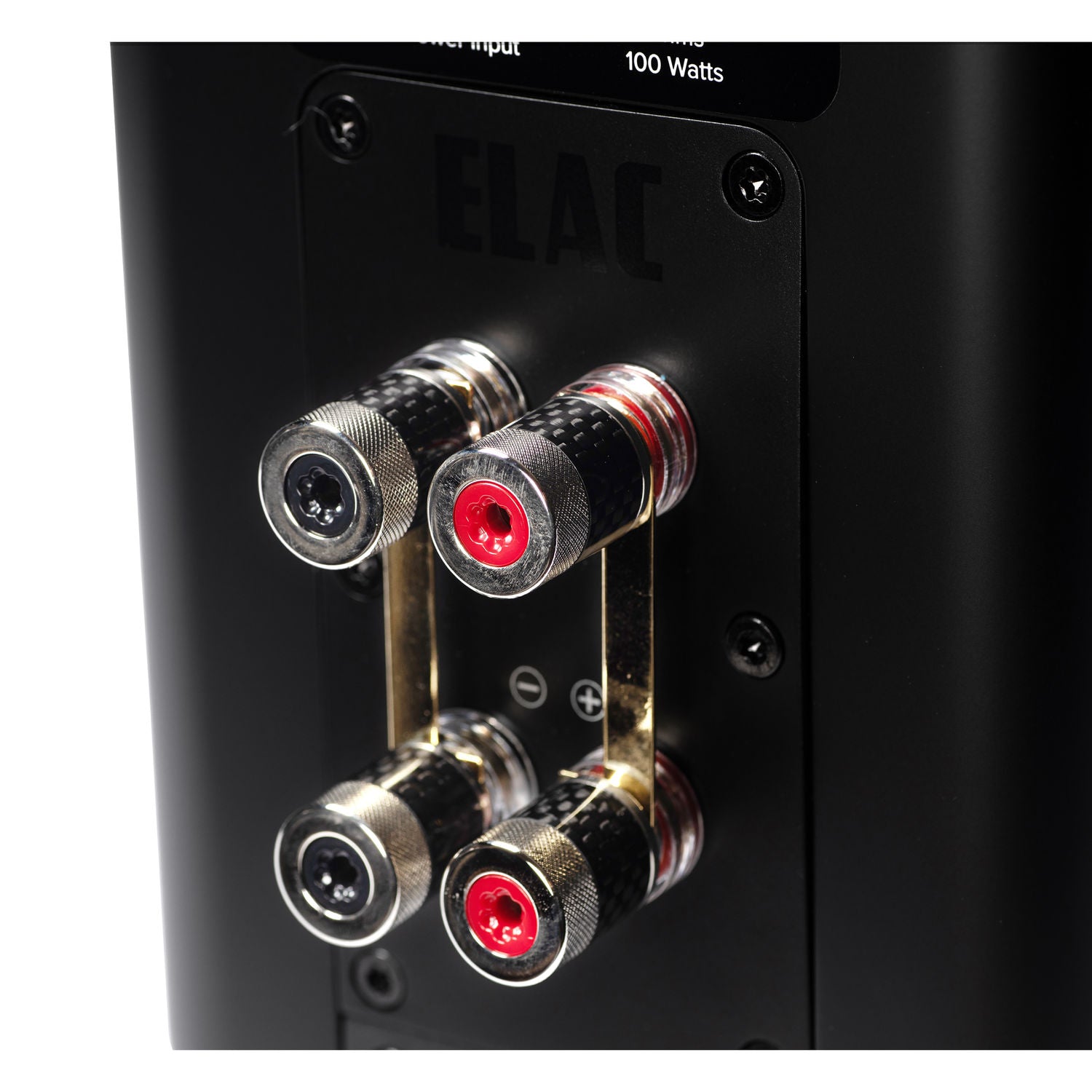

Dimensions (HxWxD): 12.54 x 08.06 x 8.54 (9.72 including speaker terminals)
The new Carina series matches fresh visual elegance with remarkable sound to bring you what promises to be a new classic in ELACs lineup.
JET Folded Air-Motion-Transformer
Delivering true high-definition sound, ELAC’s JET tweeters enthrall with its lightning-fast response and wide dynamic range, offering minimal distortion, lots of headroom and a wider frequency range. The ELAC JET tweeter is one of the most legendary tweeters in the industry and has won international praise with its transparent and effortless sound image.
Compound Curvature Aluminum Woofer
To match the capabilities of the JET tweeter and guarantee a seamless transition from the woofer to the JET tweeter, the compound curvature cone has been developed to control the cone breakup and move it well beyond the operating range of the woofer. A large diameter voice coil and over-sized vented pole piece magnet combine to give remarkable bass dynamics and a rich powerful performance.
Downward Firing Port
For a more flexible speaker placement and to minimize ventilation noise, the bass reflex port on the Carina series is directed to the floor, exiting the bottom of the speaker cabinet in a down-firing configuration.
Features & Specifications
3-way Vented box
1 x Aluminum cone 5-1/4″
1 x Aluminum Cone 5-1/4″
JET folded ribbon
100Hz / 3kHz
Frequency range (IEC 268-5):
50Hz – 30kHz
Recommended amplifier power:
30 to 200 wpc
Peak power handling:
Nominal | Minimum impedance:
6 Ohm / 4.8 Ohm
Satin Black, Satin White
Net Weight (each):
12.54 x 8.06 x 8.52 inches (319 x 216 x 245 mm)
