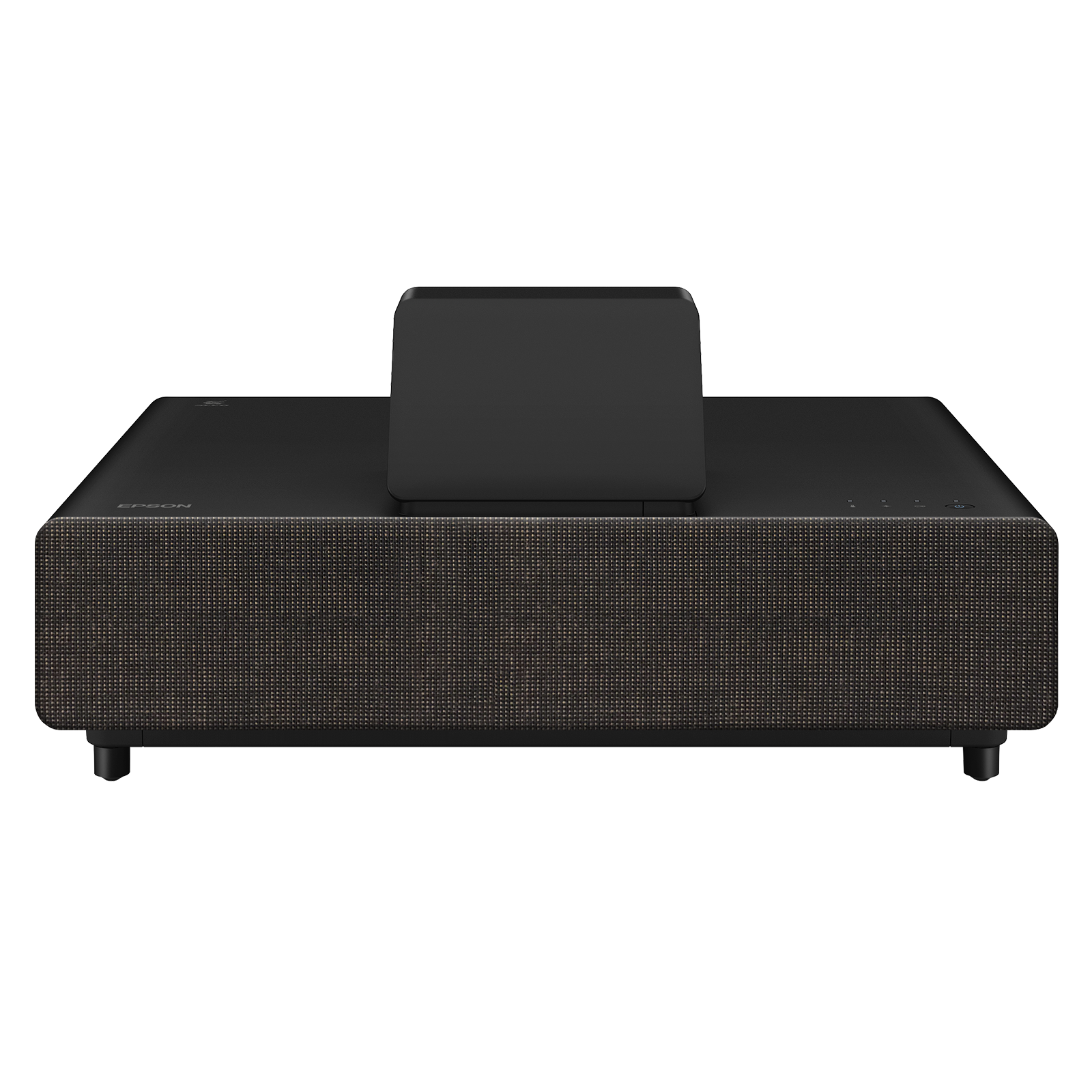

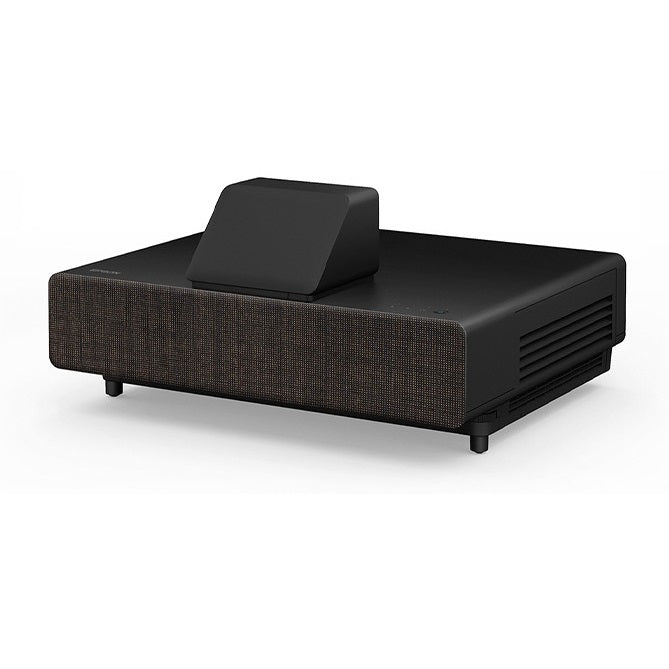

Open up the possibilities to bigger and more exciting home entertainment while keeping your home stylish, without a black screen permanently on the wall. The EH-LS500B is distinctive in its discreet design, its visual performance and its ability to project from close to the display area. It's easy to set up, delivers a great picture in bright rooms and offers great value with a long-life laser light source.
The big screen experience
Watch 4K content with this stylish and affordable 4K PRO-UHD1 projector. It can be placed very close to the projection area, while creating a 65" to 130" image. You can enjoy watching supersized content, without compromising on the look and feel of your home.
Stream content easily
Plug and play or stream 4K1 content via HDMI using your preferred streaming device. This projector has three HDMI inputs, two built-in 10w speakers and room to store a streaming device in a hidden bay at the front. Control the projector using either the included remote control or the iProjection app.
The complete picture
With a high brightness of 4,000 lumens and an incredible contrast ratio of 2,500,000:1, this projector delivers vivid, lifelike content and defined shadow detail with deeper blacks. Epson's 3LCD technology means its projectors have up to three times brighter colours, than comparable 1-chip DLP projectors2. The Detail Enhancement technology delivers sharp and smooth images, ensuring you don't miss a moment of the action.
See beyond resolution
With Epson's 4K PRO-UHD1 projectors, you get a holistic approach to image performance over and above the ability to receive, process and project 4K1 content. Great images are the result of a combination of technologies coming together, including equal colour and white brightness, 3LCD technology, contrast control, HDR10 and colour processing.
Epson's ultra-short-throw (UST) projectors can be placed a few centimetres away from the display, which gives much more flexibility as to where the projector is placed. This is different to most standard or long-throw projectors, which generally need to be placed several metres away.
Enjoy up to ten years2 of movies
Watch a movie every day on the big screen for the next ten years2 thanks to its incredibly long-life laser light source that minimises replacements. Epson projectors are known for their reliability, so you don’t have to worry about missing a minute of your favourite film, game or programme.
Brighter, vivid projection
White brightness alone cannot bring the true colours you see everyday to life. The 3LCD technology found in Epson’s projectors delivers an equally high white and Colour Light Output (CLO), so that you can experience vivid and lifelike images.
1-chip and LED projectors can be subject to the ‘rainbow effect’, which describes how some people can see a disruptive flicker in fast-moving images. Ensuring smooth images, Epson’s projectors use 3LCD technology, which means that the ‘rainbow effect’ can never occur.
- 4K PRO-UHD1 laser ultra-short throw: Watch 4K content and place this stylish model close to the display area
- Movies, box sets and gaming: Set the size of the display between 65 - 130" to suit what you watch
- Simple to use: Three HDMI inputs and space for streaming devices
- Bright colours: Equally high White and Colour Light Output
- Watch content every day for 10 years3: Long-life laser light source of 20,000 hours in Eco mode
Features & Specifications
Product features and specifications are subject to change without prior notice.
3LCD Technology, RGB liquid crystal shutter
0.62 inch with C2 Fine
Color Light Output
4,000 Lumen- 1,200 Lumen (economy)
White Light Output
4,000 Lumen - 1,200 Lumen (economy)
4K PRO-UHD, 16:9
2,500,000 : 1
Laser Light source
20,000 hours Durability High
Manual vertical: ± 3 °, Manual horizontal ± 3 °
Colour Video Processing
2D Vertical Refresh Rate
192 Hz - 240 Hz
3D Vertical Refresh Rate
400 Hz - 480 Hz
Upto 1.07 billion colours
0.27 - 0.37:1
Digital, Factor: 1 - 1.35
65 inches - 120 inches
Projection Distance Wide/Tele
0.4 m - 0.82 m
Projection Lens F Number
Projection Lens Focal Length
Projection Lens Focus
8 : 1
USB Display Function
2 in 1: Image / Mouse
USB 1.1 Type A, USB 2.0 Type Mini-B, RS-232C, Wireless LAN b/g/n (2.4GHz) (optional), Stereo mini jack audio out, HDMI (HDCP 2.2) (3x)
Epson iProjection App
Ad-Hoc / Infrastructure
Kensington lock, Security cable hole
2D Colour Modes
Dynamic, Cinema, Bright Cinema
3D Colour Modes
3D Dynamic, 3D Cinema
3D Supported formats
Side by side, Top and bottom
3D depth adjustment, 4K enhancement, Automatic keystone correction, Built-in speaker, Digital zoom, Direct Power on/off, Frame interpolation, Game mode, Home Screen, Horizontal and vertical keystone correction, Long light source life, Wireless LAN capable
Video Color Modes
Cinema, Dynamic, Game, Bright Cinema
via: AMX, Crestron, Control4
366 Watt, 230 Watt (economy), 0.5 Watt (standby), On mode power consumption as defined in JBMS-84 293 Watt
AC 100 V - 240 V, 50 Hz - 60 Hz

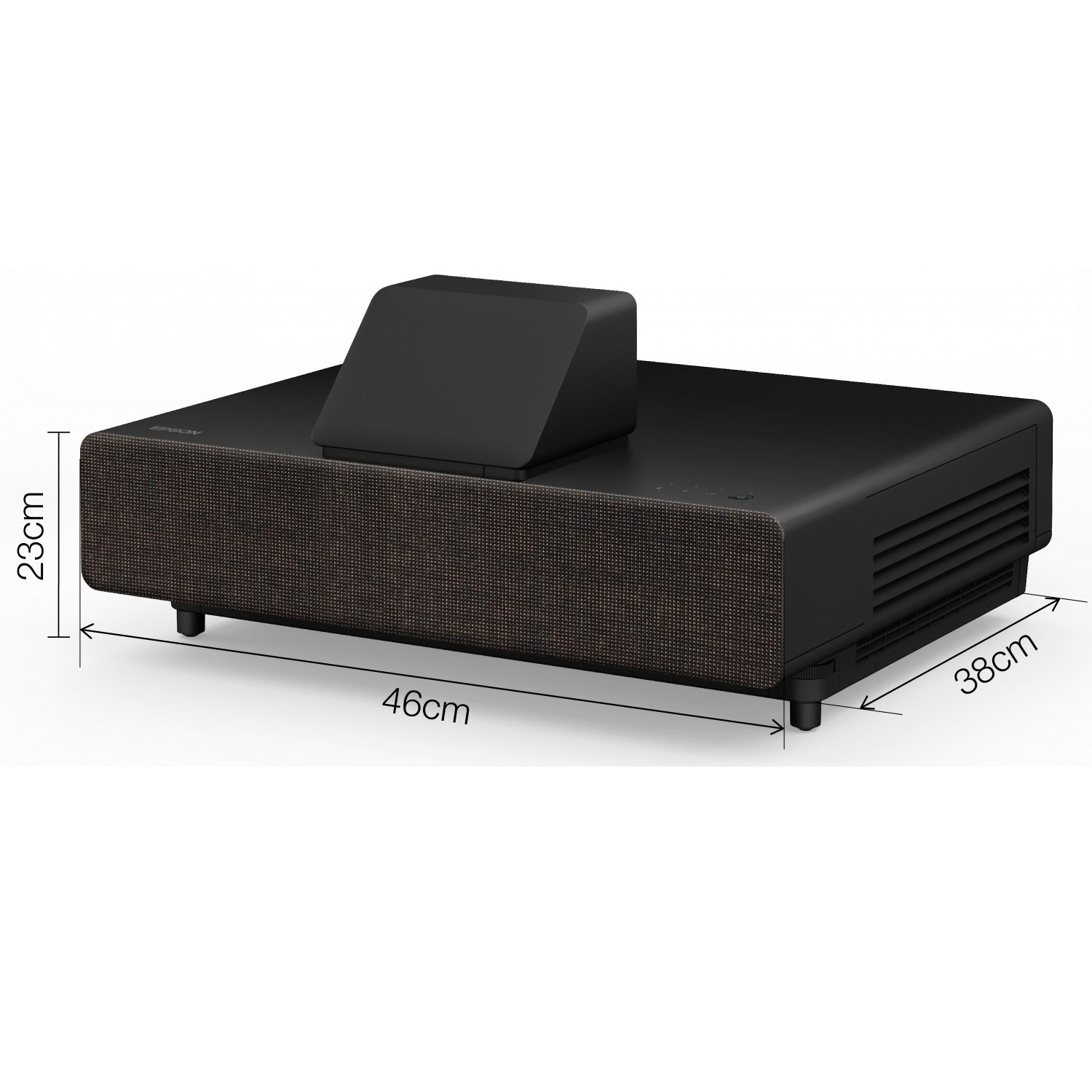

458 x 375 x 228 mm (Width x Depth x Height)
Normal: 37 dB (A) - Economy: 23 dB (A)
Operation 5° C - 35° C, Storage -10° C - 60° C
Operation 20% - 80%, Storage 10% - 90%
10 Watt, Stereo: Stereo
What's in the box
CD Manual, Main unit, Power cable, Quick Start Guide, Remote control incl. batteries, Warranty document
Room Type / Application
4K Gaming, 4K Streaming, Gaming, Home Cinema, Home Photo, Sports, Streaming, TV & Box sets
Desktop, TV Cabinet
