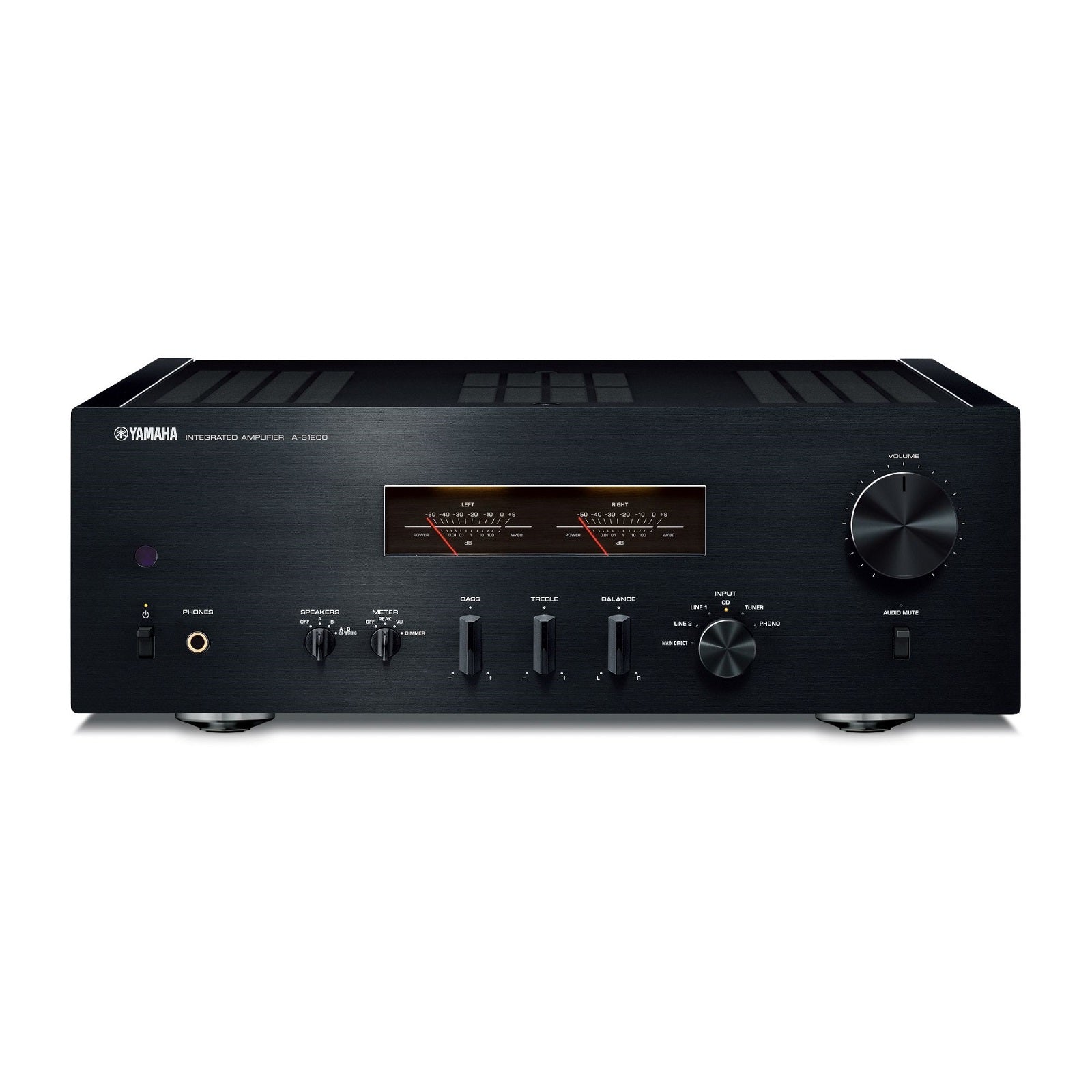

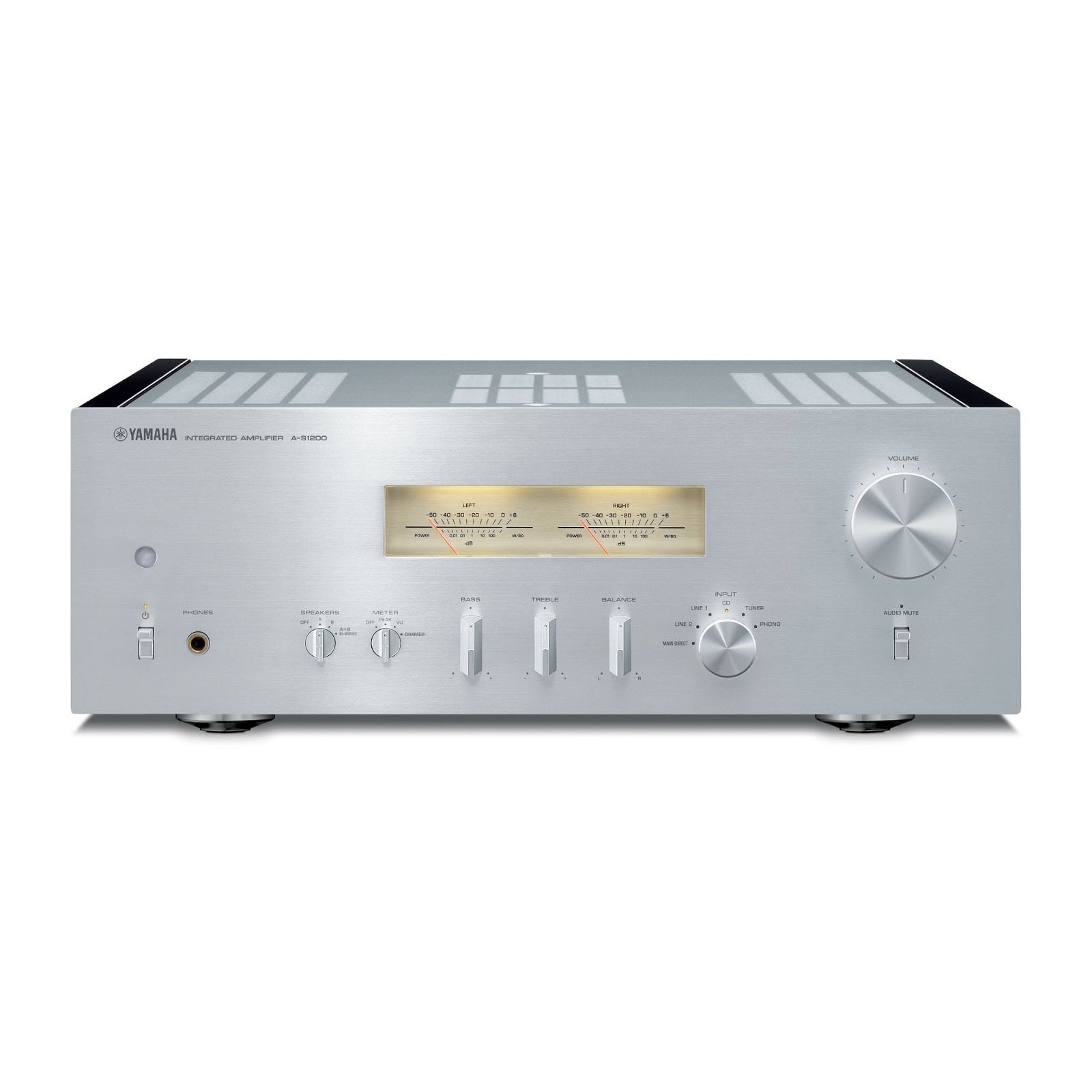

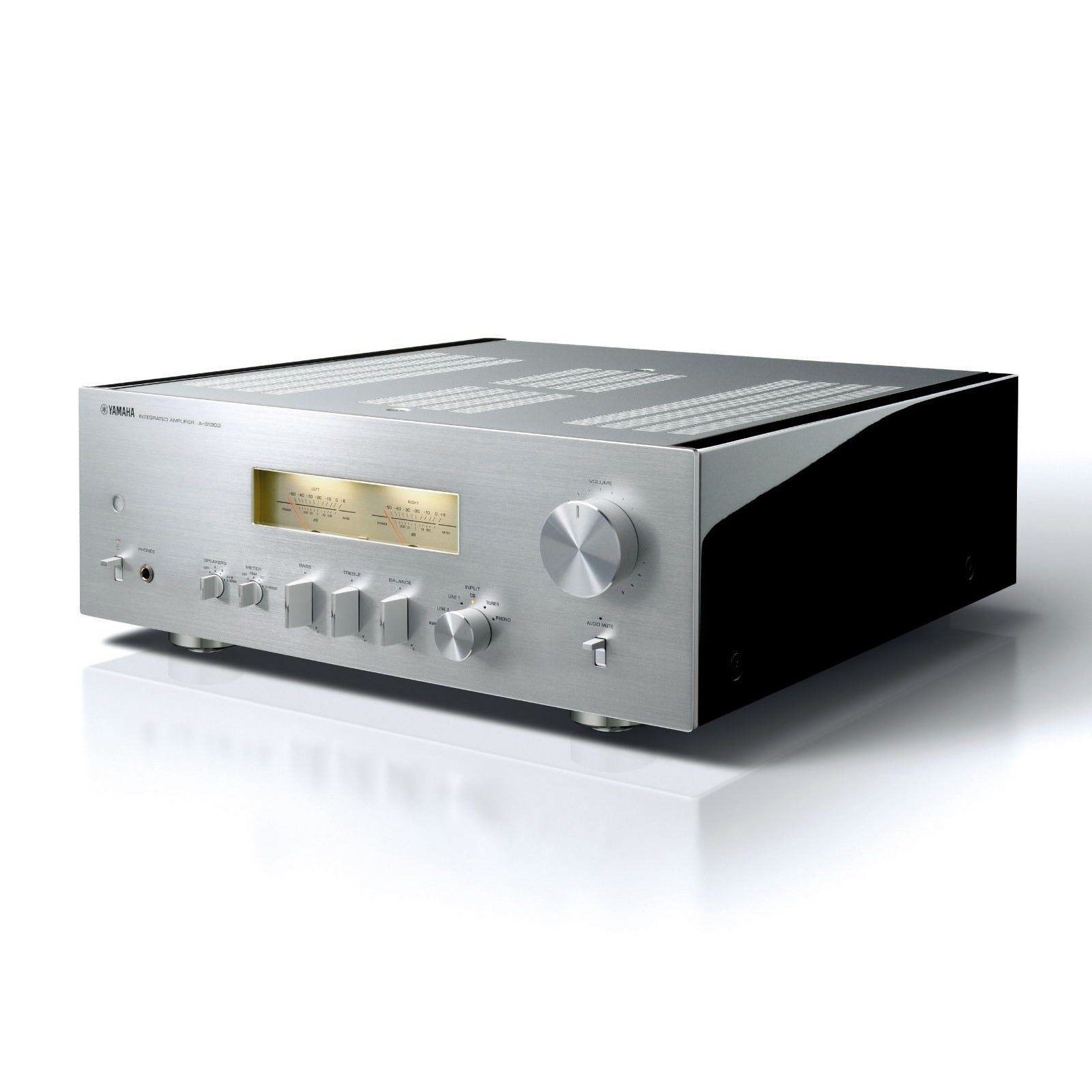

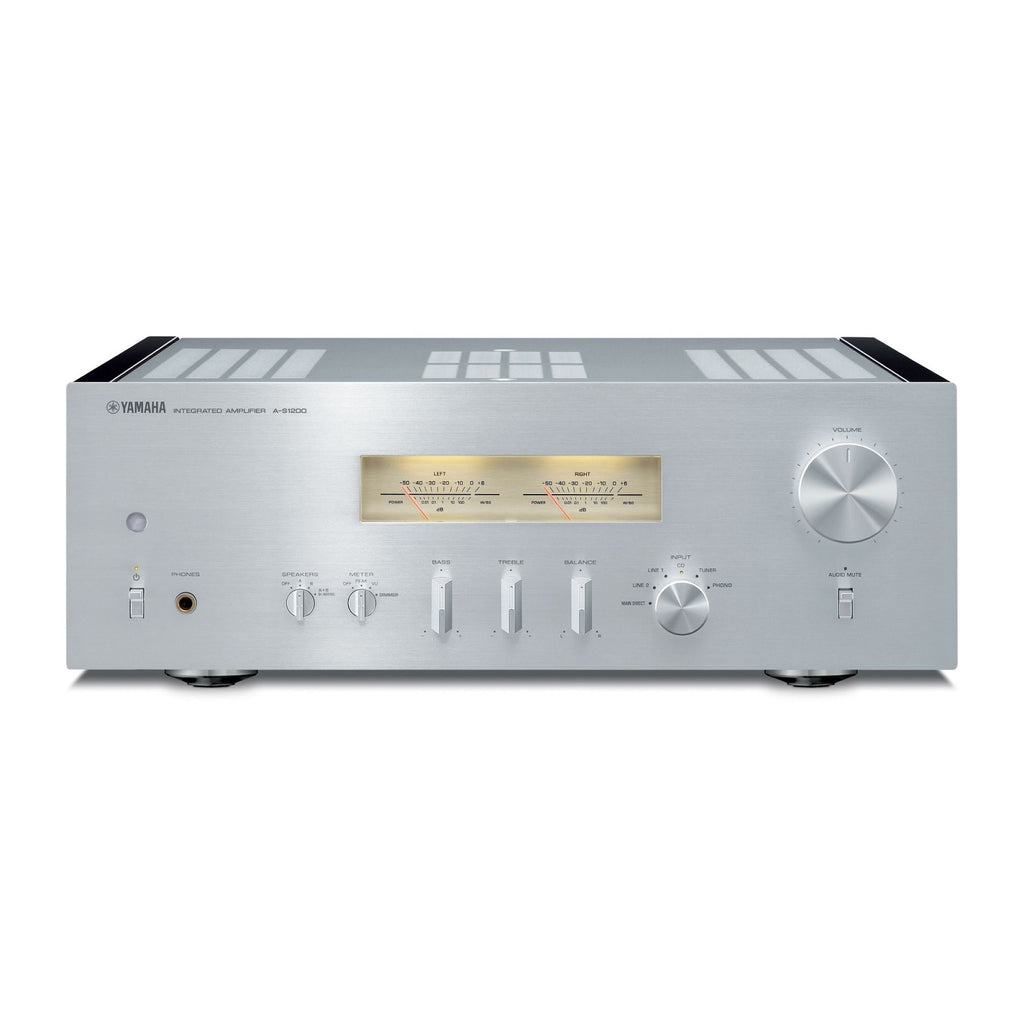

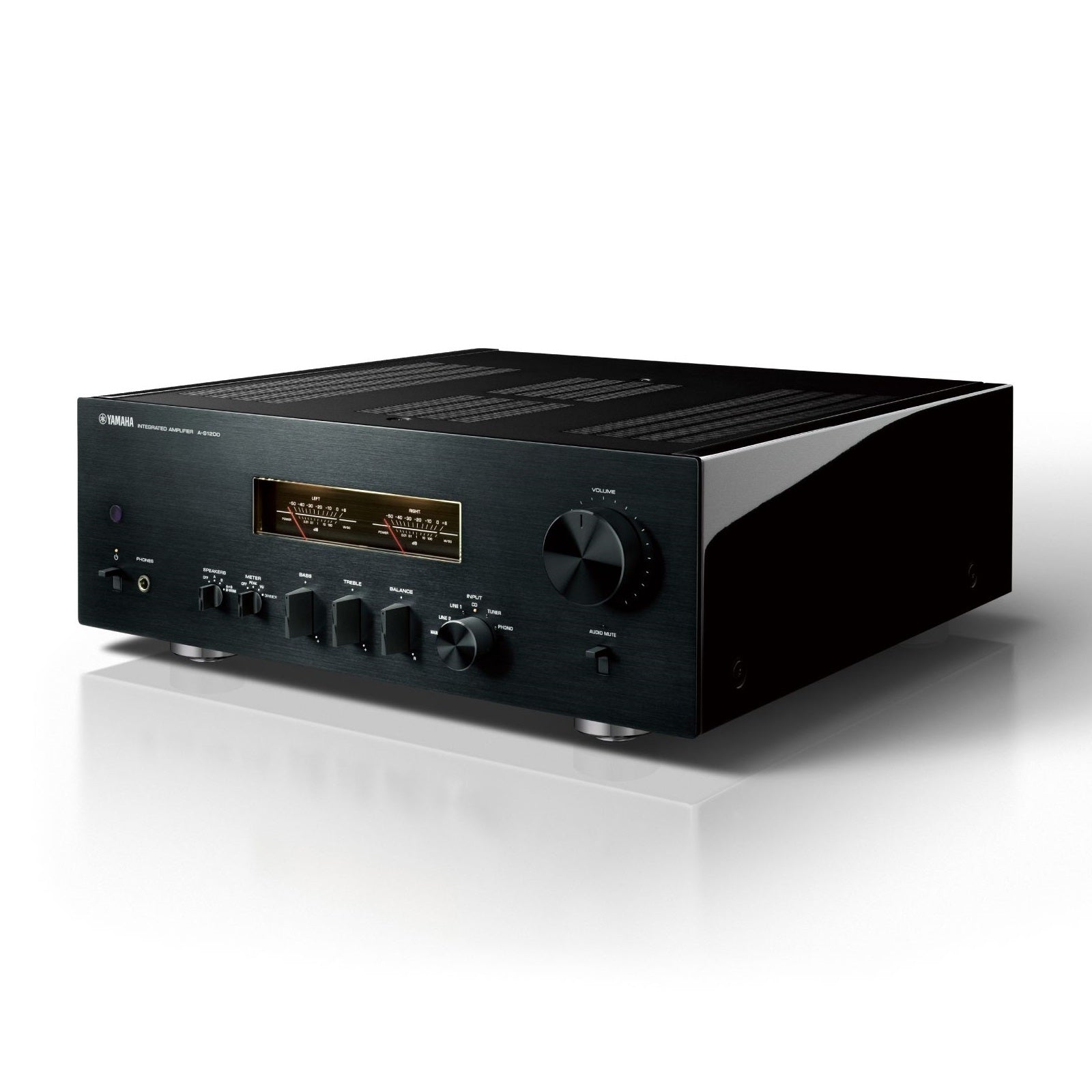

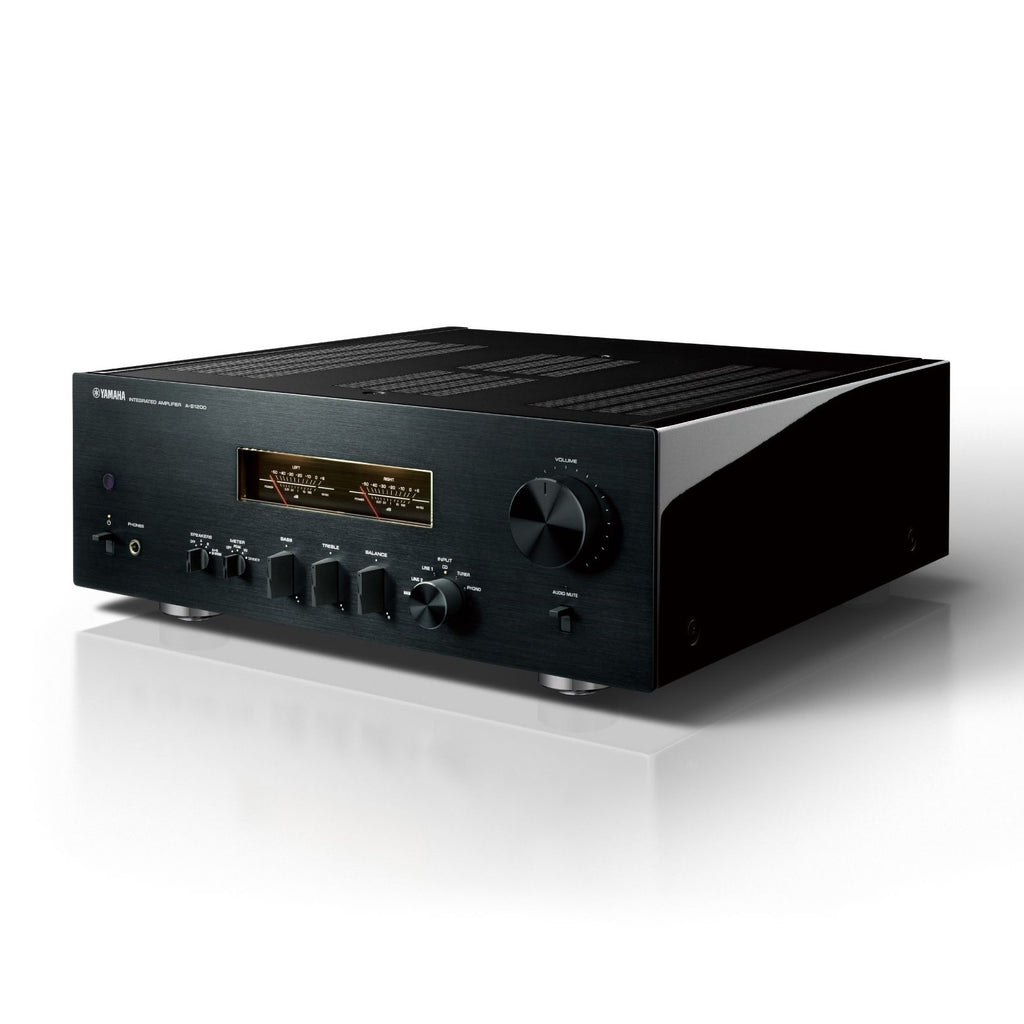

Yamaha A-S1200 Stereo 180W Integrated Amplifier

New at HeyNow
filler

Colour: Black
Price:
Sale priceA$3,499.00
Java Not Enabled

Tax included. 🚚 FREE SHIPPING on all orders

Description

A-S1200 Integrated Amplifier

Acknowledging the golden era of Hi-Fi with its beautiful design, the A-S1200 boasts an impressive array of the latest technology to accurately deliver an emotional, purely musical sound.

  • High quality components delivering exceptional musical expression
  • Toroidal power transformer with enormous energy for a pure musical sound
  • Gorgeous level meters convey dynamics and music pulse with a nod to the nostalgic Hi-Fi era
  • Floating balanced power amplifier
  • Mechanical ground concept maximizes rigidity for expressive and rhythmic bass

Nostalgic Hi-Fi design. Today's Hi-Fi technology.

A nod to the past with the latest technology for a purely musical sound.

EMOTION



Understanding music is to understand the emotion upon which music is created – the passion and story behind the music that drives artists to create. With unmatched experience in every facet of music creation, embedded deep in the Yamaha DNA is an intimate understanding of the emotional essence of music and music creation. Conveying the artists’ emotion through our Hi-Fi equipment is a fundamental component of the Yamaha design philosophy.

Toroidal Transformer

Usually reserved for flagship Hi-Fi components, the A-S1200 benefits from the technical proficiency and absolute musicality of a toroidal transformer. Combined with an array of high-end Hi-Fi features and components, the toroidal transformer assists in ensuring the musical emotion is conveyed to the listener.

Gorgeous Level Meters

The level meters are both a nod to the nostalgic era of Hi-Fi, while simultaneously demonstrating the return of pure Hi-Fi for today’s discerning enthusiast. Visually presenting the dynamics and pulse of the music, the level meters imbue a warm feeling through their softly illuminated LEDs.

OPENNESS

An open sound stage presents the listener with a musical experience that is similar to being at the live performance. True Hi-Fi delivers this openness in the sound, transforming the listeners’ musical experience, bringing them closer to the artist.

Thick Wires for Ground Connection

Our low Impedance concept, aided by the thick wires for ground connection, is critical for componentry adopting the badge of premium Hi-Fi. This Yamaha design concept begins in our premium Hi-Fi components with the A-S1200, helping to present an open, natural sound stage, bringing the artist and listener closer together.

Original Speaker Terminals

Cut directly from pure brass, the luxurious speaker terminals comfortably fit the human hand for effortless tightening, achieving a highly secure connection.

GROOVE

Connection with the music is achieved with the underlying groove and rhythm. A true representation of the music lets the listener feel the groove, and therefore not just hear the music but feel the story behind the music.

Mechanical Ground Concept

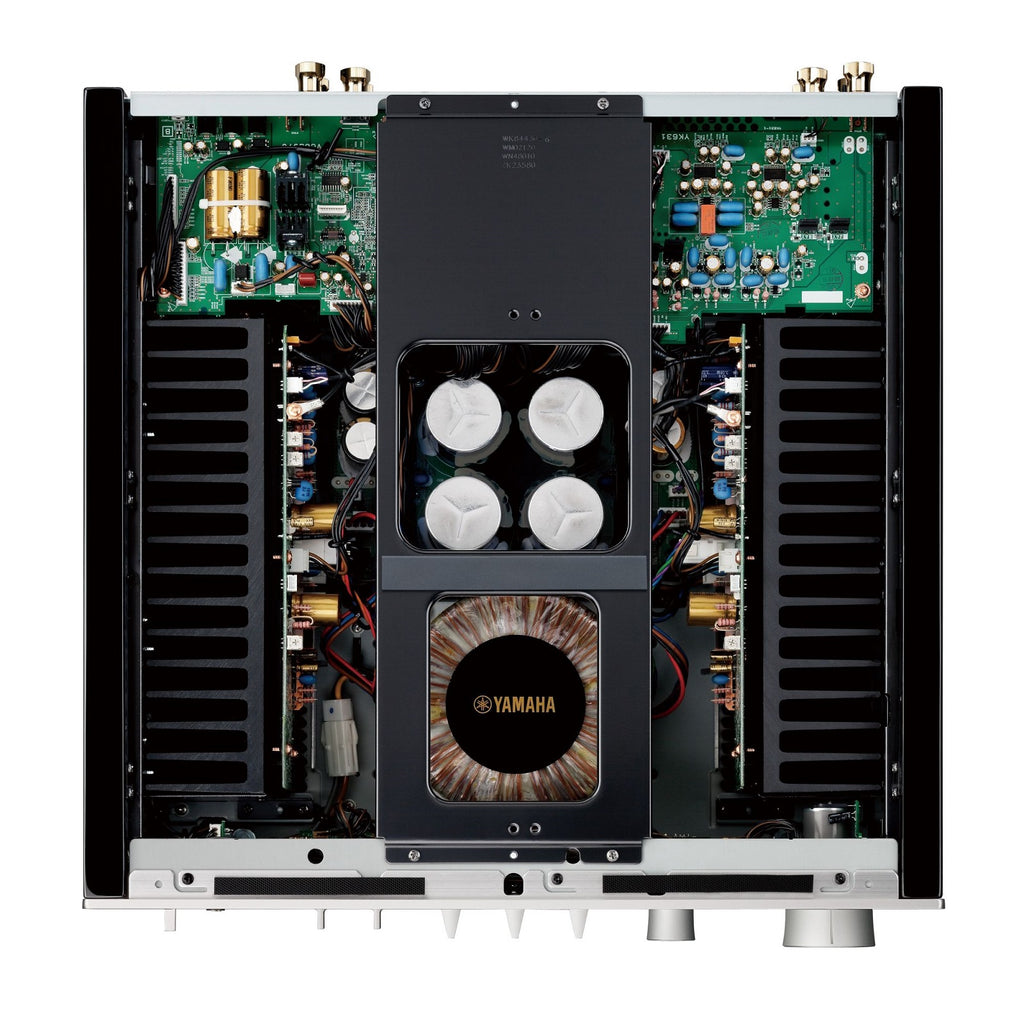

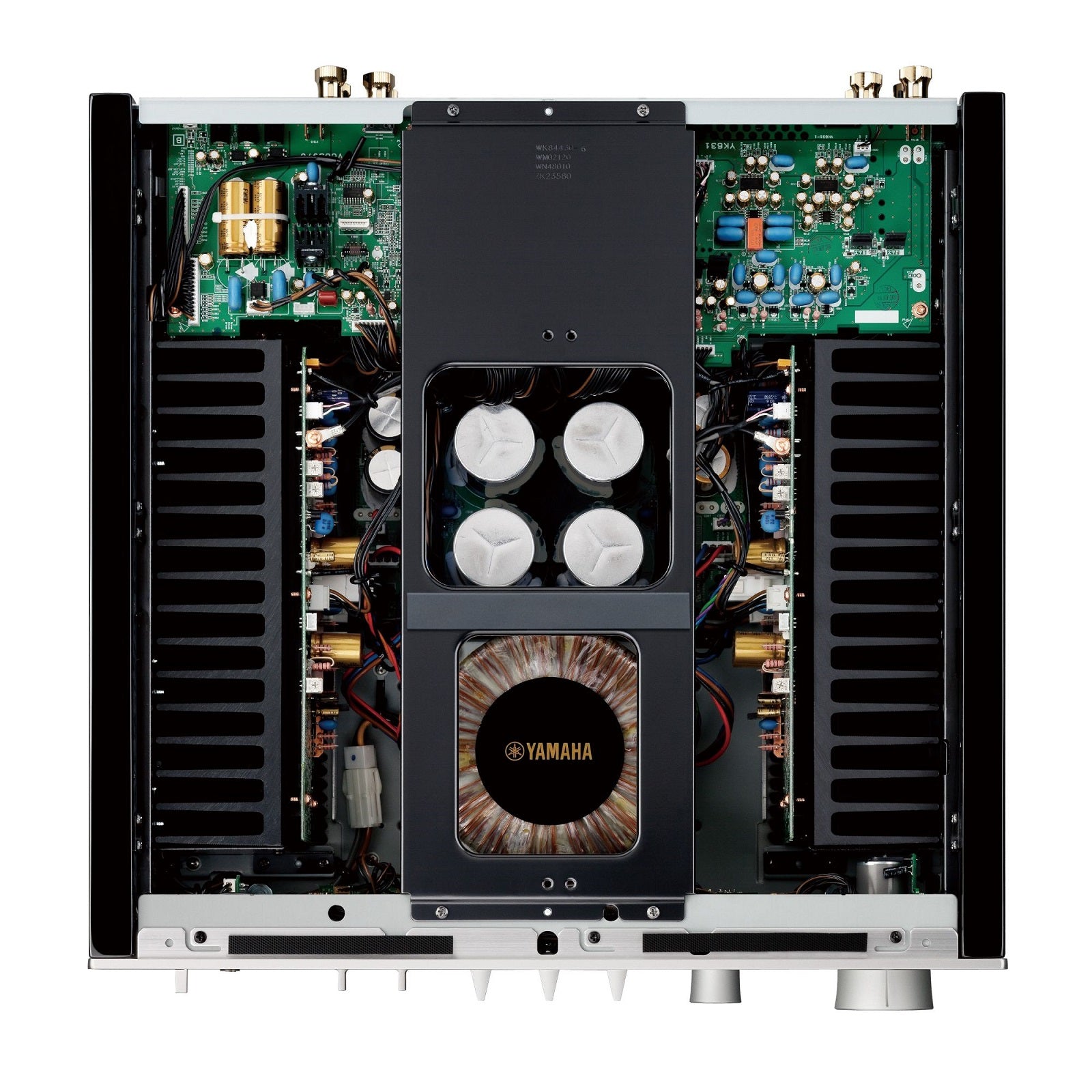

The A-S1200 adopts a Mechanical Ground Concept, inherited from both the A-S2200 and A-S3200. The concept begins with the bolts of the feet welded directly to the main chassis, followed with the large heat sink, power transformer and block capacitors also directly bolted to the chassis. Through this design, unwanted vibration is avoided, achieving expressive and rhythmic bass, presenting the ‘Groove’ of the music to the listener.

Chrome-Plated Iron Feet

Completing the rigidity of the amplifier are the heavy-duty chrome-plated iron feet.

Yamaha A-S1200 Specs

Amplifier

Configuration Stereo
Power Output per Channel Up to 90 W @ 8 Ohms, 20 Hz to 20 kHz, 0.07% THD
Up to 150 W @ 4 Ohms
Headphone Output: Up to 25 mW @ 32 Ohms, 1 kHz, 0.2% THD
Dynamic Power per Channel 105 W @ 8 Ohms
135 W @ 6 Ohms
190 W @ 4 Ohms
220 W @ 2 Ohms
Effective Output Level Maximum, JEITA, 1 kHz, 10% THD, 8 Ohms: 2 x 120 W
Maximum, JEITA, 1 kHz, 10% THD, 4 Ohms: 2 x 190 W
Total Harmonic Distortion MC Phono to Line 2 Out: 0.02% (1.2 VRMS)
Phono to Line 2 Out: 0.005% (1.2 VRMS)
All Inputs Except Phono to Speaker Out: 0.035% (50 W / 8 Ohms)
Frequency Response 5 Hz to 100 kHz (+0, -3 dB)
20 Hz to 20 kHz (-0, -0.3 dB)
Damping Factor ≥250 (1 kHz, 8 Ohms)
Power Bandwidth 8 Ohms, 0.1% THD, 45 W, 2 Channels Driven: 10 Hz to 50 kHz
Tone Control Bass Boost/Cut: 50 Hz, ±9 dB
Bass Turnover Frequency: 350 Hz
Treble Boost/Cut: 20 kHz, ±9 dB
Treble Turnover Frequency: 3.5 kHz

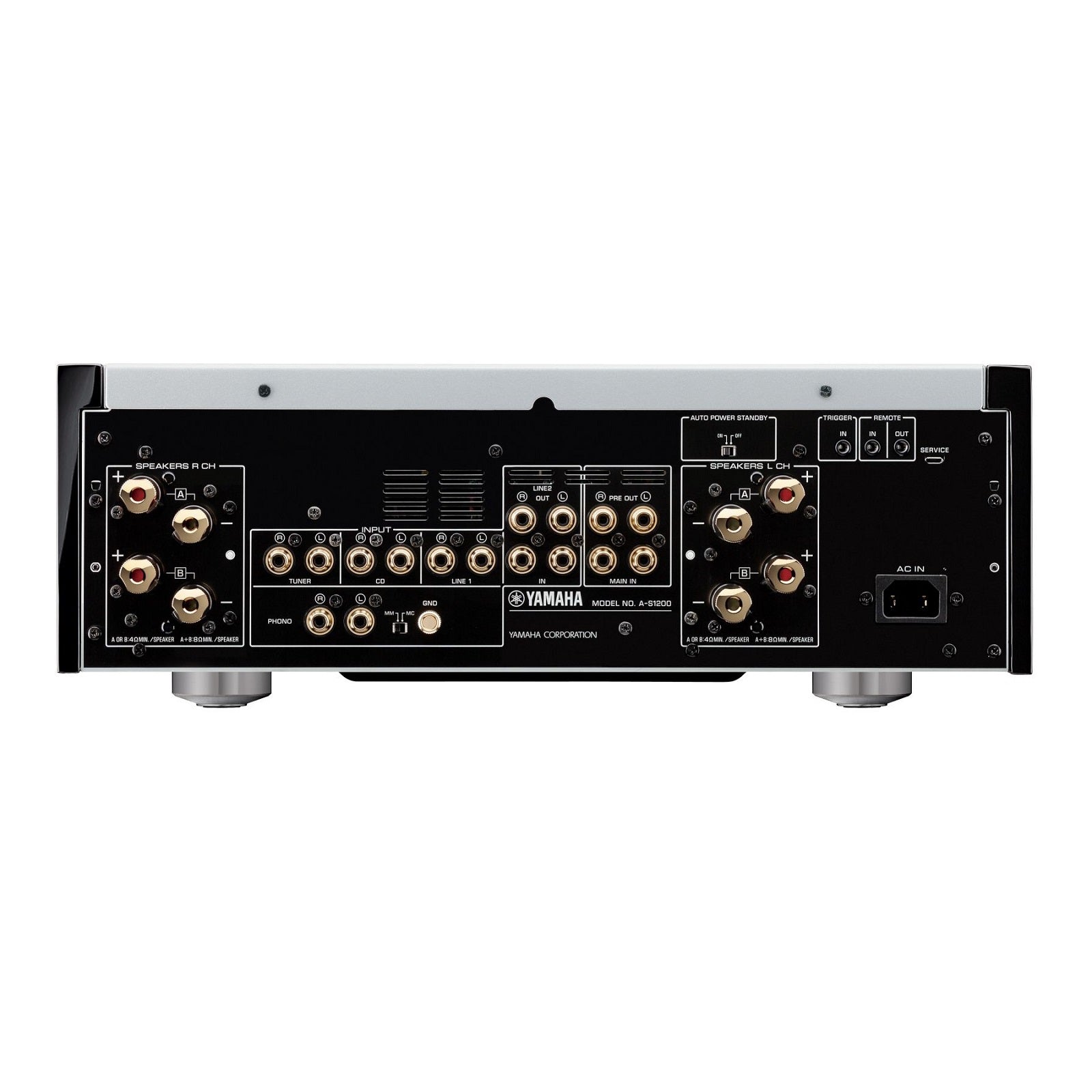

Connectivity

Inputs 6 x Stereo RCA Pairs (1 Phono with Ground Screw)
Output 1 x Stereo RCA Pair
1 x Stereo RCA Pre-Out Pair
1 x 1/4" / 6.35 mm Headphone (Front)
Speaker Connectors 4 x Binding Post Pairs (A/B)
Other Connectors 1 x 1/8" / 3.5 mm 12 V Trigger In

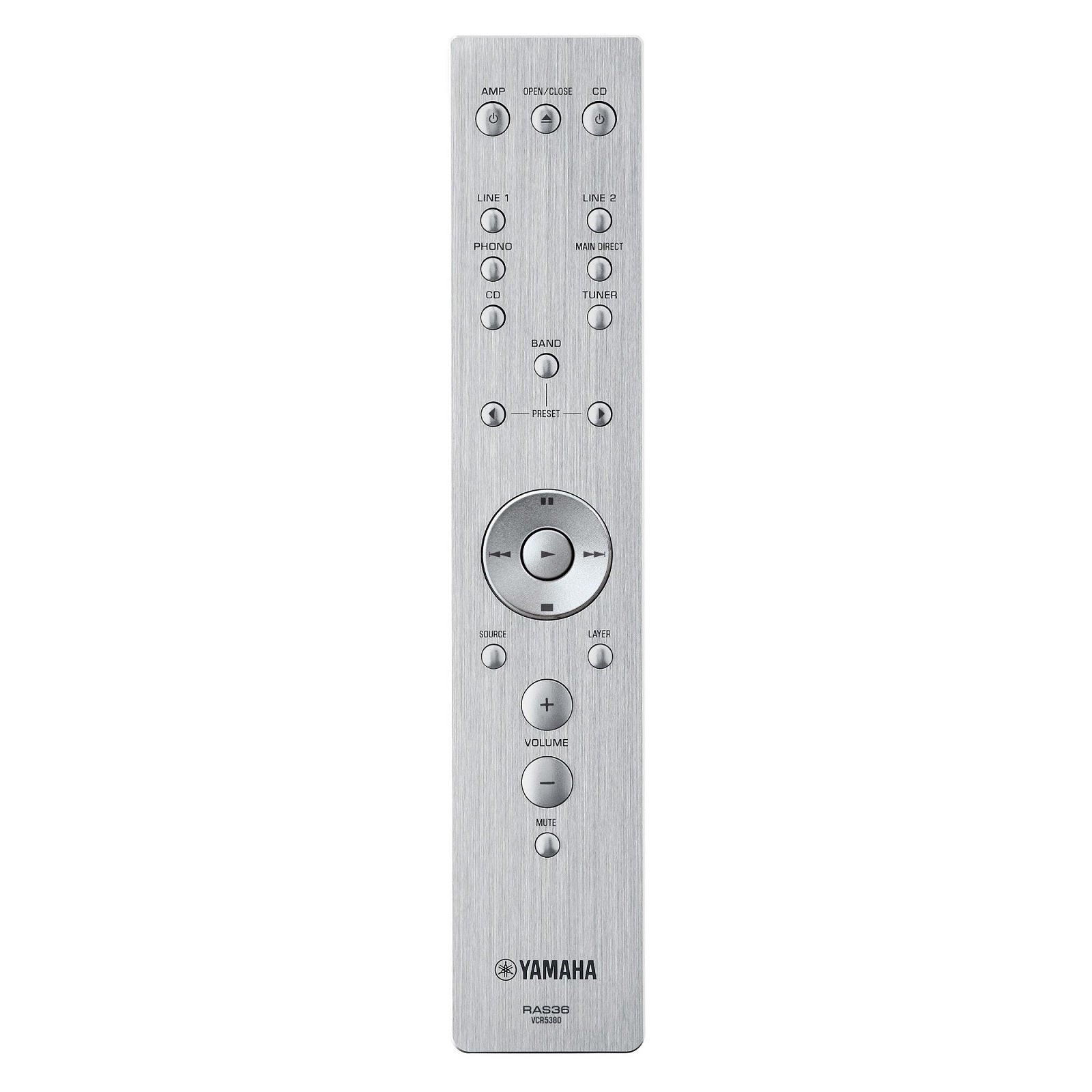

1 x 1/8" / 3.5 mm Remote In
1 x 1/8" / 3.5 mm Remote Out
1 x Micro-USB Service In
Input Sensitivity Phono MC Input: 150 μVRMS / 50 Ohms
Phono MM Input: 3.5 mVRMS / 47 Kilohms
Main Input: 1 VRMS, 47 Kilohms
Other Inputs: 200 mVRMS, 47 Kilohms
Output Voltage Line 2 Out: 200 mVRMS / 1.5 Kilohms
Pre Out: 1 VRMS / 1.5 Kilohms
RIAA Equalization Deviation Phono MM/MC: ±0.5 dB
Signal to Noise Ratio Phono MC: 90 dB
Phono MM: 96 dB
Other Inputs: 110 dB
Residual Noise IHF-A Network: 50 μVRMS
Maximum Input Voltage Phono MC, 1 kHz, 0.5% THD: 2 mVRMS
Phono MM, 1 kHz, 0.5% THD: 50 mVRMS
Other Inputs, 1 kHz, 0.5% THD: 2.8 VRMS
Channel Separation Phono MC, JEITA, 1 kHz/10 kHz: ±66/77 dB
Phono MM, JEITA, 1 kHz/10 kHz: ±90/77 dB
Other Inputs, JEITA, 1 kHz/10 kHz: ±74/54 dB

Physical Specifications

Transformer 625 VA (Toroidal)
Power Requirements 120 VAC, 60 Hz
Operating Power Consumption 350 W
Standby Power Consumption Standby Mode: 0.2 W
Off Mode: 0.1 W
Dimensions (W x H x D) 17.13 x 6.18 x 18.23" / 435 x 157 x 463 mm
Weight 48.5 lb / 22 kg

Packaging Info

Package Weight 59.8 lb
Box Dimensions (LxWxH) 23.75 x 23.63 x 10.5"
