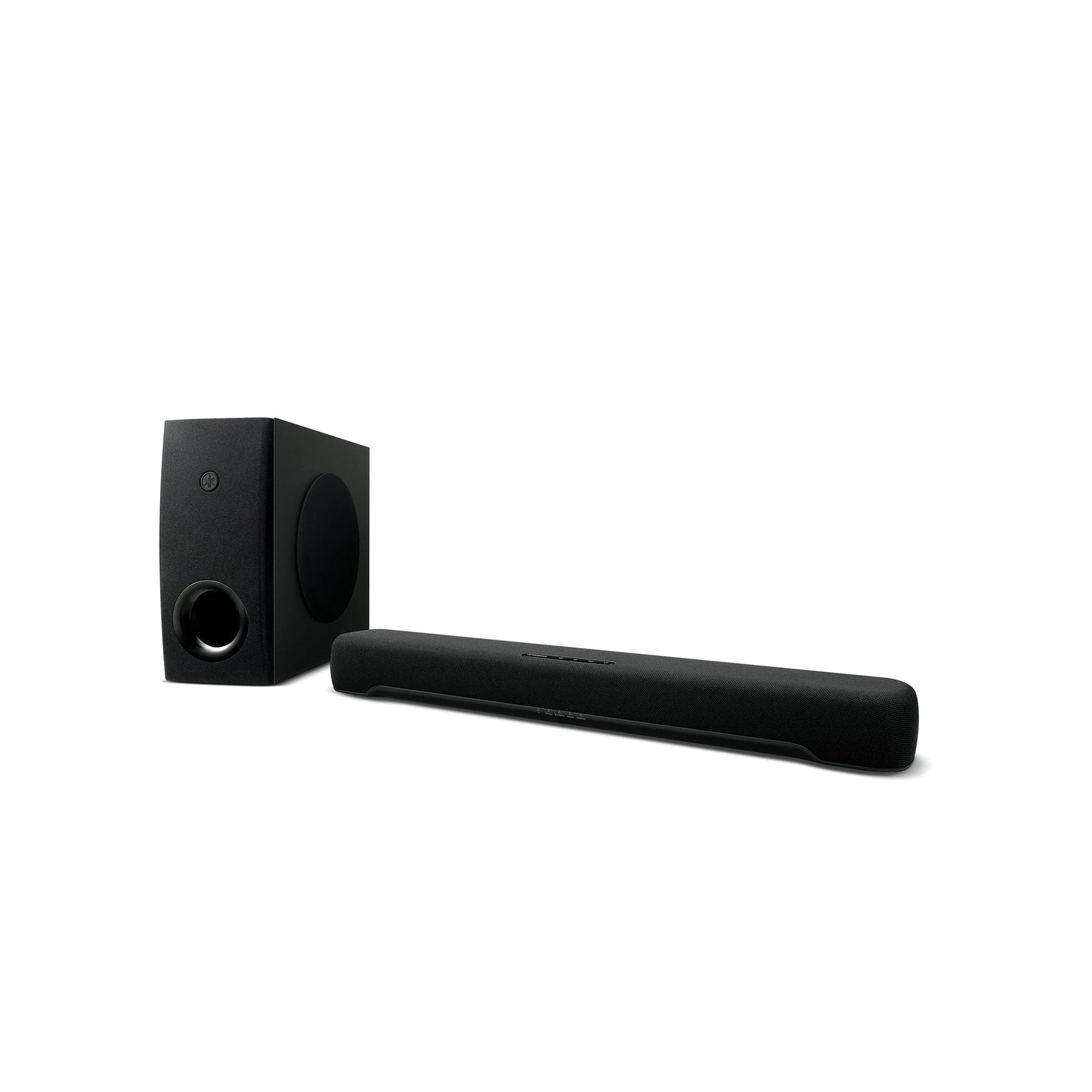

SR-C30A Compact Sound Bar and Wireless Subwoofer

• Compact center unit and subwoofer (CU: W600mm x H64mm x D94mm, SW: W335mm x H160mm x D364mm)
• Connectivity: Bluetooth®, HDMI™ (ARC), digital optical, and analog audio
• 4 sound modes: Stereo, Standard, 3D Movie, and Game.
• Clear voice for more audible human voices
• Dedicated app: Sound Bar Remote

GOOD ON SPACE AND ON SOUND

SR-C30A SUPERIOR SOUND

TRUE SOUND

The size of your screen isn't the only part of an immersive experience. Become truly immersed with sound from the SR-C30A.

WIRELESS AND SEAMLESS

What good is an explosion or superhero fight scene without the punch of bass? Powerful bass is what lets you feel the action. The SR-C30A includes a wireless subwoofer with a compact footprint, for bass you can feel and fit wherever you want.

PERFECTLY MATCHED SOUND

The original technology in the SR-C30A goes beyond conventional speaker directivity to create a breathtaking sound field that seems to be coming above the sound bar itself, from the center of the TV screen.

REALISM AT ANY VOLUME

Unleash the maximum beauty of sound at any volume. With our Adaptive Low Volume technology, our sound reproduction maintains a full and expressive presence, even when watching at low volumes.

"Yamaha - True Sound"

AFTER ALL, SOUNDBARS SHOULD HAVE THESE FEATURES.

YAMAHA’S UNIQUE TECHNOLOGIES

CLEAR VOICE

Find it hard to hear TV dialogue? Our Clear Voice technology makes human voices more　audible. Hear every word—from YouTube videos to movies and shows, especially when　background music and sound effects try to take center stage.

FOUR SOUND MODES

With four different sound modes, you can match the sound to your content and mood. Stereo mode works great for music and podcasts. Standard mode is ideal for TV programs. Try Game mode to immerse yourself in your latest battle, and use 3D Movie mode to create an expansive theater experience.

DESIGNED TO FIT ANYWHERE IN YOUR HOME

SLEEK AND COMPACT

More than 30% narrower than our normal sound bar, this sound bar takes up even less space.

SLIM, YET STRONG SUBWOOFER

A small, narrow footprint with an expressive range that is infinitely deep.

SIMPLE CONTROL

EASY SETUP AND CONTROL

Connect easily with a single cable. Conveniently adjust volume and sound modes with included remote or dedicated app - the Sound Bar Remote App.

SR-C30A Specifications

Front Surround System

General

Drivers

Center unit: Front L/R: 4.6 cm (1.8“) cone × 2, Subwoofer: 13cm (5-1/8”)　

Output Power

90 W (Front L/R: 20 W × 2-ch, Subwoofer: 50 W)

Power Consumption

Center unit: 20V/2.1A (Rated), Subwoofer: 20 W

Standby Power Consumption

0.3 W (HDMI control off, Bluetooth standby off), 0.5 W (HDMI control on, Bluetooth standby on)

Dimensions (W x H x D)

Center unit: 600 x 64 x 94 mm (23-5/8” x 2-1/2” x 3-3/4”), Subwooer: 335 x 160 x 364 mm (13-1/4” x 6-1/4” x 14-3/8”)

Weight

Center unit: 1.3 kg (2.9 lbs), Subwoofer: 5.7 kg (12.6 lbs)

Input / Output

HDMI

1 out (TV ARC)

Digital Optical

2 in

Subwoofer output

No

Analog Audio

1 in

HDMI

4K Pass-through

No

3D Pass-through

No

ARC

Yes

CEC

Yes

Auto Lip-Sync

No

Sound Technology

Surround Technology

Dolby Audio

Surround Mode

Stereo, Standard, 3D Movie, Game

Compressed Music Enhancer

Yes

Bass Extension

Yes

Audio Formats

Dolby Digital

Yes

Dolby Pro Logic II

Yes

DTS Digital Surround

No

File Format

-

Connectivity

Wireless Music Streaming

No

Wi-Fi

No

MusicCast Surround

No

AirPlay

No

Bluetooth Version/Profile

Version: Ver 5.0 / Profiles: A2DP / Codecs: SBC, AAC

Bluetooth Maximum Communication Range

Approx. 10 m; 33 ft (without obstructions)

Wireless Subwoofer

Yes

Other Features

App Control

Yes (Sound Bar Remote)

Learning Function

No
