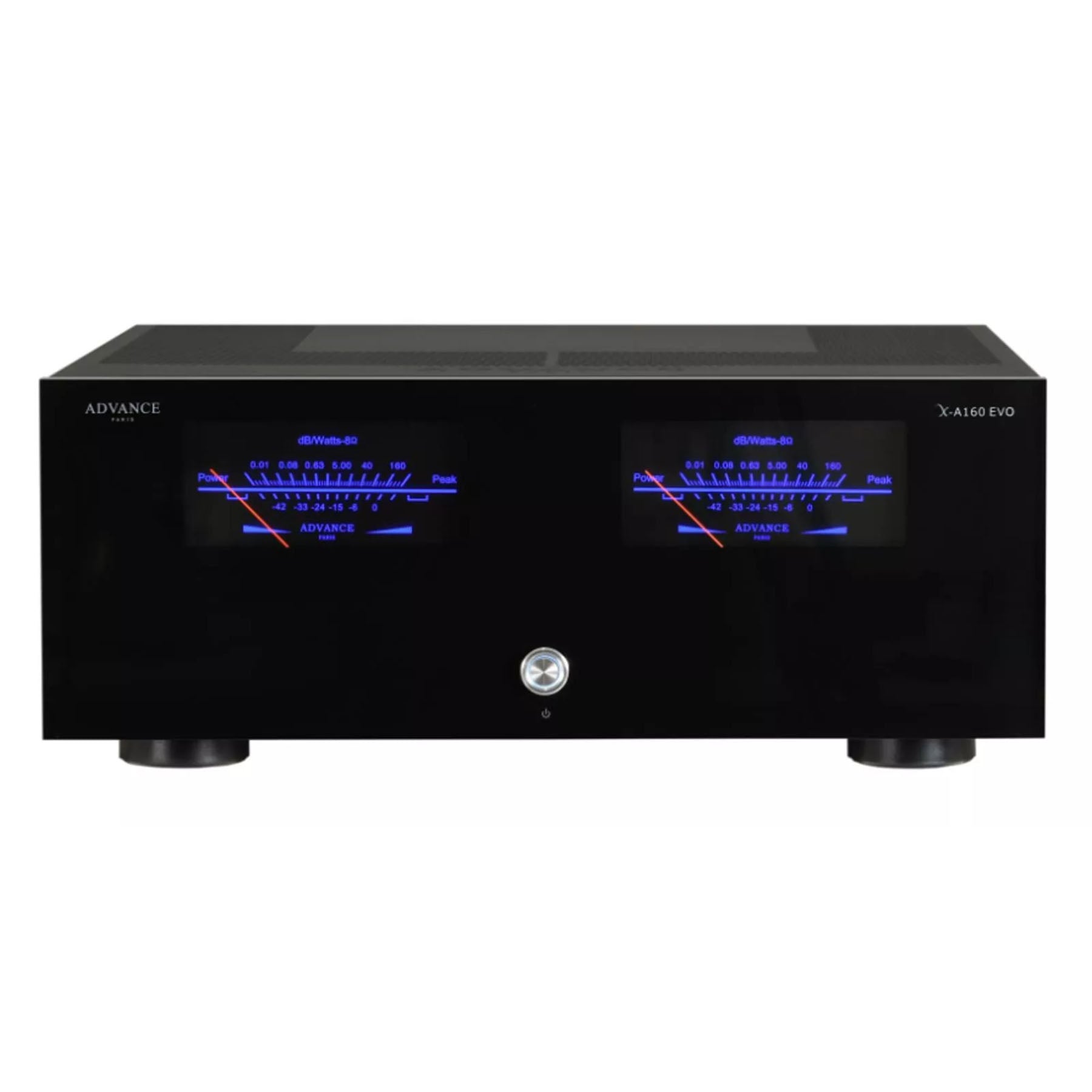

Advance Paris X-A160 EVO Power Amplifier
FranceX-A160 EVO
New diagrams, power transistors identical to the MAA 1000, new power supply, more power, more music, more modern presentation such is the X-A160EVO.

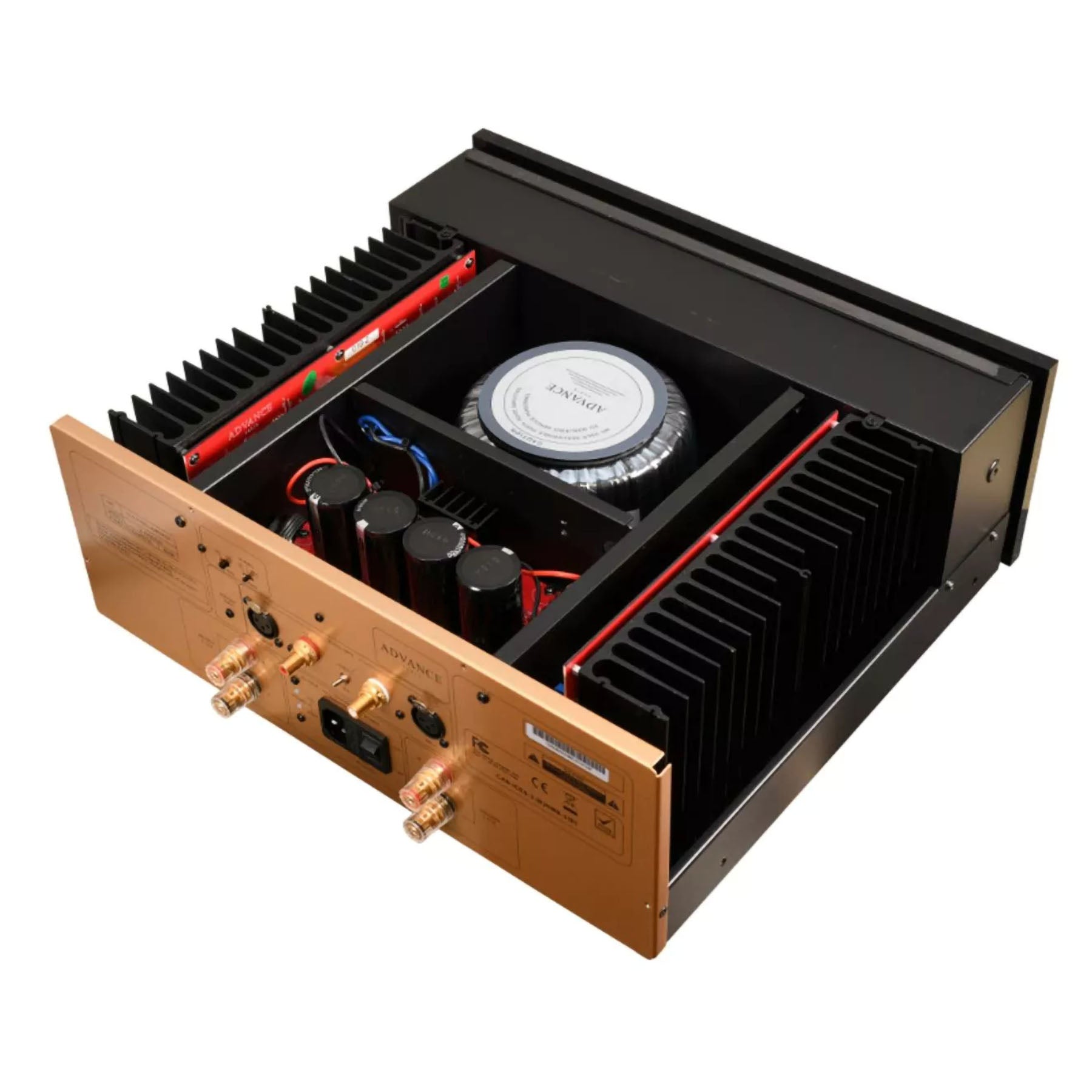

The X-A160EVO amplifier consists of an ultra-rigid, compartmentalized chassis, providing effective shielding, thus eliminating any risk of radiation between the various circuits of the device.
The use of “Audiophile” type components guarantees a reproduction of your favorite music with finesse and subtlety.
The high power supply associated with the "very high current" power transistors (NJW0281G – NJW0302G) of the MAA 1000, restores the most demanding dynamics.
The X-A160EVO delivers a power of 160 Watts per channel in class AB*, a switch located at the back of the device allows the X-A160EVO to deliver the first Watts in class A*. Beyond this power, switching to class AB** takes place automatically when Hi-Bias is selected.
| Output power 8Ω |
2 x 160W RMS |
|---|---|
| Output power 4Ω |
2 x 240W RMS |
| Bandwidth |
10 Hz – 80 kHz |
| Distortion |
<0,07% |
| Signal to noise ratio |
> 120 dB |
| Channel separation |
> 80 dB |
| Imped. Asymmetric input |
20 KΩ |
| Imped. input Symmetrical |
38 KΩ |
| Mains voltage |
115-230V |
| Standby consumption |
<0,5W |
| consumption max. |
500w |
| Transformer power |
700w |
| Transformer |
Toroidal |
| Height |
160 mm |
| Width |
440 mm |
| Depth |
430 mm |
| Net weight |
19 kg. |
| Product Type |
power block |
| VU-Meter |
Yes |
