Helen CS

Designed to create perfectly balanced, minimalistic spaces.

Helen CS is an acoustic panel with a neutral design and impressive

absorption that creates the right atmosphere in any space with a

discreet modular installation system. This modular system uses four different wooden cores: an Absorber, Diffuser, Bass Trap, and Speaker options. Each provides distinct functionality while keeping the same design. The acoustic covers can be easily swapped or replaced.

Absorbers remove energy from incoming sound waves, reducing reflections and overall reverberation time. Diffusers scatter energy over a wide area, creating more homogenous sound fields. Bass Traps reduce low frequency room modes, diminishing the effect of standing waves. Speaker cores seamlessly integrate in-wall speakers. Discover our Cinema Series, a flexible range that can be adapted to a wide variety of environments and is tailored into beautiful, timeless, multifunctional designs.

Features

Helen CS + Absorber Core
Absorption Range: 500 Hz to 5000 Hz
Acoustic Class: C | (aw) = 0,75
______

Helen CS + Bass Trap Core
Absorption Range: 100 Hz to 125 Hz
______

Helen CS + Diffuser Core
Scattering Range: 1000 Hz to 8000 Hz

Purpose

• First reflection Control
• RT reduction
• Flutter echo control
• Reducing excessive reverberation
• Improving speech intelligibility

Recommended for

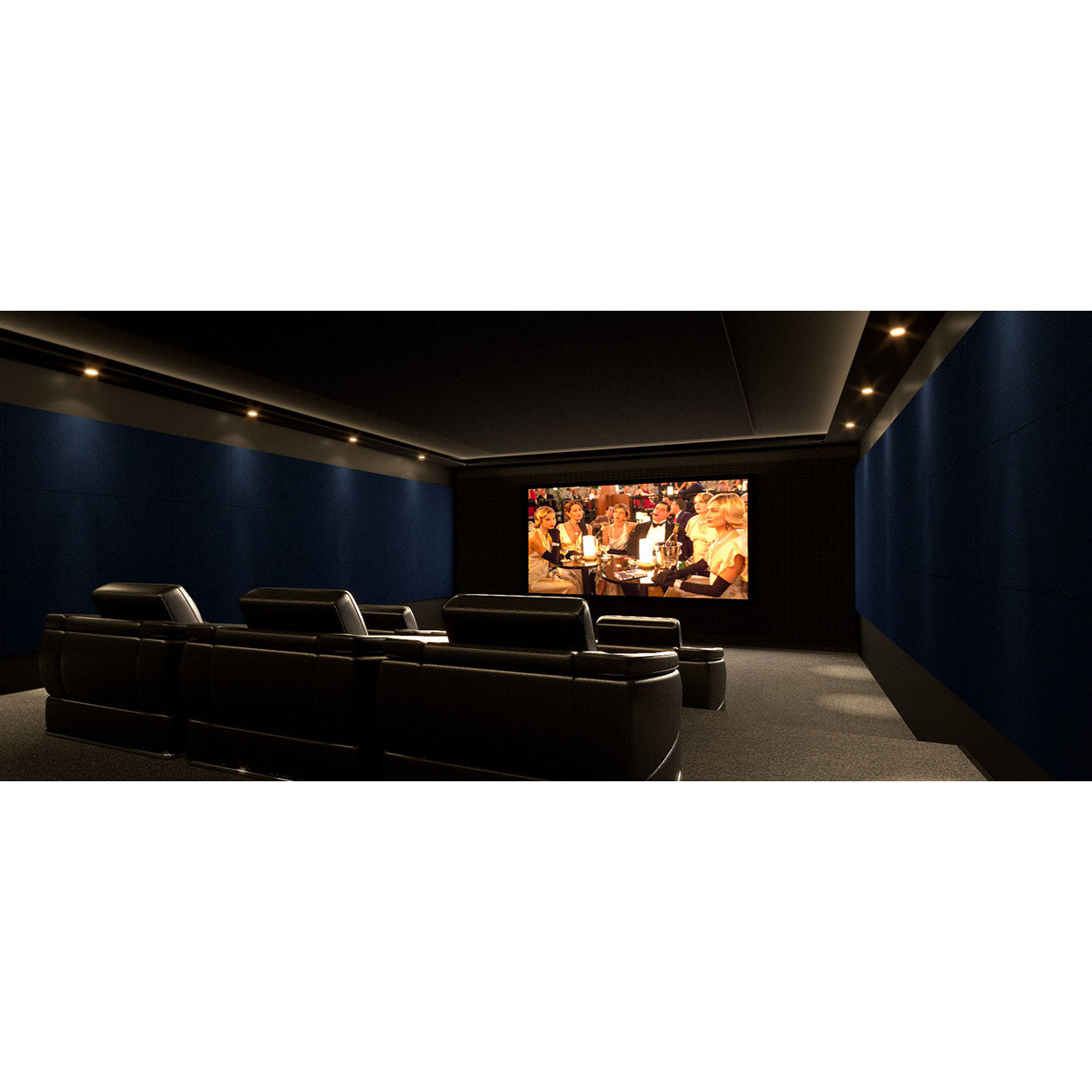

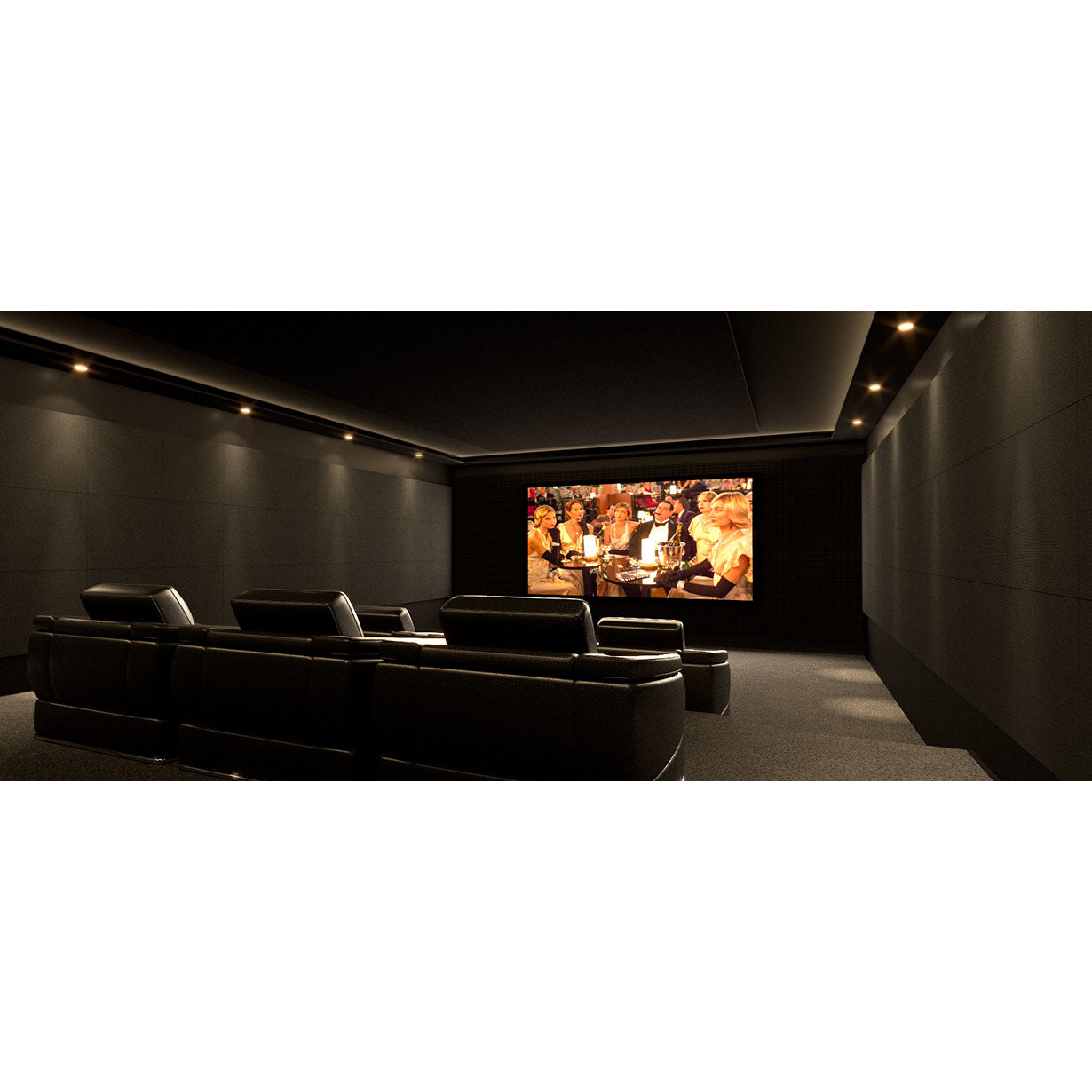

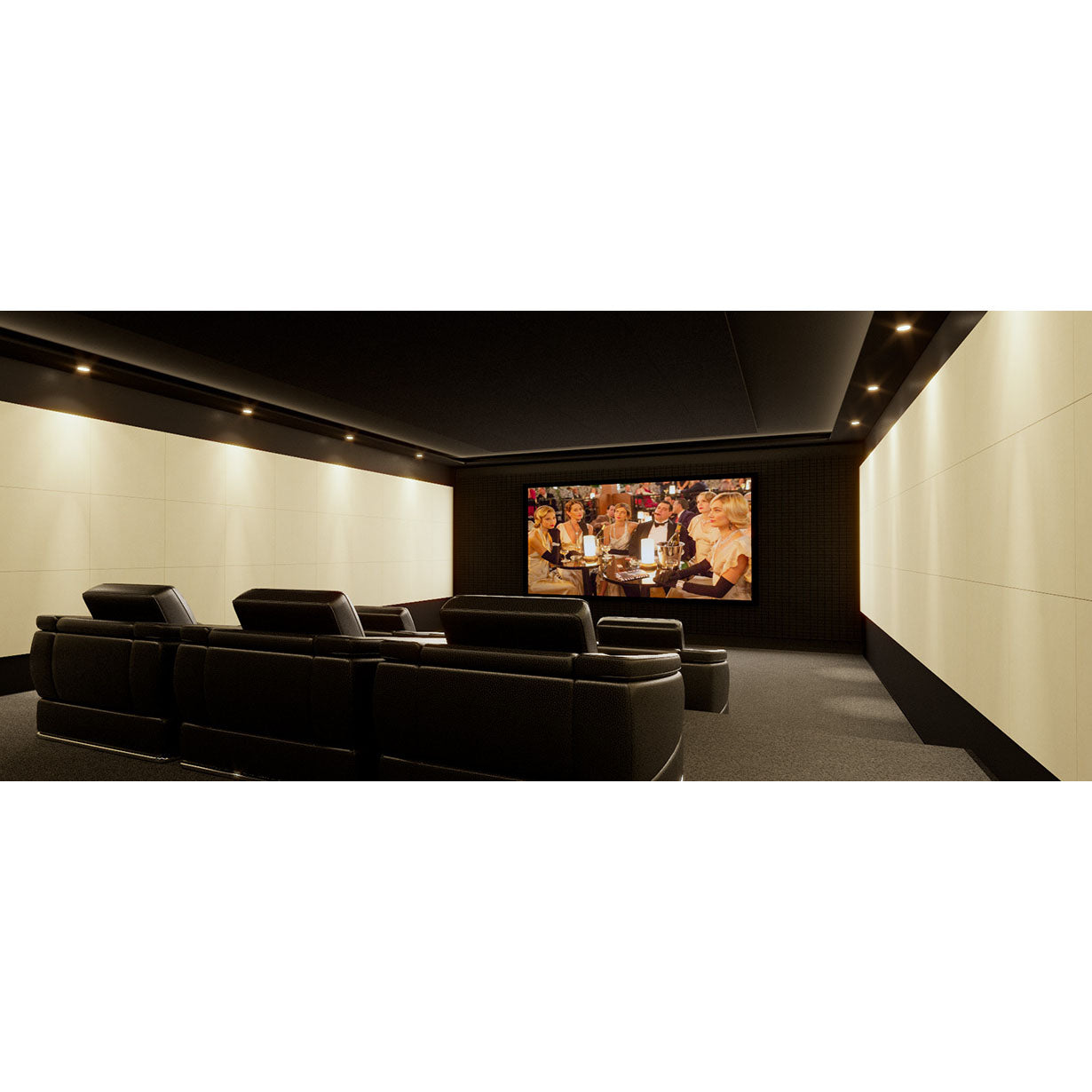

• Home Cinemas
• Media Rooms

Performance

Dimensions

Fixing Systems

Add-ons

Dimensions Weight

FG - WF | 595x595x16mm 0.75 Kg
FG - SF | 595x595x16mm 0.75 Kg

Box

Quantity per box: 4
Dimensions: 645x150x655mm
Volume: 0.063m3
Weight: 3.95Kg
