Jaya - Diffuser

Geometric beauty

Features

Type:
2D - Geometric Diffuser

Scattering range:
600 Hz to 6000 Hz

Purpose

- Improving low frequency response

- Flutter echo control

- Specular reflection control

- Enlarging sweet spot

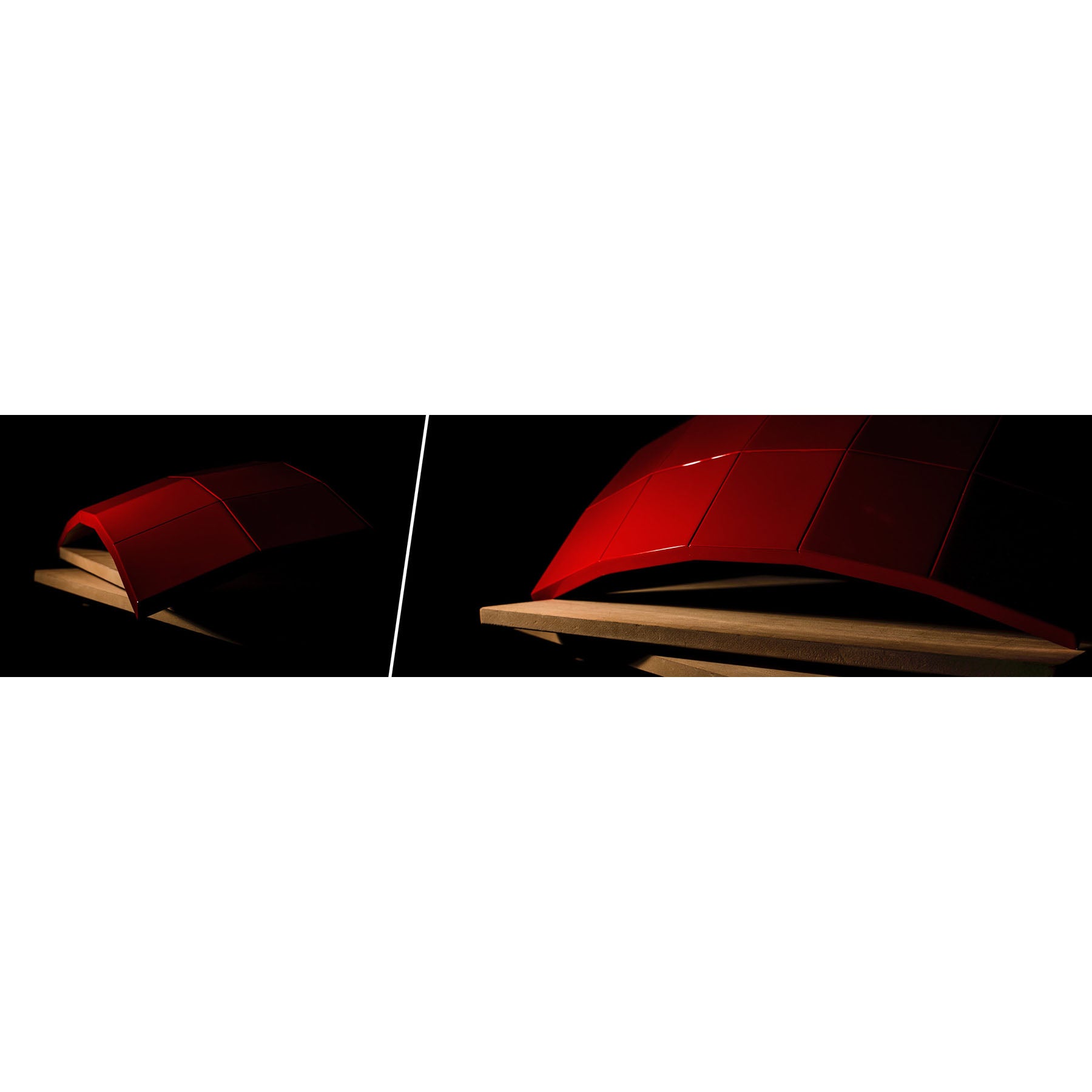

Jaya W Diffuser is a product with an exquisite design, aiming to reach maximum high frequency diffusion. This handmade elliptic panel was designed to give you maximum efficiency in every way, particularly at high frequencies. The scattering of this panel begins at 600 Hz and offers effective and even diffusion up to 6000 Hz.

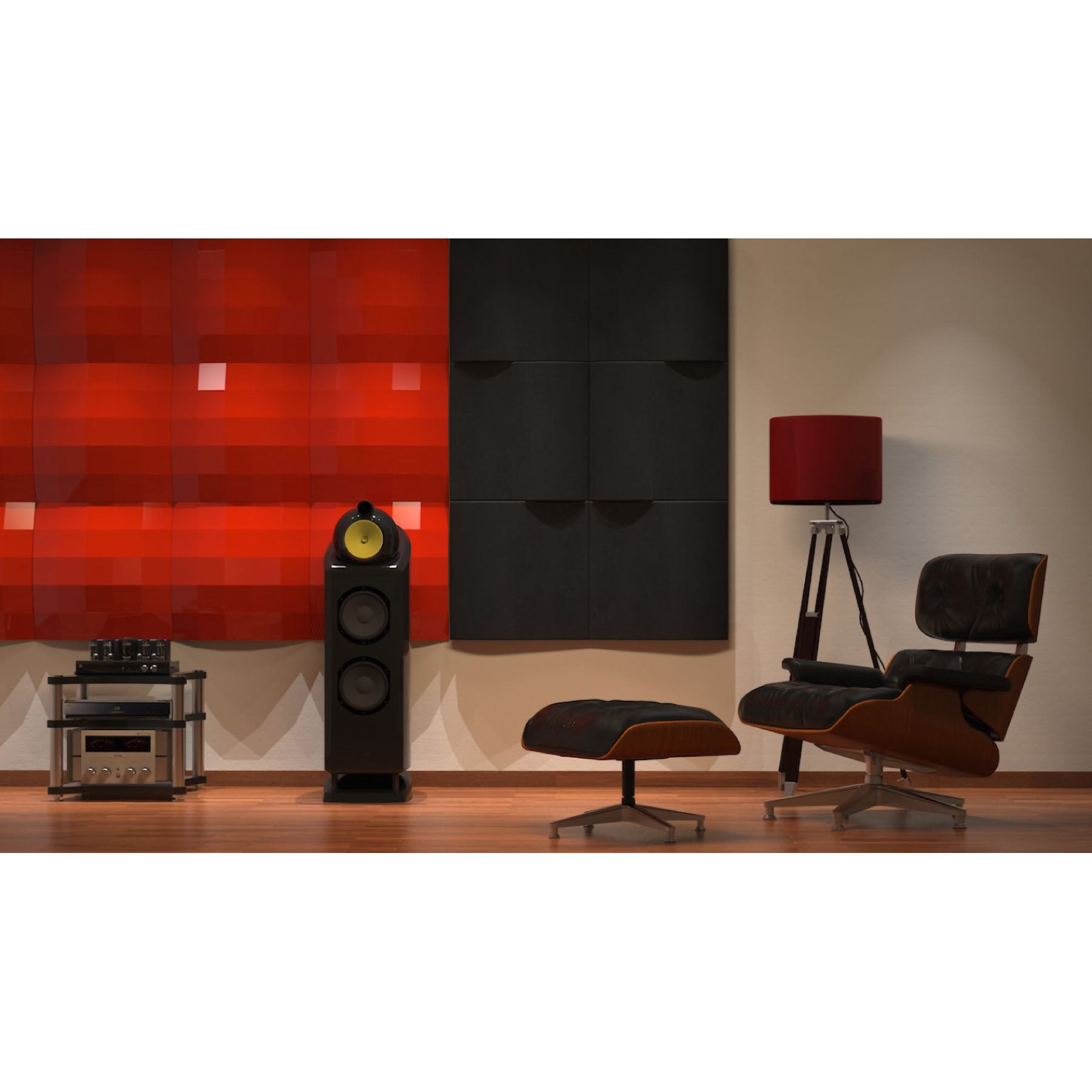

This premium product is available in a wood finish or in lacquered colours, making it ideal to be used on the front, back or side walls of your room, as well as ceilings.

Performance

Scattering coefficient / Absorption Coefficient

New approach technology for mid and high frequency diffusion.

Recommended for

- Hi-Fi Listening Room

- Media Room

- Home Cinema

This product is available in the following Fire Rate:
FG | Furniture Grade

PRODUCT COMPOSITION:

Jaya | Natural wood veneer
- Natural wood veneer
- HMDF and plywood structure

Jaya | Lacquered HMDF
- Lacquered HMDF
- HMDF and plywood structure

Dimensions:
Jaya | 595x595x150mm
- Four M6 Screw Thread receiver included on each panel.

Integrated Fixing System

Fixing Systems

Wall & Ceiling

+ FixArt Clip

+ FixArt Tube
