Komodo CS

Designed to rethink contemporary design.

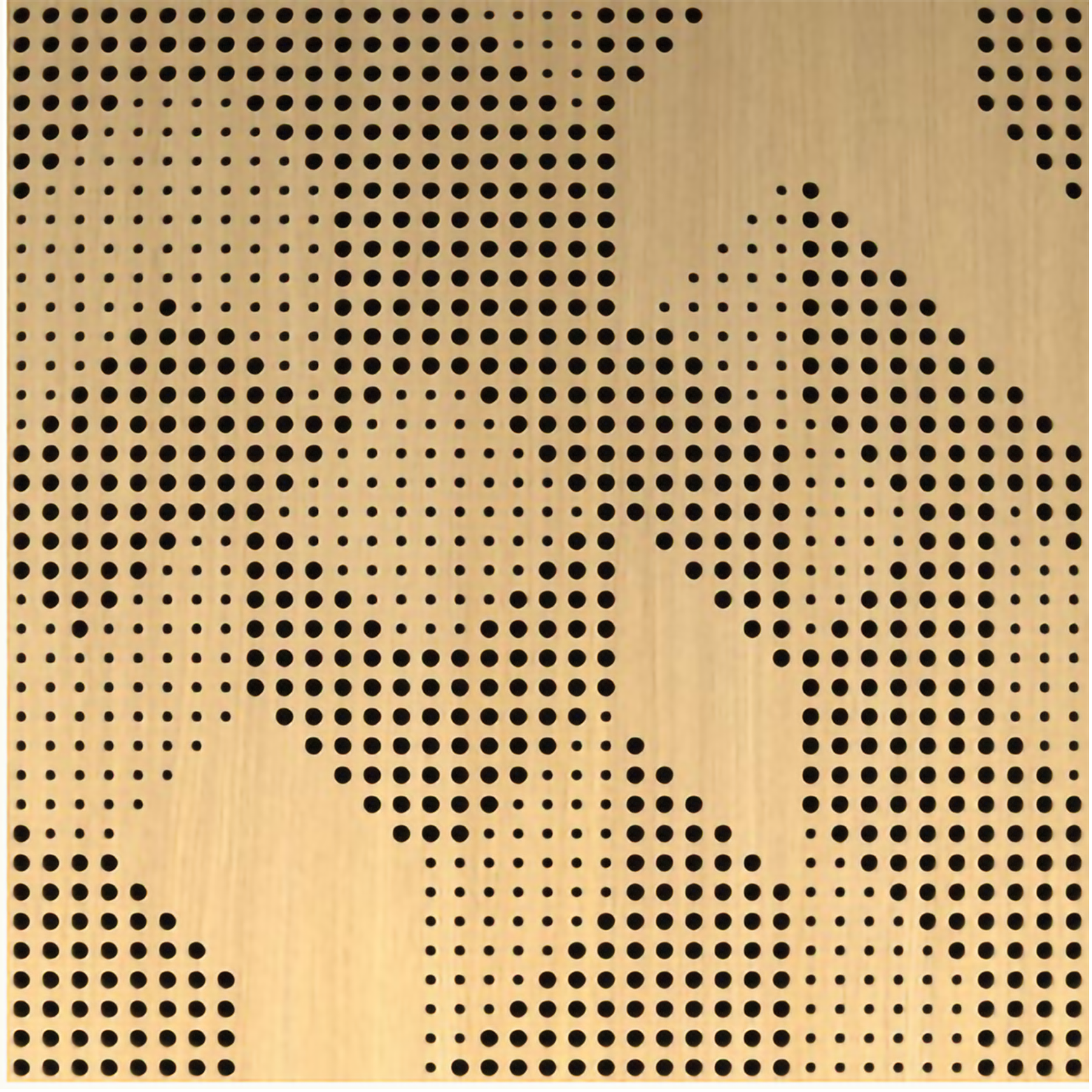

Komodo CS is an innovative wooden absorber panel with an acoustically optimised perforation pattern with a discreet modular installation system. This modular system uses two different wooden cores: an Absorber and Bass Trap options. Each provides distinct functionality while keeping the same design.

Absorbers remove energy from incoming sound waves, reducing reflections and overall reverberation time. Bass Traps reduce low frequency room modes, diminishing the effect of standing waves. Discover our Cinema Series, a flexible range that can be adapted to a wide variety of environments and is tailored into beautiful, timeless, multifunctional designs.

Features

Komodo CS + Absorber Core
Absorption Range: 500 Hz to 8000 Hz
Acoustic Class: C | (aw) = 0,65
______

Komodo CS + Bass Trap Core
Absorption Range: 100 Hz to 125 Hz

Purpose

- RT reduction
- Flutter echo control
- Reducing excessive reverberation
- Improving speech intelligibility

Recommended for

- Home Cinemas
- Media Rooms

Performance

Dimensions

Fixing Systems

Add-ons

Dimensions Weight
FG - NW | 595x595x19mm 2.6 Kg
FG - LW | 595x595x19mm 2.6 Kg

Box

Quantity per box: 4
Dimensions: 650x150x655mm
Volume: 0.064m3
Weight: 7.4Kg
