Lagos F - Diffuser

A high performance bidirectional QRD diffuser.

Features

Type:
1D - QRD Diffuser

Scattering range:
350 Hz to 6000 Hz

Purpose

- Improving low-frequency response

- Flutter echo control

- Specular reflection control

- Enlarging sweet spot

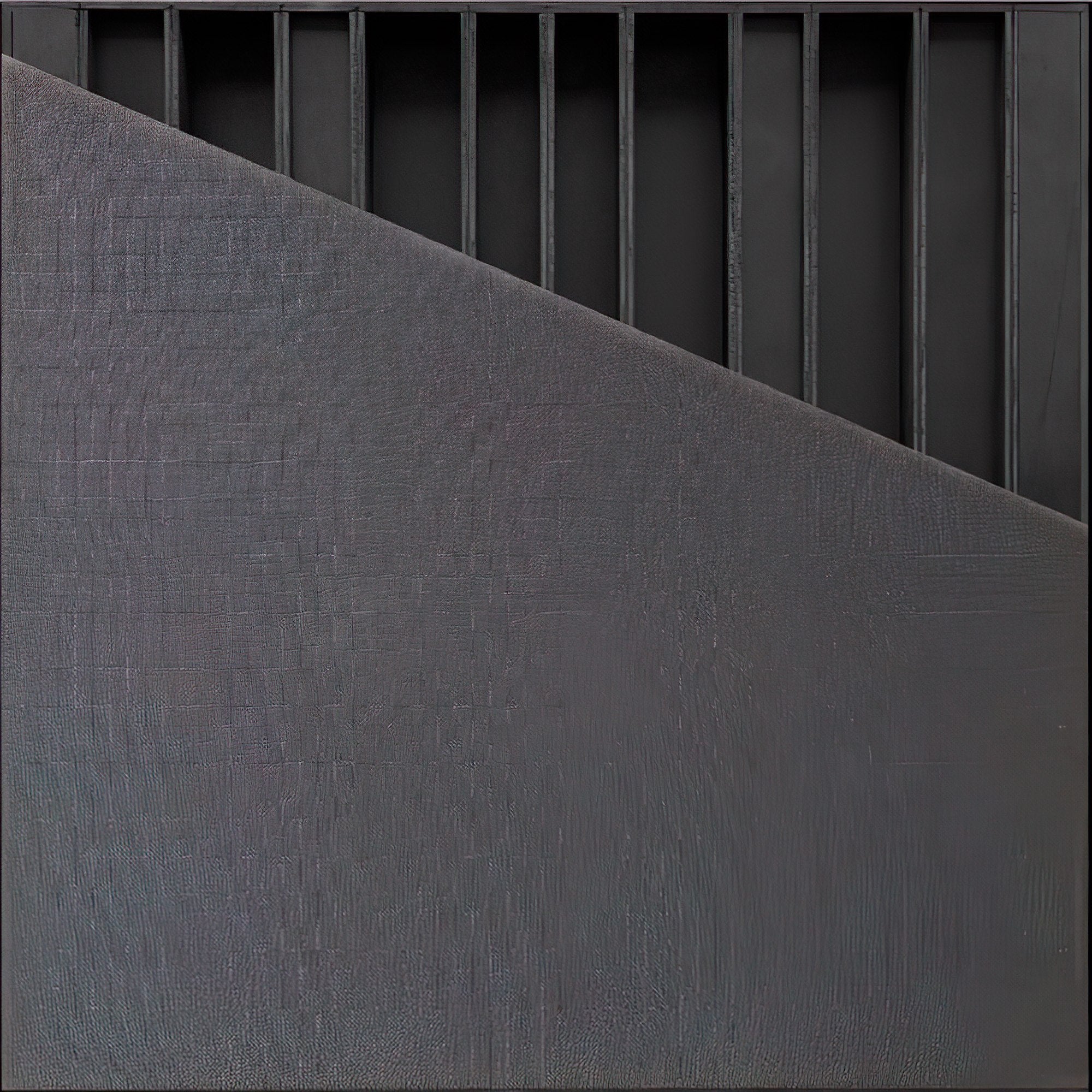

Lagos Fabric Diffuser

Lagos Fabric is the result of extensive research into diffusion techniques – it is based on a traditional QRD diffuser, but combine varying widths with each cell depth, overcoming some of the limitations of the standard QRD diffuser.

Using exclusive acoustically transparent fabric.

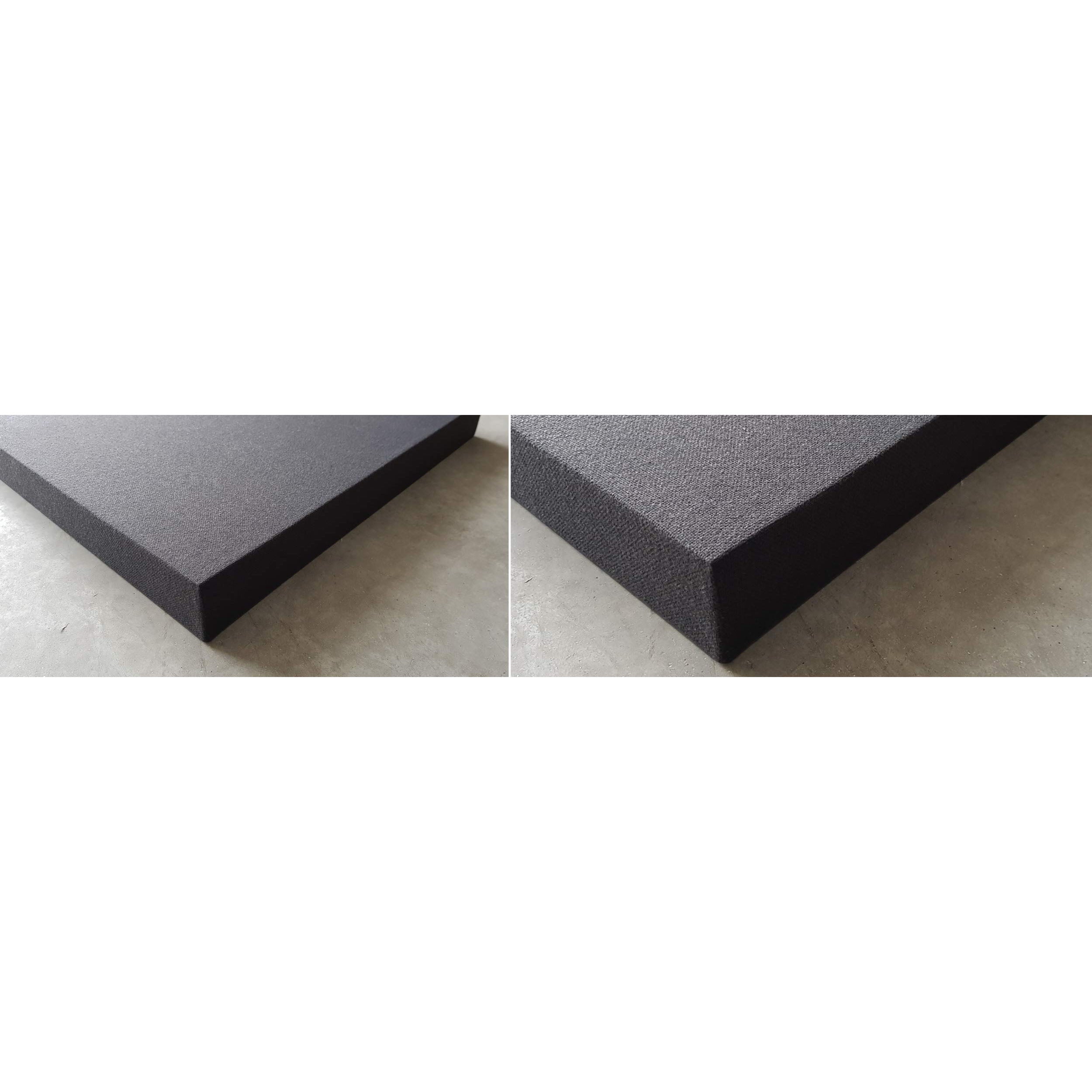

A discreet fabric covered diffuser that preserves all the functionality of the diffuser, whilst fitting perfectly into a continuous fabric design.

The phase grating surface of the diffuser is designed to provide a more uniform sound field through mid-high frequency diffusion. The well depths are individually tuned to enhance performance at certain frequencies, essentially increasing the effective range of the panel, without compromising the overall linear response – Lagos performs 15-20% lower with a linear frequency response.

Performance

Perfect diffusion control

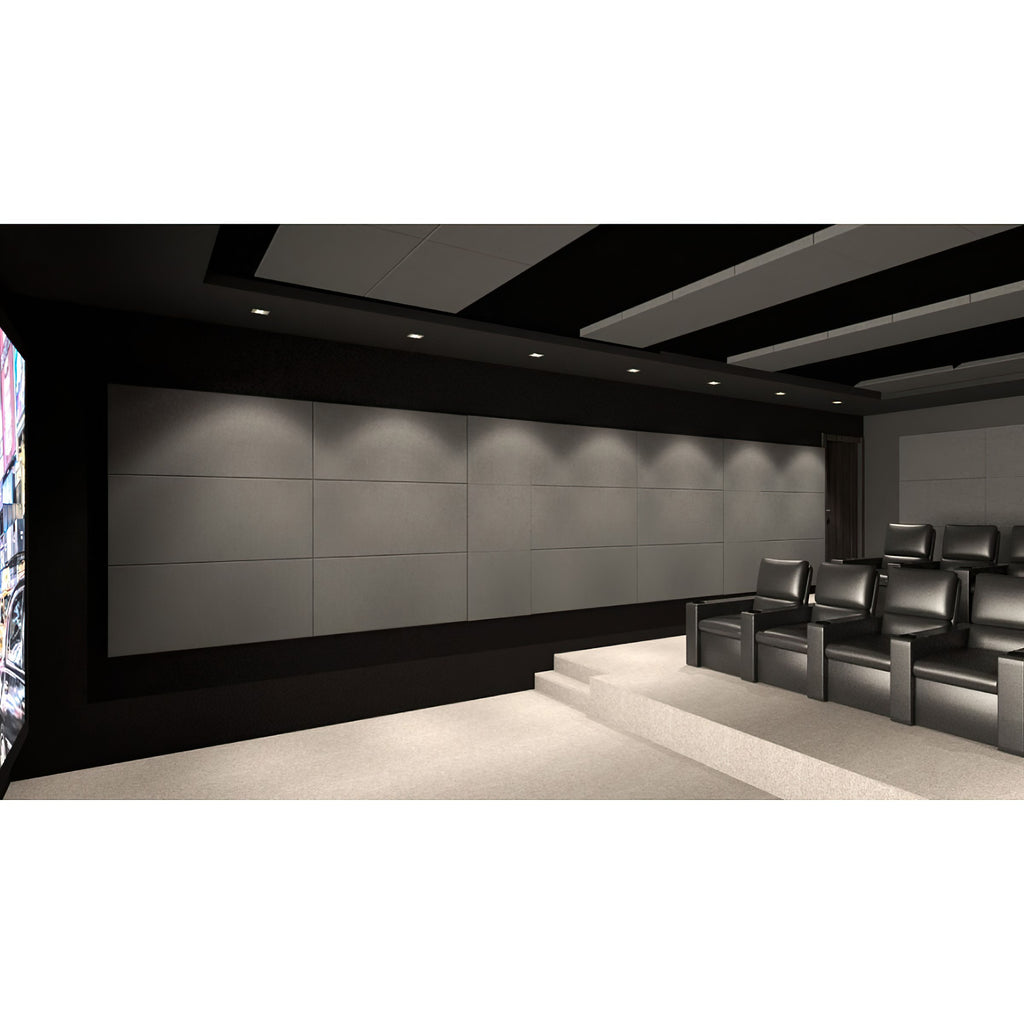

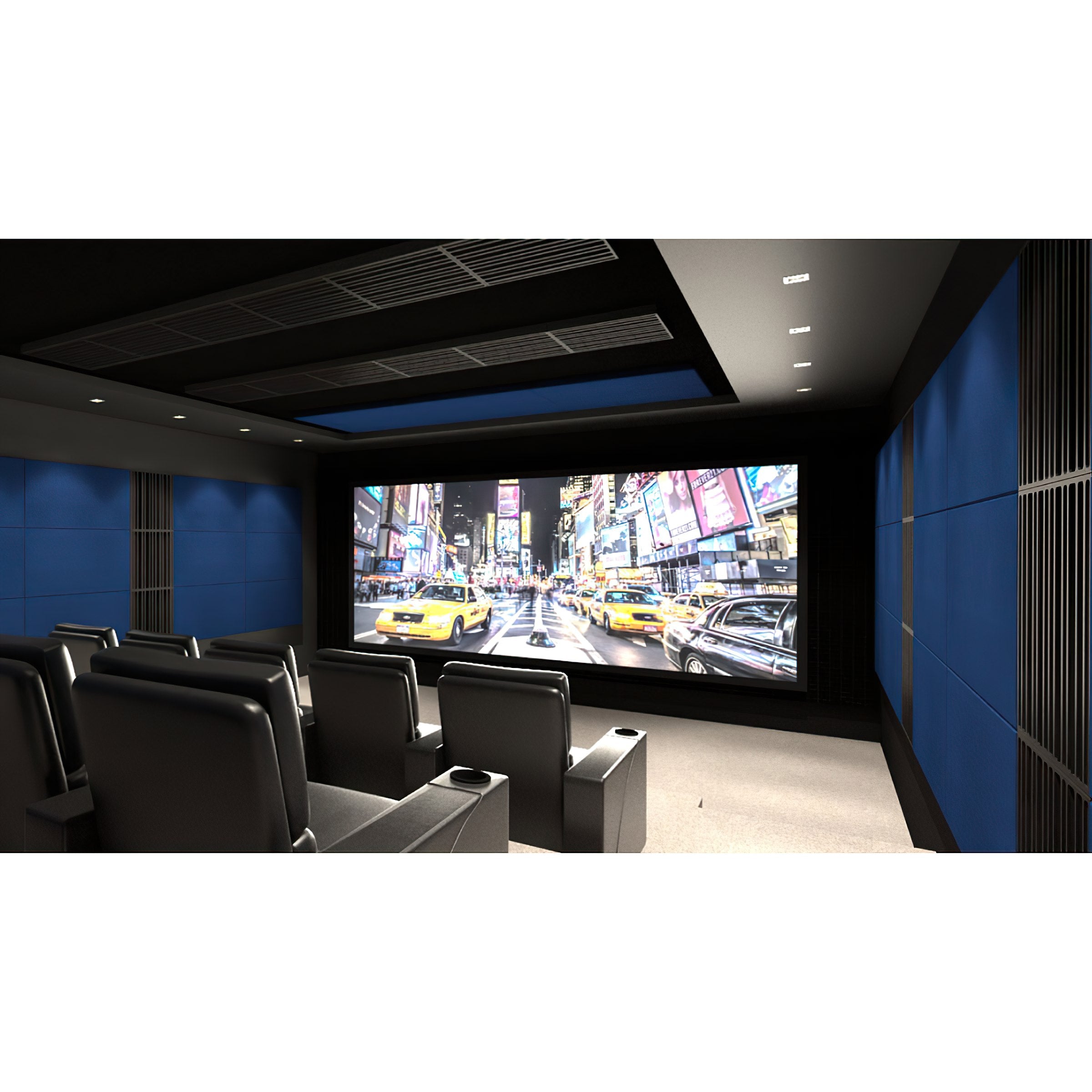

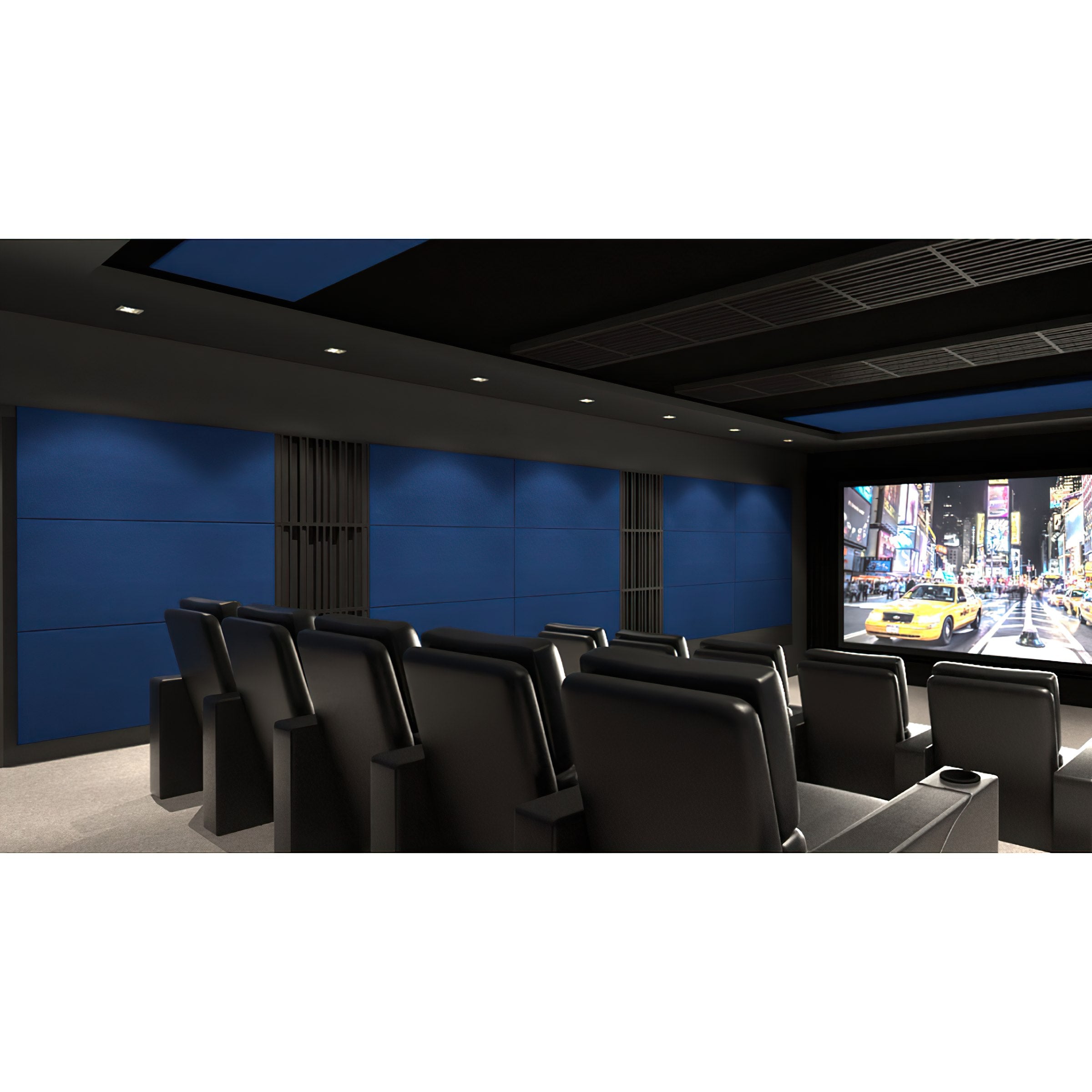

Recommended for

- Home Cinema

- Home Theater

- Media Room

- Living Room

Why use diffusion?
Diffuser panels scattering incoming sound waves into smaller, lower energy waves, scattered over a large area. These scattered reflections create a homogeneous sound field distribution and a full, balanced acoustic response. This improves speech intelligibility, music quality, and creates a more uniform, larger sweet spot.


Available fire rate:
FG | Furniture Grade

Materials:
- Acoustic fabric
- HMDF and plywood structure

Dimensions | 595x595x56mm

Integrated fixing system | panel can be rotated 90º to any orientation.

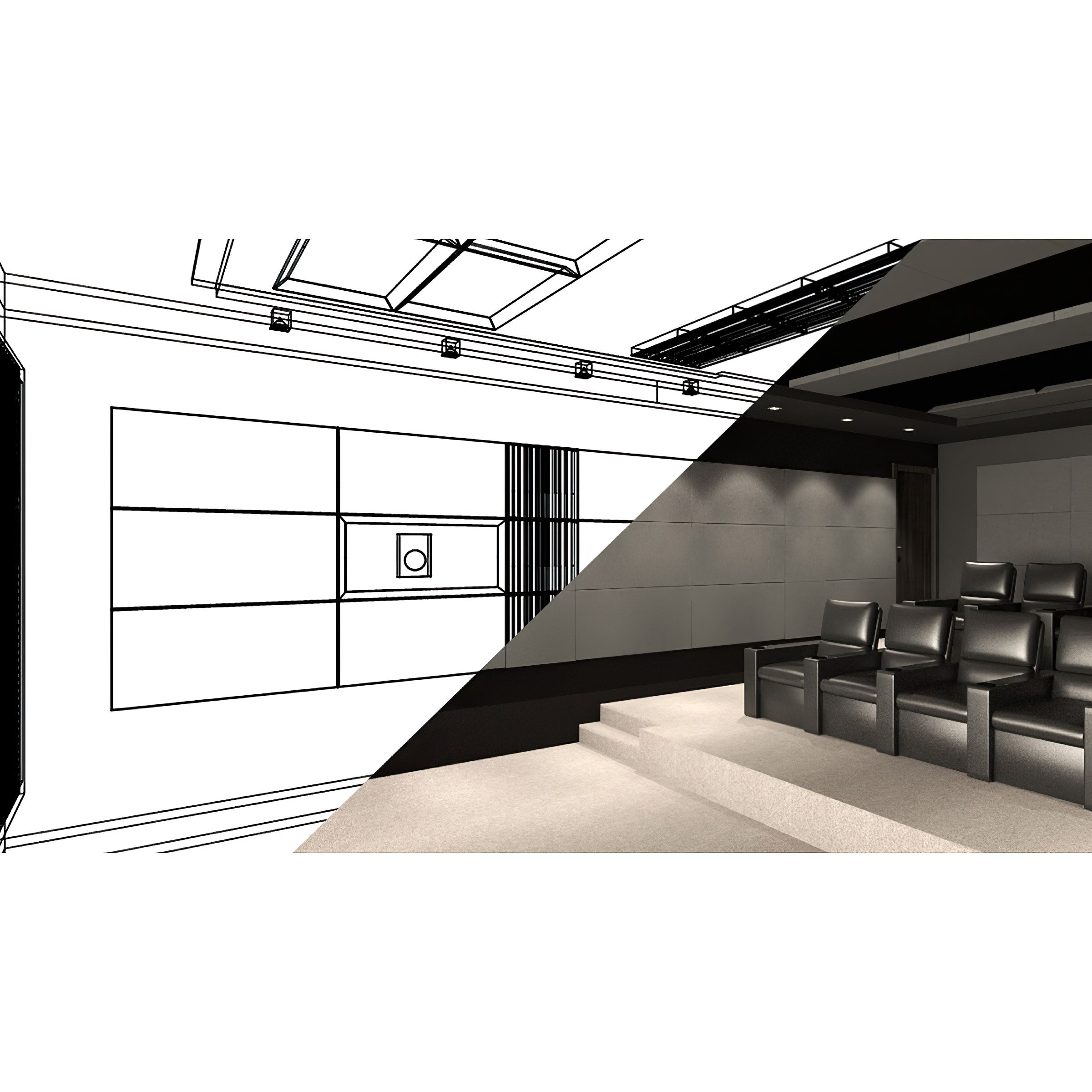

The panels’ semi-cylindrical response pattern makes it the perfect solution for multichannel rooms and can easily be installed in specific arrays to provide 2D diffusion. Using exclusive acoustically transparent fabric. A discreet fabric-covered diffuser that preserves all the functionality of the diffuser, whilst fitting perfectly into a continuous fabric design.

Lagos F - Diffuser - FG | (TP90) Smoke

EAN 13: 5600449577344

Dimensions: 595x595x60mm

Weight: 4.08Kg

Lagos F - Diffuser - FG | (TP91) Licorice

EAN 13: 5600449577351

Dimensions: 595x595x60mm

Weight: 4.08Kg

Box

Units per box: 4

Dimensions: 645x405x655mm

Volume: 0.171m3

Weight: 19.36Kg
