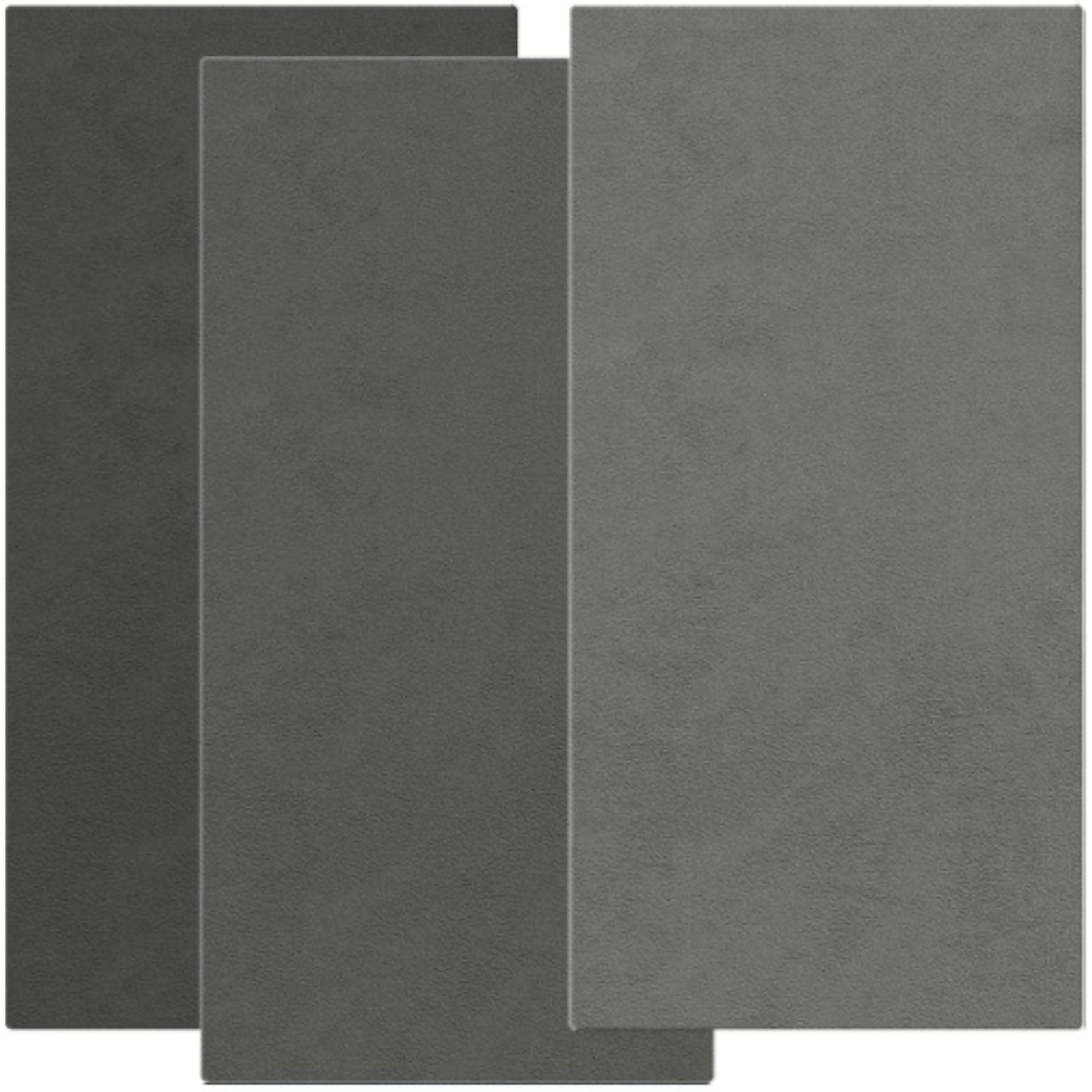

Ulysses Bass Trap - Wall

Performance

Features

Type:

Pistonic Diaphragmatic Absorber

Absorption range:

80 Hz to 120 Hz

Peak Absorption Frequency:

90 Hz

Purpose

- Room mode control

- Bass ratio control

- Low frequency RT reduction

- Improving low frequency response

- Reducing low frequency time decay

With a peak absorption from 80 Hz to 120 Hz, the Wall Bass Trap offers an enriched acoustic experience, directly attenuating standing waves. The various front designs available for the Wall Bass Trap allow you to create artistic patterns when mounted on the walls of your home studio or recording room, completely indistinguishable from the Artnovion absorber range.

The Wall Bass Trap - 595 x 1190 - equivalent to 2 standard panels, is equipped with a weighted pistonic membrane enclosing a volume with a high performance acoustic core. This design allows for a precisely tuned, high performance absorption. Bringing you the maximum performance in as least space as possible.

Invisible Bass Trapping

Recommended for

- Vertical Wall

- Small Room Acoustics

- Acoustic pressure zones

Pistonic Diaphragmatic Absorber Pressure Core

High Density velocity Core

Effective in both velocity and pressure modal zones

Maximum performance, minimum thickness.

Available Fire Rate:

FG | Furniture Grade

Material:

- Acoustic fabric | Natural Wood veener | Lacquered HMDF

- Marine grade plywood structural frame

- Calibrated cell acoustic foam

Range | Dimensions:

Ulysses - Bass Trap - Wall

- 595x1190x64mm

This panels can only be installed on vertical walls. Not for ceiling use.

Fixing Systems

Wall

+ FixArt - Tube

Ulysses - Bass Trap - Wall - FG | (TM201) Grigio

EAN 13: 5600449559777

Dimensions: 595x1190x64mm

Weight: 8.86Kg

Box

Units per box: 2

Dimensions: 1235x200x665mm

Volume: 0.164m3

Weight: 20.14Kg

------------------------------------------------

Ulysses - Bass Trap - Wall - FG | (TP91) Licorice

EAN 13: 5600449580191

Dimensions: 595x1190x64mm

Weight: 8.86Kg

Box

Units per box: 2

Dimensions: 1235x200x200mm

Volume: 0.049m3

Weight: 20.14Kg

-----------------------------------------------

Ulysses - Bass Trap - Wall - FG | (TP90) Smoke

EAN 13: 5600449580184

Dimensions: 595x1190x64mm

Weight: 8.86Kg

Box

Units per box: 2

Dimensions: 1235x200x665mm

Volume: 0.164m3

Weight: 20.14Kg
