Aurender

N50
High-end Music Server

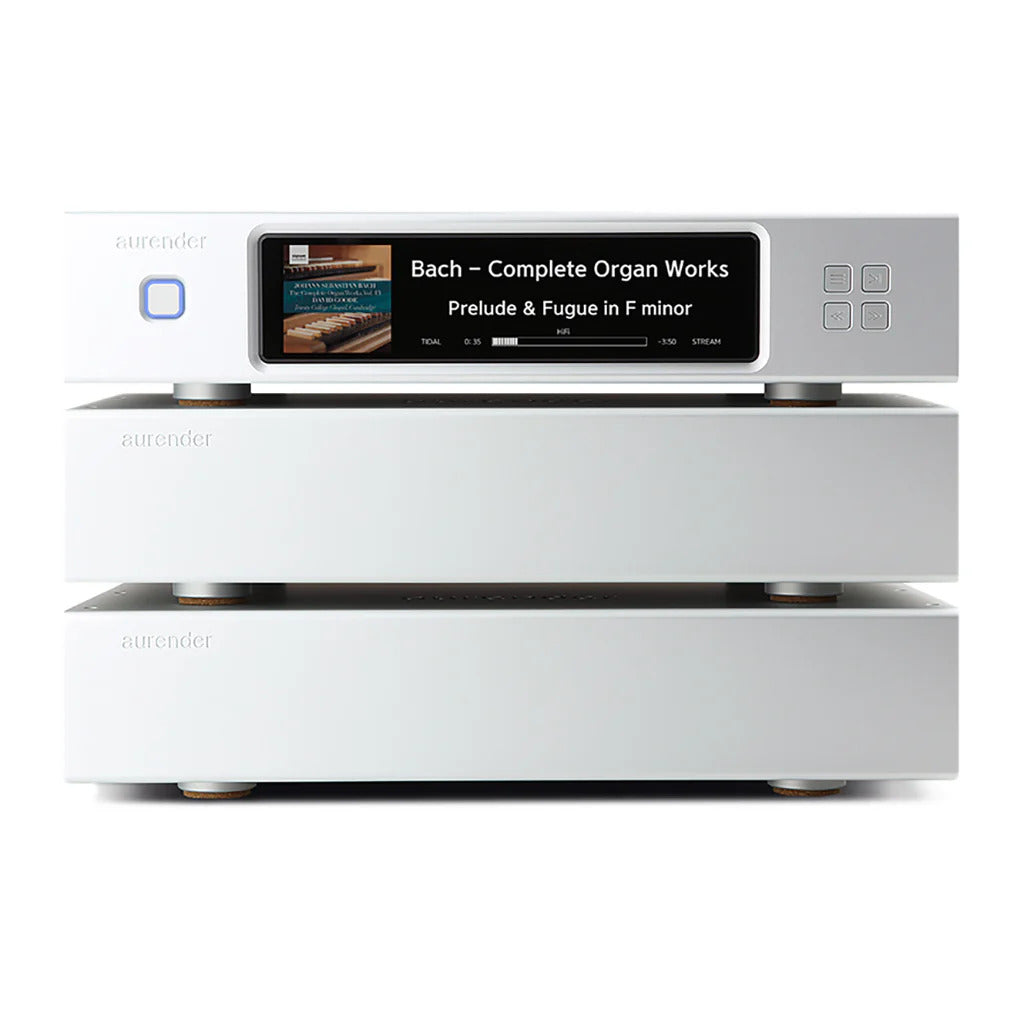

- Triple-chassis Architecture (Server / Power / Audio)
- Ultra-low jitter and precise timing & multi-layer AC and DC filtering
- Dual AES/EBU outputs, I2S output interface module (HDMI or MSB ProISL – optional)
- Galvanically isolated audio class USB 2.0 output module
- 7x isolated LAN input module / TIDAL, Qobuz, Spotify Connect, Roon Ready
The N50 sets a new standard in high-end music servers, combining advanced design and precise tuning for pure,
accurate performance.
A Masterpiece of Musical Refinement
At the heart of the N50 lies a commitment to sound quality, delivering a quiet, natural sound, characterized by a jet-black background and vast soundstage.
Designed for Noise-Free Operation
The N50’s architecture is fundamentally designed to eliminate noise at its source — ensuring that nothing interferes with the music:
• Triple-chassis Architecture (Server / Power / Audio): By physically separating critical functional blocks, each chassis operates in complete isolation, dramatically reducing internal interference.
• Isolated Network Ports: Independent network connections ensure clean signal paths and enhanced noise immunity, preserving the full integrity of the source.
Ultra-Precise Timing for Unmatched Musical Flow
Precision clocking is at the core of the N50’s musical performance:
• OCXO Clock with FPGA Control: A high-stability OCXO clock, controlled by a dedicated FPGA, delivers ultra-low jitter and precise timing.
• External Clock Input: For even greater precision, the N50 supports an external master clock — ideal for high-precision systems.

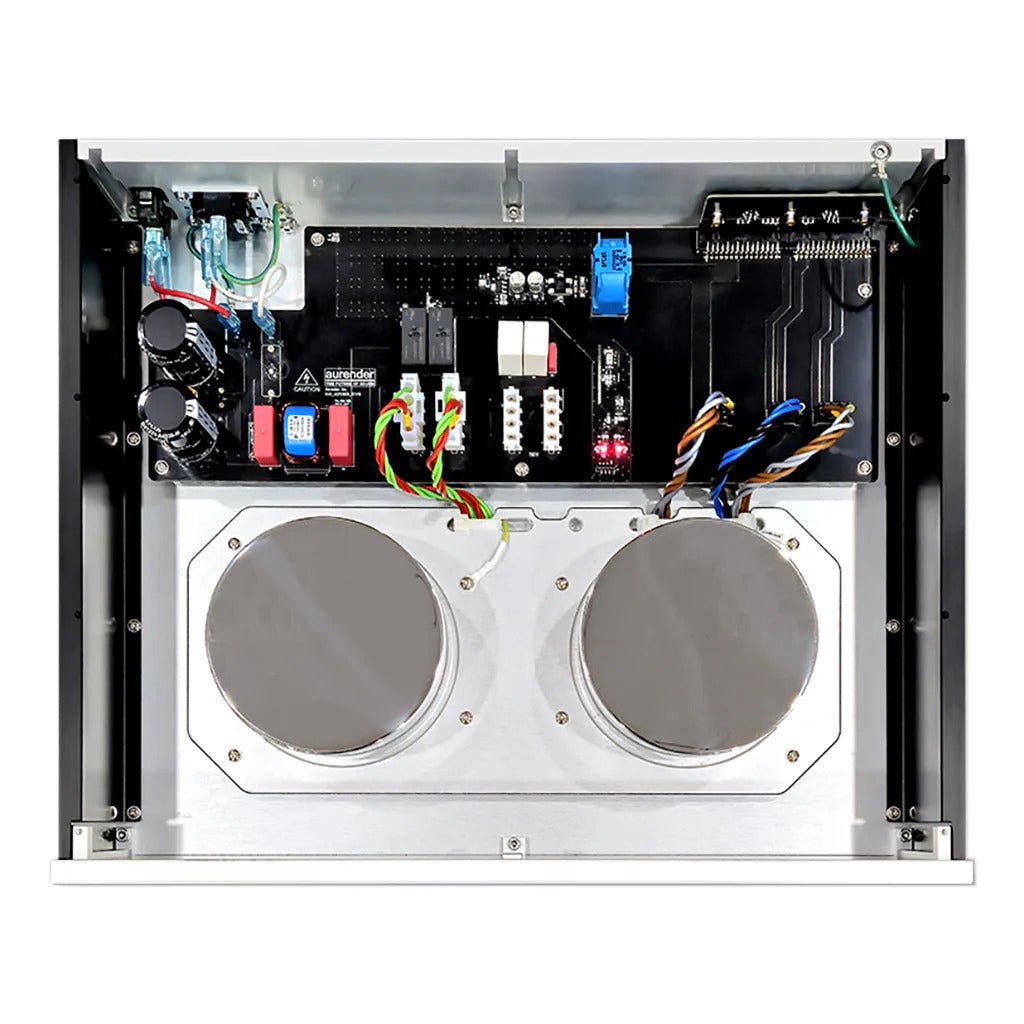

Dual Supreme Toroidal Transformers with Multi-Layer Filtering
• To achieve the cleanest possible power delivery to the audio block, the N50 is equipped with two laboratory-selected, high-inductance toroidal transformers.
• Each transformer is vacuum-encapsulated and epoxy-filled within a polished stainless-steel enclosure, ensuring maximum isolation and durability.
• Multi-layer AC and DC filtering further eliminates power-line noise, providing a pristine foundation for uncompromised sonic performance.
Expanded Connectivity, Greater Flexibility
The N50 expands upon Aurender’s renowned digital audio interface options, offering versatile outputs to suit a wide range of high-end system configurations:
• I2S Output
• MSB ProISL Interface
• Dual AES/EBU Outputs
• Newly Designed USB Output that Reduces Jitter and Noise
Seamless Integration with Premium Streaming Services
Whether you prefer curated playlists or high-resolution libraries, the N50 is designed for effortless integration:
• Supports TIDAL, Qobuz, and Spotify natively
• Fully Roon Ready – Ensuring smooth integration into advanced streaming ecosystems
The Aurender N50 is more than just a music server — it is a statement of engineering excellence and sonic clarity. Designed without compromise, it delivers everything a true high-end audio system demands: excellent performance and an immersive experience.
Dimensions & Weight | Dimensions(each): 16.9 x 3.8 x 14.0in. x 3, 430 x 96 x 353mm x 3 Weight: 48kg (Comprising three modules in total) |
Material | Triple Machined Aluminum Chassis |
Front Panel Display | 8.8″ 1920 x 480 Wide IPS Color LCD |
Power Supply | 1x80W -CPU Board ,1x80W (4 cores) for Digital Output Board – 2 Supreme AUDIO Grade Toroidal transformers |
CPU | Intel Quad Core |
RAM | 8GB |
Library Storage Capacity | 2X 2.5″ Compartment (User-Installable Storage) |
SSD for System & Cache | 480GB NVME |
Data USB Ports | 2X USB 3.0 (Rear) |
Software Suite | Aurender Conductor |
Ethernet Port | 7-fold -Galvanic Isolated Gigabit LAN Module |
Audio USB Ports | Fully Galvanic isolated Audio Class USB 2.0 Modue |
Uninterruptible Power Supply | Yes (Super Capacitors) |
Power Consumption | Play (40W), Peak (70W), Standby (3.5W) |

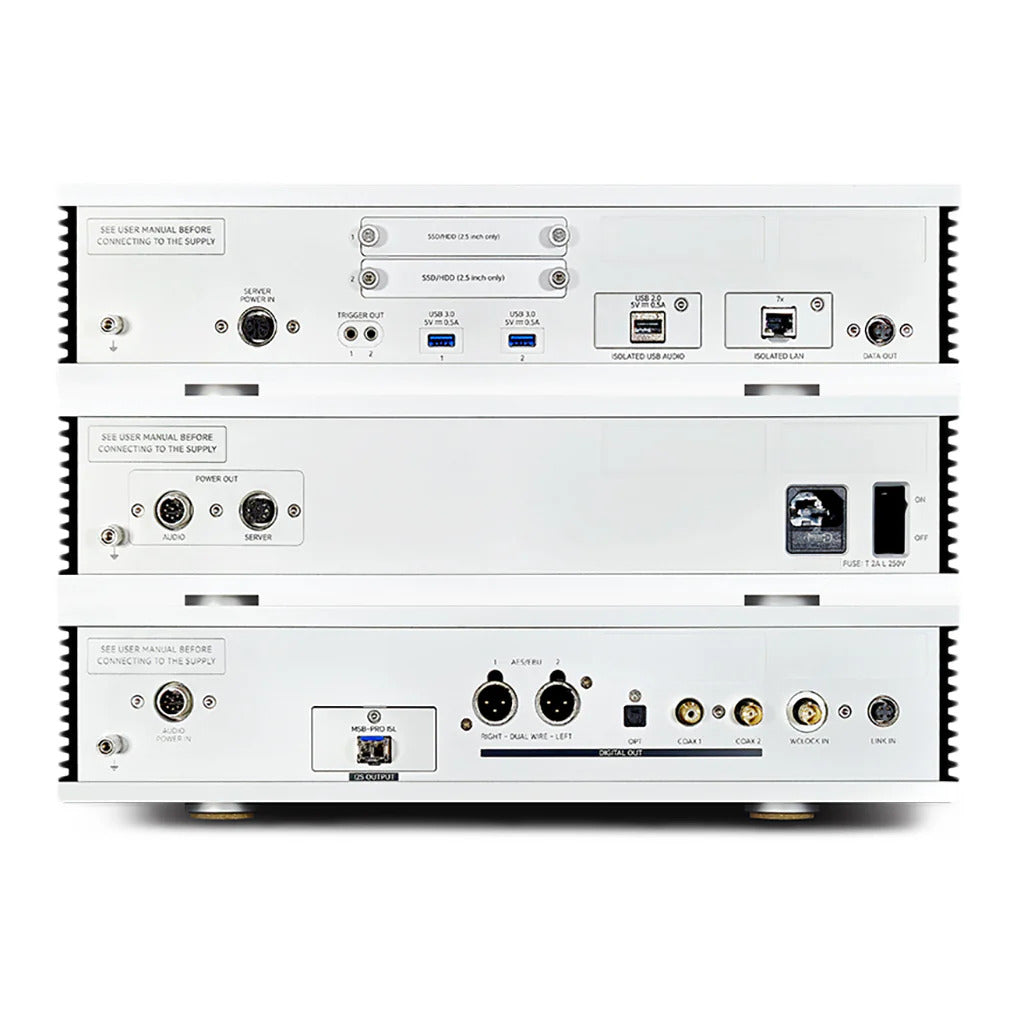

Digital Outputs | USB Audio (Dedicated), Dual AES/EBU (OCXO Controlled), BNC Coax SPDIF(OCXO Controlled), RCA Coax SPDIF (OCXO Controlled), Optical/TosLink SPDIF(OCXO Controlled), 1-I2S module slot ( can choose between installing the MSB Pro ISL and HDMI I2S module) |
USB Output Supported Format | PCM up to 1,536kHz, DoP up to DSD512, up to DSD1024 Native |
SPDIF & AES/EBU Output Supported Format |
PCM: Up to 32-bit / 192 kHz; Dual-Wire AES/EBU: Up to 32-bit / 384 kHz DSD: Up to DSD64 ; Dual-Wire DSD128 via DoP |
I2S out (PRO ISL or HDMI) | PCM up to 768kHz, DoP up to DSD256, up to DSD512 Native |
Master Clock Input | Coaxial BNC 75Ω – 10MHz, 12.8MHz, 44.1-48kHz (multiples from 1-512x) |
MQA Support | MQA Core-Decoder Upgrade Available |
Compatible Formats | DSD (DSF, DFF), WAV, FLAC, AIFF, ALAC, M4A, APE and others |
DSD-to-PCM Conversion | Up to DSD512 |
