R SERIES PRODUCTS

Designed for pure performance these products are crafted from the highest grade materials available for uncompromised musicality and are the culmination of our cutting-edge research and development. From the elegant machined chassis to their incredible technical attributes the R series products will delight and enchant you with every detail.

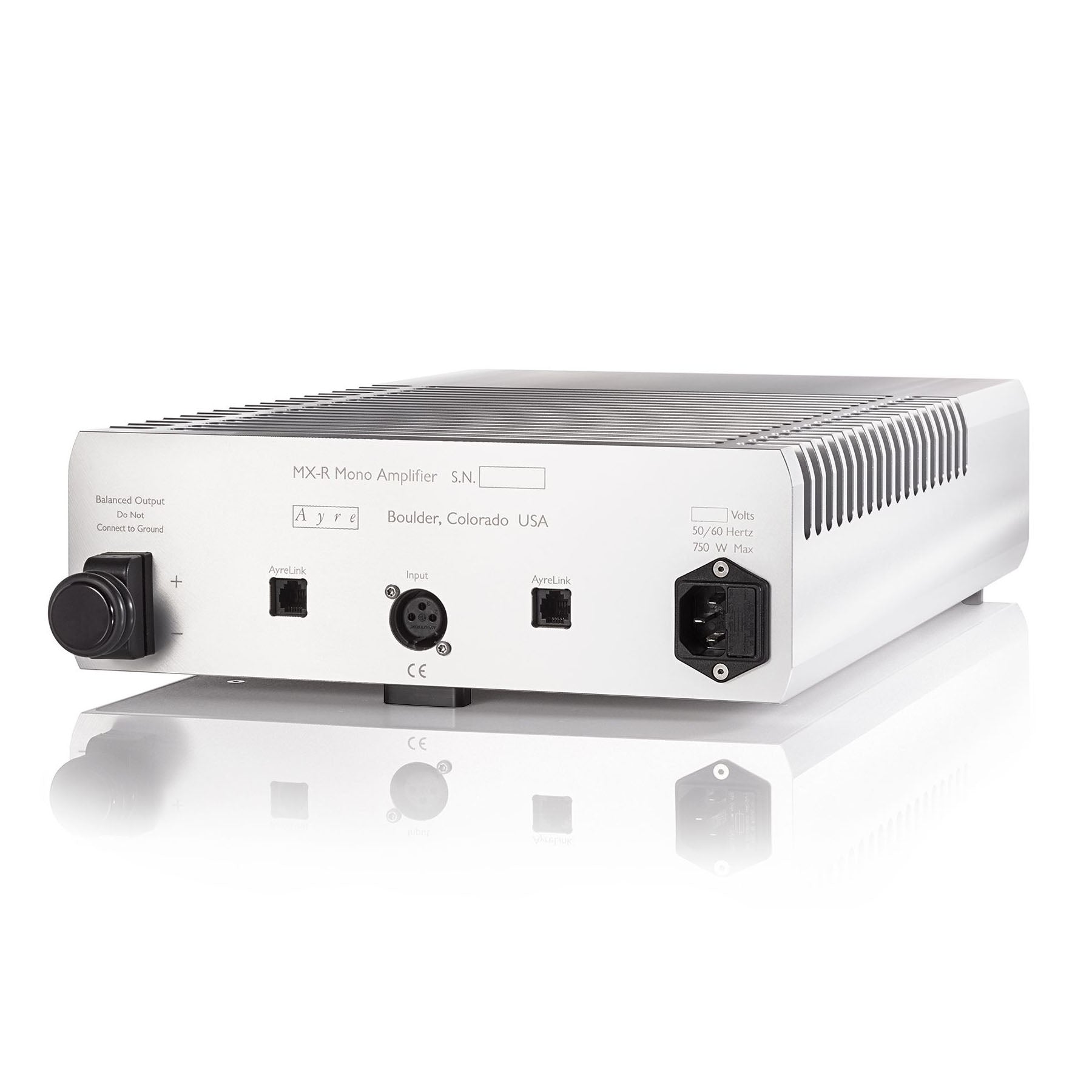

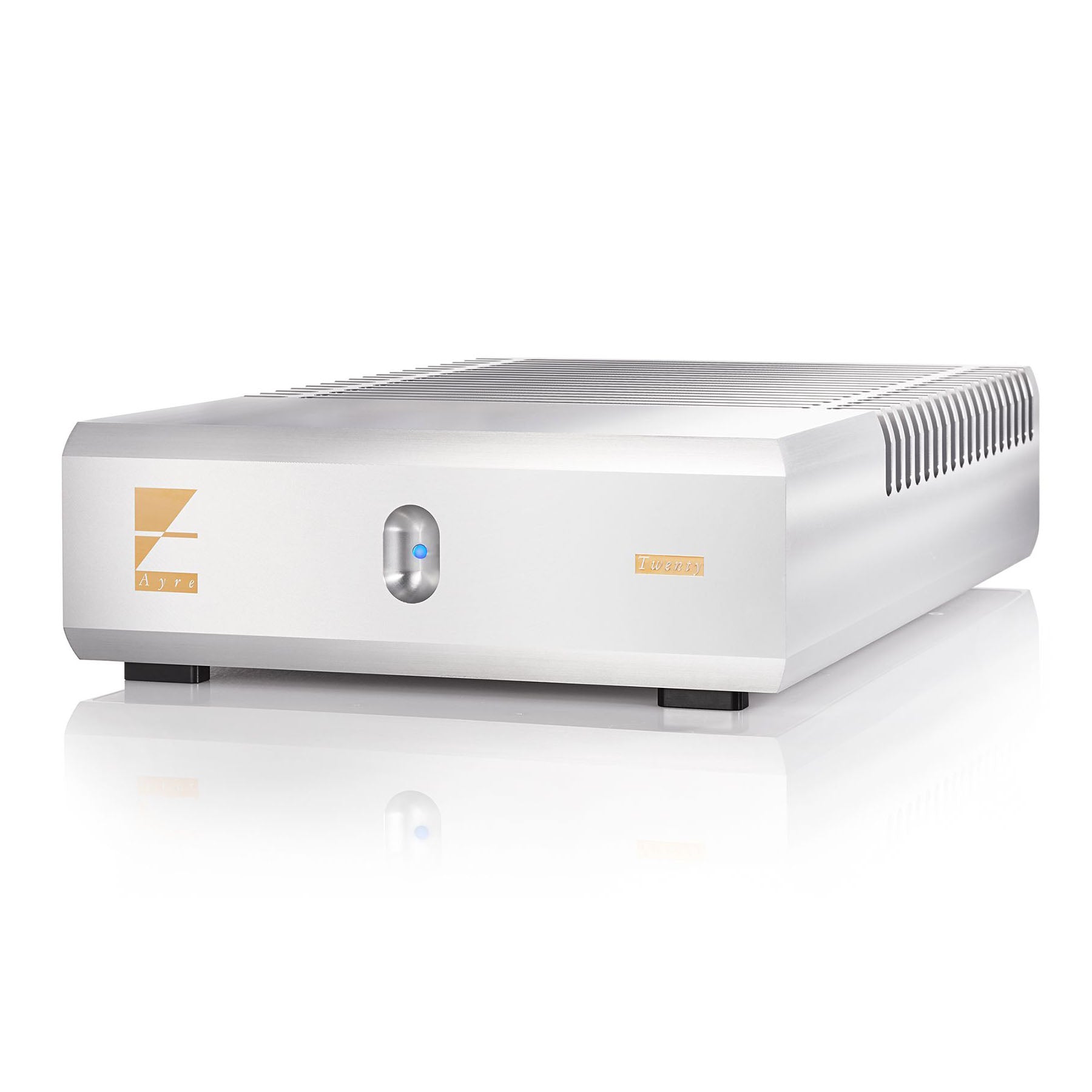

Ayre VX-R Twenty Stereo Power Amplifier

The Ayre MX-R Twenty mono amplifier is a revolutionary redesign of our highest level product. Exploring every detail in the audio path from circuit trace length to part orientation, including processes which many would consider fanatical, pushes this amplifier to the brink of perfection. The dual-transformer linear power supply using our AyreLock circuitry effortlessly drives the most demanding loudspeakers. Our exclusive EquiLock technology enhances the zero-feedback, fully-balanced circuitry for an unprecedented level of clarity and resolution. Our Double Diamond output stage offers power and control that will change the way you listen to music.

FEATURES

• Zero-feedback
• Fully-balanced discrete circuitry
• Ayre Double Diamond output stage
• Linear analog AyreLock power supply
• Ayre’s exclusive Equilock gain circuit
• Ultra-low loss circuit board material
• Custom developed audio-grade resistors
• Proprietary polystyrene capacitors
• Ayre Conditioner power line RFI filter
• AyreLink communication system

Power Output

300 watts per channel continuous into 8 ohms
600 watts per channel continuous into 4 ohms

Gain
26 dB

Input Impedance

2 Mohm balanced (1 Mohm per phase)

Frequency Response

DC – 250 kHz

Power Consumption

45 watts in standby mode
120 watts in operating mode, no signal

Dimensions
11″ W x 18.75″ D x 3.75″ H (28cm x 48cm x 9.5cm)

Weight

52 pounds 23 kg
