Bel Canto Black Control ASC2 - Dual Mono DAC

ASC2/ MPS1 Ultimate Integrated 3 chassis Amplification System

Welcome to Black by Bel Canto, the Ultimate Amplification System.

Black is like no other audio system in the world. It communicates the musical experience completely, staying true to the recorded event and conveying the passion the artist intended. Achieving this level of detailed playback required rethinking the way the signal travels through the many stages of the electronics system. This was the challenge behind Black and the reason we took a different approach, designing a 3 chassis integrated hybrid system.

Beautifully constructed from solid high-grade billet aluminum, the modern look and feel of Black connects to all sources offering the highest level of flexibility and ease of use. Black creates an authentically present and naturally dimensional musical experience that will captivate you.

Dual Mono DAC

The Black Control DAC is a unique path to the finestDigital to Analog conversion and ultimate musical experience. The 2-componentdesign isolates both physically and electrically all input connections andprocessing in the independent solid billet aluminum chassis of the ASC2controller. The manages all inputswitching, volume control, custom tone control, Decoder Renderer, Phono stage,display function, and user interface. The is also designed in amatching solid billet aluminum chassis isolated electrically through fiberoptics from the ASC2 processing to maintain the highest signal accuracy. The 2chassis design ensures a pure analog signal on the output that can drive anyamplifier.

ASC2 - Asynchronous System Controller

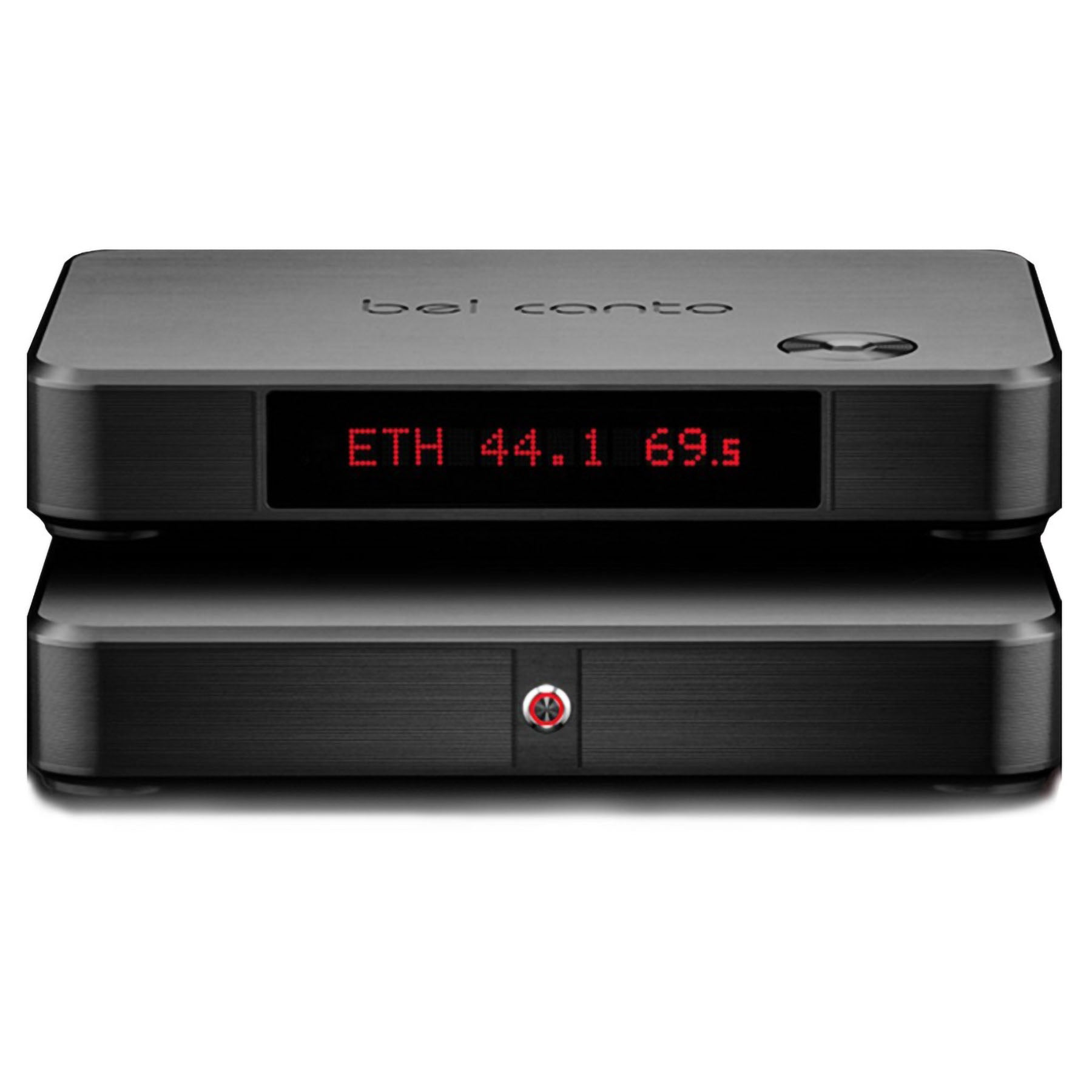

The ASC2 is the second generation and heart of the BLACK system. The ASC2 is not a digital to analog converter; it is a Master Clock/Controller and the only one of its kind. It could be described as the digital preamplifier, with analog and digital inputs and digital output. The easy to read programmable display allows you to select the best view or turn it completely off.

The volume control and input selector is controlled from the multi-function rotating wheel on the top of the ASC2, you can also use the IR custom remote control, or your iPhone/iPad and the custom iOS app. The master control is always ready to adjust volume, press it once and rotate to enter input, or press and hold to enter the menu, where you can set the system up that best meets your needs.

The ASC2 is an all-digital asynchronous controller with galvanic isolated inputs that eliminate the potential for noise to corrupt the fine audio signal from digital, networked and analog sources. The ASC2s 64 bit DSP processor core controls system function, 32-bit volume and custom FIR Filters retains the highest level of accuracy. And at the heart of the ASC2 is the custom ULN Master clock circuit, ultra-low phase noise clocks with independent power supplies measure below 40 Femtoseconds, keeping phase noise and jitter to extremely low levels, ensuring pure sonic performance.

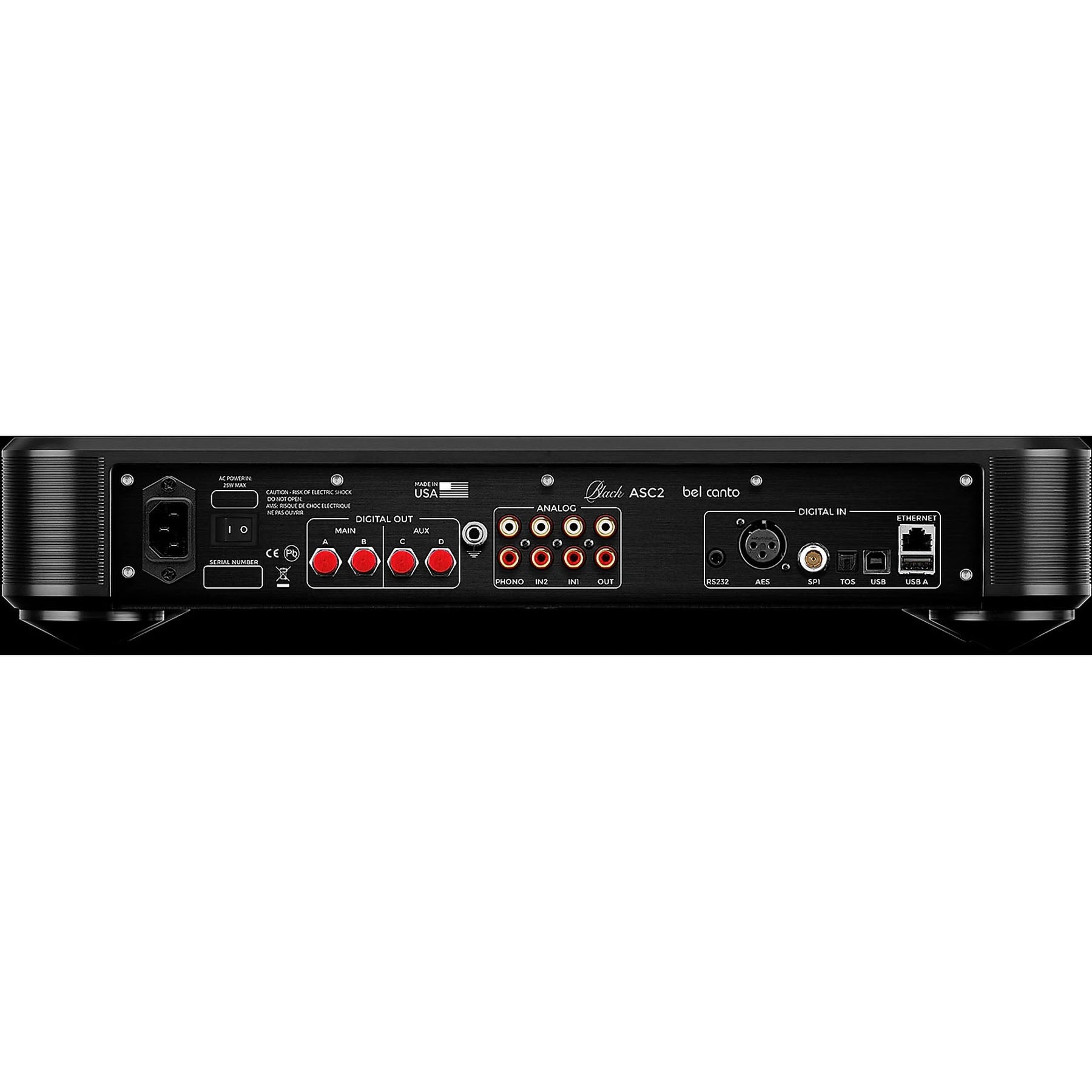

The ASC2 handles all audio inputs, ranging from a networked audio UPnP Ethernet, USB2, a suite of SPDIF/AES digital inputs and an Analog line input that is digitised with a high performance 24/192 ADC 2cm from the input connector. All DSP based control and custom filter functions are contained within the ASC2, along with tone and level controls that dials in your system to your optimised sound. Just as a high performance analog preamplifier is critical to the performance of a traditional audio system the ASC2 is critical to the superior musical performance of the BLACK system making sure the signal is ready for digital optical transmission to the MPS1 monoblocks.
