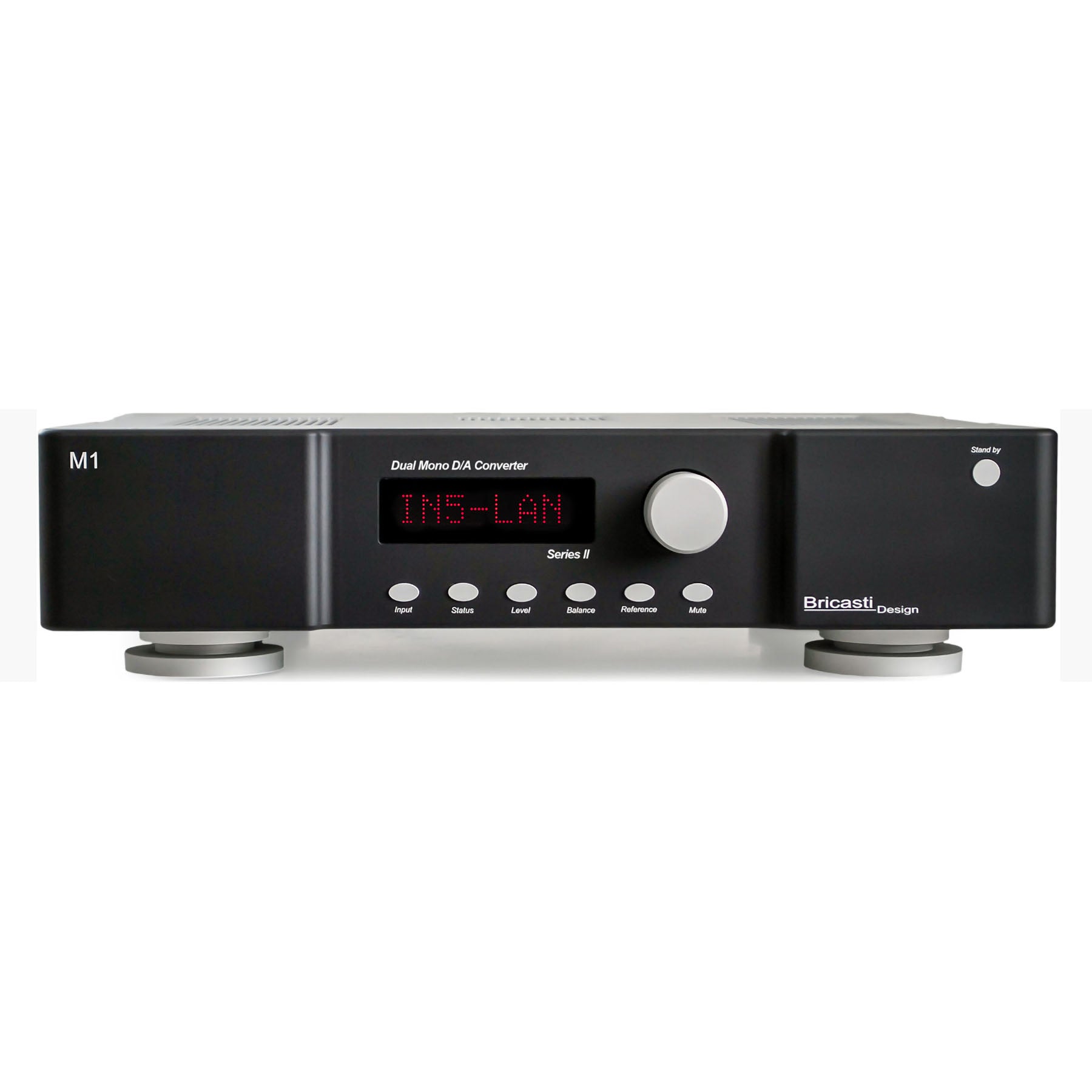

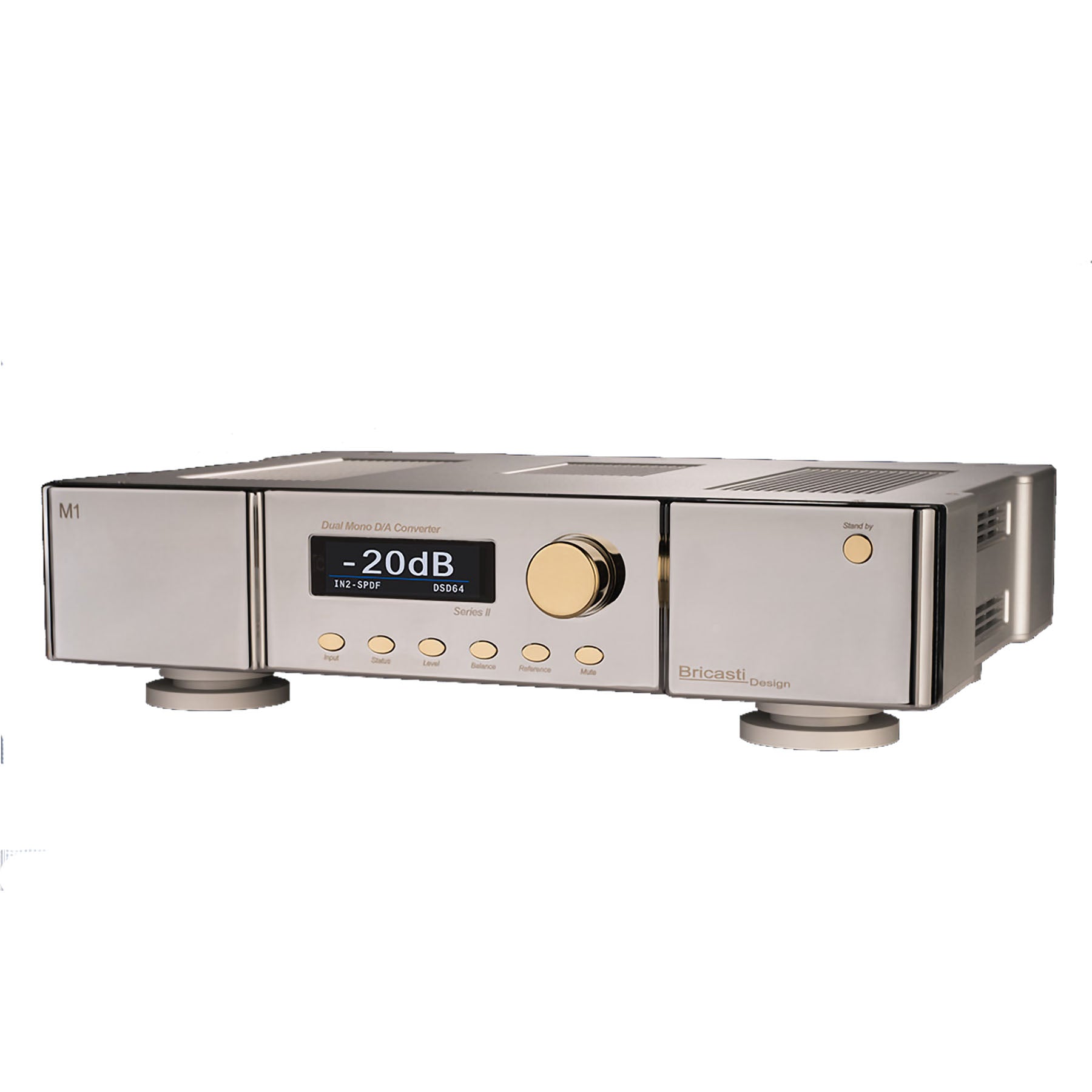

Bricasti M1 Series II Dual Mono DAC
FREE DELIVERY AUSTRALIA WIDE
Every order ships free to any address in Australia via fully tracked, insured delivery. You’ll receive a tracking link once your order is dispatched so you can follow it the whole way. Estimated delivery is 1-4 business days.
Buy with Confidence Warranty
We handle your warranty so you don’t have to. If something isn’t right, simply get in touch and we will coordinate directly with the Australian importer on your behalf. Find out more. click here to lodge a warranty claim.
7-DAY EXPERT SUPPORT FOR YOUR PEACE OF MIND
Whether you’re browsing or already unboxing, Geoff is your friendly hi-fi guide available 7 days a week. From choosing the right system to setting up your new purchase, expert advice is always within reach. Contact Geoff today.
PRICE MATCH
Price is important, but building the right system synergy is equally so. If you’ve found a better price on one of our products or listings, simply get in touch with Geoff. Don’t let price stand in the way of working with HeyNow Hi-Fi to find the right result for your system.
Description
Model 1 Series II D/A Converter
The M1 Series II introduces a new look and feel to the M1 series of products and encompasses many elements of Bricasti Design’s vast wealth of experience engineering precision D/A’s to transform the M1 with the audio purist in mind. The M1S2 is focused on simplicity of design and includes a host of new performance milestones including our latest MDx processor, new higher current twin linear power supplies with larger performance capacitors, all fit into a handcrafted chassis milled from solid aluminum that stands taller in size fitted with the same M1SE feet as standard.
Extreme Performance
A high-performance linear power architecture allows for a clean signal with extremely low noise and expansive headroom. Featuring Point-to-point wiring and stillpoint isolation integrated directly into the chassis, you will experience new depth, detail and dimensionality in your music. Improved spacial cues and separation create a truly immersive experience.
Purity of signal
The M1 Series II utilizes Bricasti Design's latest proprietary MDx digital platform, clocking algorithms and filter technology for exceptional performance wthout the use of SRC's so signals stay native. The digital section is coupled with a pristine analog path with the goal to deliver the truest possibly representation of tonality, precision and dimension.
Network Streaming
The optional Network player offers one of the most sonically advantages avenues for audio playback created in the last decade, with pristine data transmission over long distances, without loss of signal or degradation from cable runs. This means your server can be located anywhere on the network rather than in your listening space, creating a clutter-free listening environment and ground-breaking performance.

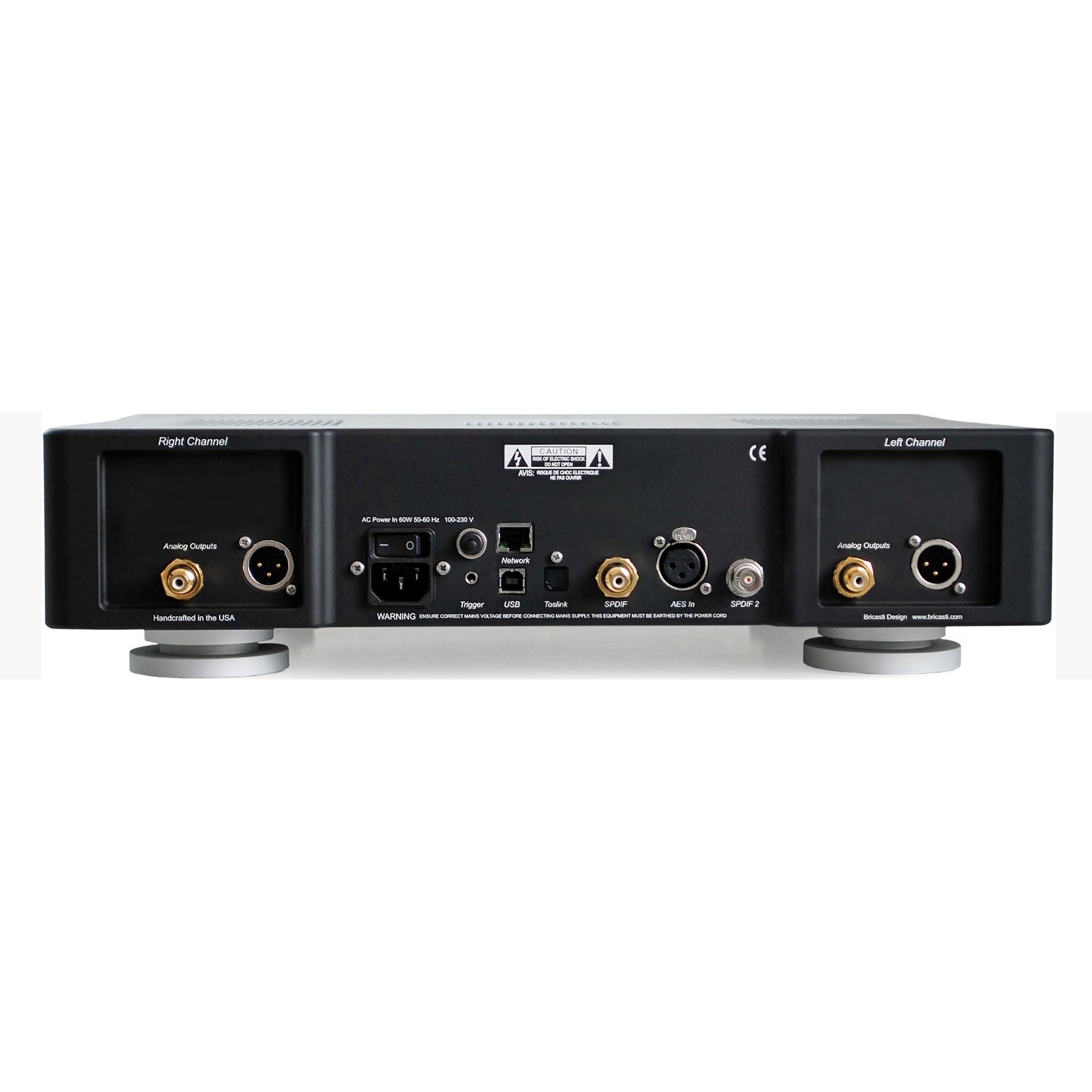

Masterfully connected
The M1S2 digital input selection is well appointed to fit most any system. It also features a fully differential design which creates a less resistant output signal path, ideal when matched with fully differential M20 preamplifier and the Bricasti M28 and M25 amplifiers.
Handcrafted in the USA
All of our products are crafted in the old world tradition, in a classic brick mill building in Massachusetts USA by a team of individuals dedicated to excellence.
Tech Specs
| Digital Inputs | XLR: AES/EBU 24 bit Single Wire, BNC: SPDIF, RCA: SPDIF, Optical: Toslink 44.1- 96k, USB 2 |
| Sample Rates AES, SPDIF, AUX in | 44.1 kHz, to, 192khz |
| Sample Rates USB | 44.1 kHz, to, 384kHz, DSD 64fs 128Fs 256Fs Native or DoP |
| Sample Rates Ethernet | 44.1 kHz to 384kHz PCM, 64x 128x Native and DoP |
| Jitter | 8 psec @ 48k / 6psec @ 96k |
| Balanced Analog Outputs | XLR balanced (pin 2 hot) |
| Impedance | 40 ohm |
| Output | @ full scale +16.5 dbm (5.2V RMS) |
| Max Output Level | +22 dbm |
| D/A Conversion | PCM 24 bit delta sigma 8x oversampling, 64x 128x 256x Native and DoP |
| Frequency Response @44.1k | 10 hz- 20 kHz +0dB, -.2 dB |
| Dynamic Range | >120dB A-Weighted |
| THD+N @ 1k | THD+N @ 1k: .0006% @ 0dbfs / .0004% @-30dbfs PCM sigma delta< |
| Unbalanced Analog Outputs | RCA |
| Impedance | 40 ohm |
| Output level | Full scale at front panel +6 dbm (1.2V RMS) |
| D/A Conversion | PCM 24 bit delta sigma 8x oversampling, DSD 128 Native |
| Frequency Response @ 44.1k | 10 hz- 20 kHz -.2 dB |
| Dynamic Range | >120dB A-Weighted |
| THD+N @ 1k | .0008% @ 0dbfs / .0004% @-30dbfs PCM sigma delta |
| General Specifications | EMC: Complies with: EN 55103-1, EN 55103-2, FCC part 15 and Class B |
| RoHS | Complies with: EU RoHS Directive 2002/95/EC |
| Safety | Certified to: IEC 60065, EN 55103-2 |
| Operating Temperature | 32 F to 105 F (0 C to 40 C) |
| Storage Temperature: | -22 f to 167 F (-30 C to 70 C) |
| Finish | Anodized aluminum, nickel plating with brass knobs and buttons. |
| Dimensions | 17” x 12“ x 4.5” |
| Weight | 15 lbs |
| Shipping Weight | 18 lbs |
| Shipping Dimensions | 22”x 17”x 7” |
| Mains Voltage | -100, 120, 220, 240 VAC, 50 Hz – 60 Hz factory set |
| Trigger out | TRS mini jack, Tip ground, Sleeve 5V |
| Power consumption: | 28 Watts (6W standby) |
| Warranty parts and labor | 2 yrs non-transferable. |
