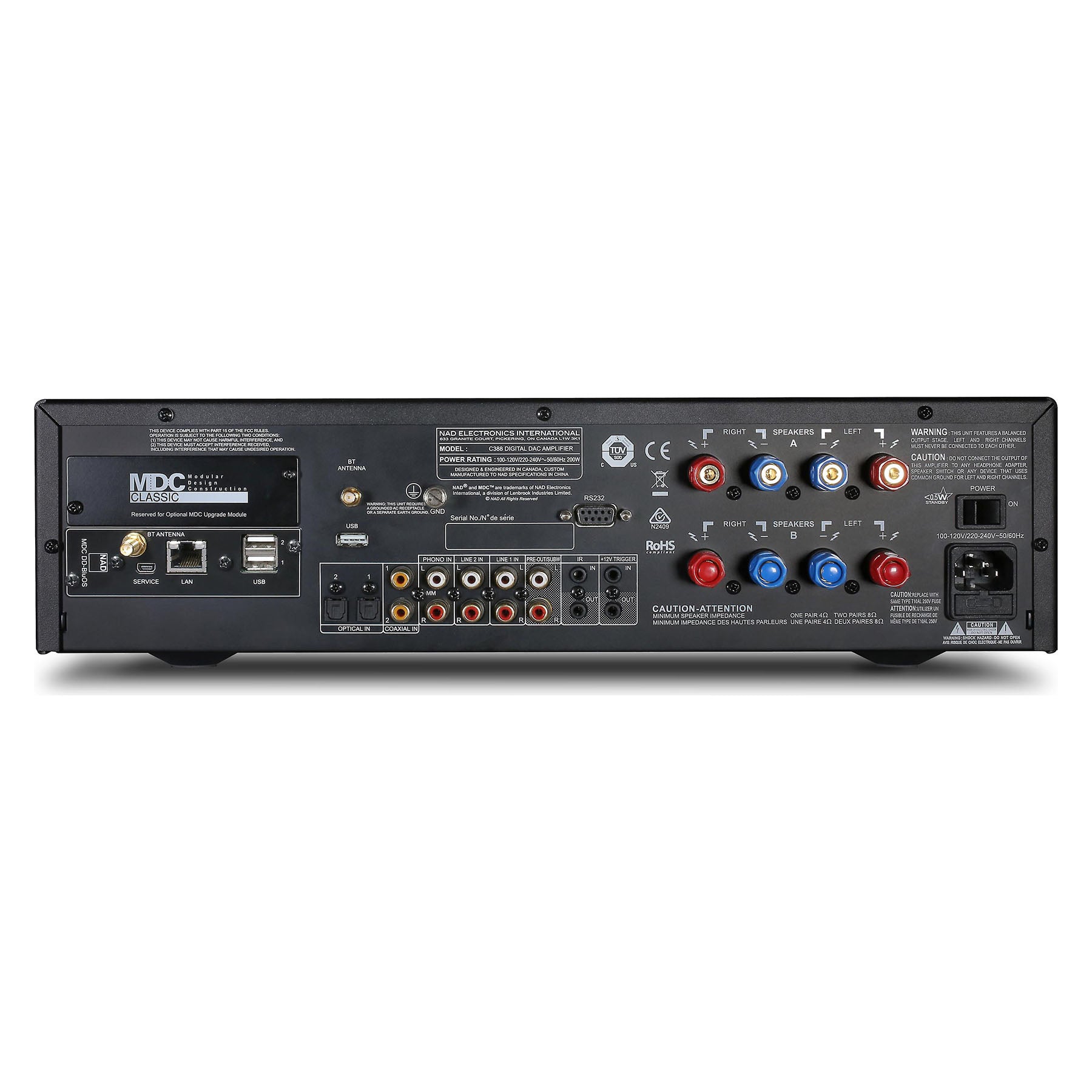

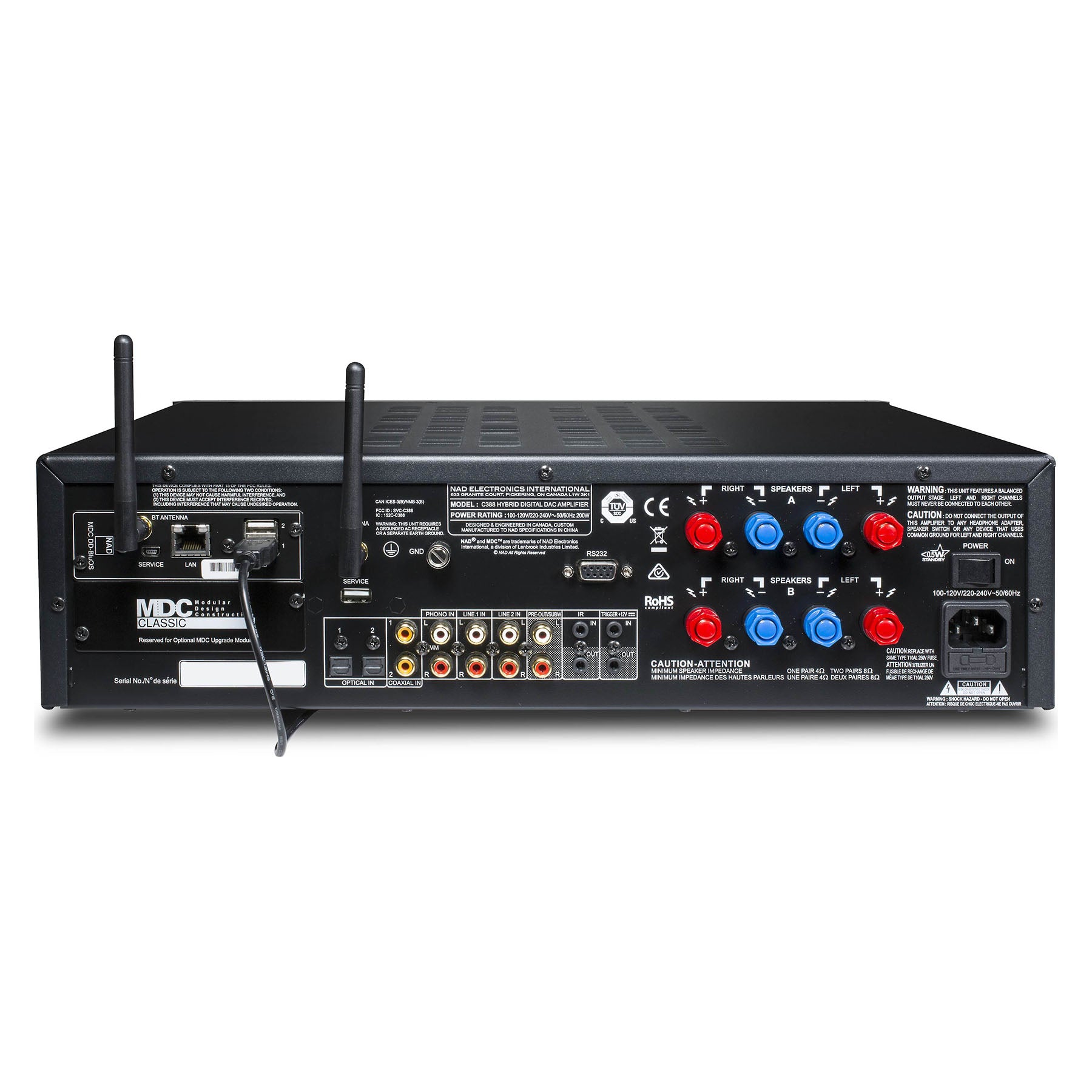

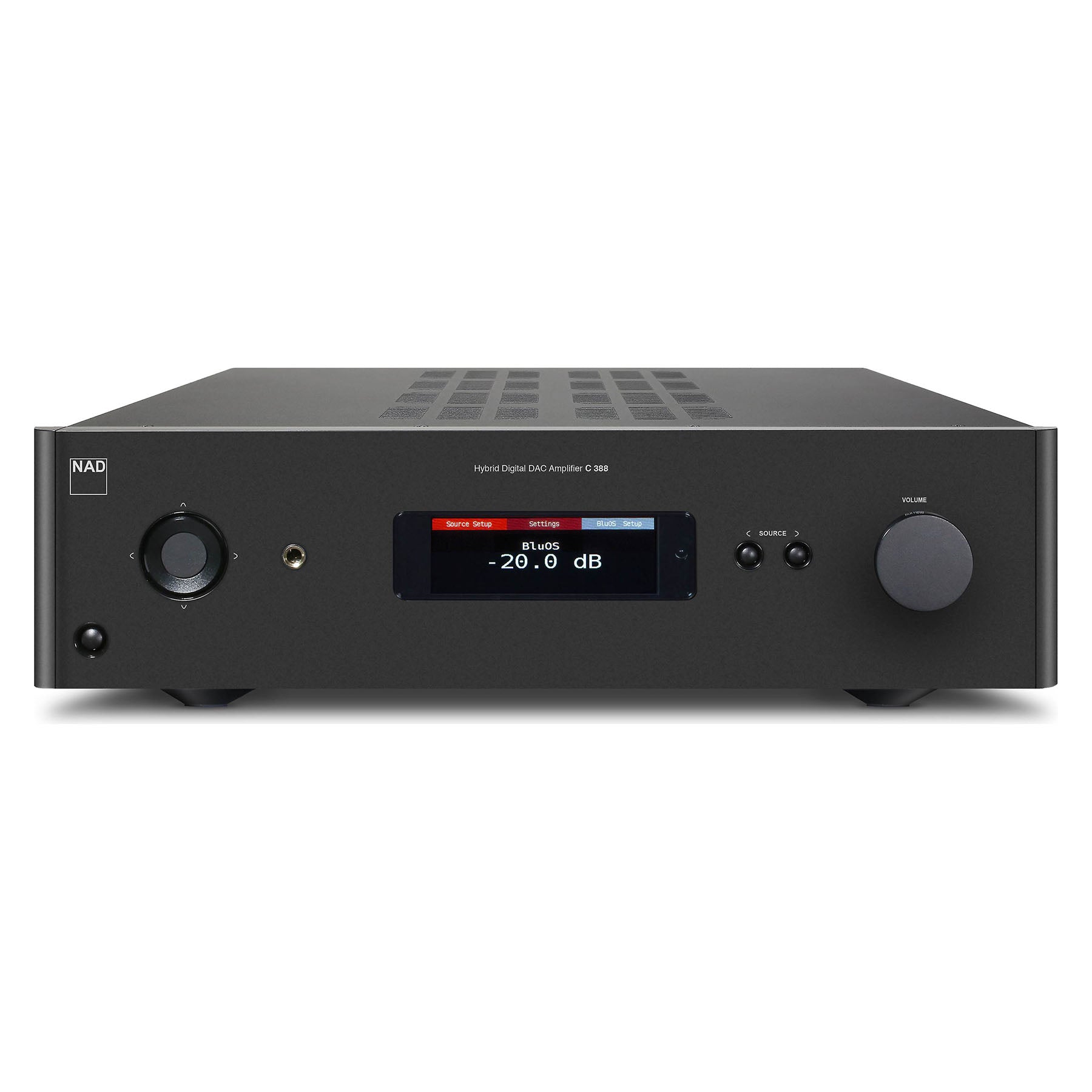

NAD C 388 Integrated Hybrid Digital™ DAC Amplifier with BLU-OS installed
NAD C 388 Integrated Hybrid Digital™ DAC Amplifier with BLU-OS installed
Black
22 Saint Kilda Road
22 Saint Kilda Road
Suite 2.02
St Kilda VIC 3182
Australia
Country of origin: England
What's in the box:
-
NAD C 388 BluOS-2i owner's manual
-
Hybrid Digital DAC Amplifier
-
6' AC power cord
-
MDC BluOS 2i module (pre-installed)
-
2 Antennas
-
Remote control (SR 9)
-
2 "AA" batteries
-
USB/WiFi dongle
-
Antenna
-
41" USB extension cable
-
Quick Setup Guide
-
Mounting Instructions
-
Warranty Information
C 388
Hybrid Digital DAC Amplifier
NAD's new classic amplifiers. Intelligent. Powerful. Efficient.
Features:
-
150W x 2 Continuous power into 8 or 4 Ohms
-
Bluetooth A2DP with aptX supported
-
MM Phono input
-
Analogue line inputs
-
USB port for service purposes
-
SPDIF coax and optical inputs
-
Speaker A, Speaker B
-
Preamp/Subwoofer out
-
Headphone amplifier
-
MDC Slots for future upgrades
-
IR remote
-
Smartphone Control App
-
12V Trigger in/out
-
IR in/out
-
RS-232 Serial port for control
-
Control4, Crestron, RTI, URC, AMX, Savant, Elan certified
Expansive Power with Unprecedented Flexibility.
The C 388 ties together all the critical elements of a top performing music system; music sources past, present, and future, in addition to providing a nearly unrestricted reservoir of power that allows your speakers to reveal every nuance of musical detail. This advanced amplifier includes many cutting edge technological breakthroughs developed by NAD over decades of creating affordable ultra-high performance audio components.
Getting the Basics Right
It is surprising how many seemingly advanced products in the market today often miss many of the most basic requirements for satisfying performance. NAD starts by getting these things precisely right and advances from there. We include an MM Phono stage with precisely accurate RIAA equalization, high overload margins, extremely low noise, and an innovative circuit to suppress infrasonic noise that is present on all LPs – all without affecting bass response. Our line inputs can accommodate all kinds of analogue source components by offering ideal input impedance characteristics with linear ultra-low-noise buffer amplifiers to prevent any sonic degradation. We include a separate headphone amplifier with low output impedance and very high output voltage capability – enough to drive even high impedance studio monitor headphones. Low impedance line outputs that can connect to other amplifiers or subwoofers extend the versatility of this well thought out amplifier.
Future-Proof Modular Design
This NAD exclusive feature allows you to customise your NAD amplifier with additional capabilities and features, now or in the future. The two available MDC slots can accommodate a variety of upgrade modules including 4K video capable HDMI switching, additional Digital Inputs, additional Analogue and Phono Inputs, and one of the most advanced Hi-Res Audio multi-room wireless systems available, the BluOS® music management system developed by Bluesound. BluOS connects to your network and is controlled via smartphone, tablet, or desktop device to manage your music collection and connect to a growing list of high-quality streaming music services.
Connected and Smart
Connect instantly to the C 388 via Bluetooth® aptX® to allow you to stream music wirelessly from any Bluetooth-enabled device with true CD-quality sound. Bluetooth can also be used to listen to other sources connected to the C 388 via wireless headphones such as NAD’s own HP70. There is also a control app that allows your mobile devices to control all functions of your C 388. Add the optional BluOS Module to provide access to your local area network via Wi-Fi or wired Ethernet connection and adds Hi-Res Audio streaming. The BluOS Module also makes the C 388 a single-zone streamer in a complete multi-room wireless music system that is fully compatible with BluOS Enabled music systems and wireless speakers.
Sophisticated Power
NAD has moved away from the old-fashioned power-hungry linear power supplies and Class AB output stages that waste nearly half of the energy consumed and produce heat rather than sound. Instead, we have developed even better performing circuits based on switch mode power supplies and Class D output stages. Once thought to be inferior to traditional topologies, NAD’s advanced work in this area has created some of the best performing amplifiers regardless of basic design principle. These new designs are very linear over a wide bandwidth and provide consistent performance into all speaker loads, providing a dramatic advance over previous models.
The power supply is capable of 150 watts continuously and over 250 watts instantaneously to allow for short-term musical transients. It can operate with any AC mains voltage from 100 to 240 volts and provides pure DC power to all the various stages of the C 388. This highly efficient supply also provides near perfect regulation of voltage across a wide range of conditions and provides a solid noise-free foundation for the amplifying stages.
The C 388 uses a customized version of the proven Hypex UcD output stage operating in a fully balanced bridge configuration. This allows for massive power with nearly immeasurable distortion and noise in the audible range. Every detail of this design has been carefully planned and perfectly executed to produce out every last drop of performance.
PREAMPLIFIER
Line Input, Pre Out
THD (20Hz – 20kHz)
<0.005% at 2V out
Signal/Noise Ratio
>106dB (IHF; A-weighted, ref. 500mV out, unity gain)
Channel separation
>80dB (1kHz); >70dB (10kHz)
Input Impedance (R and C)
22 kilohm + 100pF
Maximum input signal
>4.5Vrms (ref. 0.1% THD)
Output impedance
Source Z + 240 ohm
Input sensitivity
93mV (ref. 500mV out, Volume maximum)
Frequency response ±0.03dB
20Hz – 20kHz
Maximum voltage output -IHF load
>4.5V (ref. 0.1% THD)
Tone Controls
Treble
±7.0dB at 20kHz;
Bass
±7.0dB at 60Hz;
Balance
-10dB
Phono Input, Pre Out
THD (20Hz – 20kHz)
<0.01% at 2V out
Signal/Noise Ratio
>84dB (200 ohm source; A-weighted, ref. 500mV out)
>76dB (MM cartridge source, IHF; A-weighted, ref. 500mV out)
Input sensitivity
1.44mV (ref. 500mV out, Volume maximum)
Frequency response ±0.3dB
20Hz – 20kHz
Maximum input signal at 1kHz
>80mVrms (ref. 0.1% THD)
Line Input, Headphone Out
THD (20Hz – 20kHz)
<0.005% at 1V out
Signal/Noise Ratio
>110dB (32 ohm loads; A-weighted, ref. 2V out, unity gain)
Frequency response ±0.3dB
20Hz – 20kHz
Channel separation
>60dB at 1kHz
Output impedance
6 ohm
GENERAL SPECIFICATIONS
Line In, Speaker Out
Continuous Output Power into 4/8 ohms (Stereo)
>150W (at rated THD, 20Hz – 20kHz, both channels driven)
IHF Dynamic Power
2 ohm 400W
4 ohm 350W
8 ohm 250W
THD (20Hz – 20kHz)
<0.02% (250mW to 150W, 8 ohm and 4 ohm)
Signal/Noise Ratio
>95dB (A-weighted, 500mV input, ref. 1W out in 8 ohm)
Clipping power
>160W (at 1kHz 0.1% THD)
Peak output current
>20A (in 1 ohm, 1ms)
Damping factor
>150 (ref. 8 ohm, 20Hz to 6.5kHz)
Frequency response ±0.3dB
20Hz – 20kHz
Channel separation
>75dB (1kHz); >70dB (10kHz)
Input sensitivity (for 80W in 8 ohm)
Line In
490mV;
Phono In
7.5mV;
Digital In
24% FS
Supports bit rate/sample rate
Up to 24bit/192kHz
Standby Power
<0.5W
Frequency Band
2.402G – 2.480G
Maximum transmit power (dBm)
7dBm ± 2dBm
DIMENSIONS AND WEIGHT
Dimensions (W x H x D)
435 x 120 x 390mm
Net Weight
11.2kg
Shipping Weight
13.6kg
PREAMPLIFIER
Line Input, Pre Out
THD (20Hz – 20kHz): <0.005% at 2V out
Signal/Noise Ratio: >106dB (IHF; A-weighted, ref. 500mV out, unity gain)
Channel separation: >80dB (1kHz); >70dB (10kHz)
Input Impedance (R and C): 22 kilohm + 100pF
Maximum input signal: >4.5Vrms (ref. 0.1% THD)
Output impedance: Source Z + 240 ohm
Input sensitivity: 93mV (ref. 500mV out, Volume maximum)
Frequency response ±0.03dB: 20Hz – 20kHz
Maximum voltage output -IHF load: >4.5V (ref. 0.1% THD)
Tone Controls
Treble: ±7.0dB at 20kHz;
Bass: ±7.0dB at 60Hz;
Balance: -10dB
Phono Input, Pre Out
THD (20Hz – 20kHz): <0.01% at 2V out
Signal/Noise Ratio
>84dB (200 ohm source; A-weighted, ref. 500mV out)
>76dB (MM cartridge source, IHF; A-weighted, ref. 500mV out)
Input sensitivity: 1.44mV (ref. 500mV out, Volume maximum)
Frequency response ±0.3dB: 20Hz – 20kHz
Maximum input signal at 1kHz: >80mVrms (ref. 0.1% THD)
Line Input, Headphone Out
THD (20Hz – 20kHz): <0.005% at 1V out
Signal/Noise Ratio: >110dB (32 ohm loads; A-weighted, ref. 2V out, unity gain)
Frequency response ±0.3dB: 20Hz – 20kHz
Channel separation: >60dB at 1kHz
Output impedance: 6 ohm
GENERAL SPECIFICATIONS
Line In, Speaker Out
Continuous Output Power into 4/8 ohms (Stereo): >150W (at rated THD, 20Hz – 20kHz, both channels driven)
IHF Dynamic Power
2 ohm 400W
4 ohm 350W
8 ohm 250W
THD (20Hz – 20kHz): <0.02% (250mW to 150W, 8 ohm and 4 ohm)
Signal/Noise Ratio: >95dB (A-weighted, 500mV input, ref. 1W out in 8 ohm)
Clipping power: >160W (at 1kHz 0.1% THD)
Peak output current: >20A (in 1 ohm, 1ms)
Damping factor: >150 (ref. 8 ohm, 20Hz to 6.5kHz)
Frequency response ±0.3dB: 20Hz – 20kHz
Channel separation: >75dB (1kHz); >70dB (10kHz)
Input sensitivity (for 80W in 8 ohm)
Line In: 490mV;
Phono In: 7.5mV;
Digital In: 24% FS
Supports bit rate/sample rate: Up to 24bit/192kHz
Standby Power: <0.5W
Frequency Band: 2.402G – 2.480G
Maximum transmit power (dBm): 7dBm ± 2dBm
DIMENSIONS AND WEIGHT
Dimensions (W x H x D): 435 x 120 x 390mm
Net Weight: 11.2kg
Shipping Weight: 13.6kg
