What's in the box:

• NAD C 558 owner's manual

• Turntable chassis

• Tone-Arm (installed)

• Cartridge (installed)

• Sub-platter (installed)

• Platter

• Belt

• AC power adapter (attached 4' DC cord)

• 3 AC plug inserts (US/UK/EU)

• Dust cover

• Felt pad

• Counter-weight

• 45RPM adapter

• 47" Stereo RCA cable with ground lead

• Stylus pressure gauge

• Plastic tonearm bearings tool

• Paper cartridge alignment tool

• 2 Allen keys

• Pair of white cotton gloves

• Owner's Manual (En/Fr/Sp)

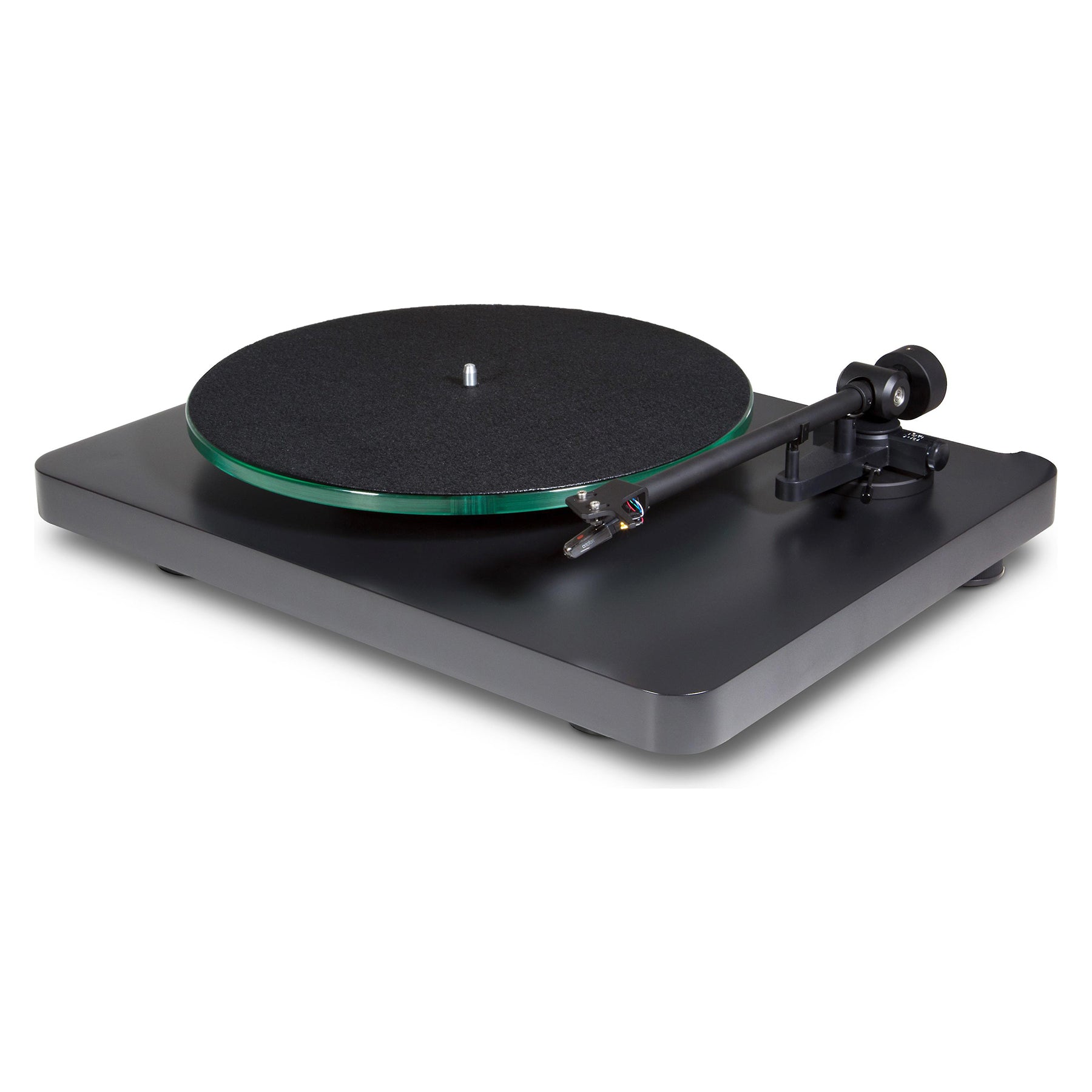

C 558

Turntable

Features:

• Belt Driven Turntable 33/45

• 10mm Glass Plater with Felt Padu

• Precision AC Motor

• Isolated AC Power Supply with Universal Voltage

• 9” Tonearm with Fixed Head Shell

• Ortofon OM10 Cartridge Preinsatalled

• Vertical Tracking Angle and Azimuth Adjustment

• Rigid MDF Plinth with Rubber Isolation Feet

• Low Resonance Dustcover

• Detachable High Quality RCA Cable with separate Ground

Sophisticated Technology

When it comes to the C 558, we have chosen to use a sophisticated power supply that transforms the AC alternating voltage of your wall socket into a pure DC voltage. The DC voltage is then regenerated into a precise AC voltage that powers a precision clock motor to achieve nearly perfect speed consistency and smoothness. The motor itself is isolated from noise and voltage fluctuations that occur in the unfiltered AC mains that can cause instability in the motor. The motor uses a specially developed rubber belt that is flat ground for precision and drives a non-resonant sub platter that is also precisely machined for smooth rotation. This sits in a brass bearing with a hardened steel shaft. All of these parts are carefully developed to work together to provide a remarkably stable and precise rotation of the disc.

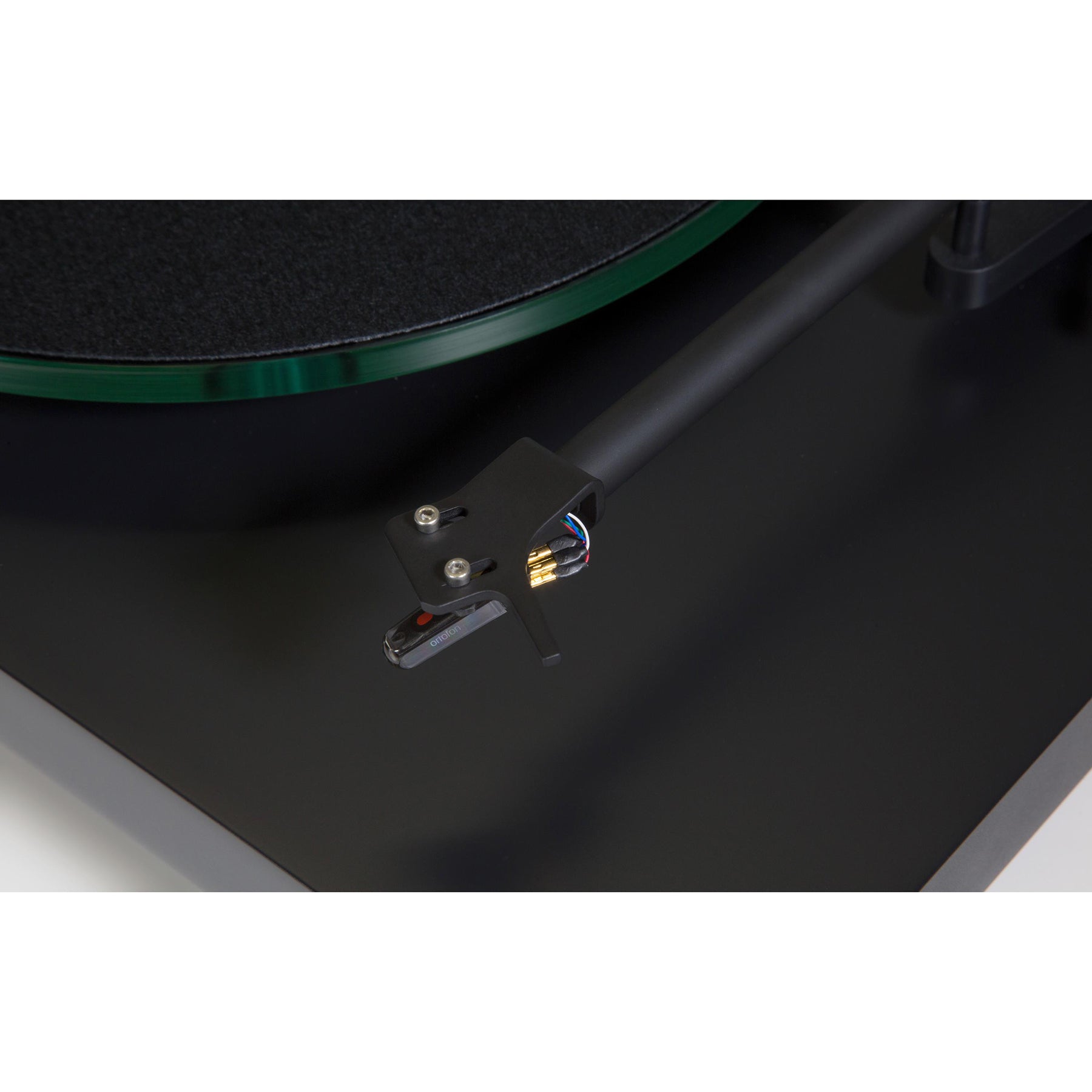

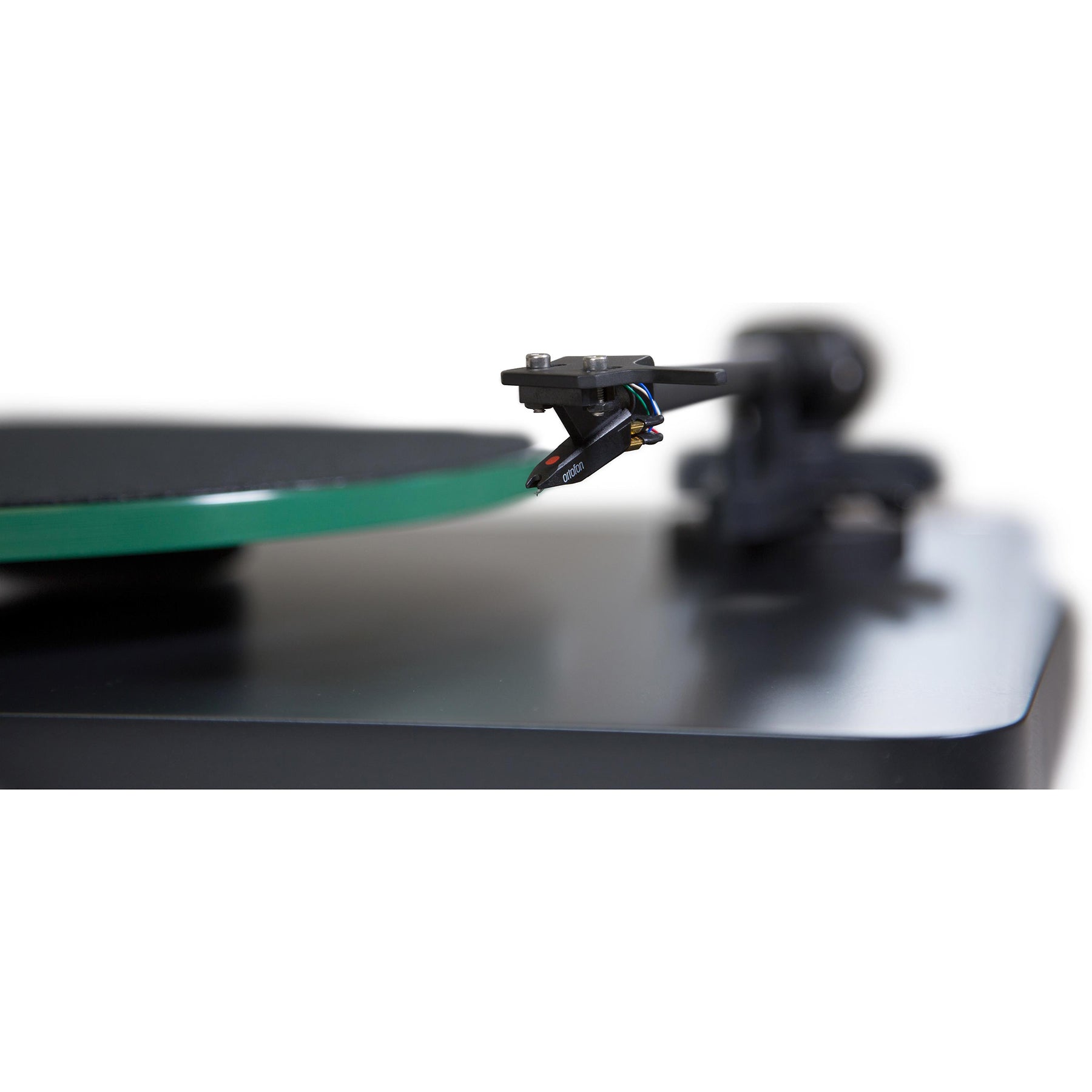

The C 558’s tonearm also offers a similar level of careful engineering and development. At 9” long it offers low tracking distortion while maintaining rigidity and low mass required to stabilize the cartridge. By allowing VTF and Azimuth adjustment we get precise tracking with low distortion and record wear.

The glass platter and massive plinth combine to extract all the energy from the disc while isolating unwanted external vibration. These details further ensure that your vinyl listening experience is truly transcendent.

Quality Parts and Materials

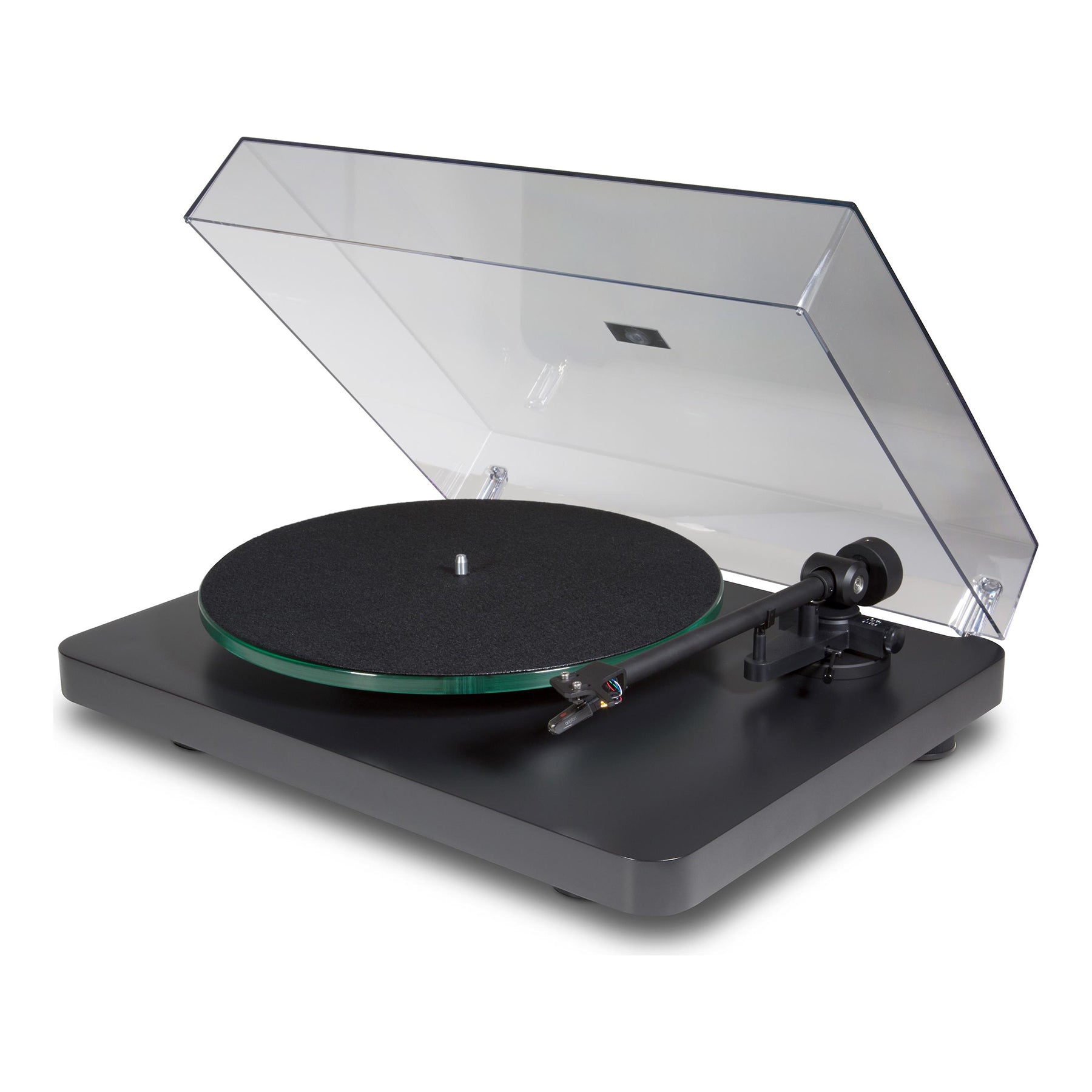

The plinth of the C 558 is solid MDF, as opposed to the particle board or plastic that is commonly found at this value, and is CNC machined for precision. The C 558’s dustcover, too, is heavier than most and made from a non-resonant Perspex with a counter-sprung hinge design that allows the cover to remain in almost any intermediate position from open to closed.

An Experience Like No Other

Listening to vinyl records is an immersive experience. You become as involved in the process as you do in the listening. To a much greater degree than with digital sources, vinyl playback requires solid mechanical accuracy to extract the music from the medium. A properly played record is a fantastic and rewarding experience, and the NAD C 558 has everything you need to get maximum enjoyment with minimal fuss and expense.

GENERAL SPECIFICATIONS

Nominal speed

33/45 rpm, manual speed change

Speed variance

33rpm: ± < 0.50%, 45rpm: ± < 0.45%

Wow and flutter

33rpm: ± < 0.15%, 45rpm: ± < 0.15%

Downforce range

0 – 30 mN, 0 – 3.0 grams

TONEARM

Operation

Manual

Length

230 mm

Overhang

18 mm

Effective tonearm mass

9.5 g

Cable capacitance

150-400pF

CARTRIDGE

Frequency Range

20-22.000Hz

Output Voltage

4mV

Tracking Force Recommended

15mN

Cartridge Weight

5g

Stylus Type

20μm/mN – elliptical

PHYSICAL SPECS

Dimensions (W x H x D)

435 x 340 x 125mm

17 1/8 x 13 3/8 x 4 59/64”

Net Weight

5.5 kg (turntable) – 1.74 kg (platter)

Shipping Weight

8kg
