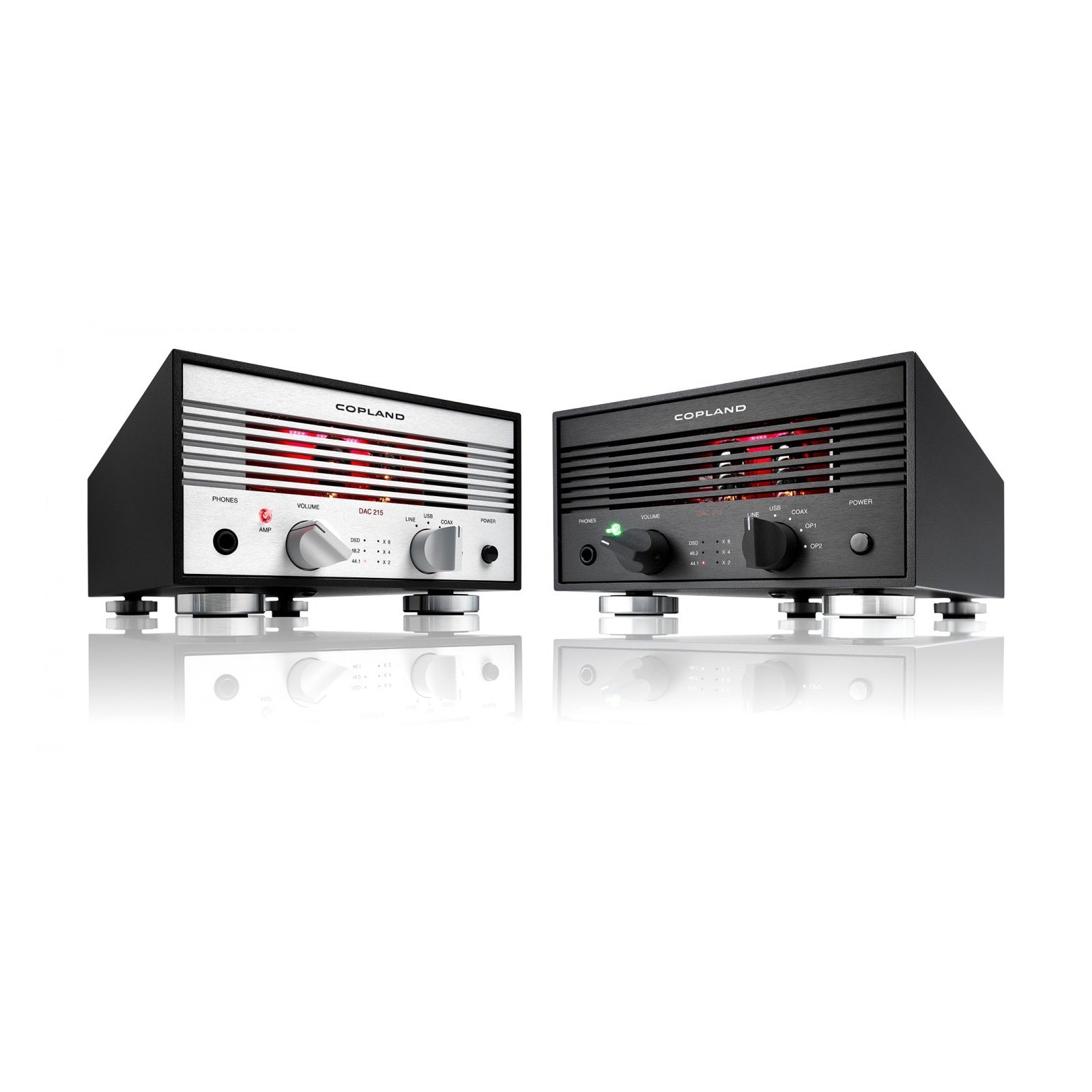

Copland DAC 215 Universal high resolution DAC, Pre-amplifier, Headphone amplifier

Copland

Copland DAC 215 Universal high resolution DAC, Pre-amplifier, Headphone amplifier

Sale price$3,450.00

Includes GST. 🚚 Free shipping on orders over $100 Australia wide at checkout.

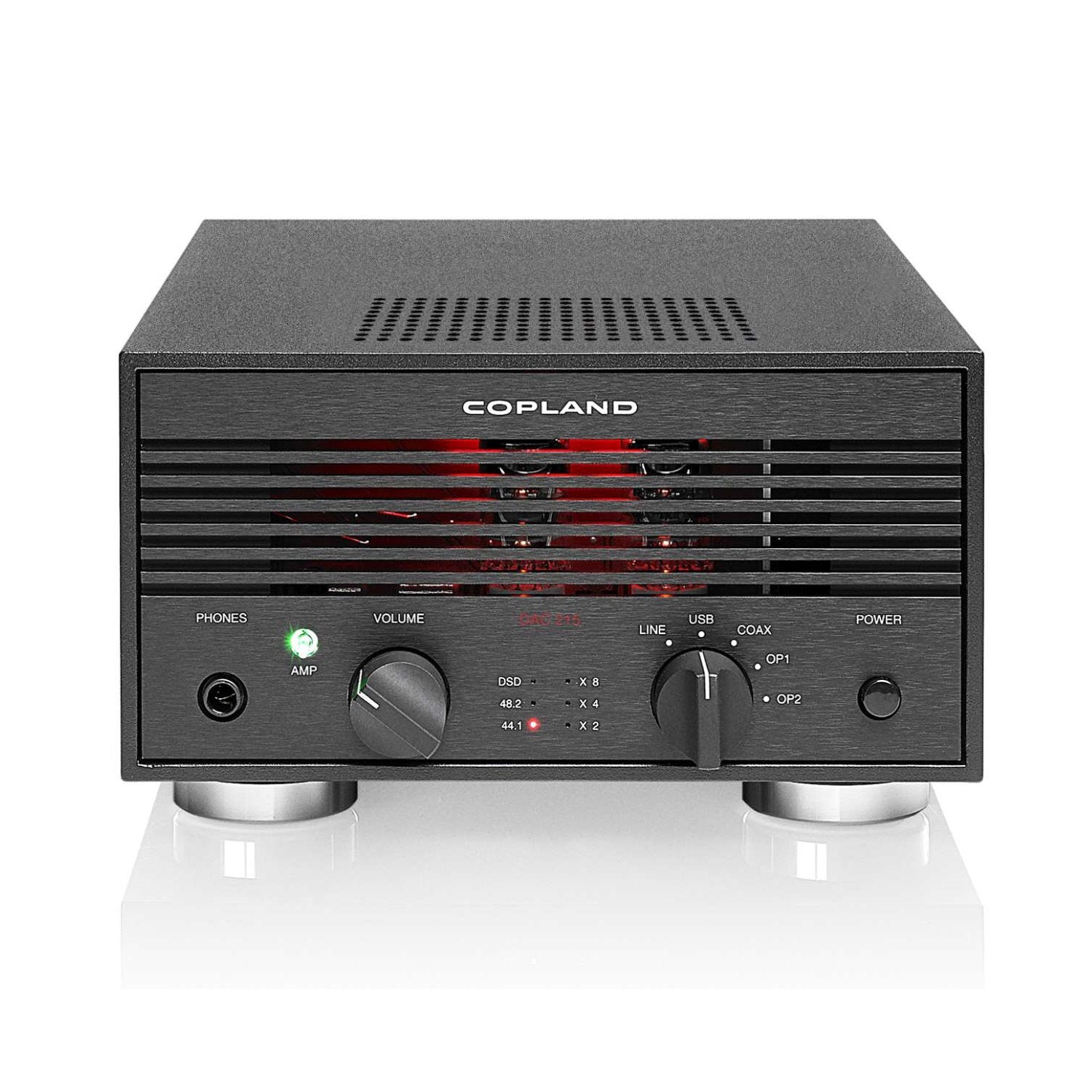

Colour:Black
Quantity:

Ask Geoff

Phone
📱 Mobile
💬 What's app
Email me

Your Javascript is disabled

DAC 215 Universal high resolution DAC, pre-amplifier, headphone amplifier

The digital revolution has made music easily accessible. Thanks to the convenience and impressive sound quality of computer sourced digital music files, many audiophiles consider their personal computer or laptop as their primary audio source. Connected to a computer the DA215 will process audio data of extremely high resolution and the playback quality will be defined mainly by the data itself.

The heart of the DA215 is an excellent D/A converter with multiple S/PDIF inputs, PCM, and DSD capabilities using the ES9018 Reference 32-bit DAC in quad-mono configuration, 8 mono to 2 stereo configuration. Combining four in-phase and four opposite-phase converters per channel, the statistical properties of the signals are taken to advantage; the signal power of the phases correlate and add-up in constructive addition, whereas the noise power of the phases are de-correlated, improving the signal to noise ratio of the resulting analog waveform.

The class-A buffering technology of the analog filtering sections is borrowed from the highly acclaimed Copland CD-players and composed by discrete transistors producing a stunning sound quality with an unconstrained mobility and acceleration.

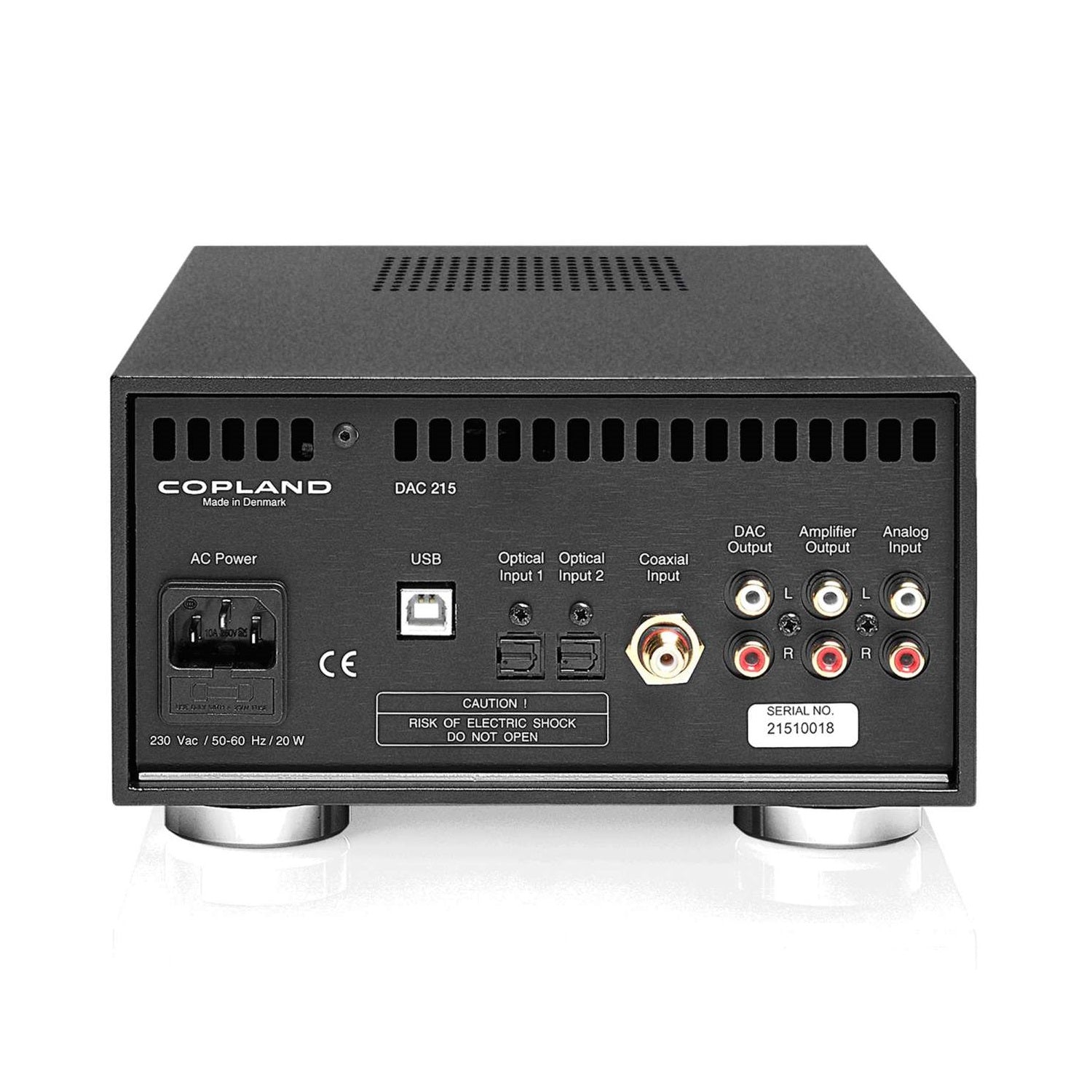

The DA215 incorporates an asynchronous USB input, tree S/PDIF digital inputs, an analog input, two analogue outputs (fixed and variable) and a complete pre-amplifier with analog volume control and front panel headphone output featuring vacuum tube gain stages.

You can use the DAC215 for headphones playback. However, you can also use it as a high-end pre-amplifier with volume control, using the amplifier RCA outputs. The volume control and pre-amplifier functionality can be bypassed for pure DAC mode.

The DA215 USB input implementation is one of the most advanced available, featuring USB 2.0 PCM 24/32 bit data transfer to 384 kHz, including native DSD64 and high resolution DSD128. The input is converted to i2s and it is connected directly to the DAC chip.

Once connected, the computer recognizes the DAC and routes the digital audio data to it, bypassing the source device’s internal audio circuitry.

The asynchronous USB-B port connects to the computer’s USB-A port. No power is taken from the computer. The regulated power supply for the USB input section has its own winding of the power transformer and the noisy computer line is completely interrupted by the use of digital Isolators.

Features

Specifications

D/A Converter Features:
Quad mono drive with
SABRE Ultra DAC
DAC Digital Inputs:
USB Audio: PCM 44.1~384K (24/32bit),
DSD 2.8~5.6MHz (64~128X)
USB Input (PCM): 44.1 kHz, 48 kHz, 88.2 kHz,
96 kHz, 176.4 kHz, 192 kHz, 352.8 kHz, 384 kHz
(16, 24, 32 bit)
Windows Vista /7 /8 /10 (32/64bit)
USB Input (DSD): 2.8 MHz, 5.6 MHz Mac-OS X and Linux with UAC2 without drivers
COAXIAL/OPTICAL/AES /EBU Input: 32 kHz,
44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz,
192 kHz (16, 24 bit)
S/PDIF Input: 1 x COAX / 2 x Optical.
PCM 44.1~192K (32bit)
Minimum Jitter with Asynchronous Transfer DAC Analog Output:
DIRECT Mode RCA. 2.0 V rms. @ 0dBFS
Up to 384 kHz/32-bit sampling Frequency response: 20Hz~20 kHz (+/-0.2dB)
Class A analog section SNR DAC > 120dB
Amplifier Features: THD < 0.004%
Shielded Power Transformer with Independent
Winding, Isolated Power and Digital/Analogue Blocks
Head Amp:
High Voltage Valve amplifier + Solid stage
current buffer
Valves: 2 x ECC88 / 6DJ8 / 6922
Analog Volume Control Output Head Amp / Headphones: max. 8.5 V rms
Output impedance / Headphones: 5.0 Ω
Output impedance / Line out / RCA : 100 Ω
Frequency response: 20Hz~100 kHz (+/-0.5dB)
SNR: 90 dB
THD < 0.02%
Gain Head Amp: 10 dB
Power AC 110~120V or 220~240V
(50/60Hz) * Factory Settings
Power Consumption: 25W
Weight: 3.8Kg
Dimensions: 200 x 280 x 115 mm. W x D x H
