Fischer & Fischer
Germany
SN770.1AMT

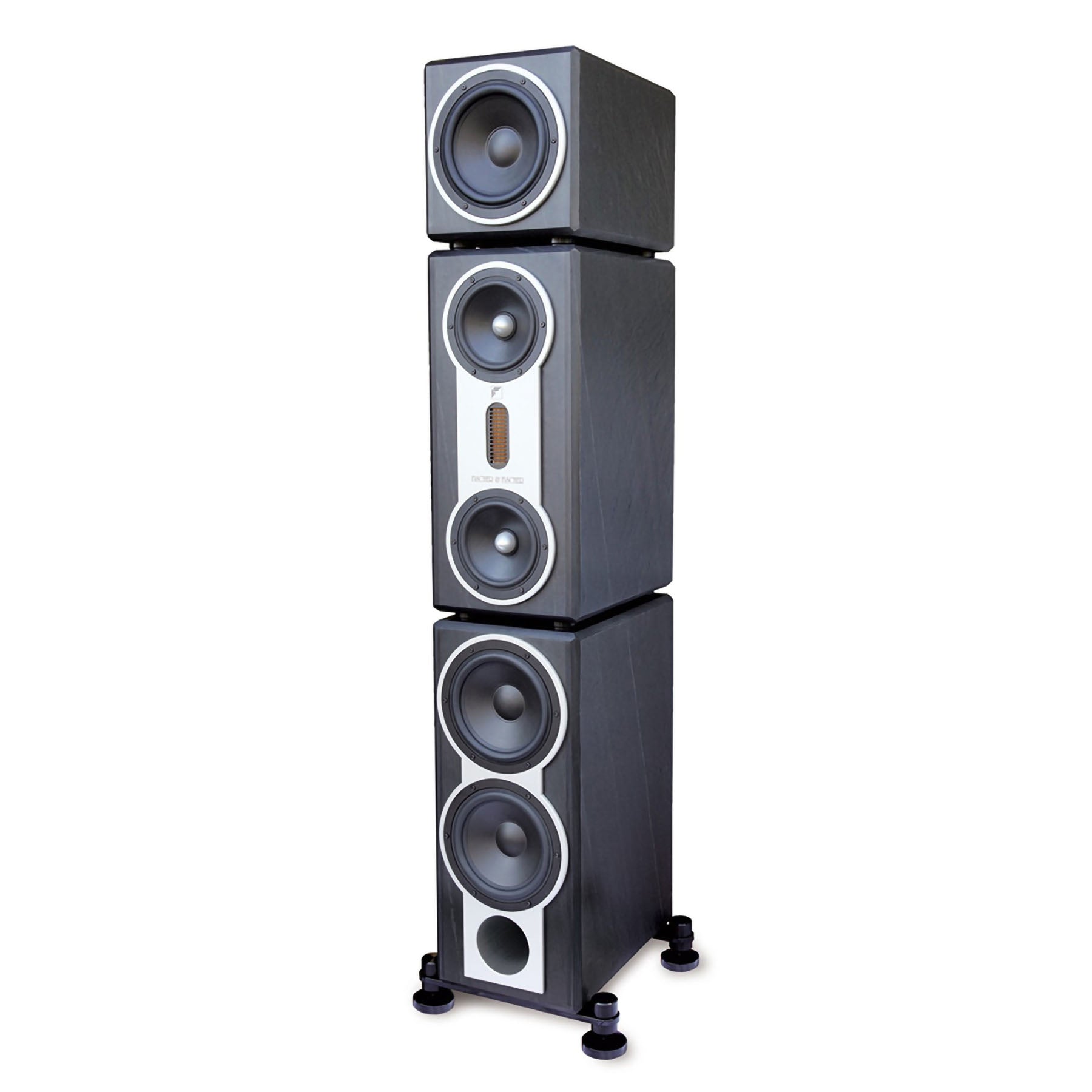

4-Way Tri-Wired Floorstanding Loudspeaker
Fischer & Fischer floor standing loudspeakers have an elegant, luxurious and compact appearance. Due to their unique use of natural slate for their cabinets and very high quality drivers, including Air Motion Transformer (AMT) high frequency units made by Mundorf, they have an accurate, extended, full-bodied sound with realism, dynamics and natural presence. As you move up the range, the models use more drive units, higher quality crossover networks and more elaborate de-coupled cabinet designs, resulting in greater resolution, scale, efficiency and sonic sophistication. A highly accomplished, highly enjoyable German made destination loudspeaker system.
| Frequency response (+/- 3 dB) | 24 – 27,000 Hz |
|---|---|
| Impedance | 4 ohms |
| Sensitivity | 92.5 dB (1 W / 1 m) |
| Max. Acoustic Pressure | 115 dB |
| Crossover network | 1st and 2nd order phase and impedance corrected filter |
| Design Principle | Bass Reflex |
| Subwoofer System | Two 220mm FISCHER & FISCHER cone drivers with carbon paper & foam sandwich membrane |
| Bass System | One 220mm FISCHER & FISCHER cone driver with carbon paper & foam sandwich membrane |
| Midrange System | Two 180mm FISCHER & FISCHER cone drivers with carbonized paper, carbon foil sandwich membrane and aluminium phase plug |

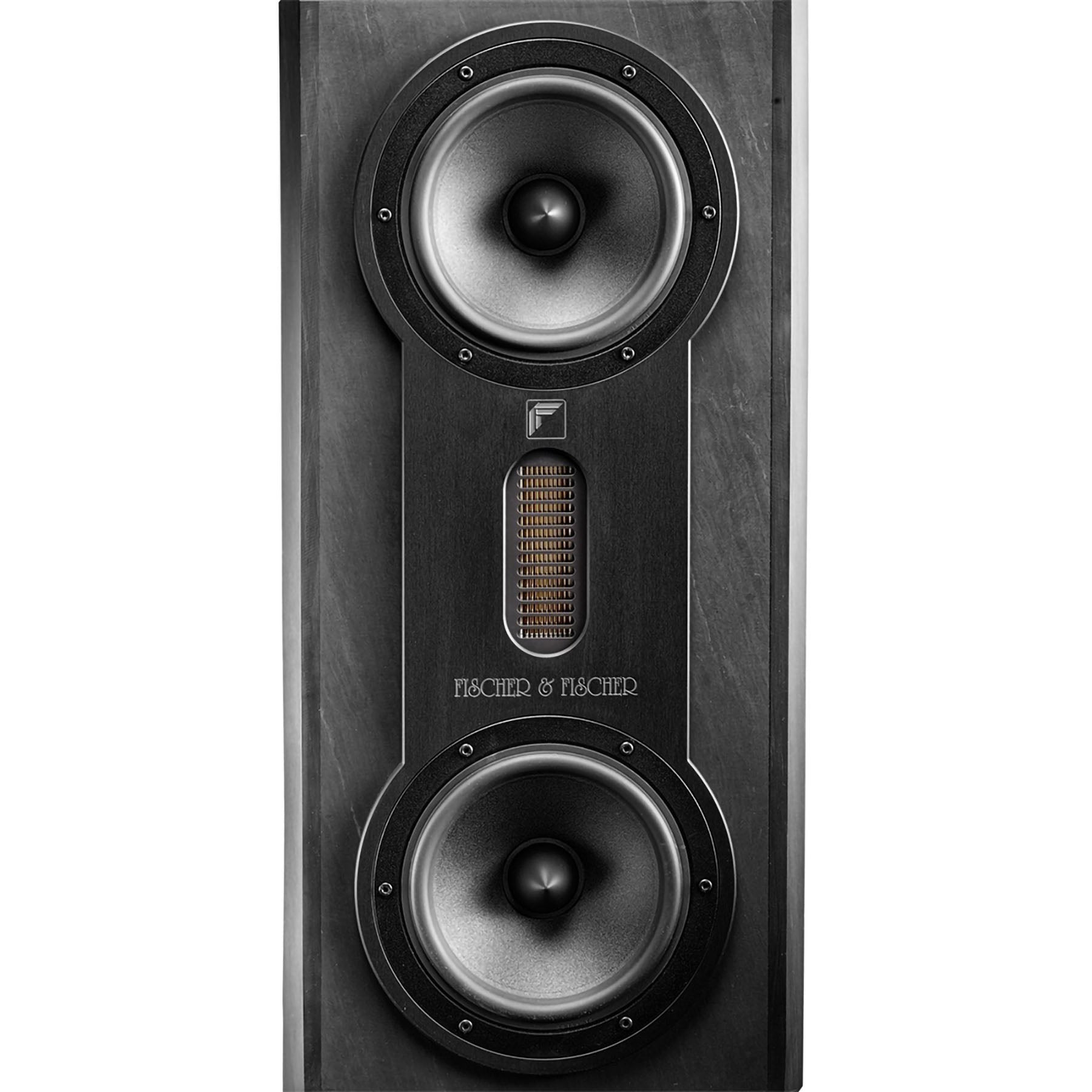

| Treble System | One FISCHER & FISCHER Air Motion Transformer (AMT), special specification custom made by Mundorf |

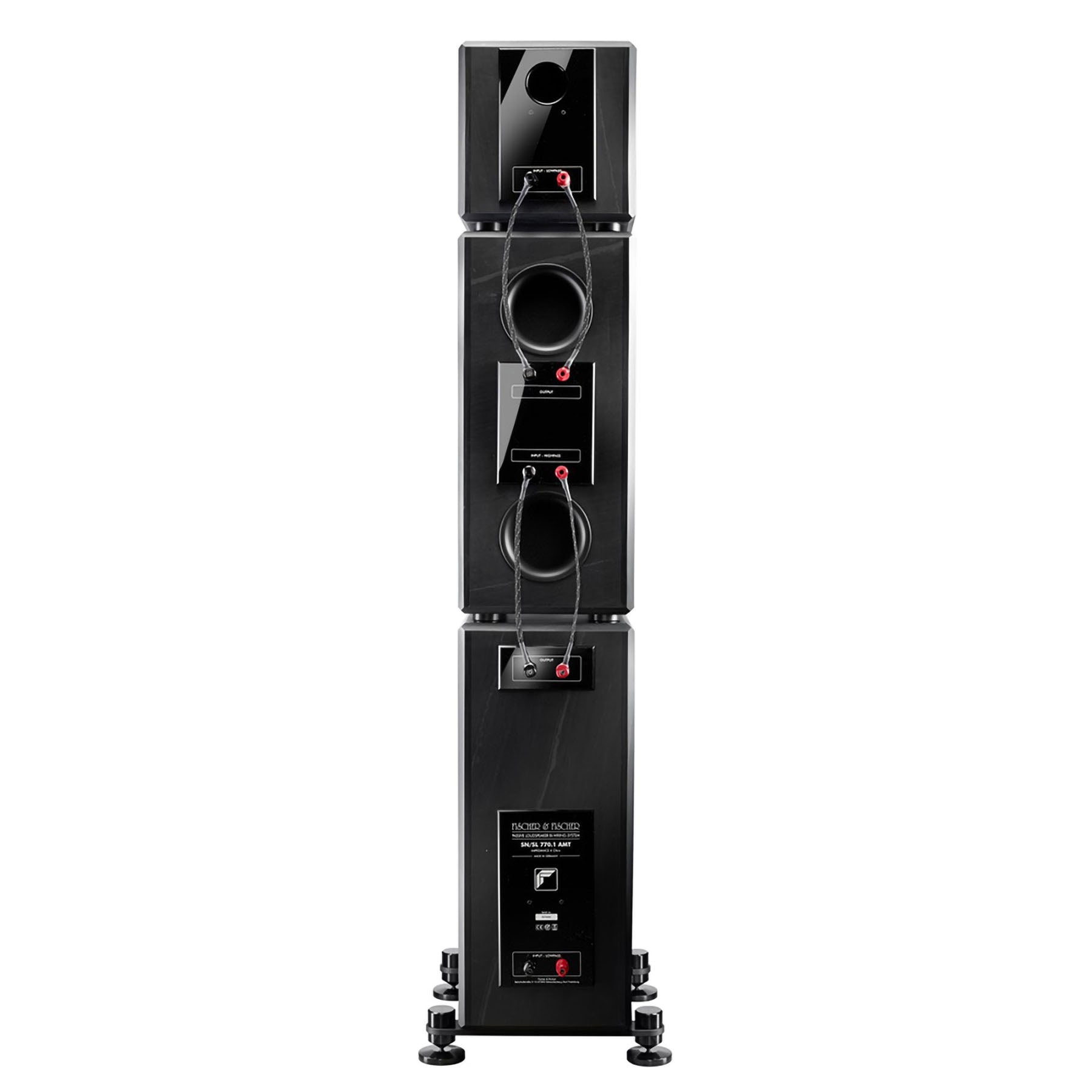

| Connecting Terminals | 63A rhodium plated connecting terminals, tri-wiring with pure silver bridges with direct lossless connection to the crossover |
| Cabinet | 20-23mm low-resonance thick natural slate plates SN – Natural surface SL – Polished and lacquered in all RAL and available car colours |
| Floor System | Aluminium, height adjustable & levelable |
| Dimensions (H x W x D) | 1550 x 275 x 420 mm |
| Dimensions, Overall incl. floor system | 1610 x 380 x 475 mm |
| Weight | 159 kg |
| Warranty | 10 years |
