IsoTek EVO3 Elite Power Cable

filler

Connector: 2m - ANZ to C15
Price:
Sale price$999.00

Tax included. 🚚 FREE SHIPPING on all orders

Description

EVO3 ELITE



EVO3 Elite is a true high-end power cable that uses unique 7-core geometry, high purity copper, and high purity FEP to offer astonishing performance. It is the ideal upgrade for source components, CD players, music servers, DAC’s or preamplifiers. Elite can be used with small to medium power amplifiers to great effect but for very large power amplifiers EVO3 Optimum proves the better choice.

Elite offer fantastic extension and frequency range, lowering noise floor and making an exceptionally stable sound stage. Another top class cable at a very reasonable price point.

FEATURES

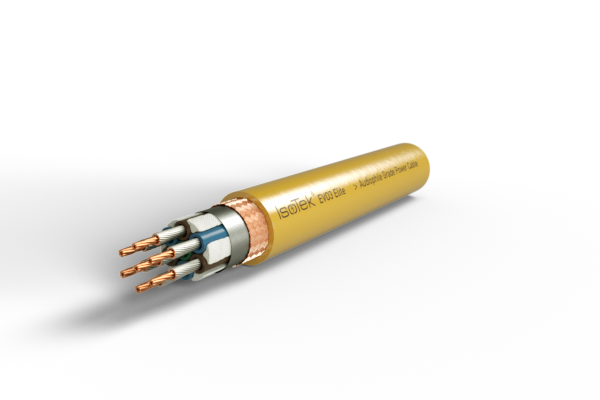

CONSTRUCTION: The conductors are in a parallel construction with slight rotational twist. This established technique remains the first line of defence against RFI and EMI rejection.

A) Conductors: Silver plated 99.999999% OFC conductors offer an exceptional level of purity with enhanced conductivity. They are less likely to fracture or degrade over time. Silver is an excellent conductor and when combined with a high purity copper provides impressive electrical properties.

B) Dielectric: Teflon FEP dielectric (insulation) is chemically inert and has a very low dielectric constant over a wide frequency range. FEP possesses a very high degree of stress crack resistance and a low coefficient of friction making it an exceptional dielectric. FEP is the first choice for safety in both temperature and electrical insulation.

C) Filler: Cotton filler has been used to give the cable internal strength and reduce microphony. Cotton also possesses excellent dielectric properties, the best of a solid material.

D) Wrap: A mylar wrap is used to secure the construction and offer a barrier shield prior to the application of a flexible PVC jacket. The addition of the mylar and cotton form a buffer with the PVC so as to maintain exceptional dielectric properties.

E) Shield: An earthed OFC shield insures maximum RFI rejection, thus preventing Common Mode noise effecting the live and neutral conductors.

F) Jacket: PVC is used as an outer jacket to give a high degree of flexibility and mechanical strength.

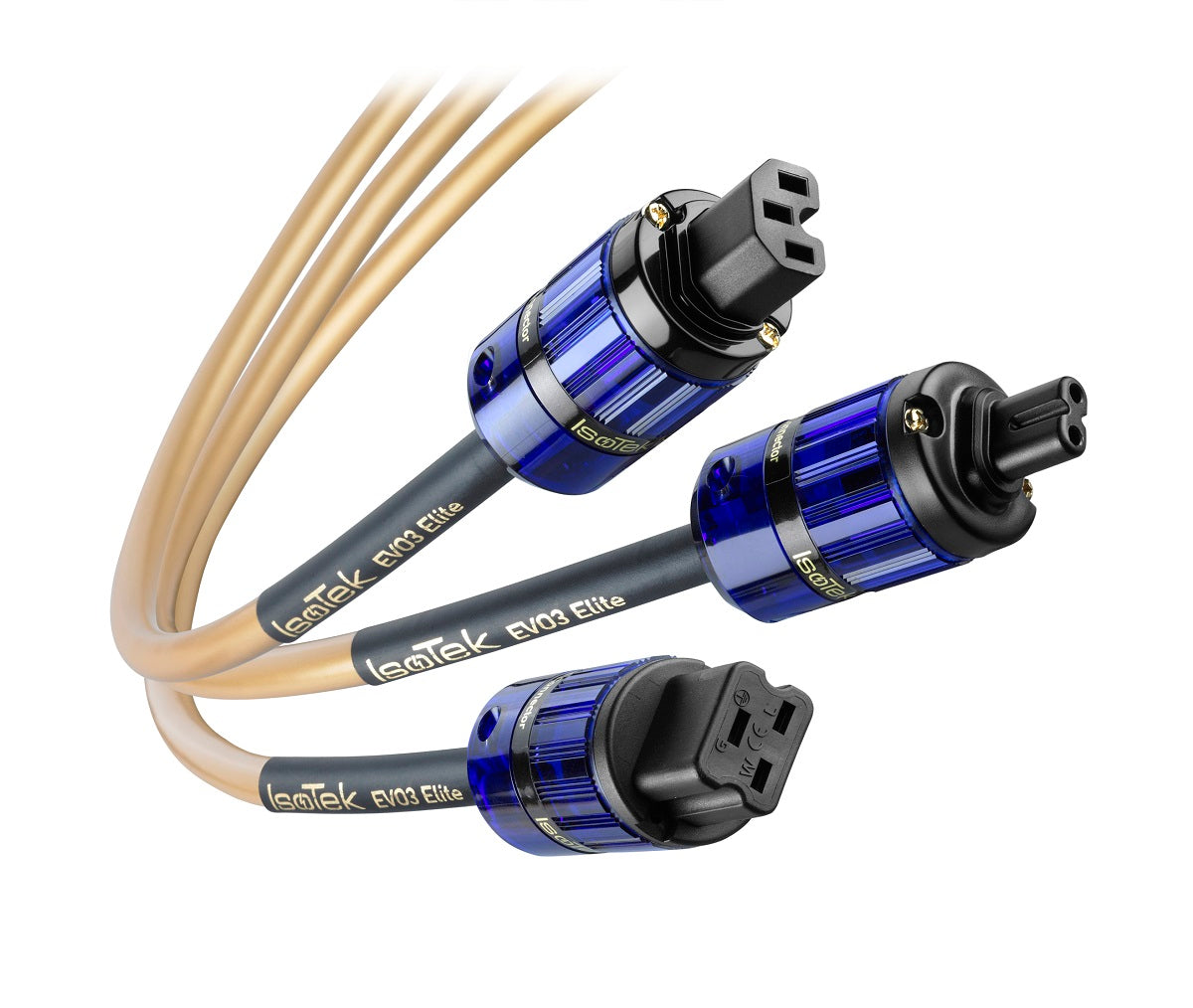

TERMINATION: Elite cable is terminated using IsoTek’s bespoke Audiophile grade connectors of solid OFC with 24ct gold plated conductors. These offer the highest quality performance and are less prone to tarnish.

Specifications

Conductor Size 6 x 1.25sqmm, 1x 3.75sqmm
Conductor Material Silver-plated 99.9999% Oxygen Free Copper
Dielectric Fluorinated Ethylene Propylene (FEP)
Filler Cotton
PVC Barrier Mylar
Outer Jacket High flexibility PVC
Cable Power Rating 16Amp
Cable Length 2.0m standard (custom lengths available)
Outer Diameter 11mm
Termination 24ct gold plated audiophile-grade connectors
Suitability Suitable for CD players, preamps, tuners, power amps, Blu-ray players, music servers, TVs, soundbars and more!
