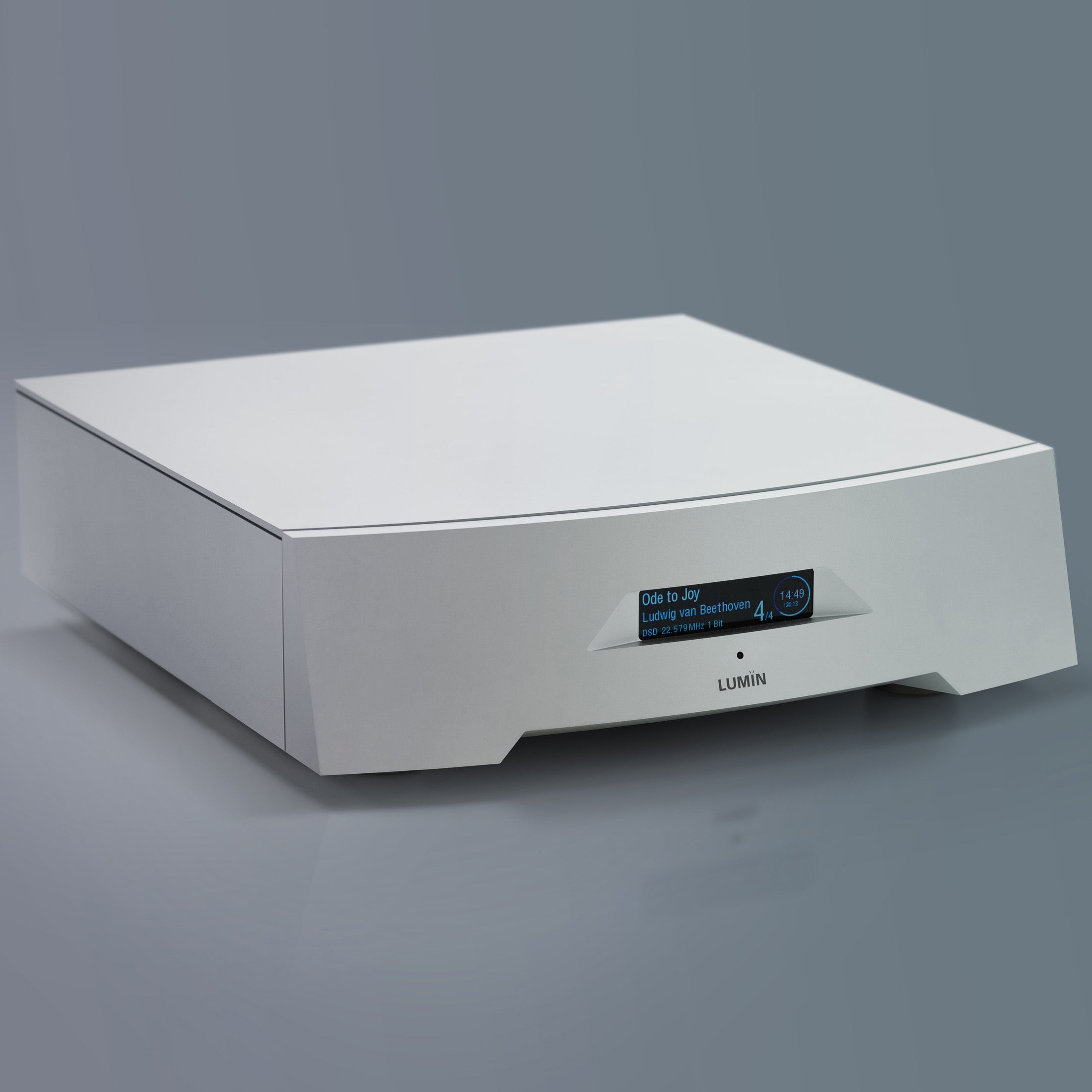

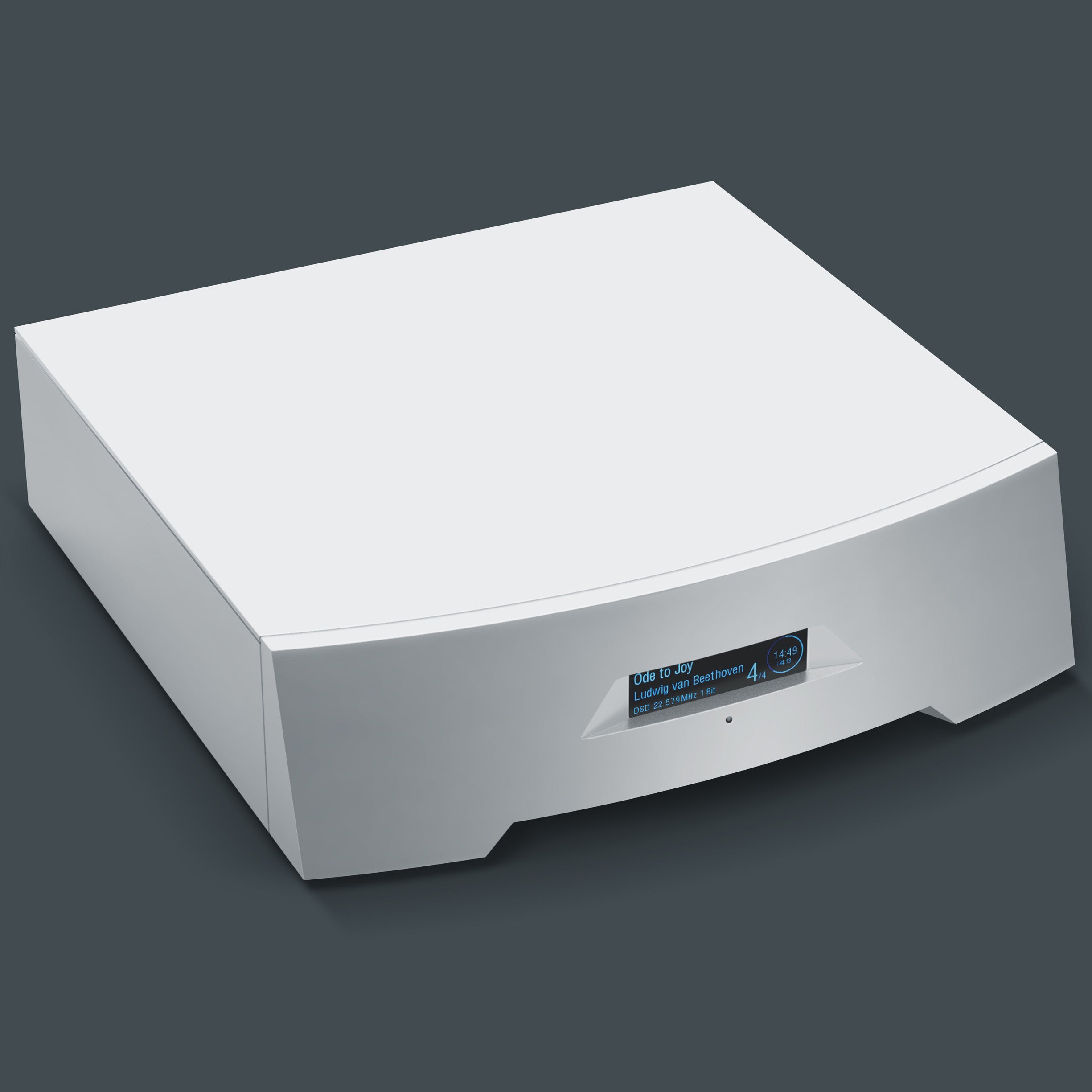

P1

The heart of your system

With analogue and digital inputs, LUMIN P1 becomes your new audio hub

• Nine new inputs
• Dual DAC ES9028PRO
• DSD512 PCM384
• Femto Clock
• AV HDMI Passthrough
• Fibre Network

Why LUMIN P1

Our most flexible player yet, LUMIN P1 is designed to sit right in the heart of your audio system.

Use as a streamer, a DAC, a pre-amplifier or all three!

Main features

LUMIN P1 makes system integration easier than ever:

• 9 digital & analogue inputs
• USB Digital Audio input & output support up to Native DSD512
• Balanced & unbalanced analogue inputs
• SPDIF & AES input support up to 192/24 with DoP
• HDMI 2.0 inputs & 4K passthrough with ARC support

Specified for exceptional musical performance:

• New processor delivers native DSD512 & PCM384 playback

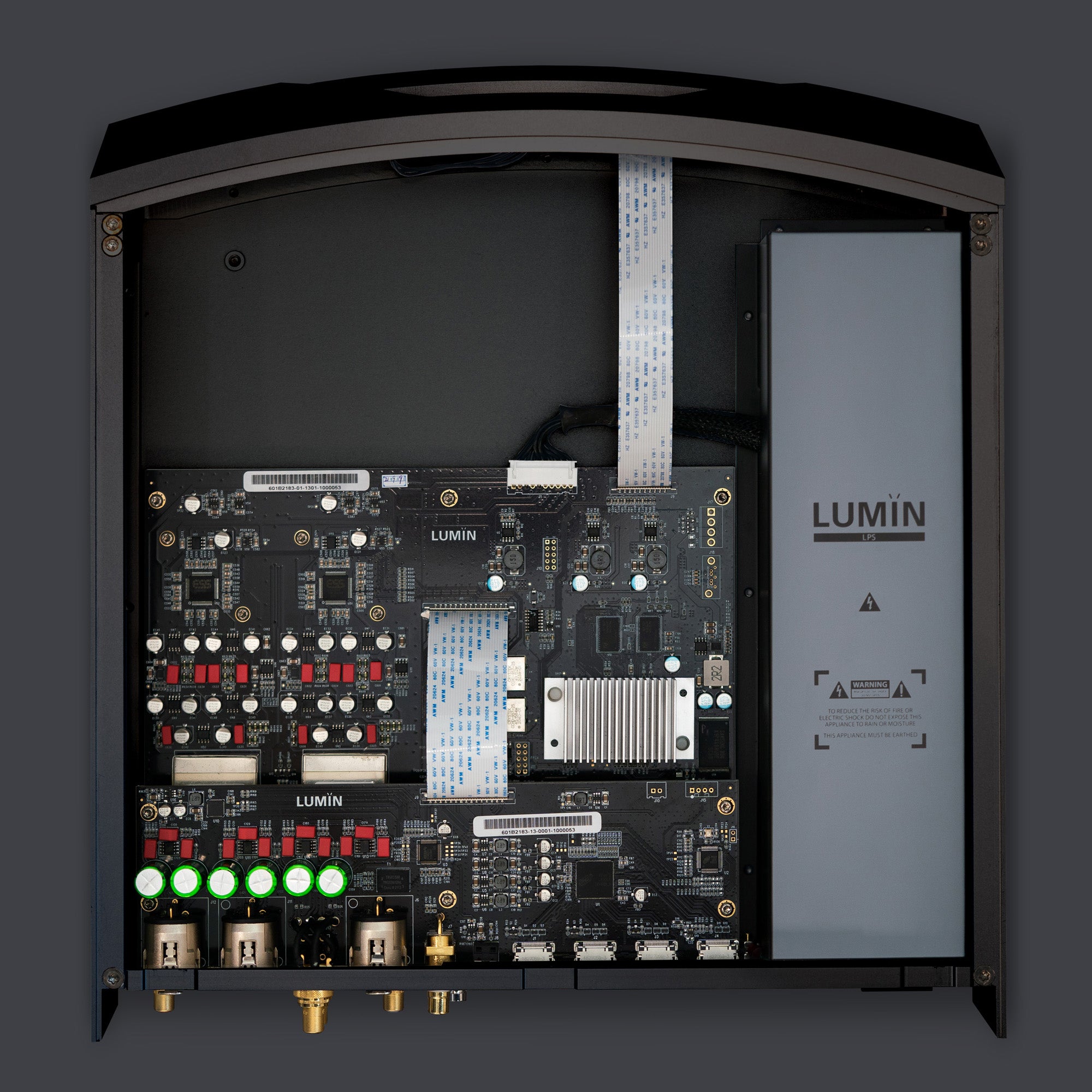

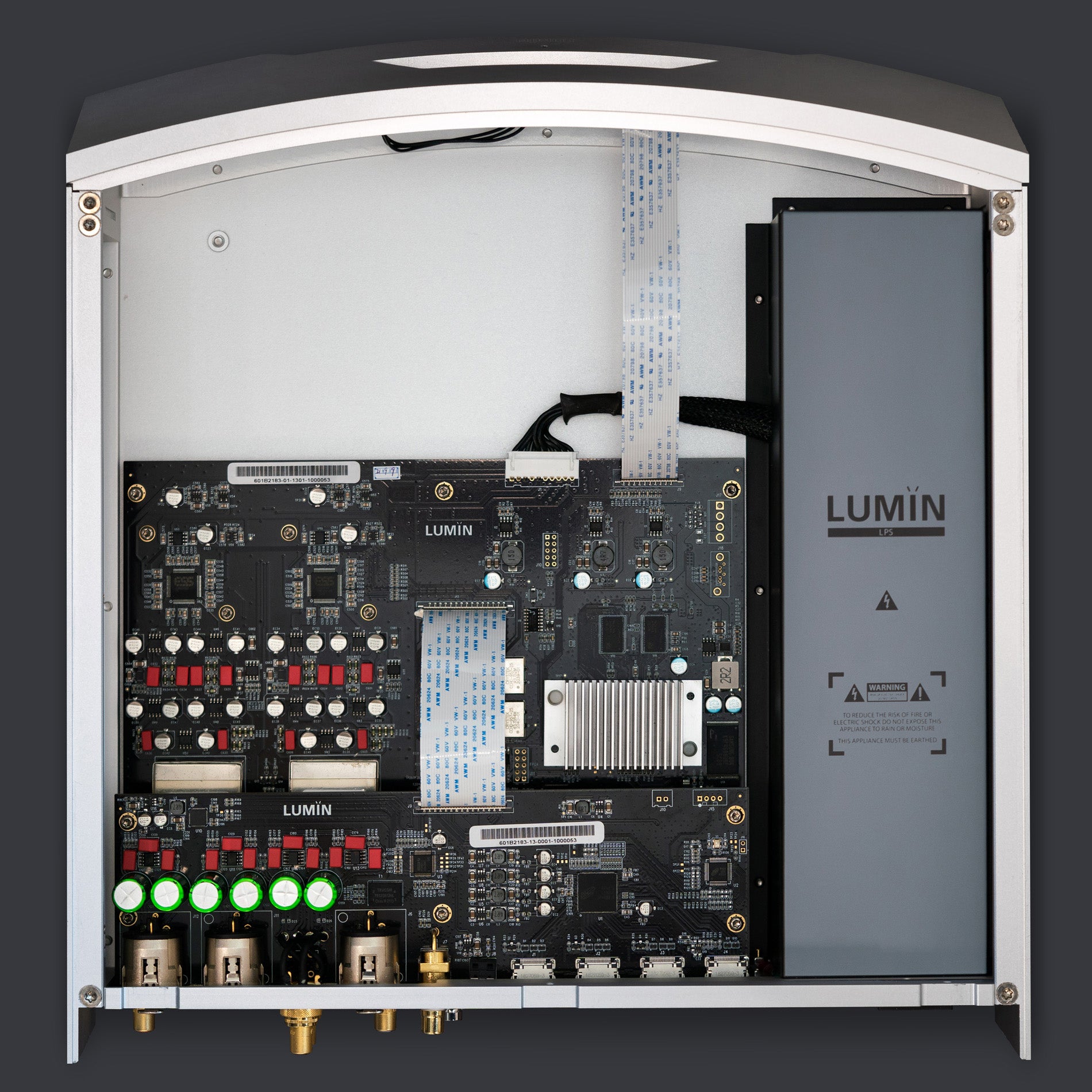

• Dual Mono design throughout maximises channel separation
• Dual ES9028PRO SABRE DACs in Mono mode
• Femto Clock System with precision FPGA distribution
• New integrated dual-toroidal linear power supply & all-in-one chassis
• Fibre Network provides complete isolation from network digital noise
• Leedh Processing lossless volume control

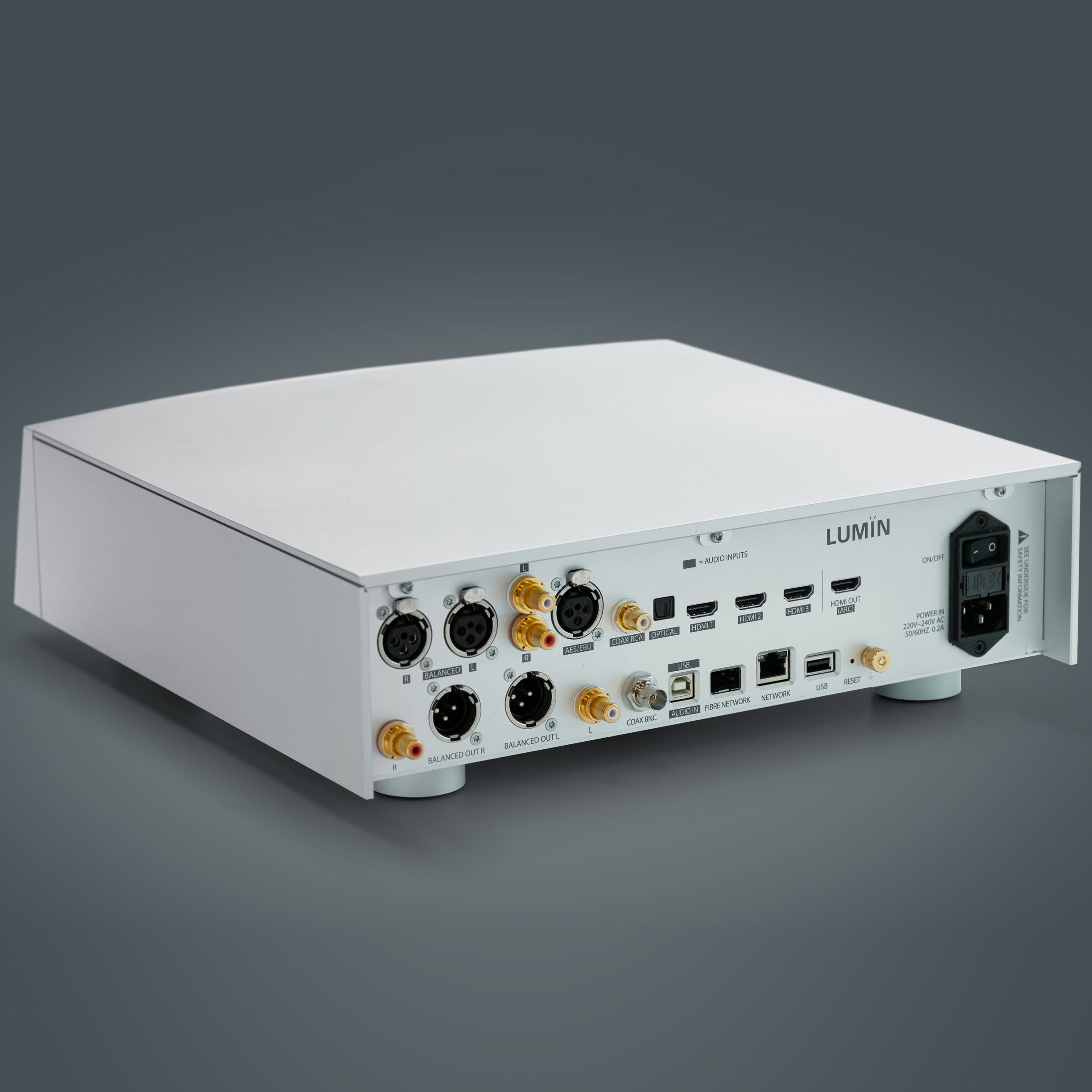

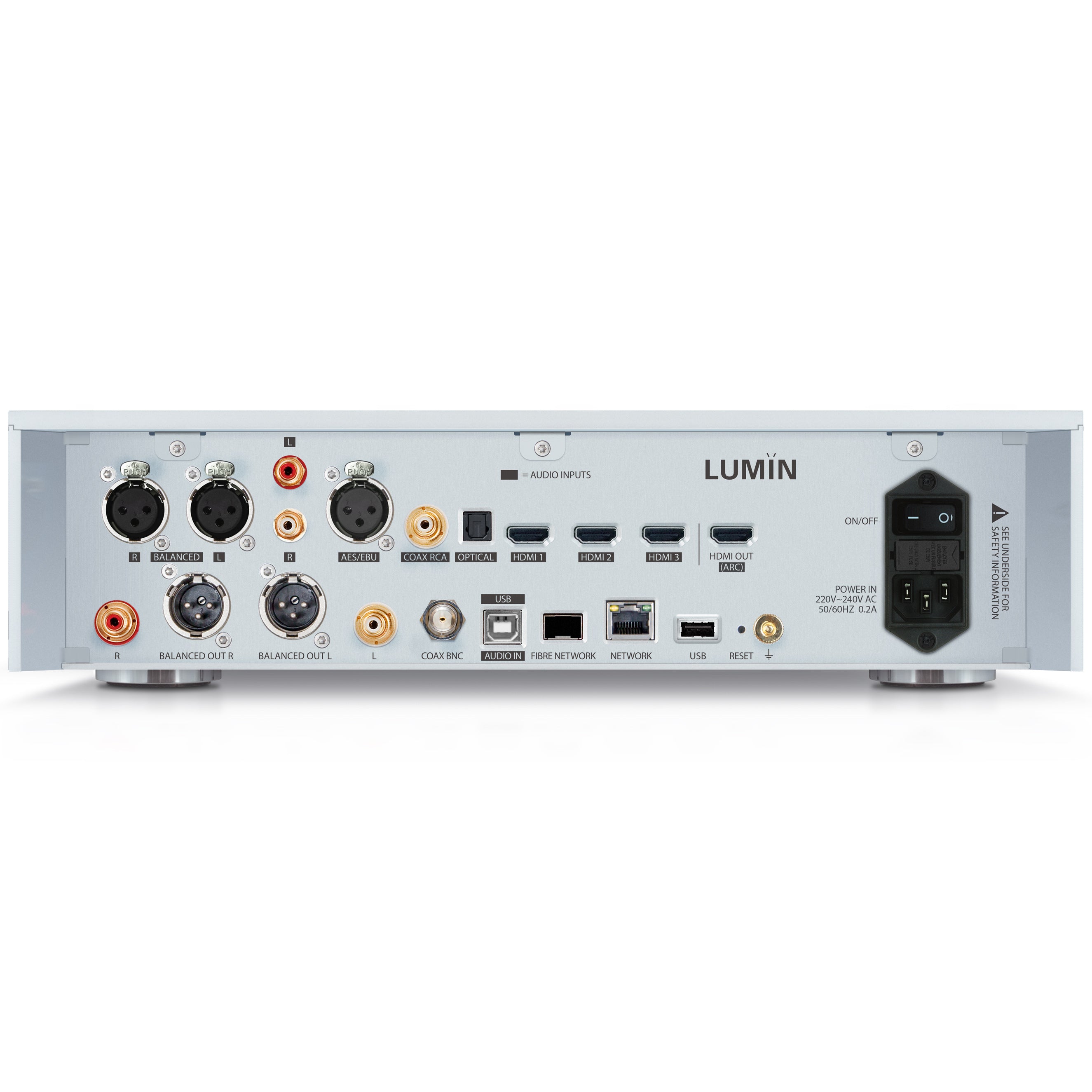

9 digital & analogue inputs

USB

• Industry-leading XMOS USB audio controller
• Native DSD512 and PCM384 compatible
• Windows 10 & Mac OS compatibility

Analogue

• Balanced and Unbalanced analogue input
• LEEDH volume processing
• Passthrough function for home cinema integration

SPDIF/AES

• DoP64 / 192 kHz 24-bit compatible
• TOSLINK, SPDIF (RCA), AES inputs

HDMI

• HDMI 2.0 Specification compatible
• Supports 2.0 PCM audio decoding
• HDR, Dolby Vision, Dolby Atmos, DTS passthrough
• ARC compatible output

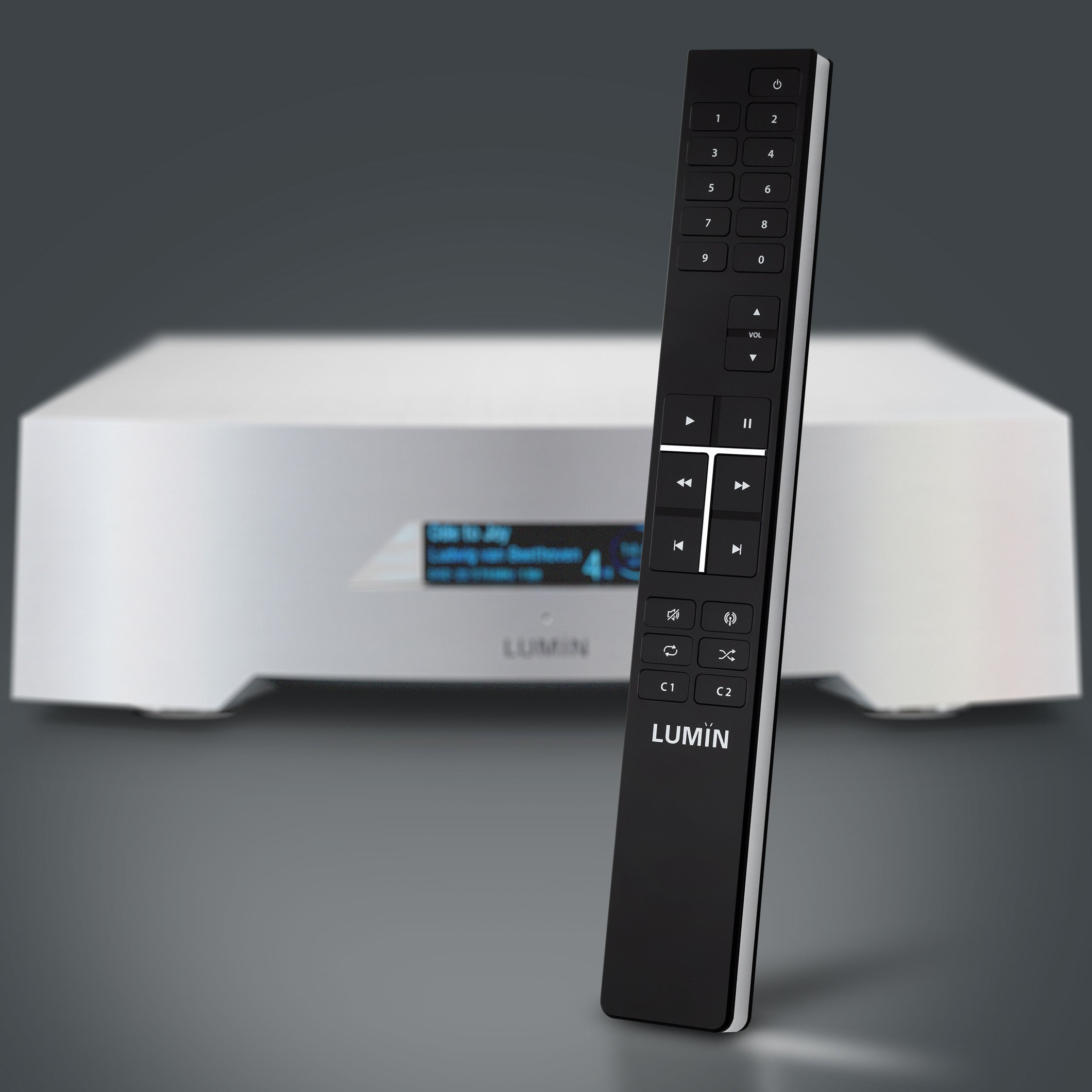

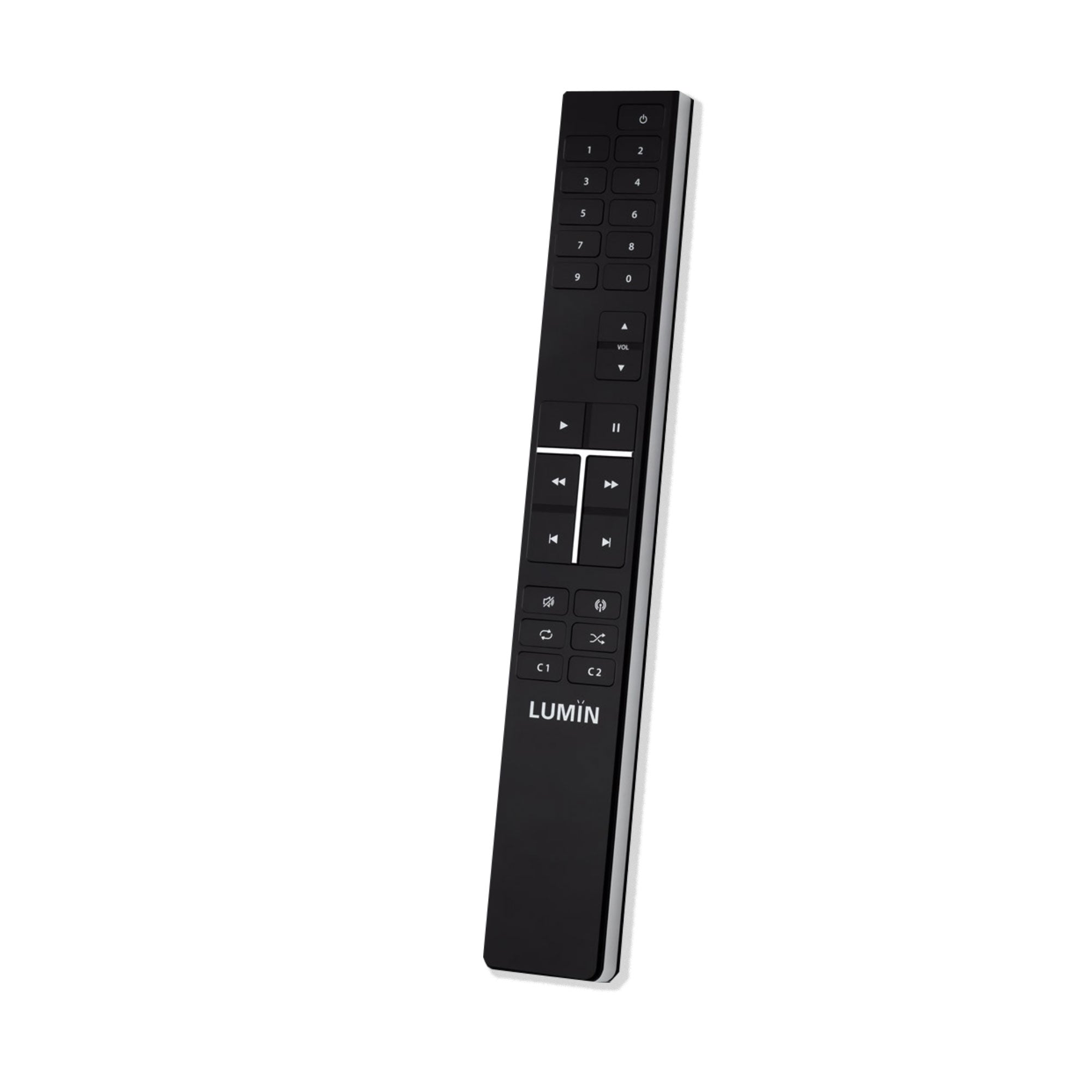

New Remote Control

A new tactile infrared remote control allows easy change of input, volume adjustment, playlist navigation and more.

The exceptionally well-constructed acrylic and zinc LUMIN remote is made in Austria and is entirely Roon Ready.

The new infrared receiver built in to LUMIN P1 is compatible with universal remote controls, phones and automation systems.

Flexible setup options

Use as a streamer, a DAC, a pre-amplifier or all three!

Idea 1 - Streaming DAC

LUMIN P1 can be used like all other LUMIN players. With its DSD512/PCM384 support, Femto Clock System, Fibre Networking, toroidal power supply, and Leedh Processing, P1 is second only to LUMIN X1 in pure streaming ability.

Idea 2 - Hi-Fi Hub

Connect all your stereo sources to LUMIN P1 and attach a power amplifier and you've got everything you need for an incredible music system.

Idea 3 - 2-channel TV System

No need for an AV Receiver. Simply attach your HDMI sources to LUMIN P1 and P1 to your TV. With HDMI ARC, all your audio comes through your main speakers.

Network playback:

Up to DSD512

Up to 384 kHz, 16–32-bit, Stereo

MQA Full Decoding

Upsampling rates & bit depths:

DSD128 upsampling option for all files

PCM 384kHz upsampling option for all files

Digital Input:

USB:

USB Audio Class 2 Compatible

WINDOWS 10 (Release 1703 or above) / Mac OSX or above

DoP 128 support

PCM 44.1–384 kHz, 16–32-bit, Stereo

AES/OPTICAL/SPDIF:

PCM 44.1 kHz–192 kHz, 16–24-bit

DSD64 (DoP64, DSD over PCM)

HDMI x3:

PCM 2.0 Audio support

4K Video Passthrough

Digital Output:

USB:

Native DSD512 support

PCM 44.1–384 kHz, 16–32-bit, Stereo

BNC SPDIF:

PCM 44.1 kHz–192 kHz, 16–24-bit

DSD64 (DoP64, DSD over PCM)

HDMI x1:(HDMI Passthrough and ARC support)

PCM 2.0 Audio support

4K Video Passthrough

ARC (Audio Return Channel) support

Analogue Input:

RCA Unbalanced x1

XLR Balanced x1

Analog Output:

Dual ESS SABRE³² ES9028Pro DAC chips

Fully balanced layout with high-quality components

Output connectors coupled with dual LUNDAHL LL7401 output transformers

Femto Clock System with precision FPGA distribution

Optical Network:

Industry-standard SFP

1000Base-T Gigabit Ethernet

Adapter may be needed for your particular switch/cables

Use simultaneously with RJ45 (e.g. connect one to router and one to LUMIN L1 or NAS)

Power Supply:

Internal dual-toroidal

Separate digital & analogue circuitry

Low-noise linear regulator

Physical:

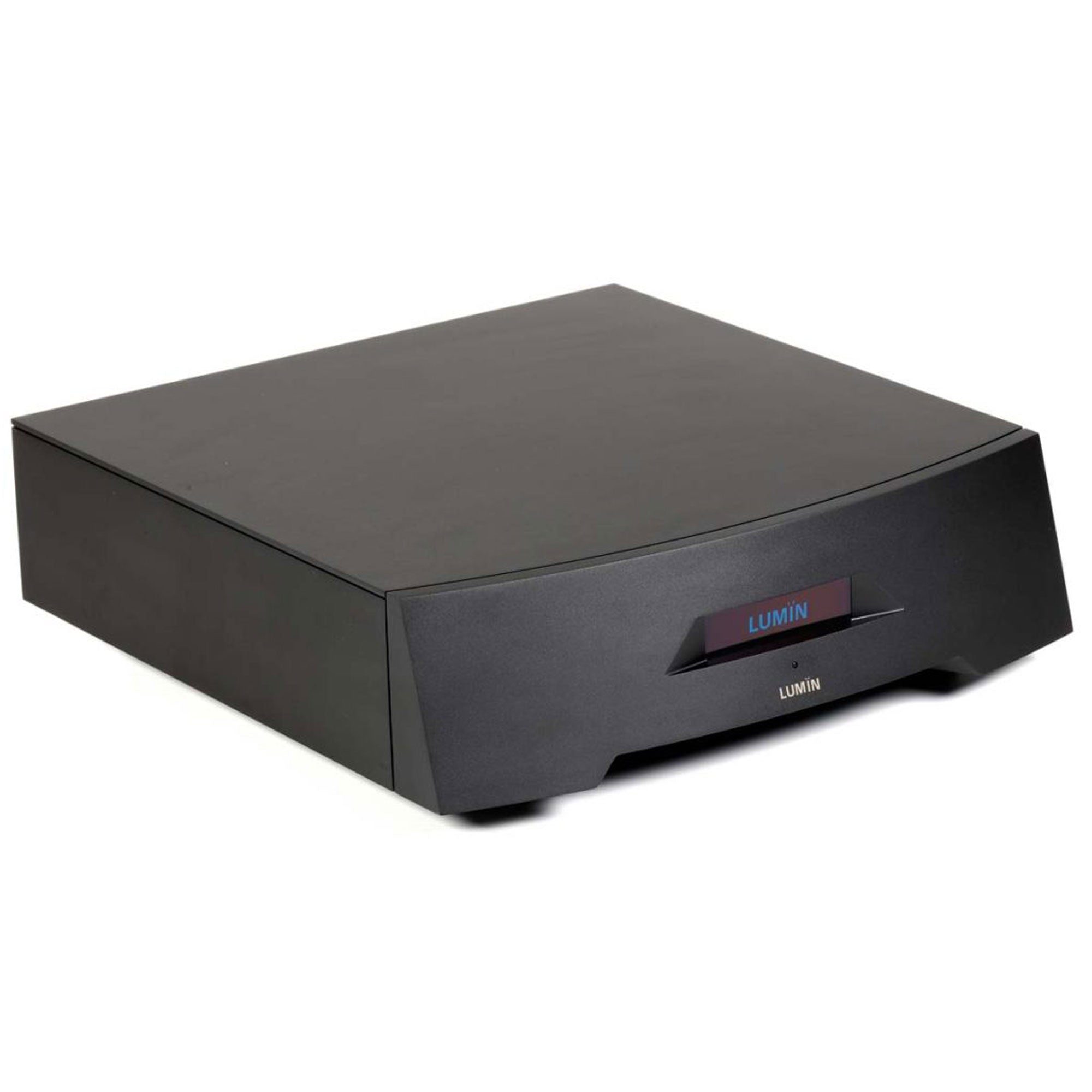

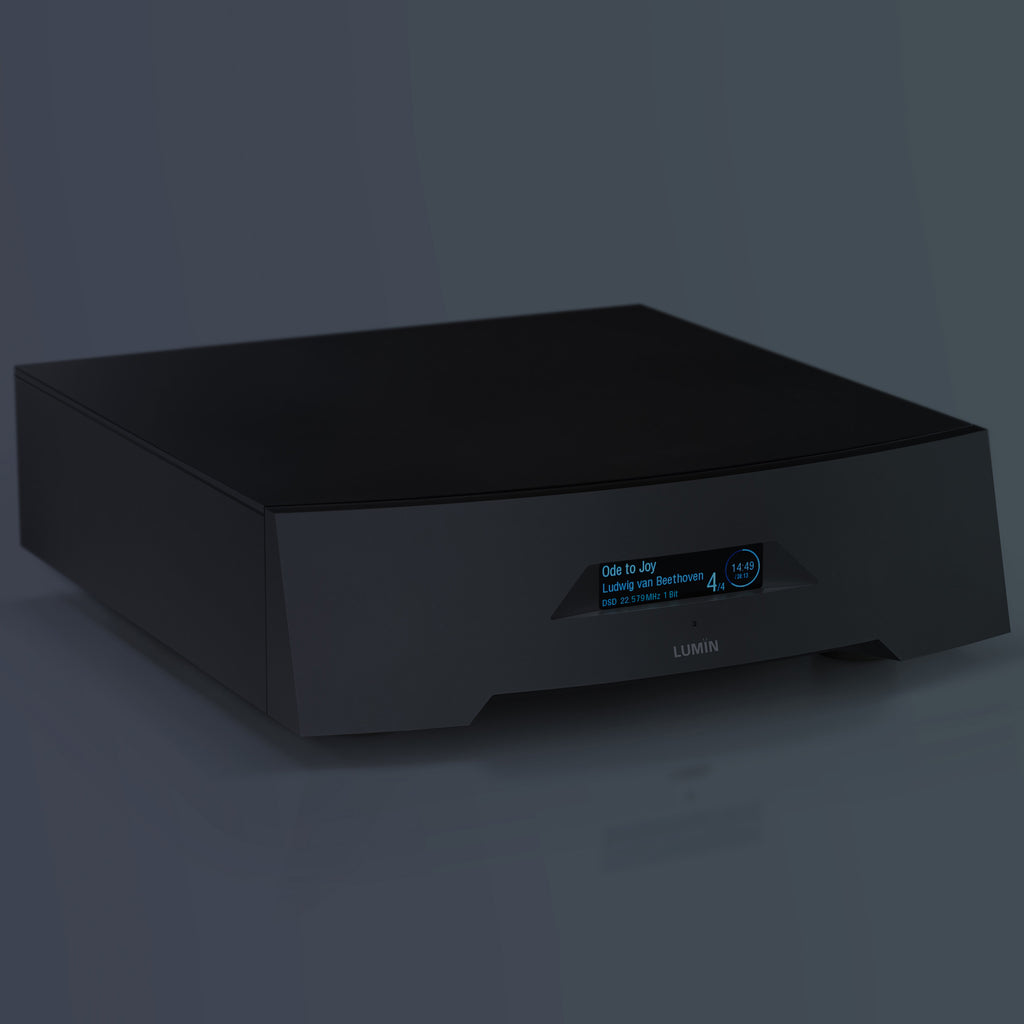

Finish:

Black anodised aluminium

Raw aluminium

Lumin (solid aluminium chassis):

350mm (W), 380mm (D), 107mm (H), 12kg

Specification for all LUMIN music streamers

Streaming Protocol:

UPnP AV protocol with audio streaming extension (OpenHome)

Roon Ready

Spotify Connect

Flac lossless Radio stations

AirPlay-compatible

Gapless Playback

On-Device Playlist

App Features:

Native support for TIDAL, MQA, Qobuz and TuneIn Radio.

Tidal MQA icons to identify high-res music

Qobuz high-res icons to identify high-res music

Volume control

High-resolution artwork

Artwork caching

Search

Multiple tag handling

Composer tag support

Album-grouping in playlist

Automatic internet links to artists/album/songs

Saving and restoring of playlists (including Tidal and Qobuz)

Supported Audio File Formats:

DSD Lossless: DSF (DSD), DIFF (DSD), DoP (DSD)

PCM Lossless: FLAC, Apple Lossless (ALAC), WAV, AIFF

Compressed (lossy) Audio: MP3, AAC (in M4A container)

MQA

Input:

Gigabit Ethernet Network (1000BASE-T) RJ45

Shared USB port can also be used for storage, flash drive, USB hard disk (Single-partition FAT32, exFAT and NTFS only)

Analogue Audio Outputs:

XLR balanced, 6Vrms, pin 2 Hot

RCA unbalanced, 3Vrms

Supported Control Devices:

All models of Apple iPad (v2 or later). iOS 8.0 or later required. Full Retina Display support.

Android devices. Android 4.0 (Ice Cream Sandwich) or later required

Other:

Leedh Processing lossless digital volume control

Programme of Continuous Development – Firmware-upgradable for further features and enhancements
