My Sonic Lab

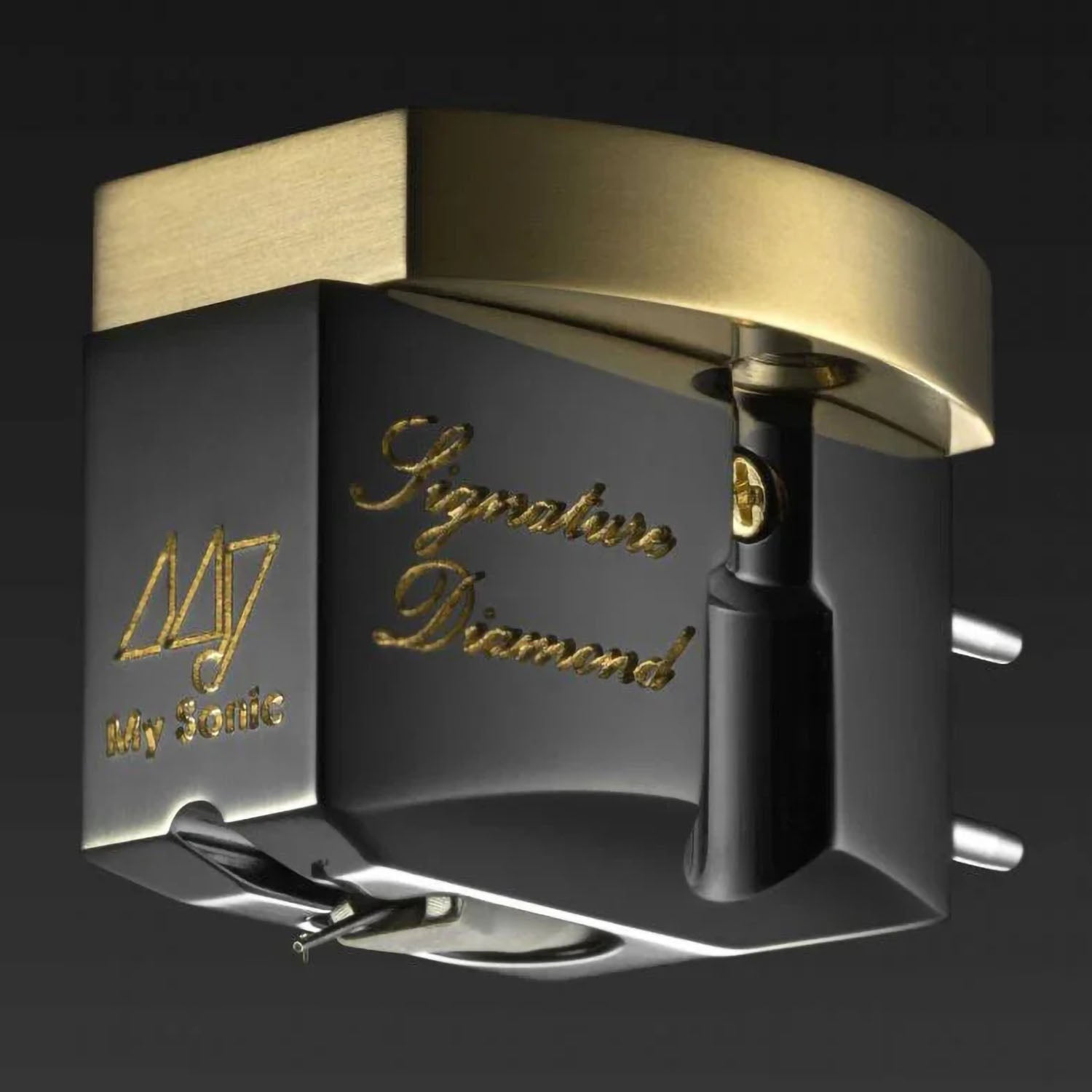

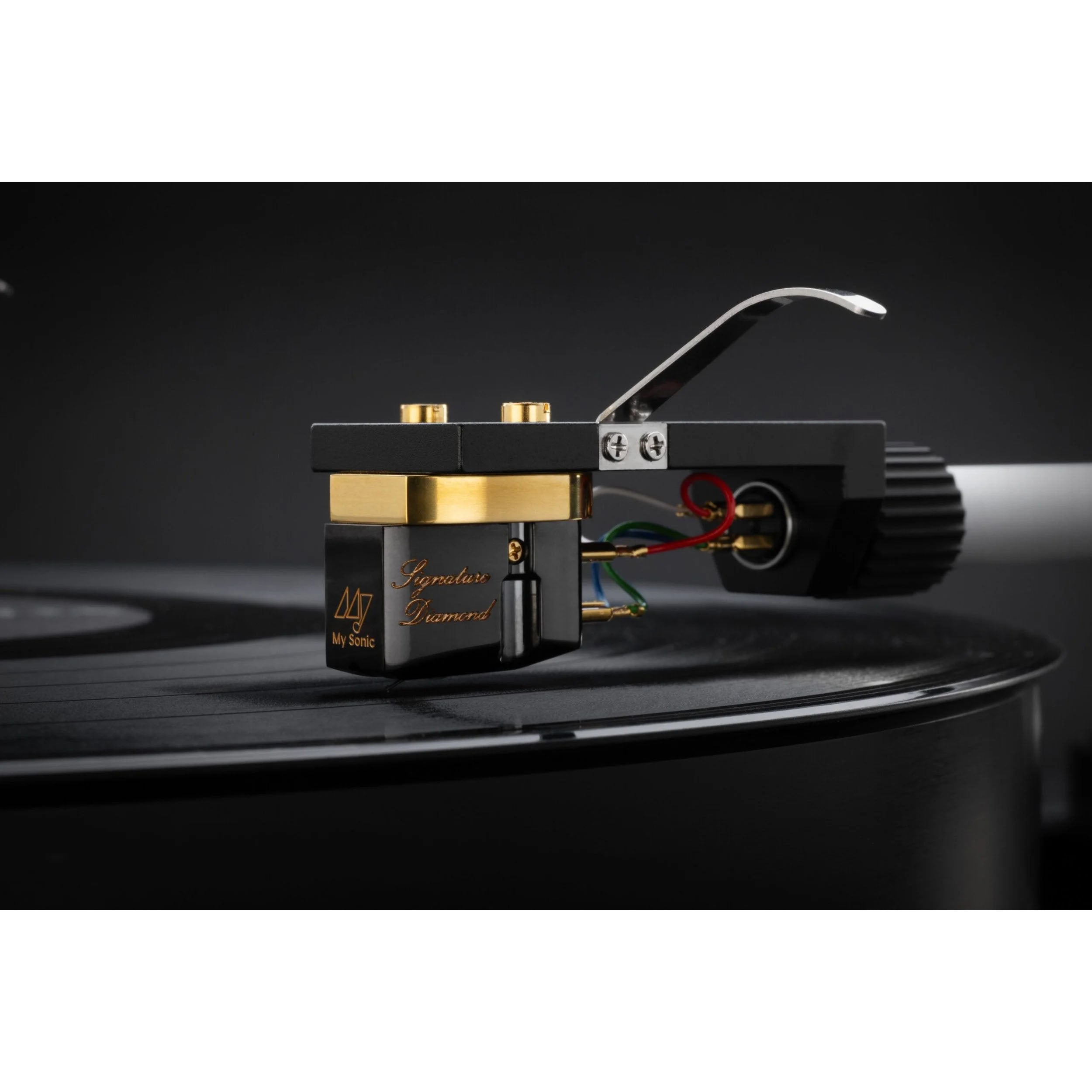

The new Signature Diamond elevates My Sonic Lab’s renowned cartridge technology with the addition of a diamond cantilever,
offering even greater rigidity and precision. Building on the acclaimed transparency and low distortion of the Signature series, the diamond cantilever delivers unmatched speed and detail, setting a new standard for true-to-source sound reproduction.
Designed by master cartridge maker Mr. Yoshio Matsudaira OEM and designer since 1959 for Air Tight, Supex, Koetsu, Miyabi, Audio Craft and more. Formed My Sonic Lab in 2004 to pursue and develop his ultimate dream cartridge.
Output Voltage | 0.5 mV |
---|---|
Internal Impedance | 1.4Ω |
Weight | 13g |
Recommended Tracking Force | 1.9 – 2.2g |
Compliance | 10×10-6cm/dyen |
Recommended Loading | 100-800Ω (ideal is around 400Ω) |
Cantilever | Tapered Diamond |
Channel Balance | < 0.5dB (1kHz) |
Channel Separation | > 30dB (1kHz) |
Stylus Profile | Semi-Line Contact |
Core Material | SH-μX | Neodynium #50 magnet |
