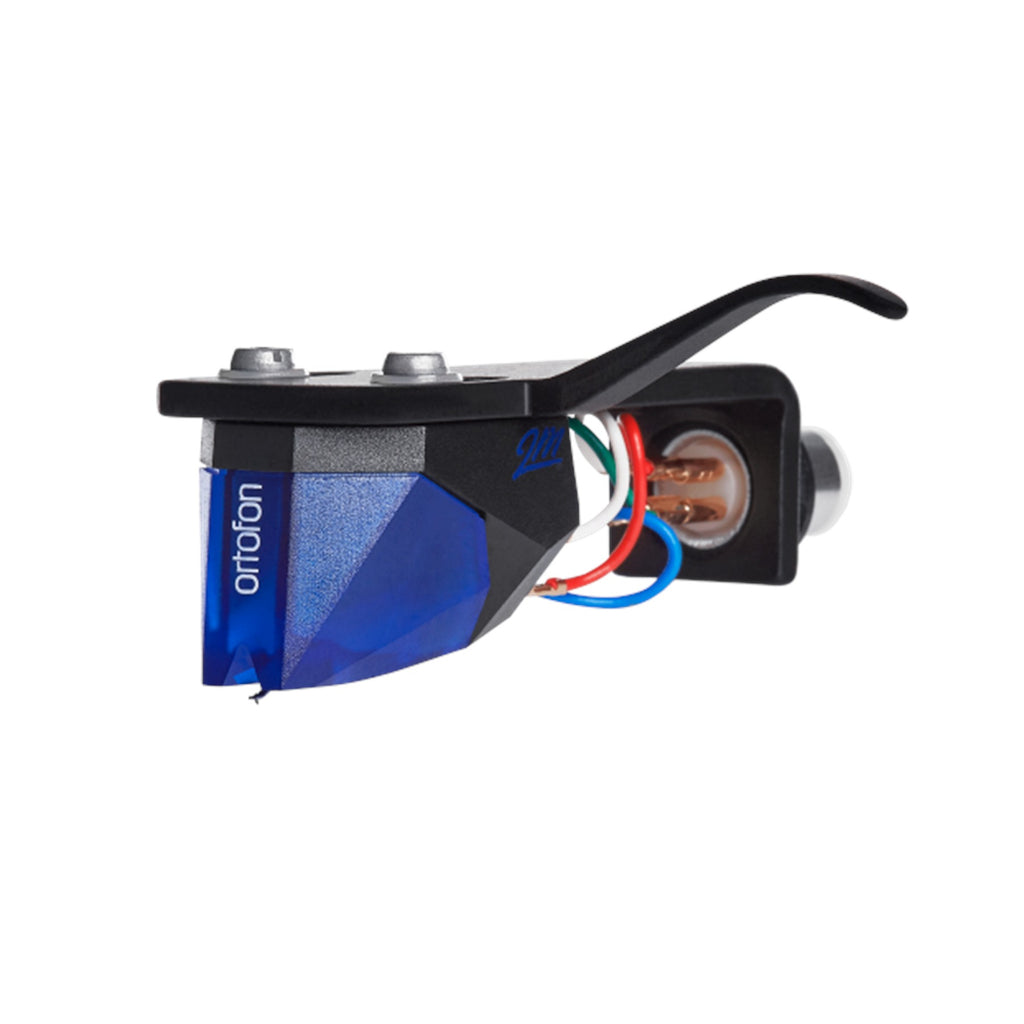

Ortofon 2M Blue Pre-Mounted on SH-4 Headshell Cartridge
Ortofon 2M Blue Pre-Mounted on SH-4 Headshell Cartridge
Blue
22 Saint Kilda Road
22 Saint Kilda Road
Suite 2.02
St Kilda VIC 3182
Australia
Country of origin: Denmark
2M Blue Premounted
Next level authenticity with the 2M Blue
The goal for any cartridge should be to reproduce the sound as close to the artists vision as possible, and the 2M blue takes you further on this journey of authenticity. With the 2M Blue, you get serious about listening to vinyl.
Features:
The 2M Blue features a Nude Elliptical diamond and split pole pins with a copper wire.
Designed for easy mounting of the cartridge, and for the weight and size to fit the most common turntables on the market today. The 2M Series provides excellent compatibility when used in an assortment of playback systems and with a wide variety of phono preamps.
The 2M Blue adds more dynamics and resolution, sounds more open and reproduces more details compared to the 2M Red model.
2M Blue Technical data
Output voltage at 1000 Hz, 5cm/sec. - 5.5 mV
Channel balance at 1 kHz - 1.5 dB
Channel separation at 1 kHz - 25 dB
Channel separation at 15 kHz - 15 dB
Frequency response - 20-20.000 Hz + 2 / - 1 dB
Tracking ability at 315Hz at recommended tracking force - 80 µm
Compliance, dynamic, lateral - 20 µm/mN
Stylus type - Nude Elliptical
Stylus tip radius - r/R 8/18 µm
Tracking force range - 1.6-2.0 g (16-20 mN)
Tracking force, recommended - 1.8 g (18 mN)
Tracking angle - 20°
Internal impedance, DC resistance - 1.3 kOhm
Internal inductance - 700 mH
Recommended load resistance - 47 kOhm
Recommended load capacitance - 150-300 pF
Cartridge colour, body/stylus - Black/Blue
Cartridge weight - 7.2 g
Premounted cartridge weight - 16.7 g
Replacement stylus unit - 2M Blue (interchangeable with 2M Red and 2M Silver)
Stylus lifetime:
with proper care we find that up to 1000 hours is possible without degradation of performance.
2M Series styli interchangeability:
The 2M Series' engines, coils and magnets configurations are not identical: Red and Blue are identical, so are the Bronze and Black and so are the true mono variants 2M Mono and 2M 78. Likewise, 2M series styli are interchangeable within the below combinations:
- 2M Red, 2M Blue and 2M Silver
- 2M Bronze, 2M Black and 2M Black LVB 250
- 2M Mono and 2M 78
