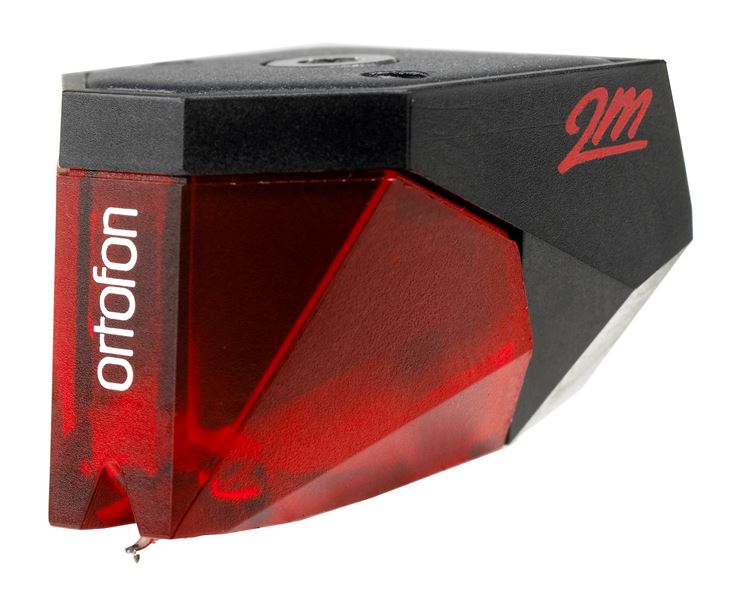

Ortofon Hi-Fi 2M Red Moving Magnet Cartridge
Mount Type
Ortofon Hi-Fi 2M Red Moving Magnet Cartridge
Standard Mount / Red
22 Saint Kilda Road
22 Saint Kilda Road
Suite 2.02
St Kilda VIC 3182
Australia
Country of origin: Denmark
Features
- an improved engine, which provides an increased output of 5.5 mV and an optimized sound reproduction and a high level of sonic accuracy.
- a tipped Elliptical diamond and split pole pins with a copper wire.
- the cartridge body is manufactured from Hopelex, an environment-friendly material which ensures high rigidity while eliminating unwanted resonances.
We have optimized the design for ease of mounting the cartridge, and the weight and size to fit the most common turntables on the market today. The 2M Series provides excellent compatibility when used in an assortment of playback systems and with a wide variety of phono preamps.
2M Red is an all-purpose cartridge that delivers open, dynamic sound with a slight touch of warmth.Stylus lifetime: with proper care we find that up to 1000 hours is possible without degradation of performance.
2M Series styli interchangeability:
The 2M Series' engines, coils and magnets configurations are not identical: Red and Blue are identical, so are the Bronze and Black and so are the true mono variants 2M Mono and 2M 78. Likewise, 2M series styli are interchangeable within the below combinations:
- 2M Red, 2M Blue and 2M Silver
- 2M Bronze and 2M Black
- 2M Mono and 2M 78
Compatibility with Rega brand TT/TA:
REGA brand cartridges’ height from stylus tip to the top cartridge mounting surface is lower than standard. Therefore you would need spacers to ensure the correct set-up of the Ortofon cartridge.
Adjusting the height of your Rega tonearm is easy with Acoustic Signature's Spacer Set. It allows you to adjust the height from 0.5 mm to 3.5 mm in precise steps of 0.5 mm - without removing the tone arm. Simply loosen the screws, insert the AS-spacer, then lock the screws back down, and you're tonearm is ready to play.
3.2 - 4 mm spacers should be enough for 2M cartridge.

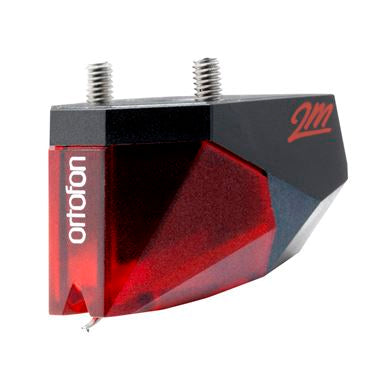

The 2M Red Verso model is an alternative product for bottom mount headshells
2M Red accessories included the package:
- 1 x Stylus brush
- 1 x Screwdriver
- 2 x Screw M2,5 x 5
- 2 x Screw M2,5 x 7
2M Red Verso accessories included the package:
- 1 x Stylus brush
- 1 x Allen key Torx 6
- 1 x Allen key Torx 8
- 2 x Screw M2,0 x 6
- Output voltage at 1000 Hz, 5cm/sec. - 5.5 mV
- Channel balance at 1 kHz - 1.5 dB
- Channel separation at 1 kHz - 22 dB
- Channel separation at 15 kHz - 15 dB
- Frequency range at - 3dB - 20-22.000 Hz
- Frequency response - 20-20.000 Hz + 3 / - 1 dB
- Tracking ability at 315Hz at recommended tracking force - 70 µm
- Compliance, dynamic, lateral - 20 µm/mN
- Stylus type - Elliptical
- Stylus tip radius - r/R 8/18 µm
- Tracking force range - 1.6-2.0 g (16-20 mN)
- Tracking force, recommended - 1.8 g (18 mN)
- Tracking angle - 20°
- Internal impedance, DC resistance - 1.3 kOhm
- Internal inductance - 700 mH
- Recommended load resistance - 47 kOhm
- Recommended load capacitance - 150-300 pF
- Cartridge colour, body/stylus - Black/Red
- 2M standard and 2M Verso cartridges weight - 7.2 g
- 2M PnP MkII cartridge with integrated headshell weight - 20 g
- 2M PnP MkII cartridge with integrated headshell length - 52 mm
