Ortofon

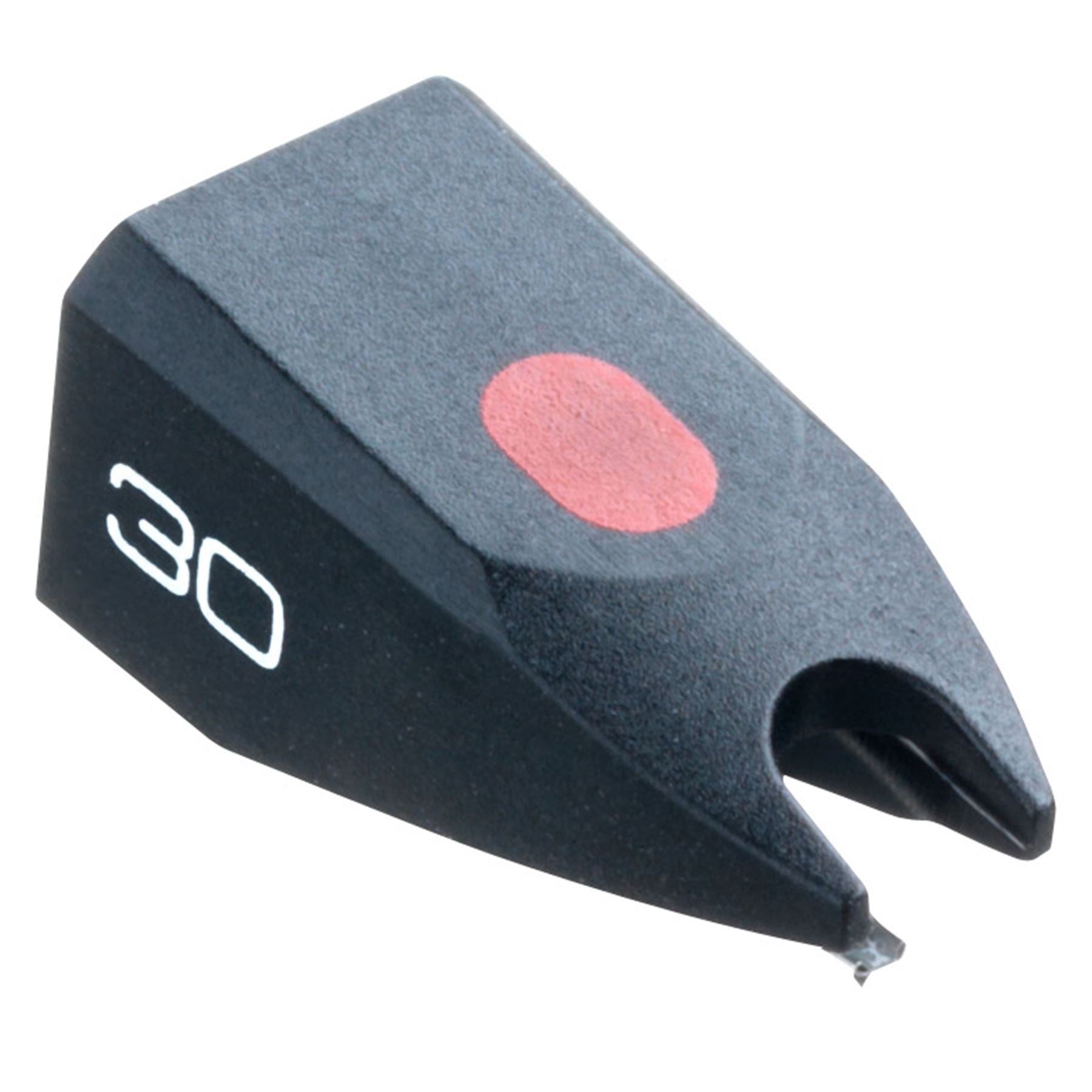

Ortofon Hi-Fi 30 Replacement Stylus
Stylus 30
Replacement stylus for Ortofon 30 series cartridges
Recommended for following cartridges |Super OM 30, OM 30, OMP 30, OMB 30, LM 30, Concorde 30, SME 30H, LM 30H,TM 30H
Download Replacement styli datasheet
Frequency response
20-20.000 Hz + 2 /- 3 dB
Tracking ability at 315Hz at recommended tracking force *)
70 µm
Compliance, dynamic, lateral
25 µm/mN
Stylus type
Nude Fine LIne
Stylus tip radius
r/R 8/40 µm
Tracking force range
1.25-1.75 g (12.5-17.5 mN)
Tracking force, recommended
1.5 g (15 mN)
Tracking angle
20°
Stylus colour
Black
Recommended for following cartridges: Super OM 30, OM 30, OMP 30, OMB 30, LM 30, Concorde 30, SME 30H, LM 30H, TM 30H
