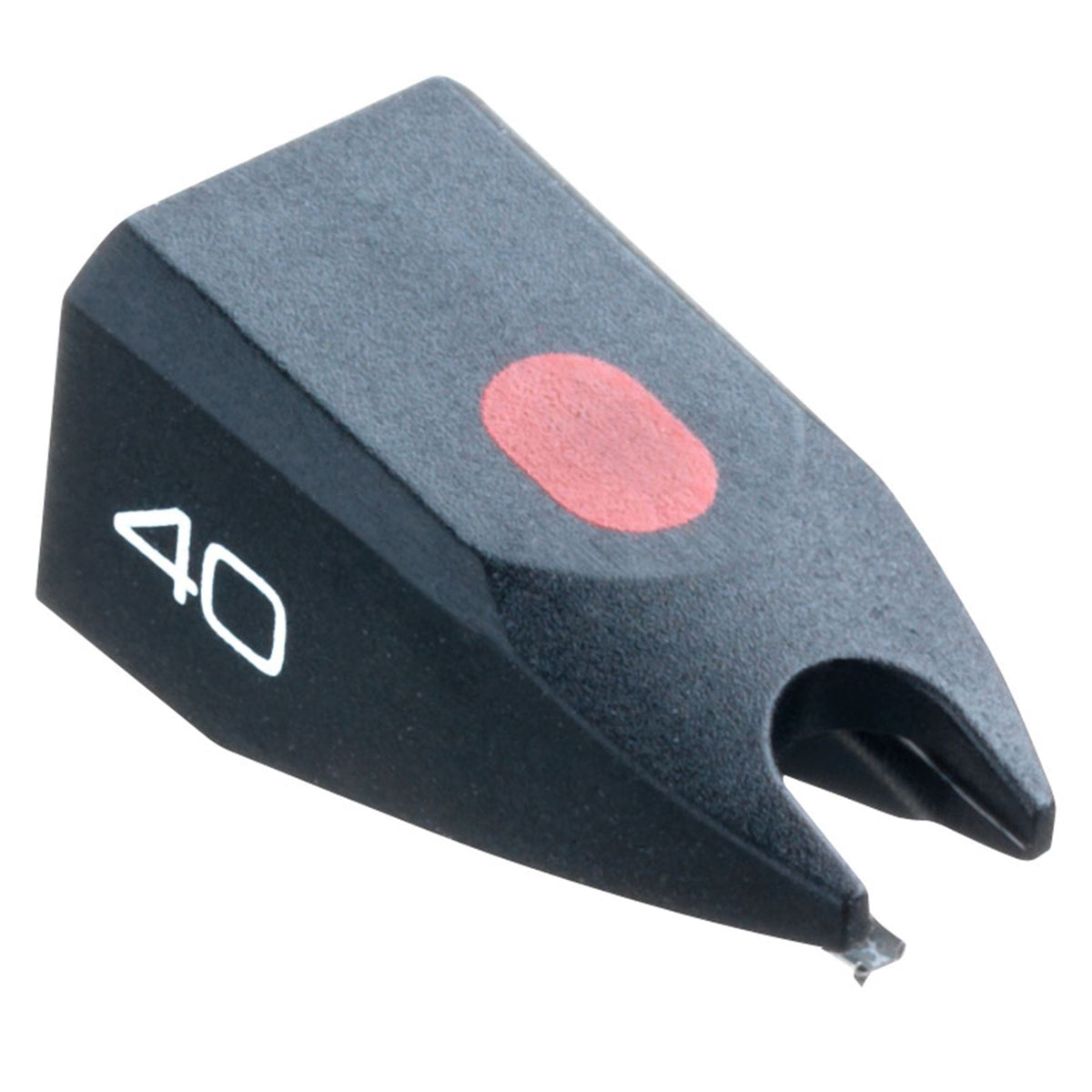

Stylus 40

Replacement stylus for Ortofon 40 series cartridges

Recommended for the following cartridges | OM 40, OM 40 GOLD

Frequency response

20-20.000 Hz + 2 /-3 dB

Tracking ability at 315Hz at recommended tracking force *)

80 µm

Compliance, dynamic, lateral

22 µm/mN

Stylus type

Nude FG 70

Stylus tip radius

r/R 5/70 µm

*) Typical value

Tracking force range

1.25-1.75 g (12.5-17.5 mN)

Tracking force, recommended

1.5 g (15 mN)

Tracking angle

20°

Stylus colour

Black

Recommended for following cartridges: OM 40, OM 40 GOLD
