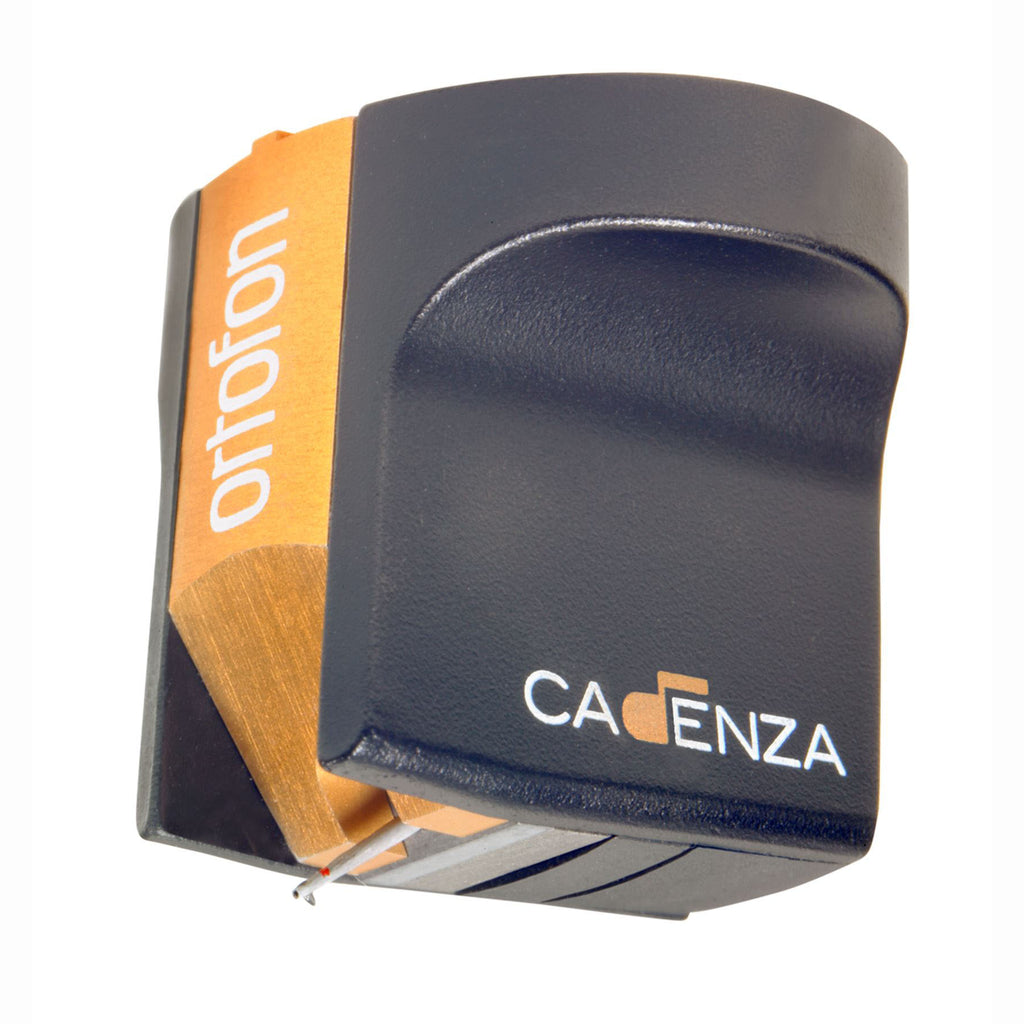

Cadenza Bronze is a true high-end reference cartridge, conveying music with supreme precision, impact and dynamics.
The Cadenza Bronze model is using a Replicant 100 stylus and a conical aluminium cantilever.
The coil wire is the famous Ortofon Aucurum wire, which is a gold plated 6NX copper wire.
Field Stabilizing Element/FSE, is used for optimal linearity especially during complex crescendo passages.
Cadenza Bronze stereo imaging capabilities illuminate the farthest corners of the soundstage in all three dimensions.
TYLUS RAKE ANGLE (SRA)
With a complex stylus shape like the Replicant 100, there must be special attention paid to positioning the diamond in the groove.
The Stylus Rake Angle (SRA - see figure) is very important to the performance of the Replicant 100 stylus, and the long contact surface (the sharp edge) of the diamond should be almost perpendicular to the record surface when viewed from the side. The angle between the record surface and the cantilever is close to 23 degrees when SRA is 90 degrees.
A perfect starting point is to set the tonearm parallel to the record surface and to use the recommended tracking force. The contact surface will be close to perpendicular to the record surface with this setting. The SRA can now gradually and carefully be changed be adjusting VTF and, if necessary, the tonearm height. The target should be an SRA around 92 degrees, determined by the listening experience. In other words, the point of the stylus should point slightly towards the tonearm base.
MC Cadenza Series' accessories included the package
- 1 x Stylus brush, fibre
- 1 x Screwdriver
- Leadwires, pair LW-6N
- Screws, pair M2,5 x 3
- Screws, pair M2,5 x 5
- Screws, pair M2,5 x 6
Review quote MC Cadenza Bronze
Positive Feedback ISSUE 51 September/October 2010
Reviewed by John Hoffman
"...The Cadenza Bronze is certainly a top flight cartridge, and its performance reflects Ortofons substantial engineering resources and manufacturing experience...
...Cadenza Bronze is an excellent tracking cartridge, and its ability to minimize surface noise will be an attribute that can be appreciated by any perspective owner....
...The Bronze certainly has the ability to extract all the fine detail contained in a recording, and excels at all the audiophile approved tasks. Performers are clearly defined, tonal balance is evenly reproduced, and dynamic contrasts are faithfully recreated. The touch of warmth that Ortofon have infused into the design, results in a cartridge with an easy going nature, which invites a person to listen for hours on end... "
The Cadenza series
At Ortofon we constantly look for new technology to be used in our products and push the performance of existing technology. Thus we assure the highest level of performance and quality. The Kontrapunkt models and MC Jubilee became market standards and are among our most popular cartridges. Nevertheless Ortofon decided to develope a new cartridge series that is even more ambitious.
By carefully implementing cobalt-iron pole pieces, new improved winding process on the armature, using extruded aluminium housing in the models as well as other changes, we have been able to reveal new possibilities in performing the analogue information. It was also decided to make a more complete range of cartridges, which meant an introduction of a moving coil Cadenza Mono model to support our customers, who have an extended interest in micro groove mono records.
Each of the five Cadenza Series cartridges has its own individual sonic expression, and all five models together represent the ensemble of five classic variations:
- MC Cadenza Mono is a true mono cartridge for playing mono microgroove vinyl records
MC Cadenza Mono picture is kindly provided by Martin J. Kunz
- MC Cadenza Red delivers open, dynamic sound with a touch of warmth
- MC Cadenza Blue adds more dynamics and resolution, sounds more open and reproduces more details
- MC Cadenza Bronze adds even more details and resolution but in a very evenhanded way that pays respect to all elements
- MC Cadenza Black is the best of everything, true to the groove with resolution and accurate insight into each recording
Features & Specifications
Output voltage at 1000 Hz, 5cm/sec.
Channel balance at 1 kHz
< 1 dB
Channel separation at 1 kHz
> 24 dB
Channel separation at 15 kHz
> 20 dB
Frequency response 20 Hz
20 kHz - +/ - 1.5
Tracking ability at 315Hz at recommended tracking force *)
Compliance, dynamic, lateral
Nude Ortofon Replicant 100 on conical alu cantilever
Stylus tip radius
r/R 5/100 µm
Tracking force range
2.2- 2.7 g (22 - 27 mN)
Tracking force, recommended
2.5 g (25 mN)
Internal impedance, DC resistance
Recommended load impedance
Cartridge body material
Stainless steel / Aluminium
