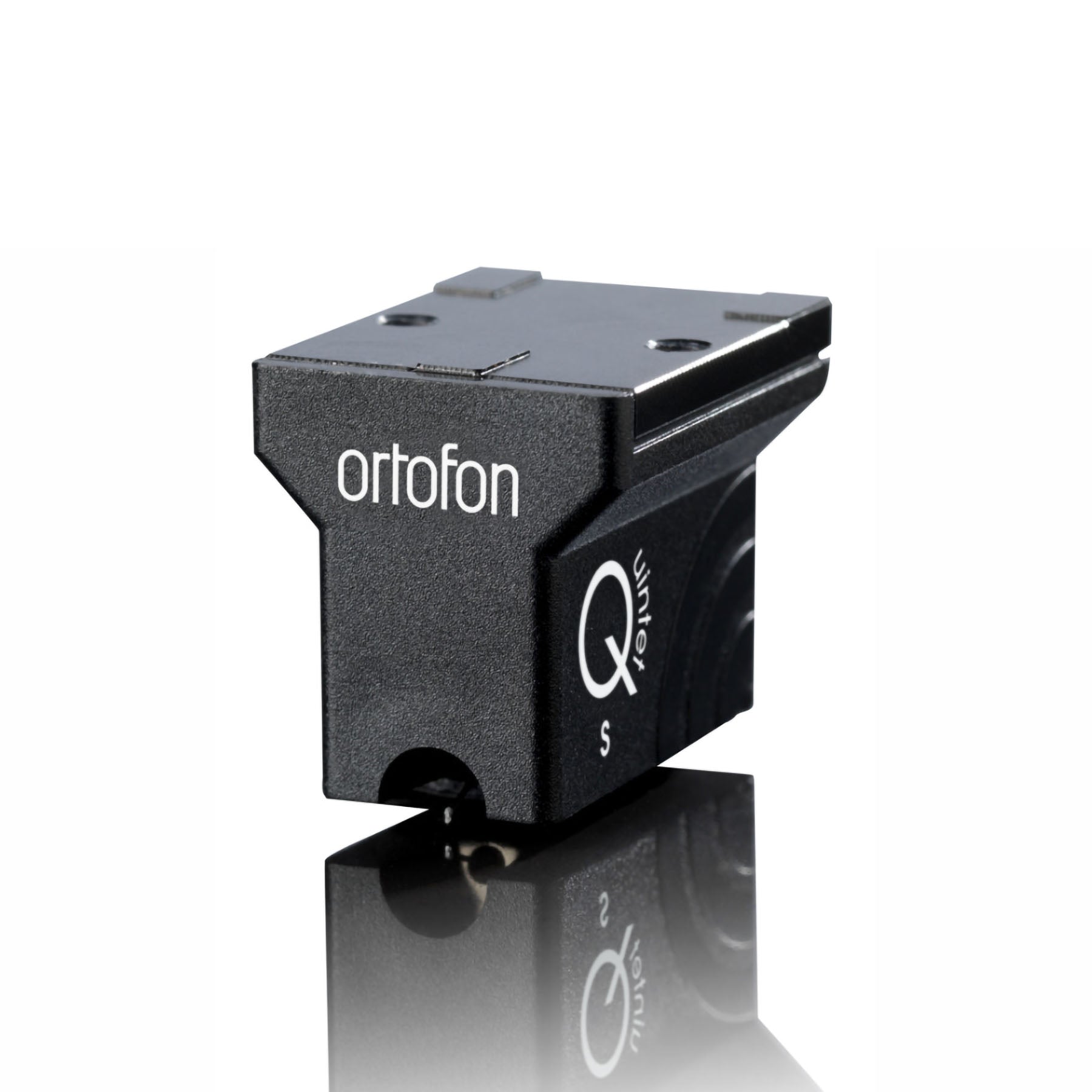

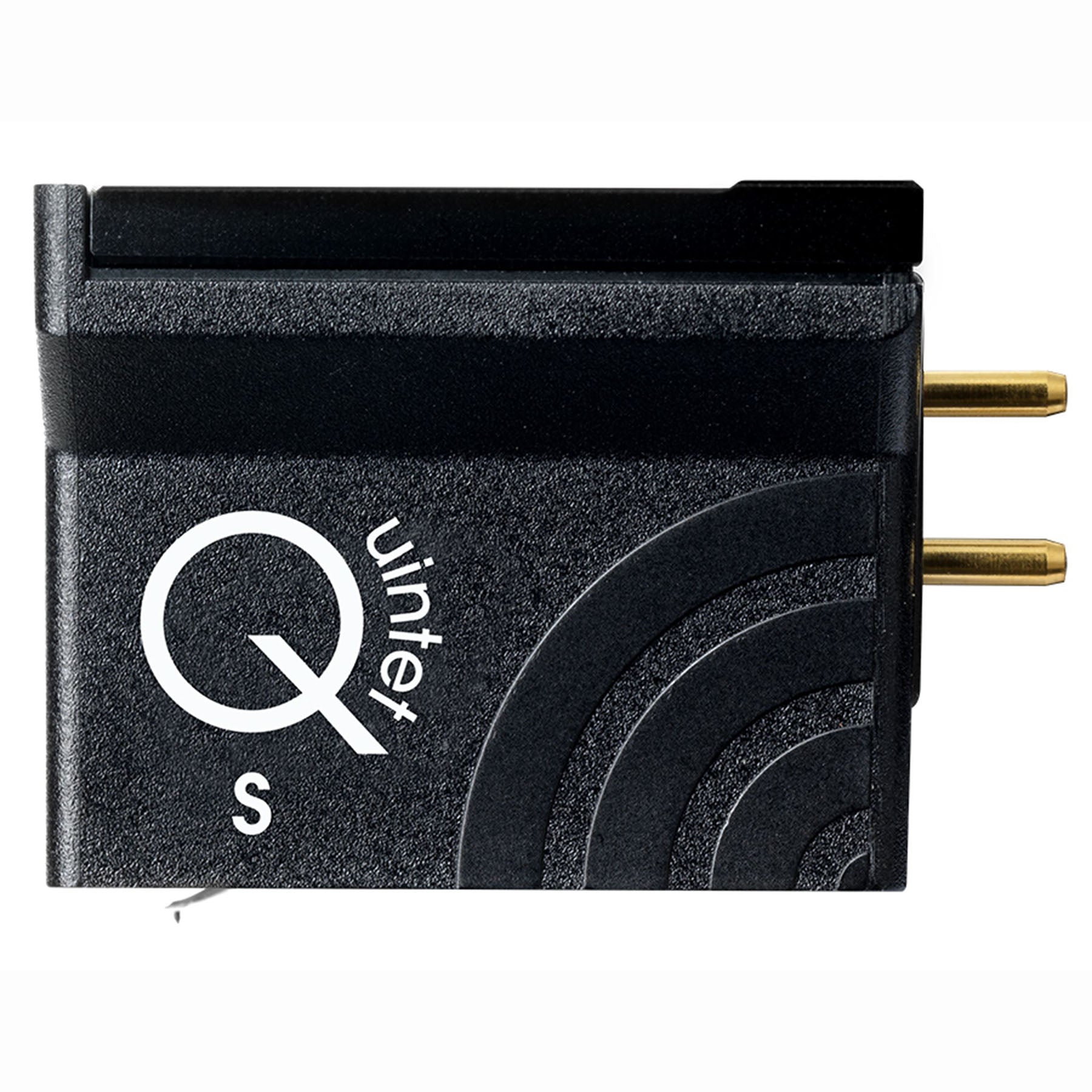

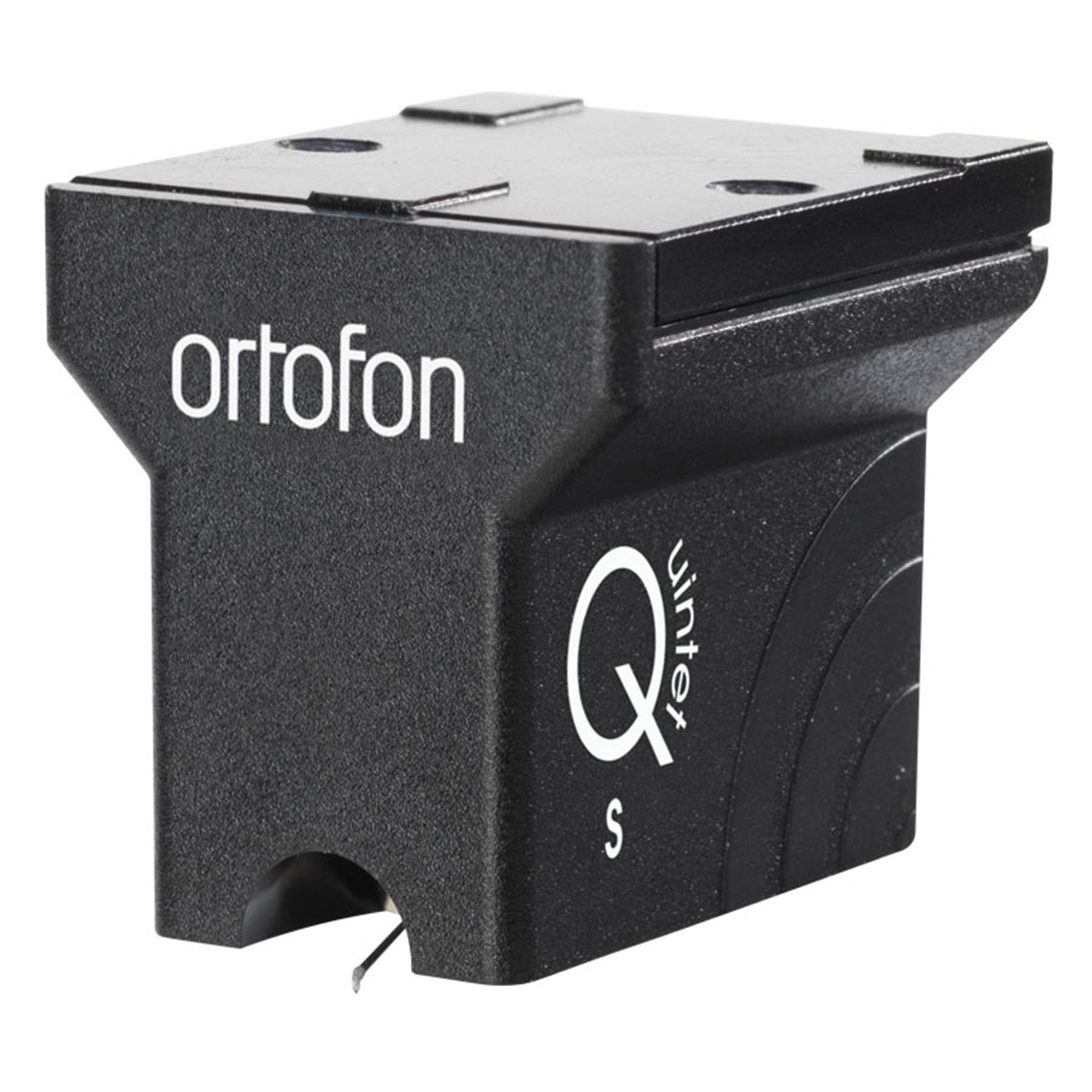

MC Quintet Black S
The Quintet Black S is the best example of Quintet’s overall excellence
The Quintet Black S is graced with a Nude Shibata diamond, considered one of the best stylus profiles available, mounted on a high-performance Sapphire cantilever.
The Shibata’s slim, highly polished profile allows an exceedingly wide contact area to the walls of the groove and ensures detailed and pure reproduction throughout the spectrum, including even the most high frequency groove information.
The ST-7 transformer is a perfect match for the MC Quintet Black cartridge.
LH-4000 headshell is specially recommended for MC Quintet cartridges series.
Review quote MC Quintet Black S
www.hifichoice.co.uk June 2017
With the correct level set, the Ortofon reveals itself to be a highly distinctive yet talented performer. This most clearly manifests itself as a slightly dark tonal balance that helps it to sound refined and powerful...
...What is interesting is that the tonal balance doesn’t restrict the energy at the top end of the frequency response...
...This is a very big and effortless-sounding cartridge....
...Vocals are given presence and detail, but without losing their relationship to the supporting musicians...
The new Sapphire cantilever solution
Multiple studies show that demand for strategic natural resources continues to increase. New technologies use ever-increasing amounts of rare and strategic resources. Understandable that this increasing demand may complicate future supply.
Over the decades, there has been an increase in the use of Boron. Elemental Boron is mostly used in high tech applications. One of Boron's benefits for our modern technology is its use in neodymium magnets, which are an alloy of neodymium, iron and boron. Boron has also been applied in manufacturing of phono cartridges: Boron cantilevers are strong, stiff, light and 100% inert. From all possible options Boron cantilever is the best, but unfortunately extremely difficult to obtain.
To make sure future supplies of the Ortofon High-End cartridges, we will henceforward reserve the use of Boron cantilevers for our Exclusive series.
The new MC Quintet Black S model is graced with Shibata stylus on the Sapphire cantilever. Sapphire is one of the best cantilever options that provides an excellent mechanical pulse transfer from the stylus to the coil system.
The Quintet Black S, like its predecessor Quintet Black, produces detailed and pure reproduction though-out the spectrum, volume and soundstage.
MC Quintet Black accessories included the package
- 1 x Stylus brush, fibre
- 1 x Screwdriver
- 1 x Stylus pressure gauge/Scale
- 2 x Screw M2,5 x 5
Ease of use
Top-mounting of the Quintet cartridges is easy and secure using the screws supplied. The aluminuim frame has threaded mounting holes and is fitted easily with the 5mm or 7mm screws depending on the thickness of the headshell.
The Quintet series’ right angles, straight lines, stylus visibility and ample distance between the record surface and the cartridge’s bottom will make it easy to mount and align the cartridge and tonearm correctly. The Quintet Series gives excellent results with most common tonearms.
Features & Specifications
Output voltage at 1000 Hz, 5cm/sec.
Channel balance at 1 kHz
< 1.0 dB
Channel separation at 1 kHz
> 23 dB
Channel separation at 15 kHz
> 15 dB
Frequency response 20-20.000 Hz
+/- 1.5 dB
Tracking ability at 315Hz at recommended tracking force *)
Compliance, dynamic, lateral
Nude Shibata on Sapphire cantilever
Stylus tip radius
r/R 6/50 µm
Tracking force range
2.1-2.5 g (21-25 mN)
Tracking force, recommended
2.3 g (23 mN)
Internal impedance, DC resistance
Recommended load impedance
> 20 Ohm
Cartridge body material
Coil wire material
