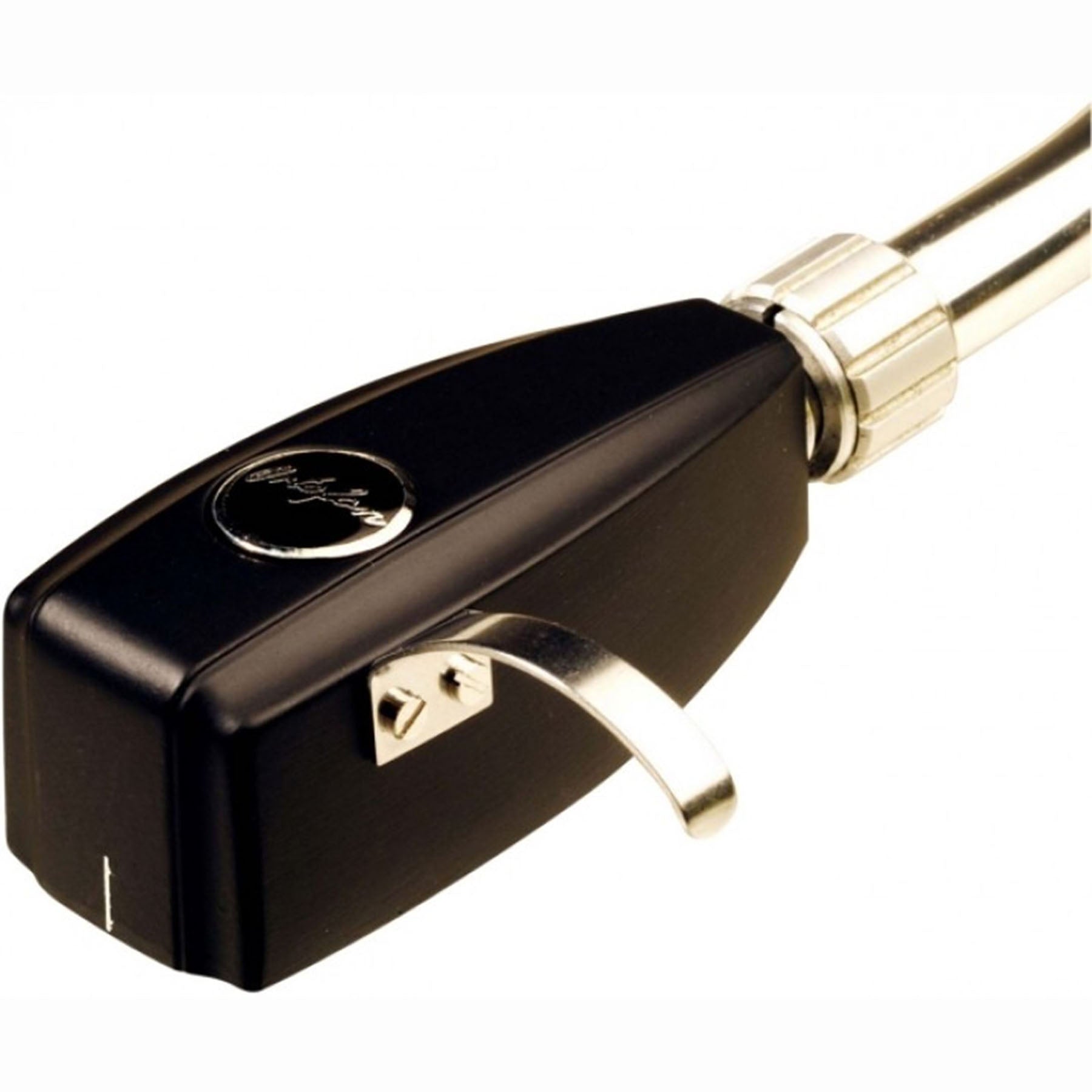

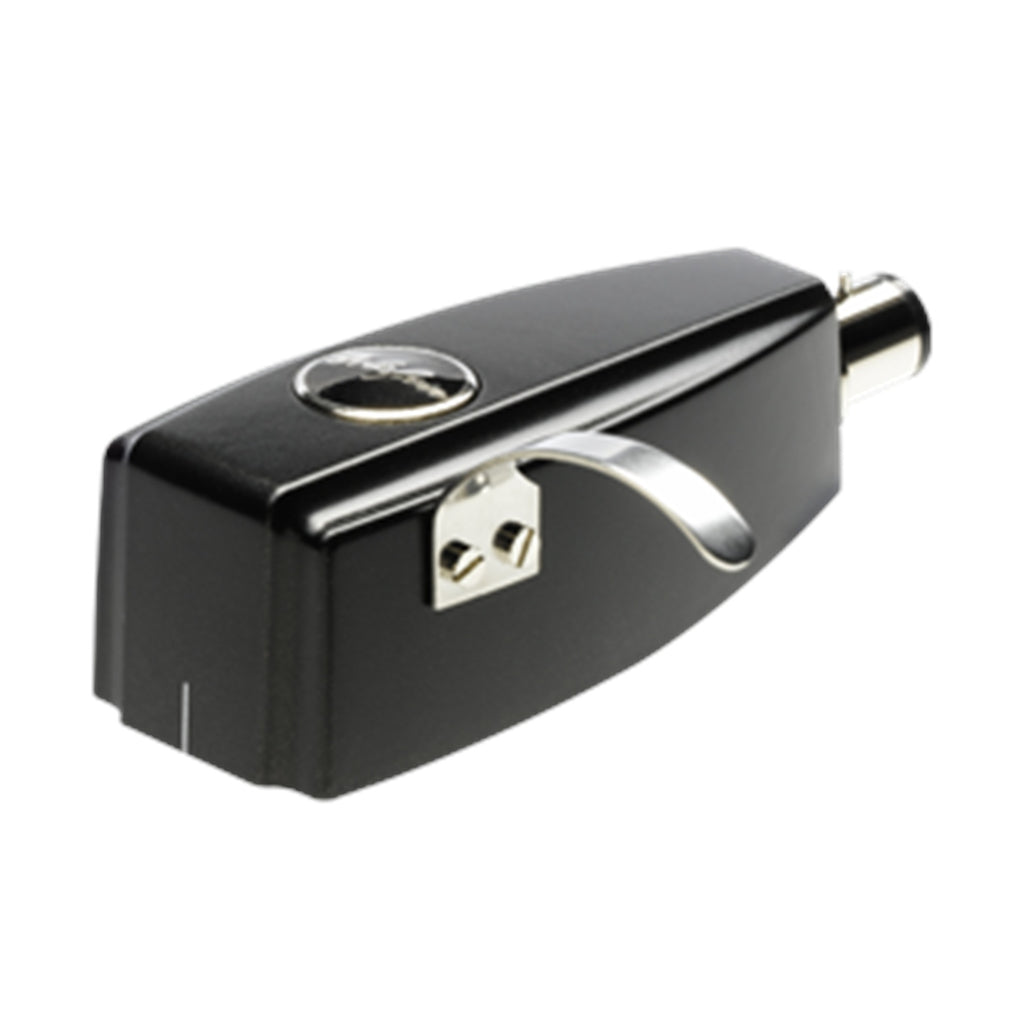

SPU Mono CG 65 Di MkII
The SPU Mono CG 65 Di MkII for the playback of early 65 µm mono and 78 rpm recordings
The Mono CG 65 Di MkII is an SPU-style Moving Coil cartridge with a spherical stylus profile. The CG 65 Di MkII provides an authentic method of playing back these early recordings with a remarkable level of sonic accuracy, regardless of the materials used to manufacture these discs.
This cartridge features a 1.5mV output, which makes it suitable for use with a variety of medium-gain moving coil transformers. Ortofon ST-M25 moving coil transformer is designed exclusively for the SPU Mono CG 25 Di MkII and SPU Mono CG 65 Di MkII.
Features & Specifications
Output voltage at 1000 Hz, 5cm/sec.
1.5 mV
Frequency response
20-15.000 Hz + 3/- 1 dB
Tracking ability at 315Hz at recommended tracking force
>60 µm
Compliance, dynamic, lateral
7 µm/mN
Stylus type
Spherical
Stylus tip radius
R 65 µm
Tracking force range
4.0-5.0 g (40-50 mN)
Tracking force, recommended
4.5 g (45 mN)
Tracking angle
20°
Internal impedance, DC resistance
6 ohm
Recommended load impedance
> 100 ohm
Cartridge body material
Ground wood and resin composite
Coilwire material
High Purity Copper (OFC)
Cartridge colour
Black matte
Cartridge weight
35 g
