Moving Magnet and Moving Coil preamplifier
Fixed and variable cartridge loading adjustable from remote control
Up to 70dB of ultra low noise gain for MC cartridges as low as 0.15mv
Two inputs for two tonearms selectable from remote control
Single ended and balanced outputs
All discrete FET design
Class A analog circuitry throughout
No ICs in signal path
Up to 20V rms output for unparaleled headroom and dynamics
Passive RIAA curve for seamless performance
Hand selected premium discrete components
DC coupled from input to output for unfettered bass
Ultra low noise discrete pre and post voltage regulation stages
Low internal feedback for increased transparency and openness
No complimentary FET transistors for lifelike performance
High current oversized power transformer

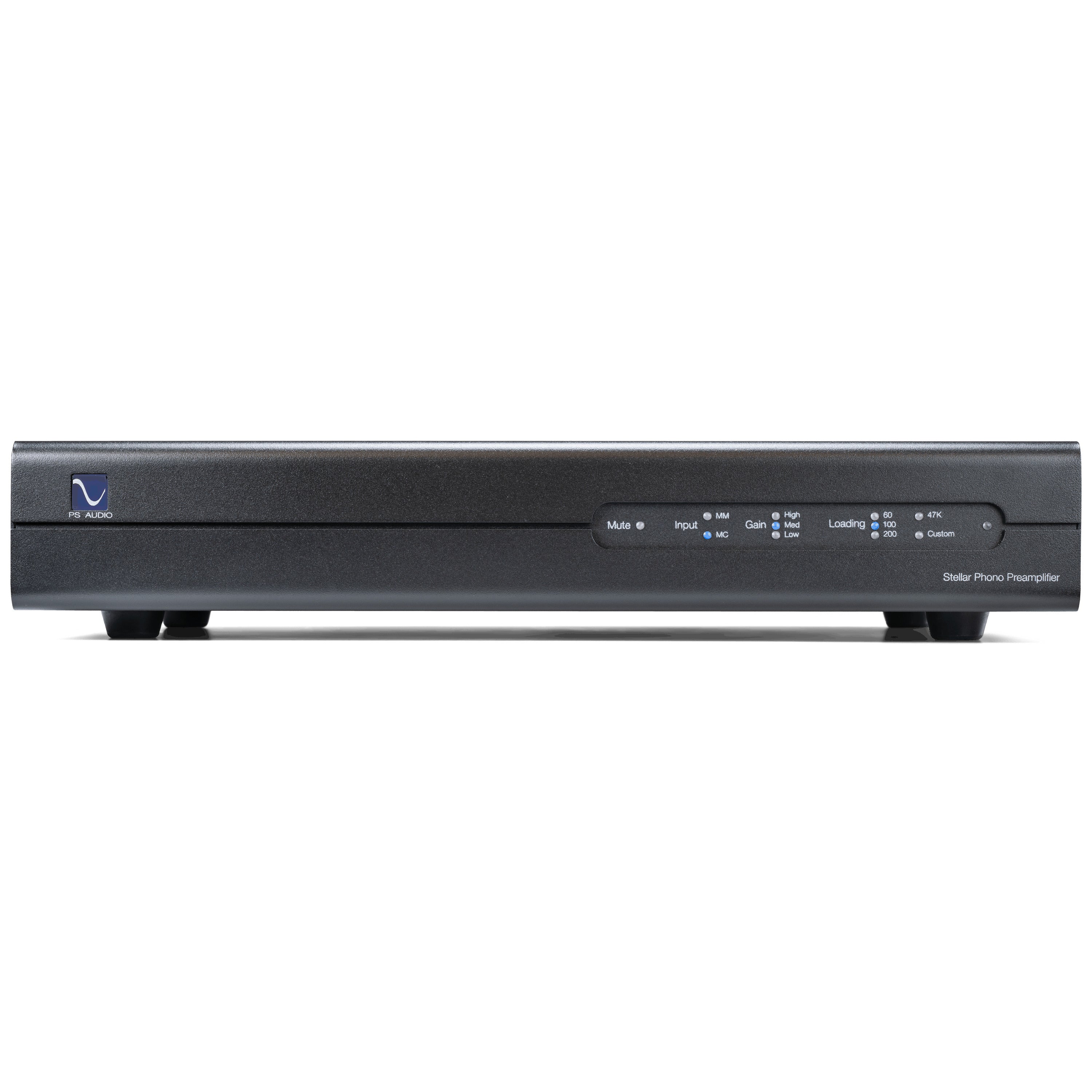

Front panel standby button

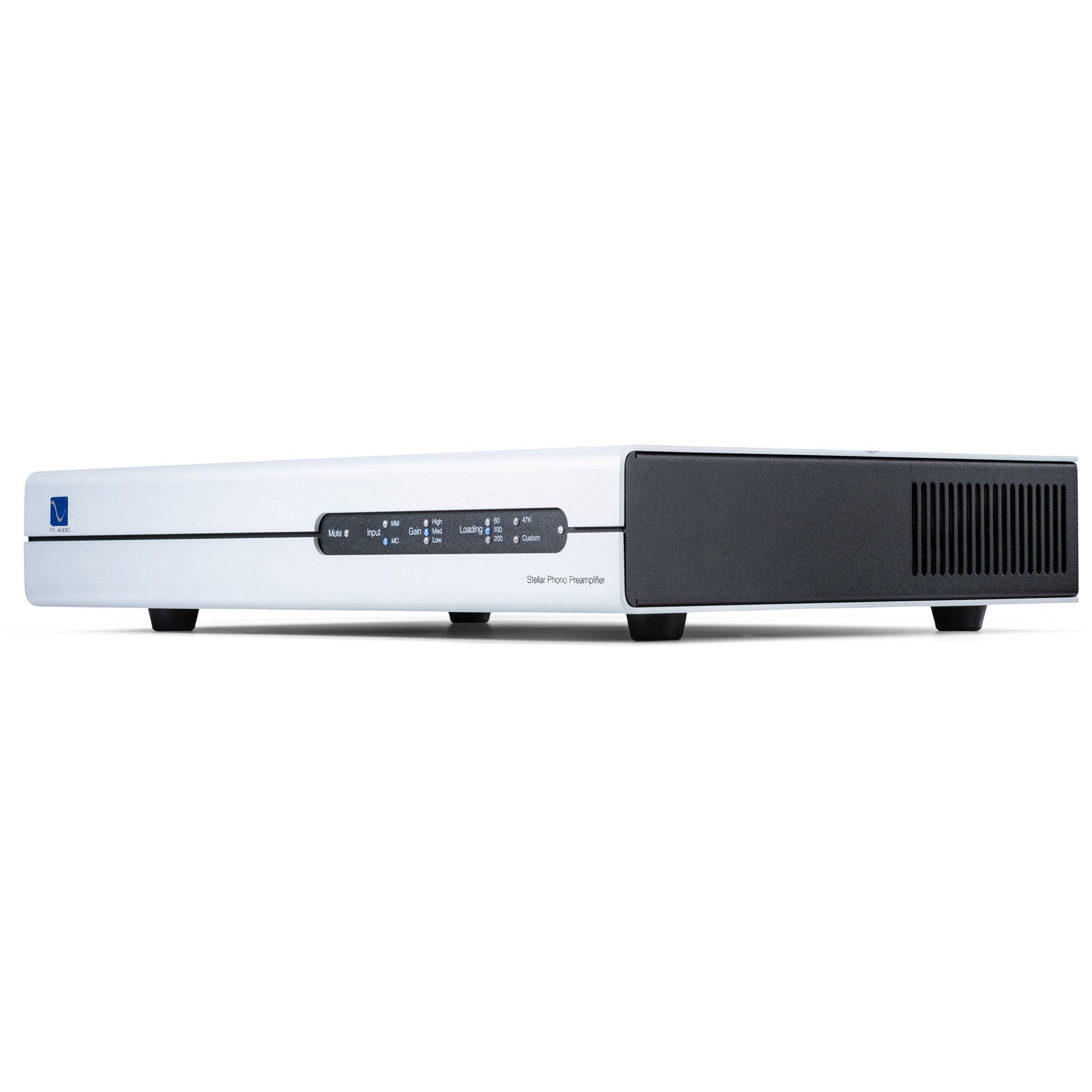

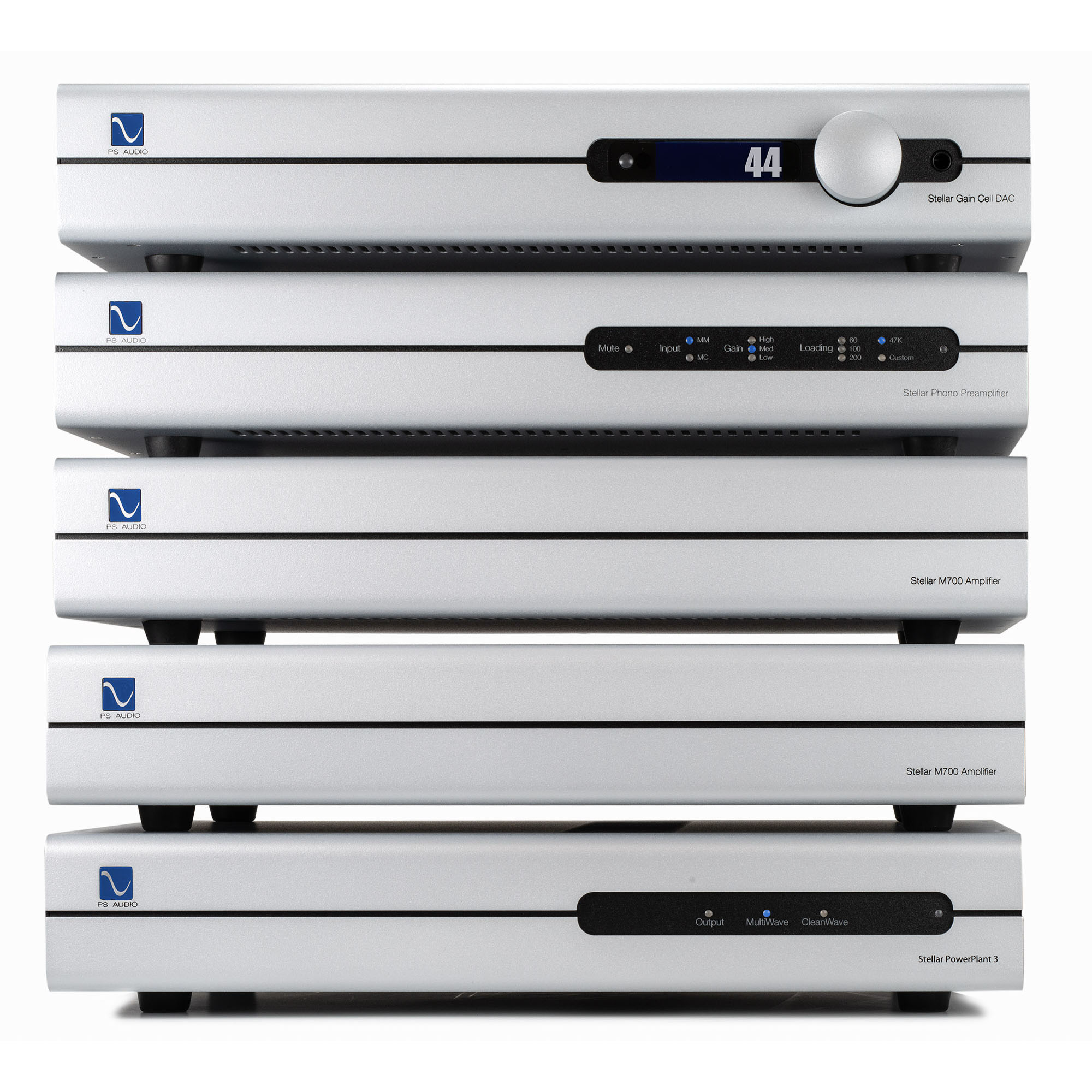

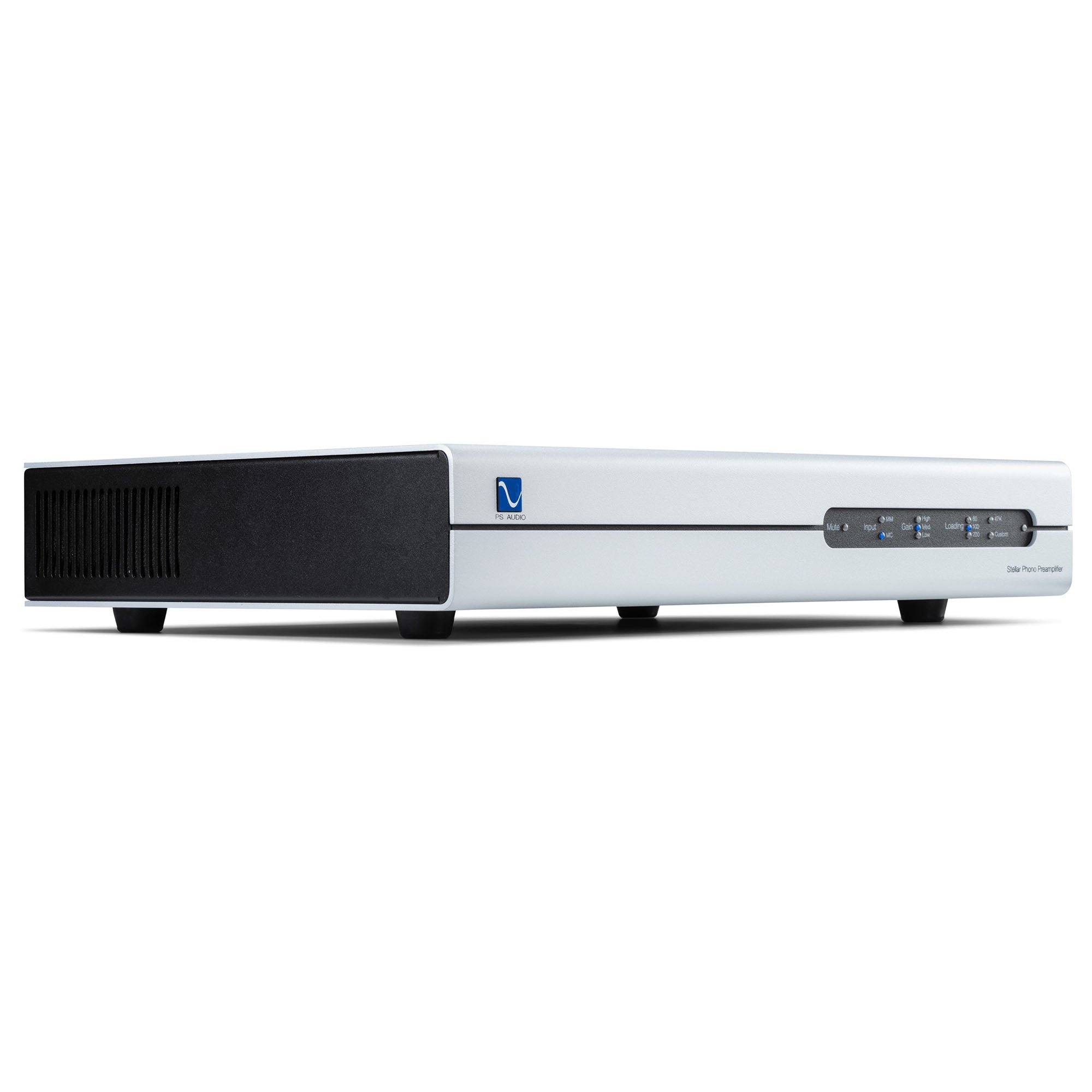

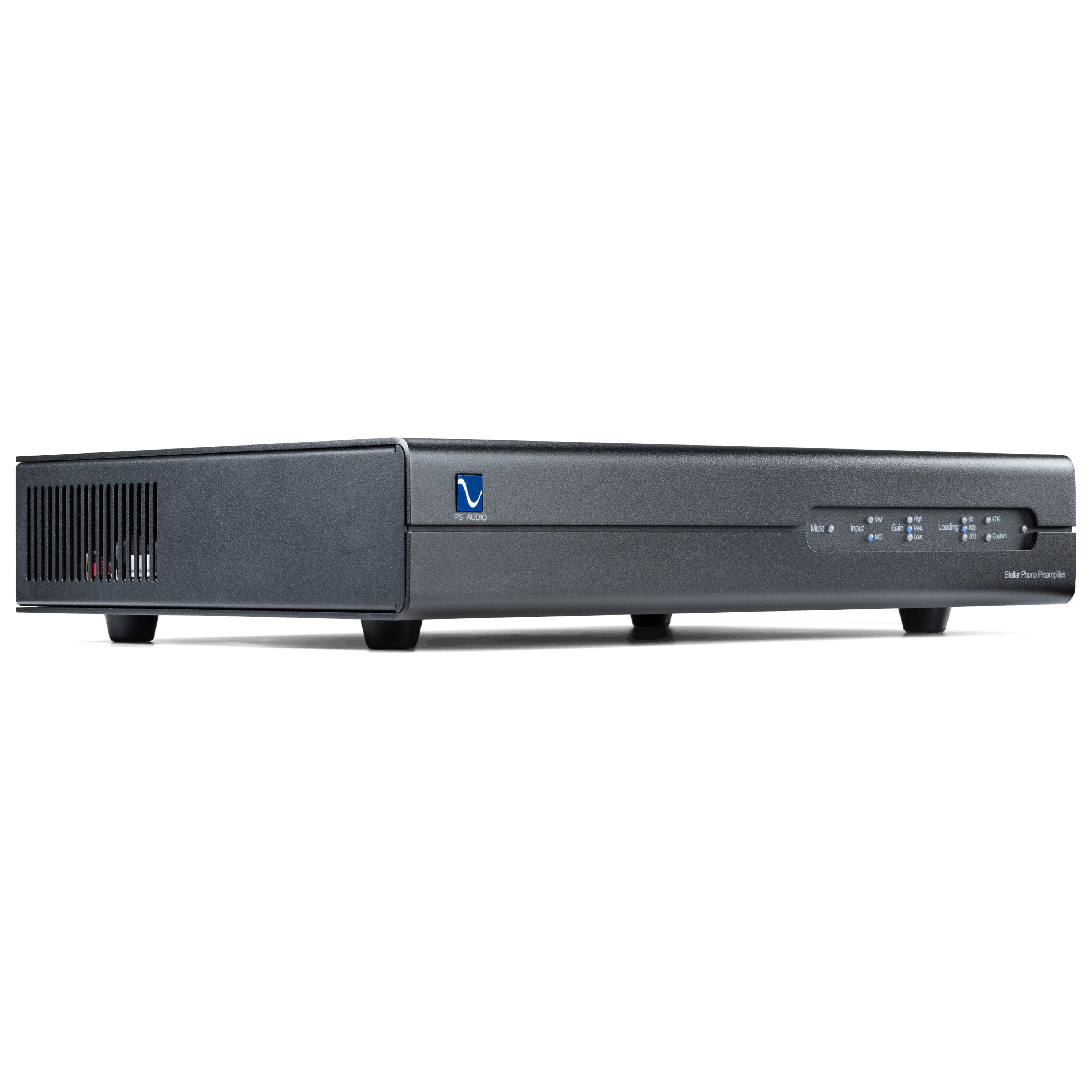

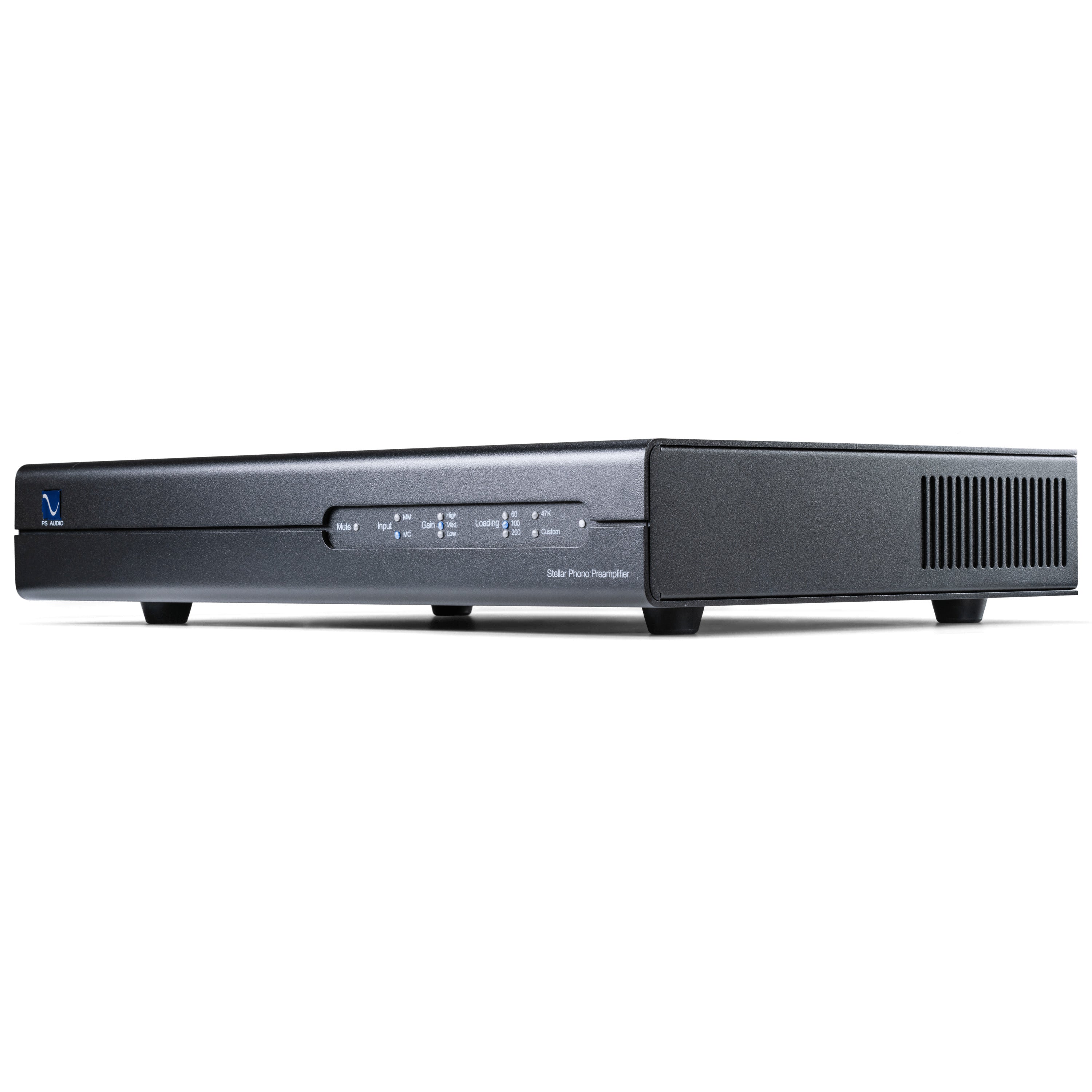

Stellar Phono Preamplifier
Redefine Your Record Collection
“The midrange on this phono preamp is as open, uncongested, transparent, and revealing as that of any phono preamp I’ve heard at any price.” -Michael Fremer.
PS Audio’s first product was a phono preamplifier that took the Hi-Fi world by storm in 1975. Its designers, Paul and Stan, labored for years over every circuit detail with one goal in mind—making musical magic. Stellar Phono shares that same ethos.
Based on a unique all discrete FET topology, Stellar Phono stands out in a crowded field of conventional IC designs. Its sound is rich, warm and enticing as only vinyl through hand-tuned class-A circuitry can be.
Stellar Phono is a triumph of performance and value that you’ll instantly recognize from that first needle drop, as music emerges from a velvet blackness, filling the room as if there were no speakers.
“I recommend a listen to the Stellar to anyone in the market for a new phono preamp, regardless of price. I don’t think I’ve ever written that before.” Michael Fremer.
When PS engineer Darren Myers set his sights on building the best phono stage our company has ever produced, he had his work cut out for him. With the advantage of modern upgraded FET semiconductors and a fresh approach to the art of phono preamplification at his side, Darren wiped the tradition slate clean by hand-fashioning a new approach to the challenge of amplifying and preserving all the magic trapped in the grooves of our records. The results are breathtaking. Music that might once have been locked into the confines of our loudspeakers is suddenly free. What you hear fills the room with a rich tonality that has always been vinyl’s promise, but rarely fulfilled to the degree Stellar has achieved.
Stellar phono features dual inputs that can support either a moving coil or moving magnet cartridge, or a two-tonearm set up to enjoy the best of each at the user’s discretion. Cartridge loading and gain options are easily adjusted from your listening position via the supplied remote control.
Phono preamplifiers at anywhere near this price range are almost always integrated circuit based, but not Stellar. Input to output, Stellar is a fully discrete FET design with extraordinarily low noise and high overload capabilities so even the wildest dynamics from the punchiest cartridges sail through Stellar with no limitations or compromise whatsoever.
If you love vinyl you’ll love Stellar.
|Unit Weight||21.6lbs. (9.8 kg)|
|Unit Dimensions||17”W x 13”D x 3.25”H
(43cm x 33.02cm x 8.255cm)
|Shipping Weight||25.1lbs (11.4 kg)|
|Shipping Dimensions||22”W x 8”H x 17”D
(55.88cm x 43.18cm x 20.32cm)
(Factory set only)
North America 120V
Europe/Asia/Australia/New Zealand 230V
|Mains Power Input||IEC C14|
|Idle Power Consumption||26W|
|Fuses||100V: T250V-2.0AH (2A Slow Blow)
120V: T250V-1.6AH (1.6A Slow Blow)
230V: T250V-1AH (1A Slow Blow)
|Accessories Included||US (NEMA 5-15P) (100V/120V versions)
Schuko (CEE7/7) (230V version)
UK (BS1363) (230V version)

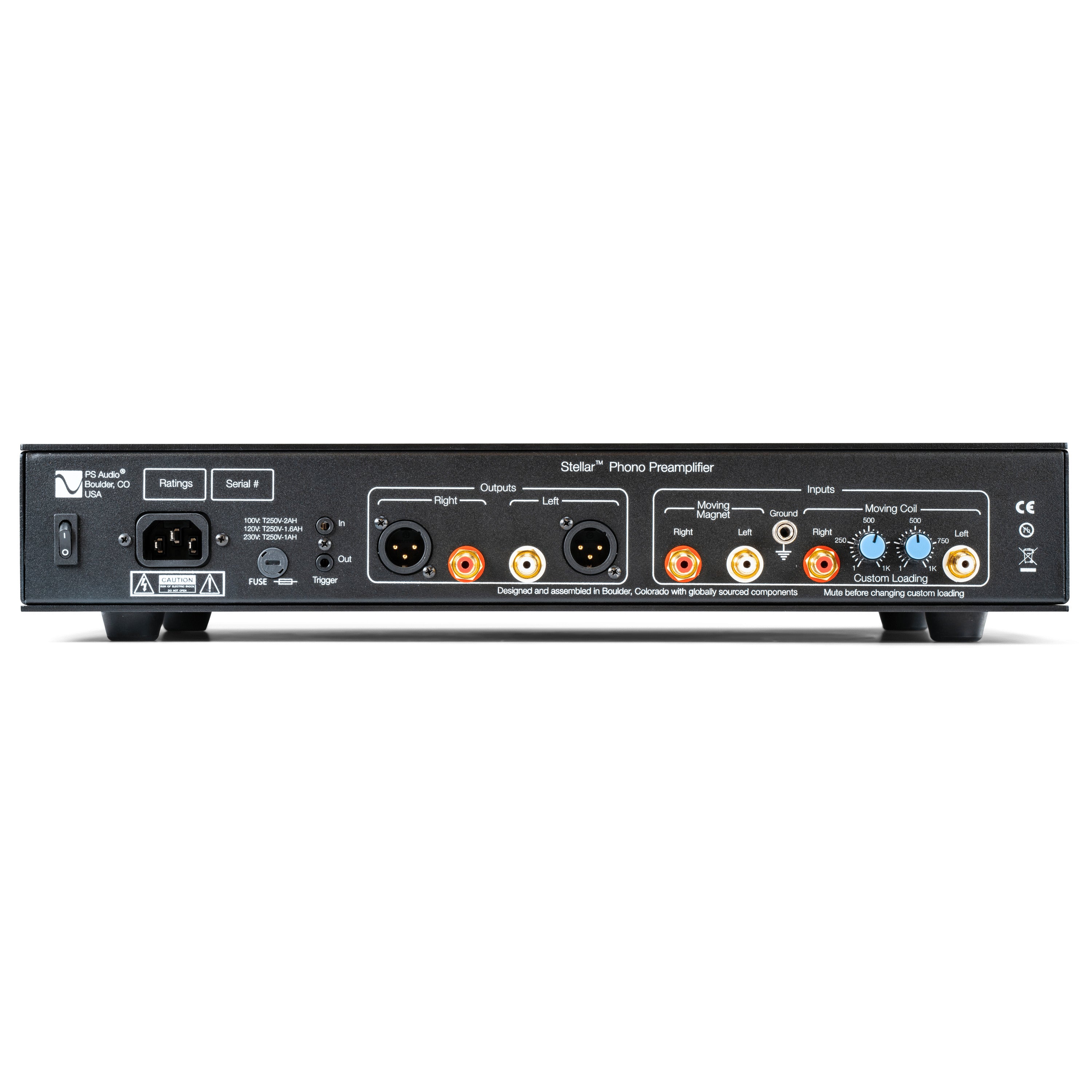

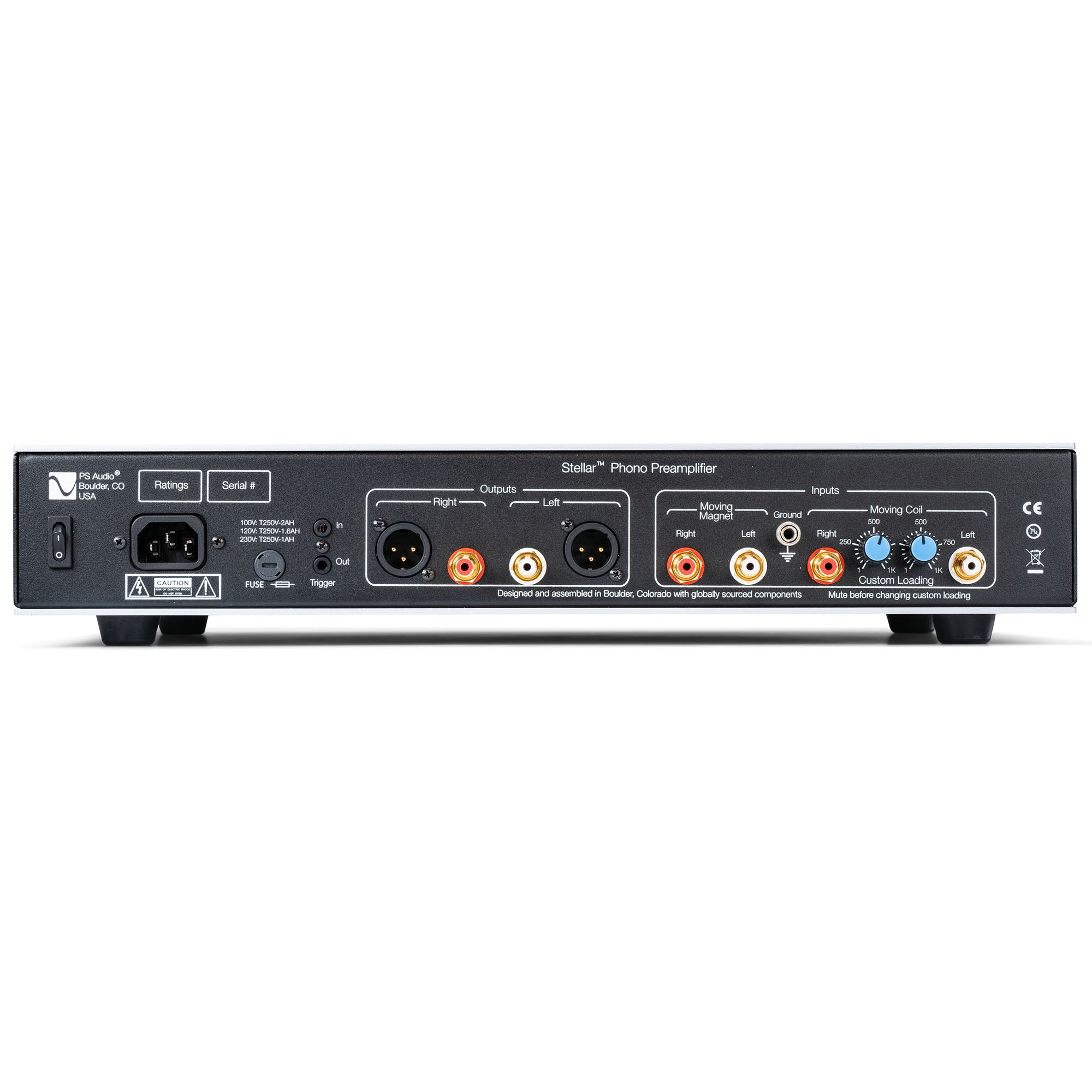

|Audio Inputs||RCA (Unbalanced) MM,MC
|Audio Outputs||RCA (Unbalanced) 1 Stereo Pair
XLR (Balanced) 1 Stereo Pair
|DC Trigger||3.5mm 12VDC (2)|
|All measurements are with both channels operating,
gain set to low, and balanced outputs.
Input frequency is 1kHz.
|Gain||MM: 44dB, 50dB, 56dB
MC: 60dB, 66dB, 72dB
|Input Loading||MM: 47KΩ (100pF)
MC: 60Ω, 100Ω, 200Ω, 47KΩ, Custom 1-1KΩ
|Output Impedance||Unbalanced <200Ω
Balanced <200Ω per leg
|Frequency Response||20Hz - 20KHz +/- 0.25dB|
|THD||0.5V out @ 1kHz: <0.01%|
|Maximum Output||@1%THD: 24VRMS|
|Overload Margin||@1kHz: >22dB|
|S/N Ratio||MM: >82dB A-Weighted
MC: >74dB A-Weighted
