C-SUR – In-Ceiling Speaker
One speaker, multiple applications
Like all PSB speakers, the CustomSound C-SUR is prized for its true-to-nature sound. It is also highly versatile, offering several placement options for creating an immersive home theatre experience. Capable of handling 150 watts of amplifier power, the C-SUR is the robust yet discreet in-ceiling speaker your high-end home theatre system deserves.
- Two 5¼” (133mm) clay/ceramic reinforced polypropylene cone woofers
- Two 1″ (25mm) titanium-done, ferrofluid-cooled tweeters
Bring big sound to small rooms

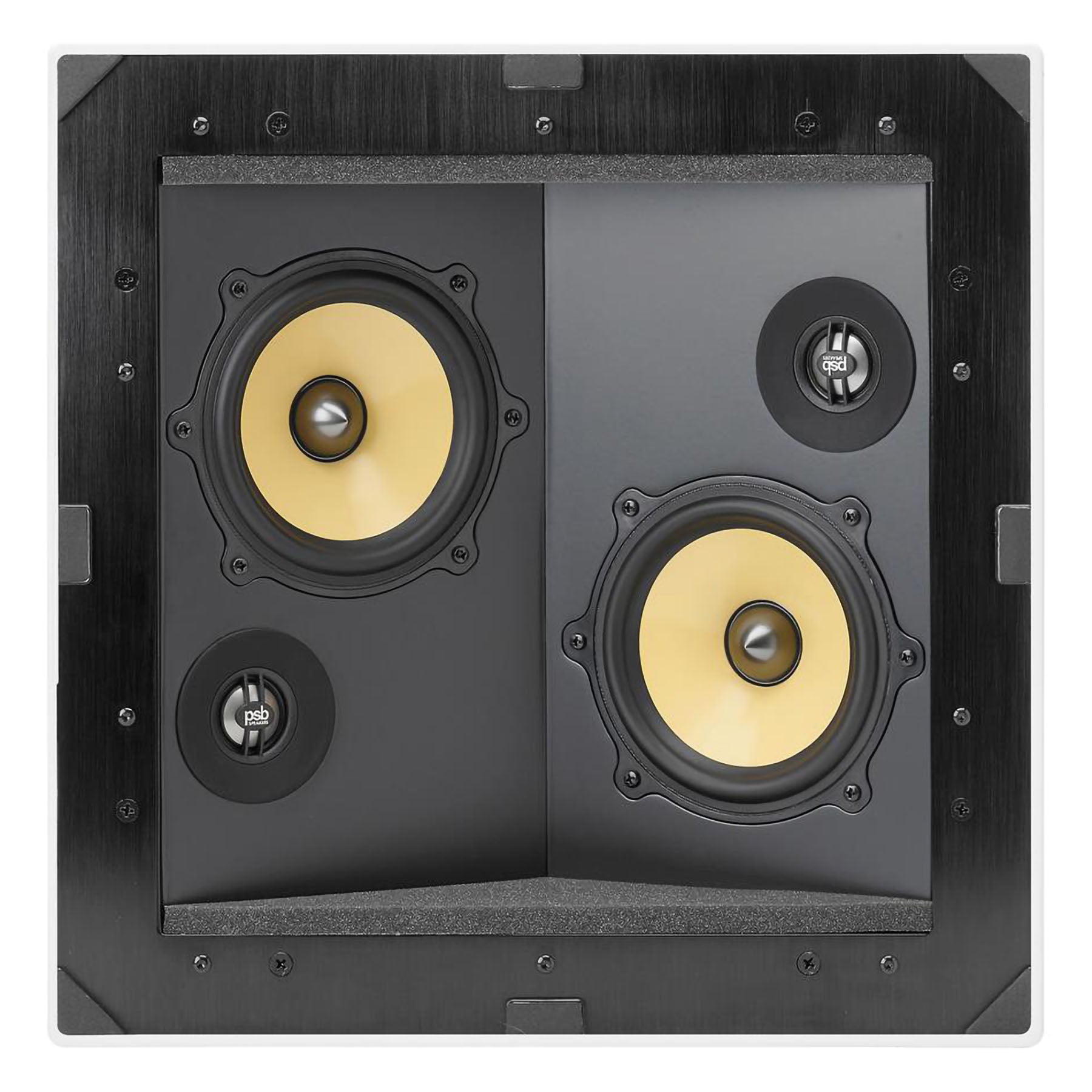

The CustomSound C-SUR in-ceiling speaker uses two 5¼” (133mm) woofers and two 1″ (25mm) tweeters in a unique 5.1/7.1 dual-mode configuration that allows for an unusual installation option. Because each woofer/tweeter pair has its own crossover and input, a single C-SUR can be used for both the surround and surround-back channels, providing an ideal solution for a 7.1 theatre in smaller rooms.
Create the ideal soundstage
The CustomSound C-SUR is also an excellent height-channel speaker because of its diffuse soundfield. This speaker helps pull the sound “off the walls” to create a truly immersive experience. Combine the C-SUR with other speakers in the CustomSound line, such as the C-LCR and W-LCR2, to create a superb home theatre surround sound system.
Designed for acoustic integrity
Housed inside a meticulously engineered enclosure that ensures the acoustic integrity of the design in any installation, the CustomSound C-SUR is uncompromising in its performance, both visually and sonically. As an added benefit, the enclosure reduces sound transmission into adjoining rooms. This is the concealed-speaker system your home is waiting for.
- Two 5¼” (133mm) clay/ceramic reinforced polypropylene cone woofers
- Two 1″ (25mm) titanium done, ferrofluid-cooled tweeters
- Frequency response: 70-23,000Hz (±3dB)

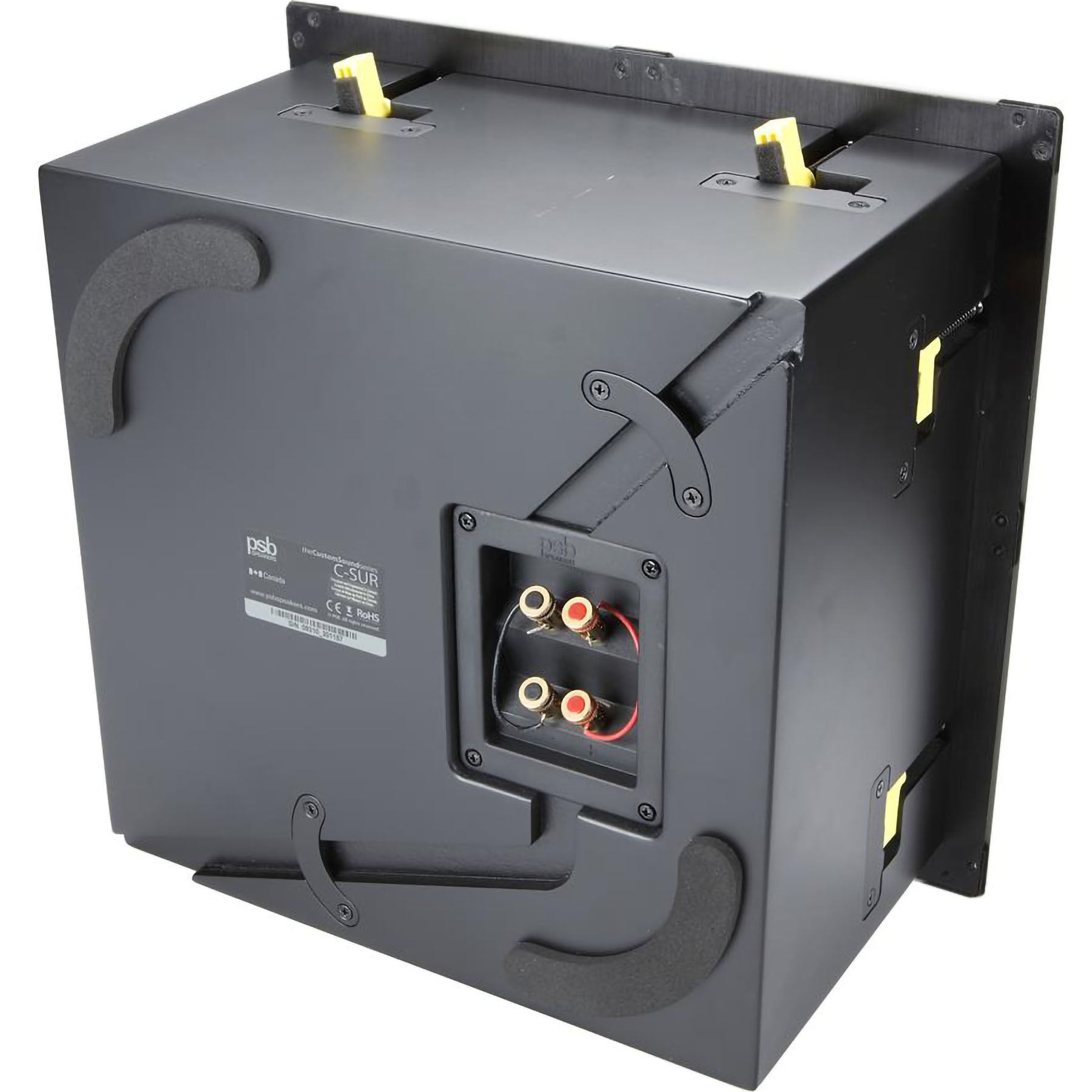

- Dual-input design features dedicated speaker-wire inputs for each woofer and tweeter pair

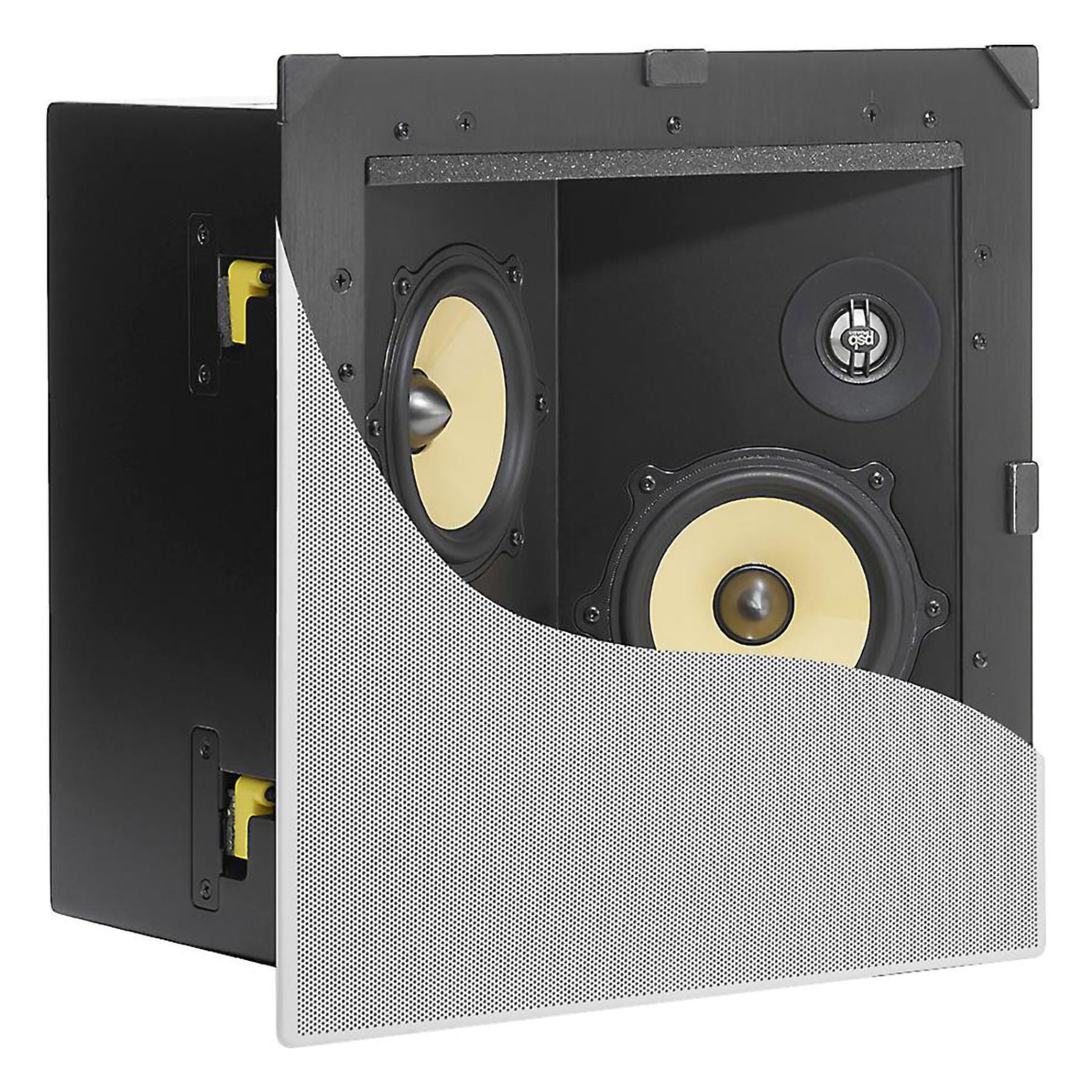

- Includes magnetic “frameless” grille with fabric scrim
| Frequency Response | |
|---|---|
| On Axis @ 0° ±3dB | 70-23,000Hz |
| On Axis @ 0° ±1 1/2dB | 75-20,000Hz |
| LF Cutoff -10dB | 65Hz |
| Sensitivity | |
| Anechoic Chamber | 89dB |
| Listening Room | 91dB |
| Impedance | |
| Nominal | 6 Ohms |
| Minimum | 4 Ohms |
| Input Power | |
| Recommended | 20 – 150 Watts |
| Program | 150 Watts |
| Acoustic Design | |
| Tweeter (Nominal) | 2 x 1” (25mm) Titanium Dome with Ferrofluid |
| Woofer (Nominal) | 2 x 5 1/4” (133mm) Clay/Ceramic reinforced Polypropylene Cone Rubber Surround |
| Crossover | 1500Hz, LR4 |
| Internal Volume | 0.4 cu ft (11.2L) |
| Design Type | Sealed |
| Dimensions / Weights / Finish | |
| Size (W x H x D) | Cutout Dimensions – 13 3/16 x 13 3/16” * (335 x 335mm), Mounting Depth – 7 3/4” * (196mm) *, Grille Dimensions – 14 3/4 x 14 3/4 x 3/8” * (373 x 373 x 7mm) |
| Weight | Net – 17.6lb (8.8kg)/each, Shipping – 24lb (10.9kg)/each |
| Finish | White |
