PSB CS AIC 860 – 6 Inch Angled In-Ceiling Speaker
Grill Colour
PSB CS AIC 860 – 6 Inch Angled In-Ceiling Speaker
White
22 Saint Kilda Road
22 Saint Kilda Road
Suite 2.02
St Kilda VIC 3182
Australia
Country of origin: Canada

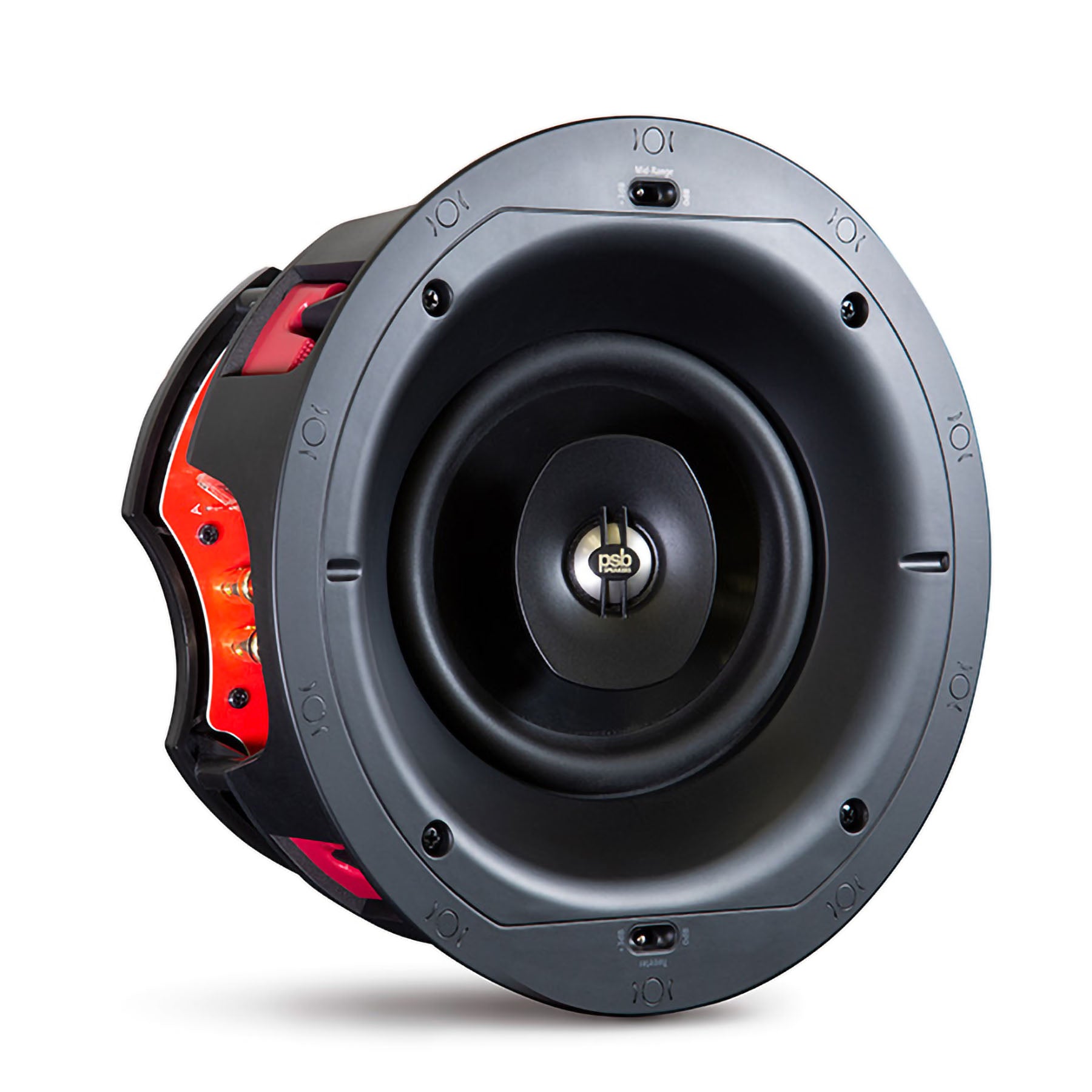

AIC 860 – 6″ Angled In-Ceiling Speaker
Crafted for Remarkable Home Theatre Audio
The PSB CS AIC 860 is more than an in-ceiling speaker; it's a sonic masterpiece designed for true audiophiles. Crafted for home theatre applications, this angled in-ceiling speaker delivers a three-dimensional soundstage and impactful bass that transforms your listening experience. Individual adjustment level switches allow for precisely tuned sound.
Fine-tuned sound
Achieve pure perfection with the CS AIC 860. Its 1-inch titanium tweeter features a Wave Guide and indexed adjustment, allowing precise control of the tweeter's acoustic axis. Additional acoustic adjustments for mid/woofer and tweeter levels enable room customization, delivering unparalleled clarity tailored to your preferences.
Improved Sound Localization
Enjoy captivating sound that feels like it's coming from the performance itself, all within the comfort of your home theatre. Designed for the discerning listener, this angled in-ceiling speaker creates a captivating three-dimensional soundstage. It minimizes sound refraction, ensuring audio originates from your chosen listening area, not the installation point. A premium 6.5-inch woofer with carbon-filled polypropylene provides superior sensitivity and bass extension, even at high volumes.
Impressive bass performance
Experience powerful and immersive bass with the CustomSound CS AIC 860. This angled in-ceiling speaker boasts impressive bass performance thanks to its premium 6.5-inch woofer with a carbon-filled polypropylene cone. Designed to provide deep, well-defined low frequencies, it delivers a cinematic experience with impactful and room-filling bass. Elevate your listening journey to new heights with the CS AIC 860, delivering an immersive soundscape that resonates deeply.
Near-invisible design
Like all PSB speakers, final voicing is performed by Founder and Chief Designer, Paul Barton, at Canada’s famed National Research Council. PSB’s research has discovered how listener preferences can be integrated into a wide range of speaker designs for many different applications, yet all featuring consistent sound quality that is natural and lifelike.
- PSB technology and expertise in an Angled In-Ceiling Speaker
- Pivoting Wave-guide Tweeter and Angled Woofer
- Frameless round and square grilles
- Open-back design with integrated back box available, as an option
- Individual adjustment level switches for Tweeter and Woofer
- Design and final voicing engineered by Paul Barton
Frequency Response
On Axis @ 0° ±3dB | 48-20,000Hz |
Sensitivity
Anechoic Chamber | 86dB |
Listening Room |
88dB |
Impedance
Nominal | 6 Ohms |
Minimum | 4 Ohms |
Input Power
Recommended | 10 - 100 Watts |
Acoustic Design
Tweeter (Nominal) |
1” (25mm) Titanium Dome with Ferrofluid |
Woofer (Nominal) |
6½” (165mm) Fiber filled, Injection Molded Basket Black Polypropylene Cone Rubber Surround |
EQ Adjustment |
Tweeter & Woofer Switch |
Design Type |
Open Back |
Dimensions / Weights / Finish
Size (W x H x D) |
Grille Dimensions (Frameless Design) - 10 3/4” (272mm) |
Weight | Net - 5.15 lb (2.3 kg)/each |
Grille Finish | White |
Notes |
* Non-metric measurements are approximate. All specifications are subject to change without notice. |
FINISH//CONSTRUCTION
Finish Frame |
ABS |
Back Box | Optional Integrated Acoustic Backbox |
Grille Material | Steel; Perforated with white scrim |
Type |
Frameless |
Connectors |
Gold-plated, Spring Loaded, 12AWG |
