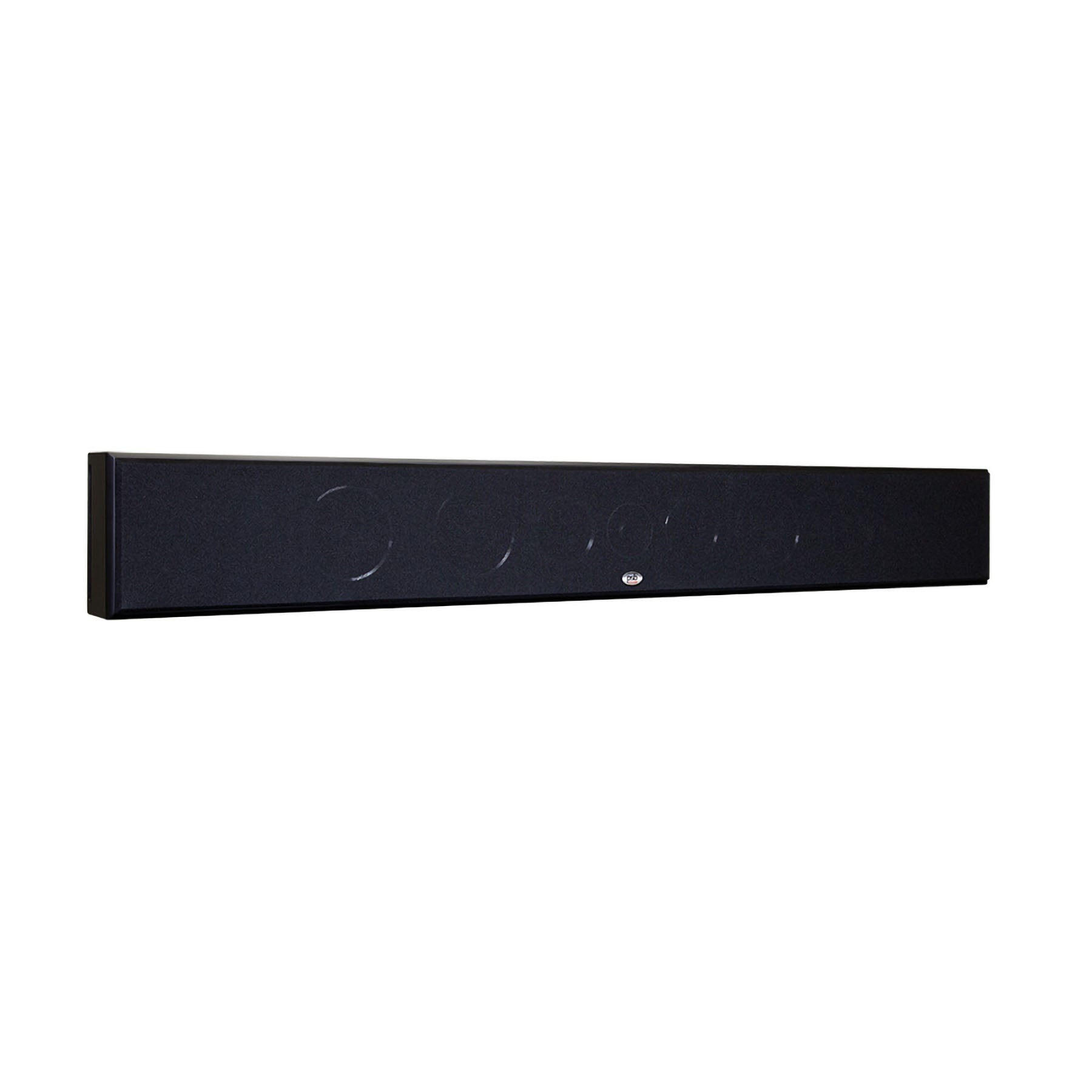

PSB PWM3 - On-Wall Speaker
PWM3 - On-Wall Speaker
Dynamic sound beyond your expectations
Experience uncompromised luxury and superior audio with the PSB PWM3, the pinnacle of on-wall speaker excellence. Custom-engineered with seven drivers, including a 1" titanium tweeter and dual 3" midrange drivers, it delivers exceptional dynamics and harmonious precision. The PWM3 is the perfect fusion of style and performance.
Powerhouse performance

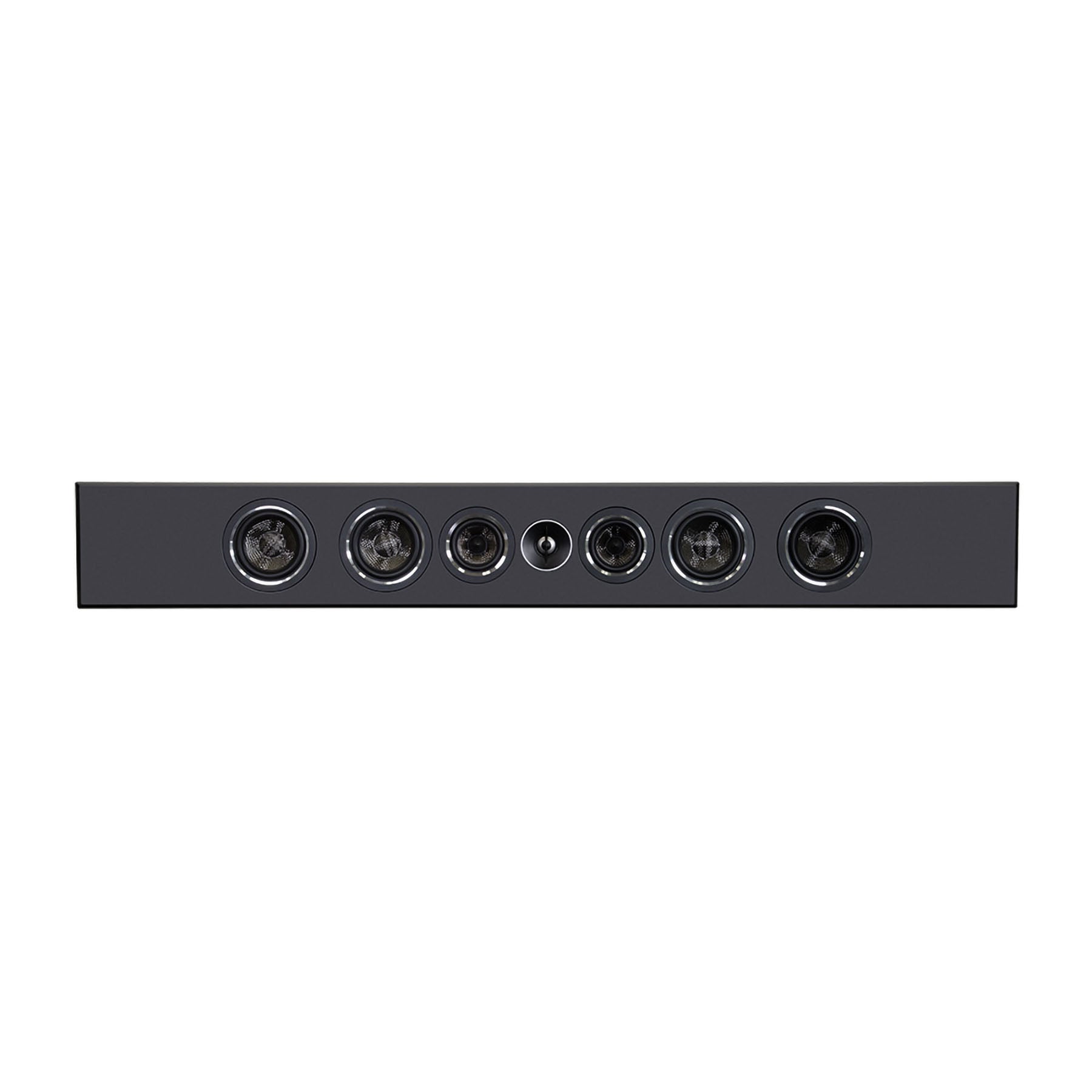

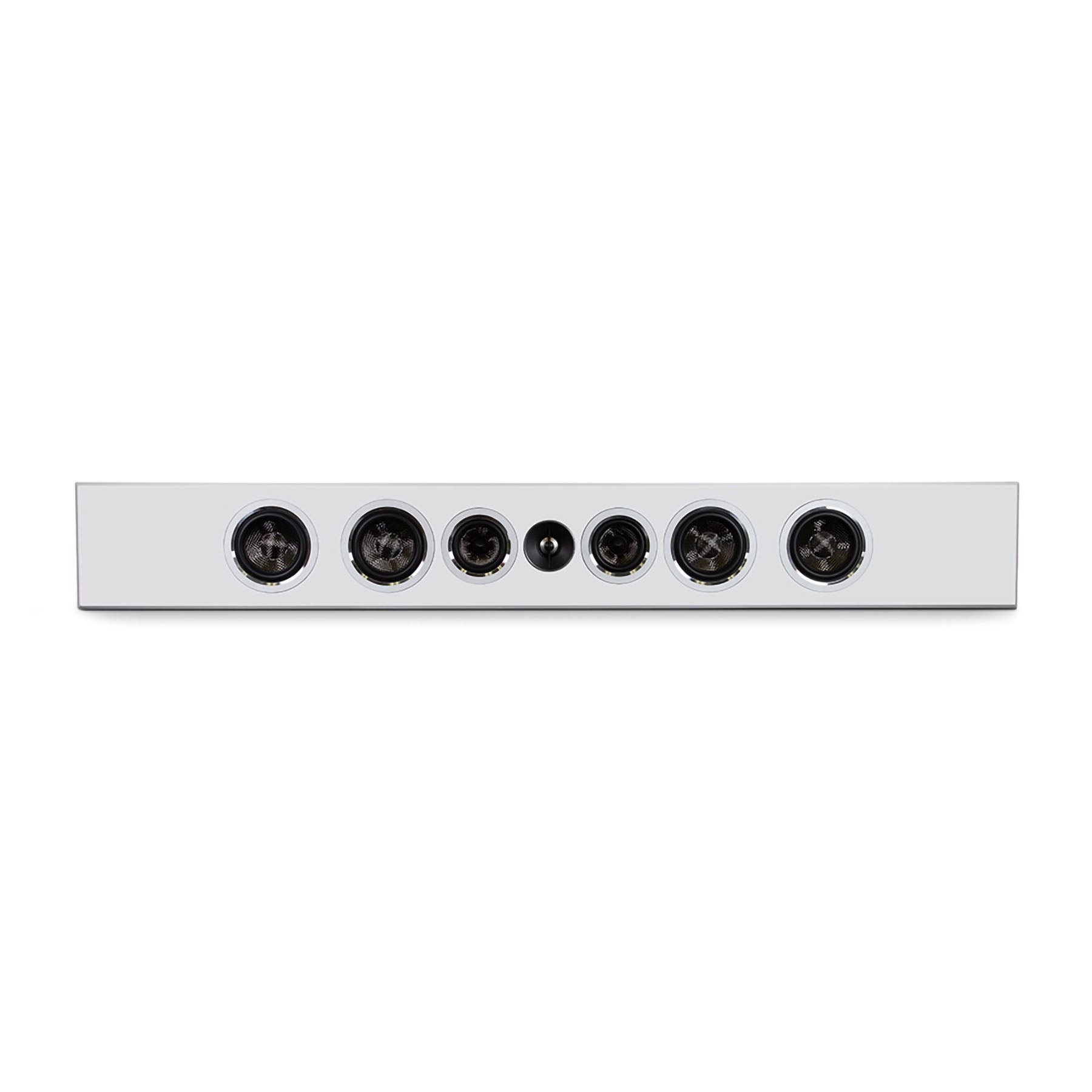

The PSB PWM3 redefines luxury in on-wall speakers with its seven-driver configuration, including a 1" titanium tweeter, dual 3" midrange drivers, and four active 4" woofers. This powerhouse boasts extended bass, exceptional power handling, and impressive output. Whether you configure it as an L/R pair, an LCR trio, or a full 5- or 7-channel wall-mounted surround sound system, the PWM3 delivers an uncompromised listening experience for discerning audiophiles.
Flagship craftsmanship
The PWM3 earns its rightful place at the top of the PWM series . Meticulously crafted with newly developed drivers and a unique dual-ported cabinet, the PWM3 delivers exceptional detail, extended bass, and low distortion. With seven drivers, this powerful speaker can faithfully reproduce a wide range of sounds, soft to loud, with impressive accuracy. Its 1" titanium dome tweeter ensures high sensitivity and seamless sound transitions.
An integral part of your home theatre experience
Designed for versatility, the PWM3 can be mounted vertically or horizontally, making it ideal for left, center, right channel, or surround applications. Its sound remains consistently remarkable, regardless of where you’re listening. The included wall mount bracket simplifies installation, ensuring a seamless setup tailored to your space. Enjoy luxury audio with flexible placement options that adapt to your needs.
Exquisite design

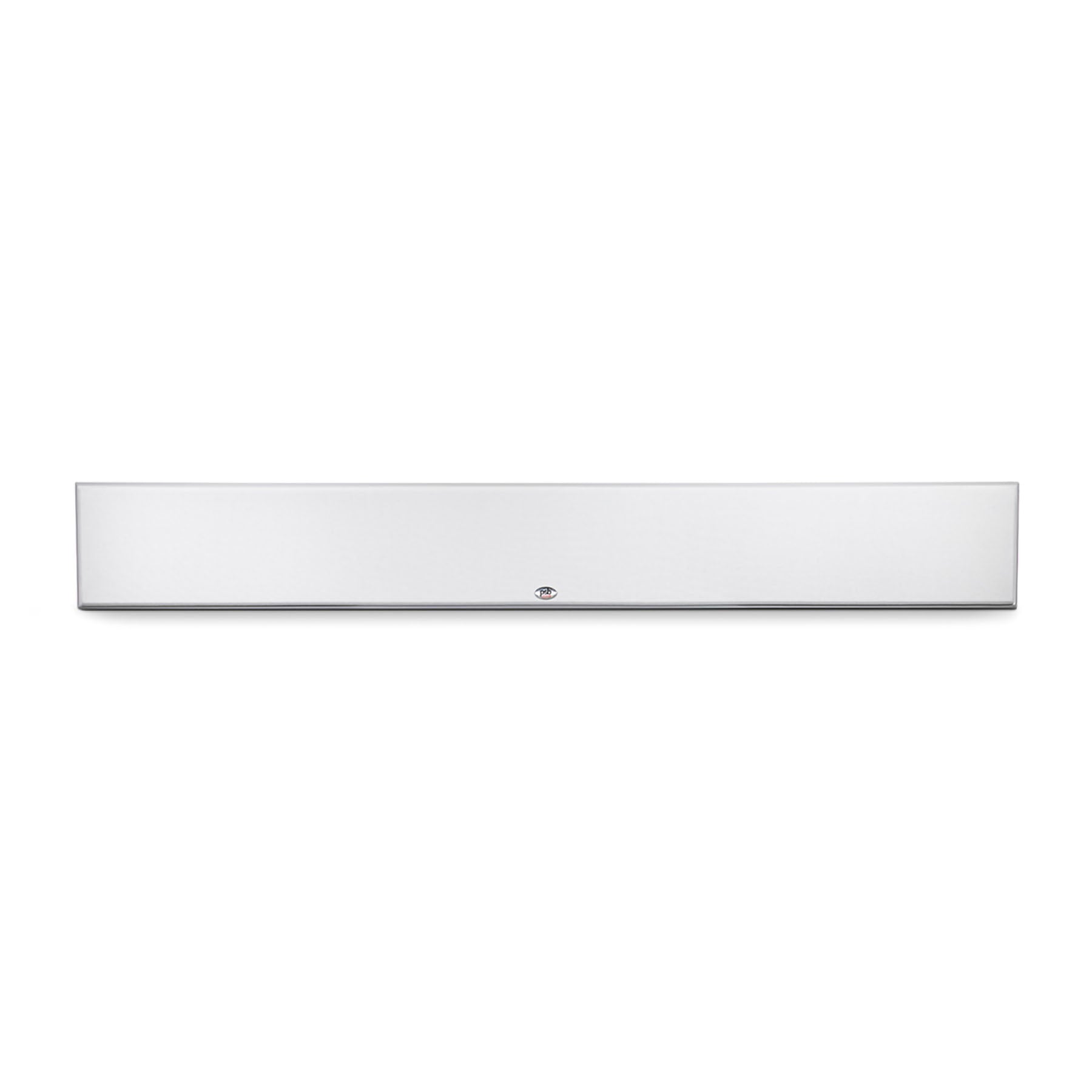

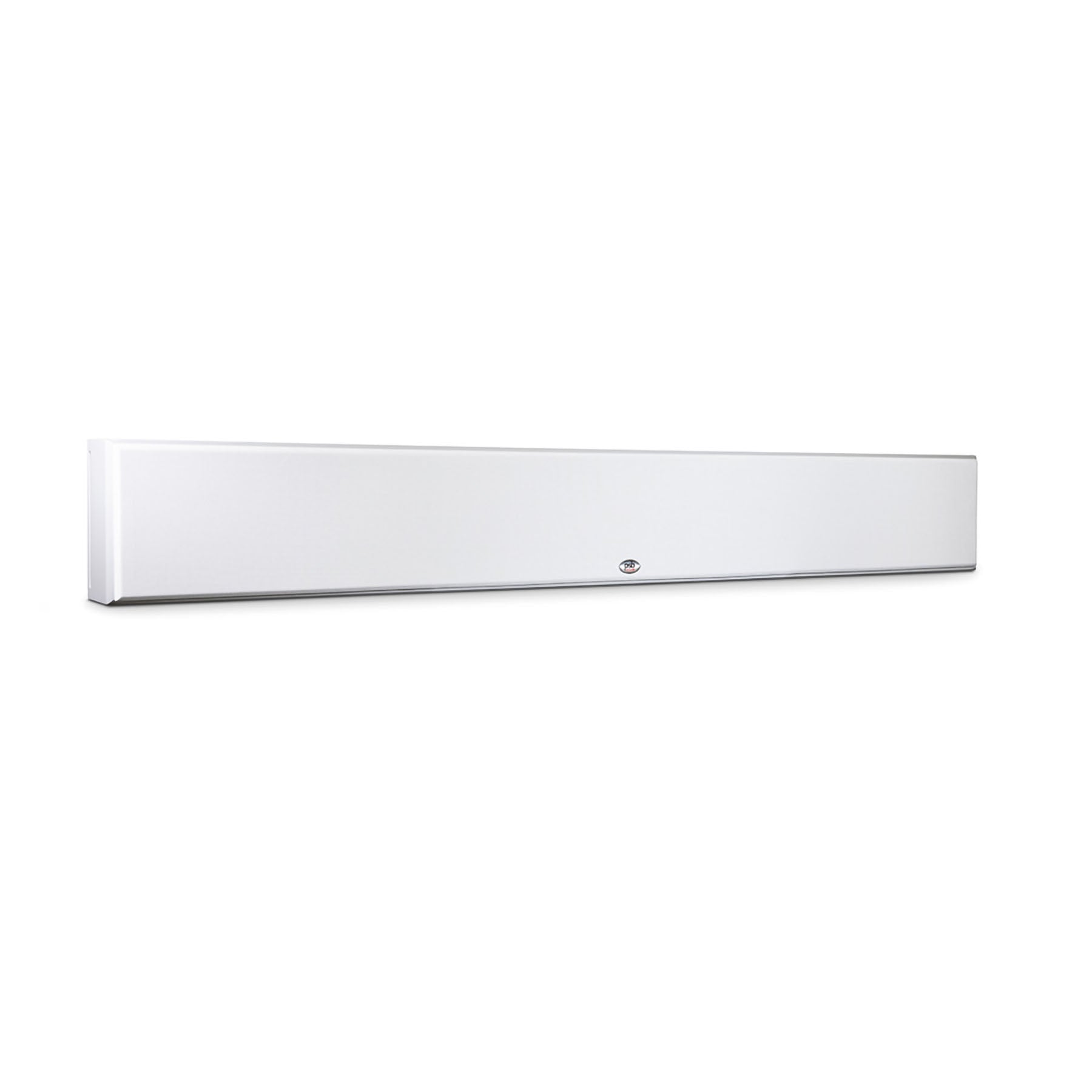

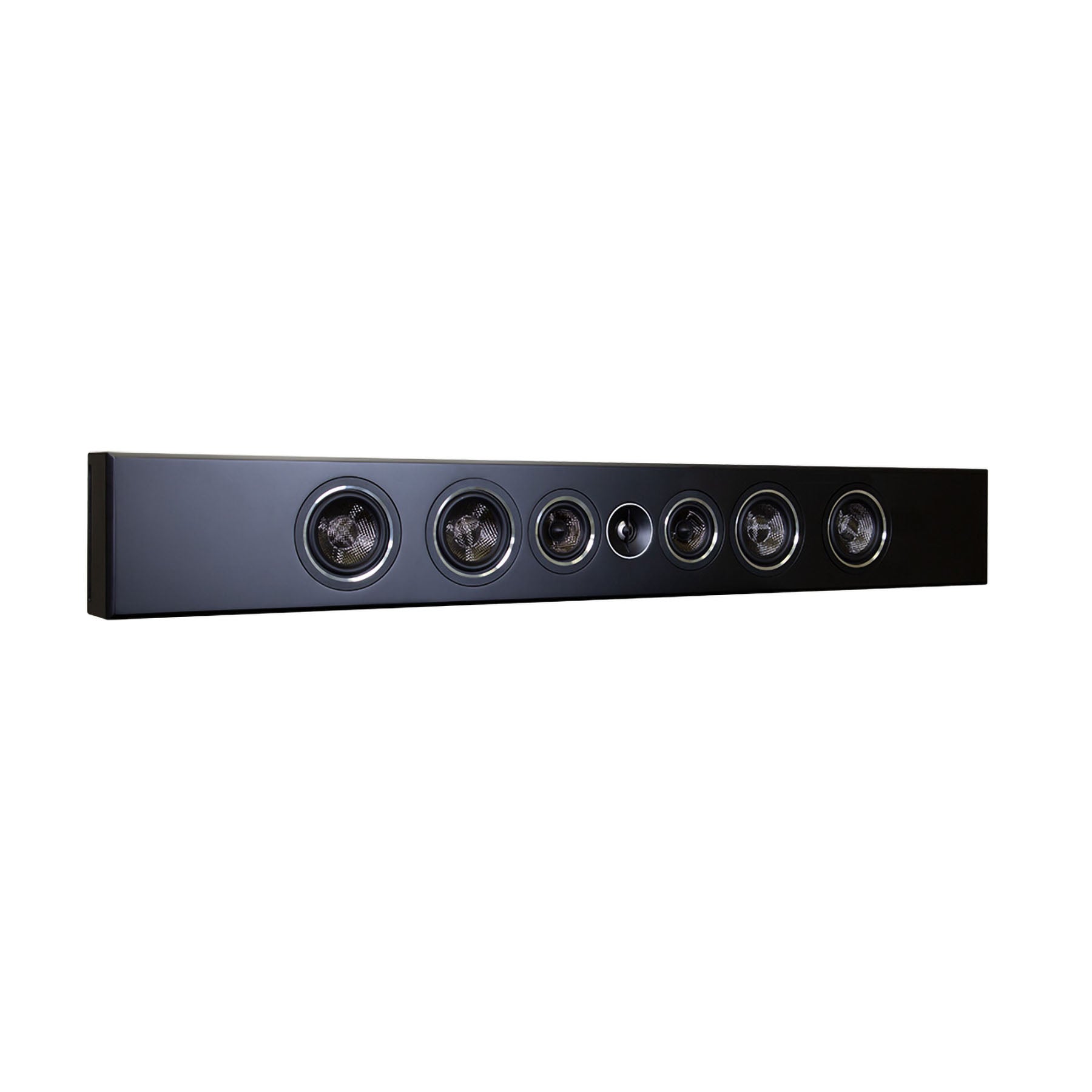

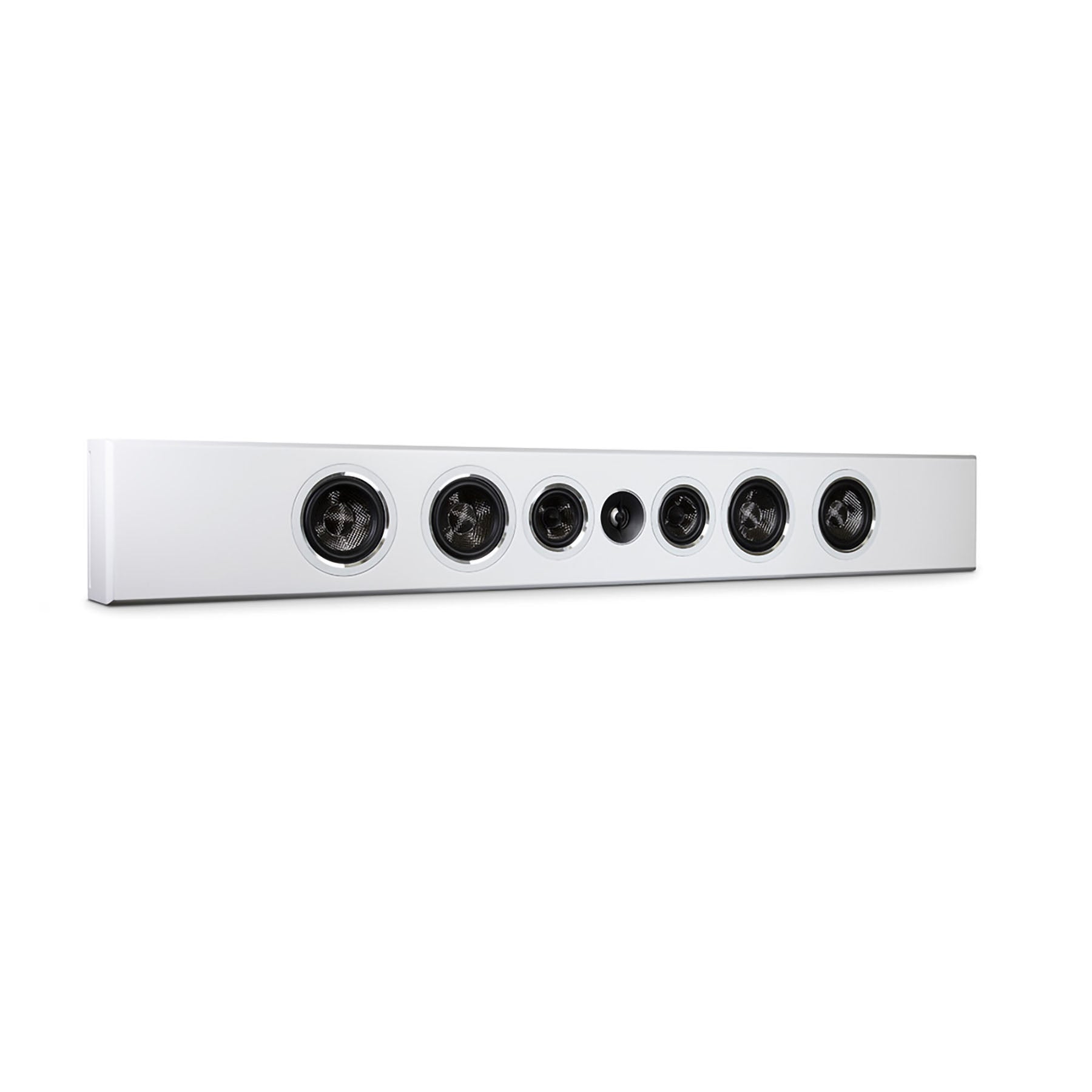

The PWM3's slim profile graces your interior with understated elegance. Instead of a glossy finish, the PWM3 is available in a subdued white or black finish, allowing it to blend into your decor. Its clean lines and minimal visual presence complement any design aesthetic, pleasing interior designers, architects, and custom home builders. Revel in the highest levels of performance and aesthetics, combining legendary PSB sound with luxury.
Frequency Response
On Axis @ 0° ±3dB | 60 - 35,000Hz |
LF Cutoff -10dB |
35Hz |
Sensitivity
Anechoic Chamber | 86dB |
Listening Room | 89dB |
Impedance
Nominal | 8 Ohms |
Minimum | 6 Ohms |
Acoustic Design
Tweeter (Nominal) |
1" (25mm) Titanium Dome with Ferrofluid |
Midrange (Nominal) |
2x 3" (75mm) Carbon Fibre Cone Rubber Surround Cast Basket |
Woofer (Nominal) |
4x 4" (100mm) Carbon Fibre Cone Rubber Surround Cast Basket |
Design Type | Bass Reflex |
Construction
Cabinet |
MDF |
Grille Face |
Acoustic Transparent Cloth |
Frame |
MDF |
Size (W x H x D)
Net W |
48” (1219mm) |
Net H |
6.5” (165mm) |
Net D |
3.38” (85mm) |
Depth With Grill |
3.5” (90mm) |
Finish
Available Finishes |
Satin Black, Satin White |
Grille Type |
Magnetic, Cloth Grille |
Wall Bracket
Mount |
Wall Mount included for Vertical and Horizontal Mounting |
