PSB
W-LCR2 – In-Wall Speaker
Enclosed Three-Way In-Wall LCR Speaker

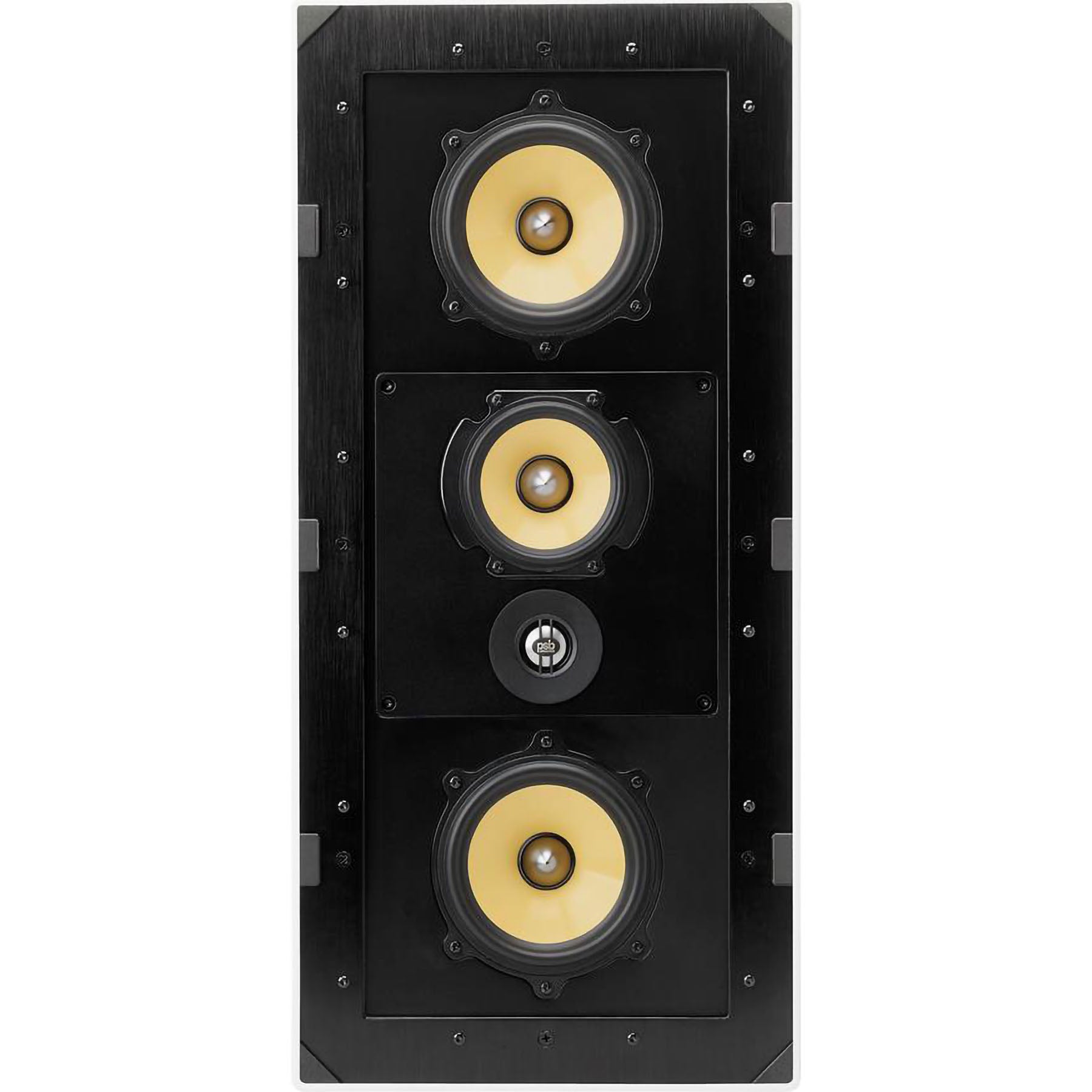

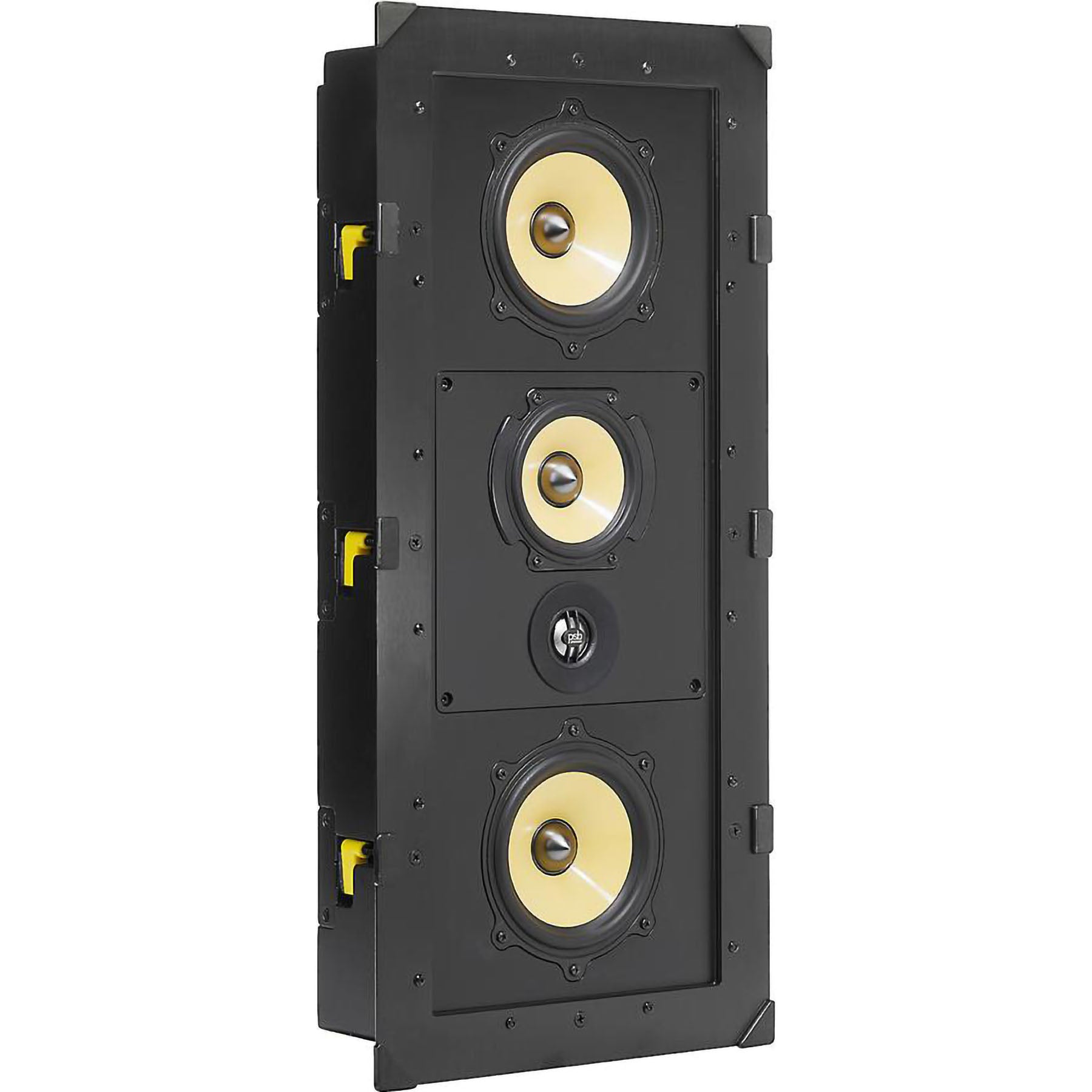

A true hifi in-wall speaker, the W-LCR2 uses two 5¼” (133mm) woofers along with a 4″ (102mm) midrange driver that flawlessly transitions to a 1″ (25mm) titanium dome tweeter. With a nearly invisible presence, the W-LCR2 is faultless or either a stereo or home theater application, a perfect example of how PSB has redefined how music and movies can sound in the home.
- Two 5¼” (133mm) clay/ceramic reinforced polypropylene cone woofers
- 4″ (102mm) polypropylene cone midrange driver
- 1″ (25mm) titanium done, ferrofluid-cooled tweeter
Adapted for the home

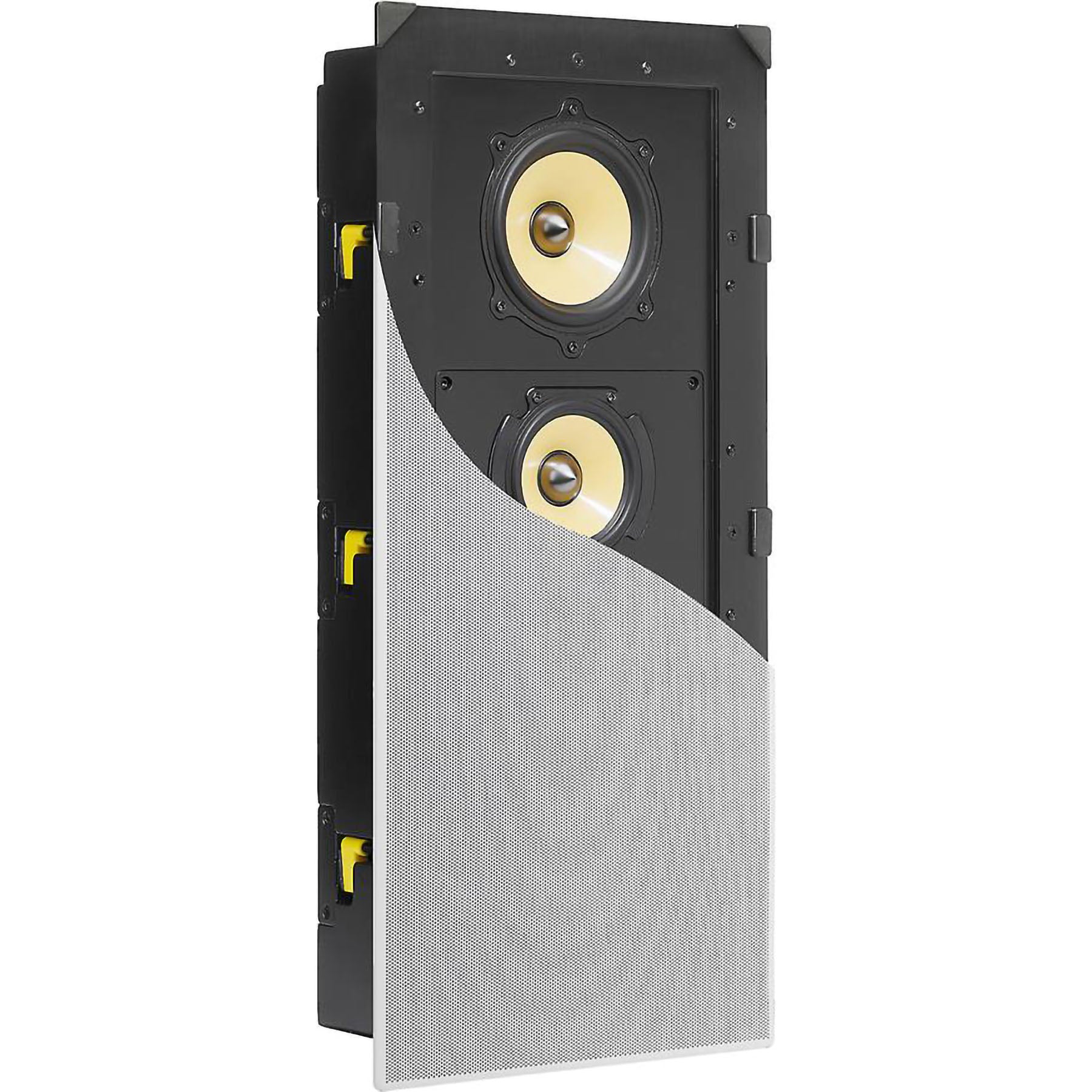

The W-LCR2 in-wall speaker is a three-way design employing two 5¼” (133mm) woofers along with a 4″ (102mm) midrange driver and the same 1″ (25mm) titanium dome tweeter as found in the Imagine Series. The midrange and tweeter are mounted in a rotatable sub-assembly to allow for uniform dispersion whether the speaker is oriented vertically or horizontally.
Amazingly musical
The W-LCR2 sounds fantastic as a centre channel speaker; its highly developed midrange driver provides excellent speech intelligibility. Used as part of a two-channel system, LCR front-channel array, or a full surround system, the W-LCR2 is the perfect speaker where both sound quality and design are of the utmost importance. The W-LCR2 is also amazingly musical and can easily substitute for a pair of floorstanding speakers in a dedicated listening room.
Performance without compromise
Featuring a carefully engineered enclosure that ensures its acoustic integrity in any installation, the W-LCR2 is a sound investment for your home. If you’re looking for the controlled performance of a three-way tower speaker with the invisibility of an in-wall, the CustomSound W-LCR2 gives you both with zero compromise.
- Two 5¼” (133mm) clay/ceramic reinforced polypropylene cone woofers
- 4″ (102mm) polypropylene cone midrange driver
- 1″ (25mm) titanium done, ferrofluid-cooled tweeter
- Frequency response: 65-23,000Hz (±3dB)

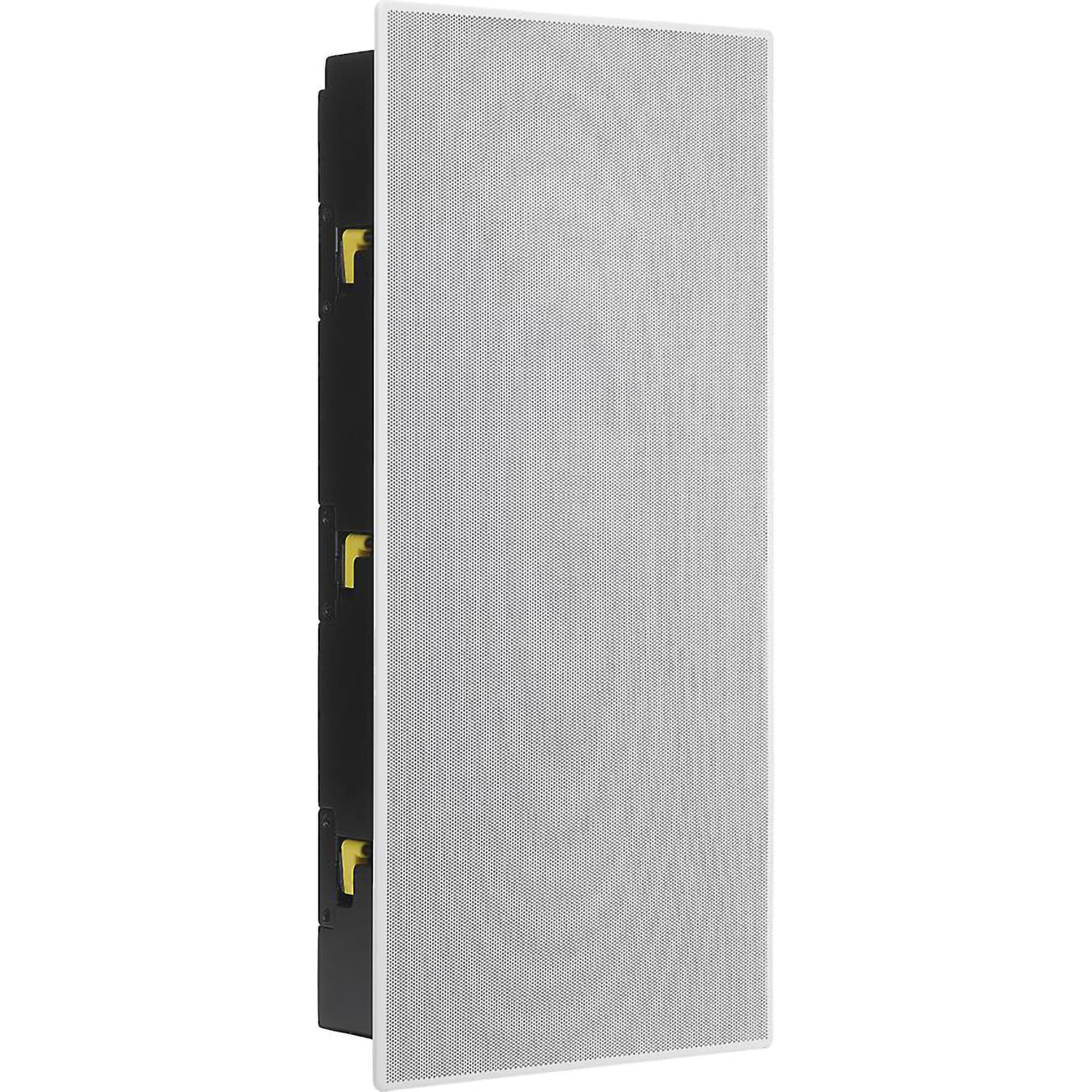

- Includes magnetic “frameless” grille with fabric scrim
| Frequency Response | |
|---|---|
| On Axis @ 0°±3dB | 65-23,000Hz |
| On Axis @ 0°±1 1/2dB | 70-20,000Hz |
| LF Cutoff -10dB | 50Hz |
| Sensitivity | |
| Anechoic Chamber | 87dB |
| Listening Room | 89dB |
| Impedance | |
| Nominal | 6 Ohms |
| Minimum | 4 Ohms |
| Input Power | |
| Recommended | 20 – 200 Watts |
| Program | 200 Watts |
| Acoustic Design | |
| Tweeter (Nominal) | 1” (25mm) Titanium Dome with Ferrofluid |
| Midrange (Nominal) | 4” (102mm) Clay/Ceramic reinforced Polypropylene Cone Rubber Surround |
| Woofer (Nominal) | 2 x 5 1/4” (133mm) Clay/Ceramic reinforced Polypropylene Cone Rubber Surround |
| Crossover | 370Hz, 2200Hz LR4 |
| Internal Volume | 0.28 cu ft (6.46L) |
| Design Type | Sealed |
| Dimensions / Weights / Finish | |
| Size (W x H x D) | Cutout Dimension – 10 x 23” * (253 x 585mm), Mounting Depth – 3 3/4” * (95mm), Grille Dimensions – 11 1/2 x 24 5/8 x 3/8” * (292 x 624 x 7mm) |
| Weight | Net – 17.6lb (8.8kg)/each, Shipping – 24lb (10.9kg)/pair |
| Finish | White |
