Revel
C540
Specialty In-Ceiling Loudspeaker
Presenting an entirely new range of in-ceiling loudspeakers that combine Revel’s best-in-class acoustics with a patented tool-less installation mechanism and a sleek new look that integrates easily into any décor. All models feature Revel’s low-distortion motor structure designs with aluminum tweeters and Micro Ceramic Composite (MCC) cone woofers for true audiophilegrade performance and easy timbre-matching to Revel floorstanding, monitor and center channel loudspeakers.

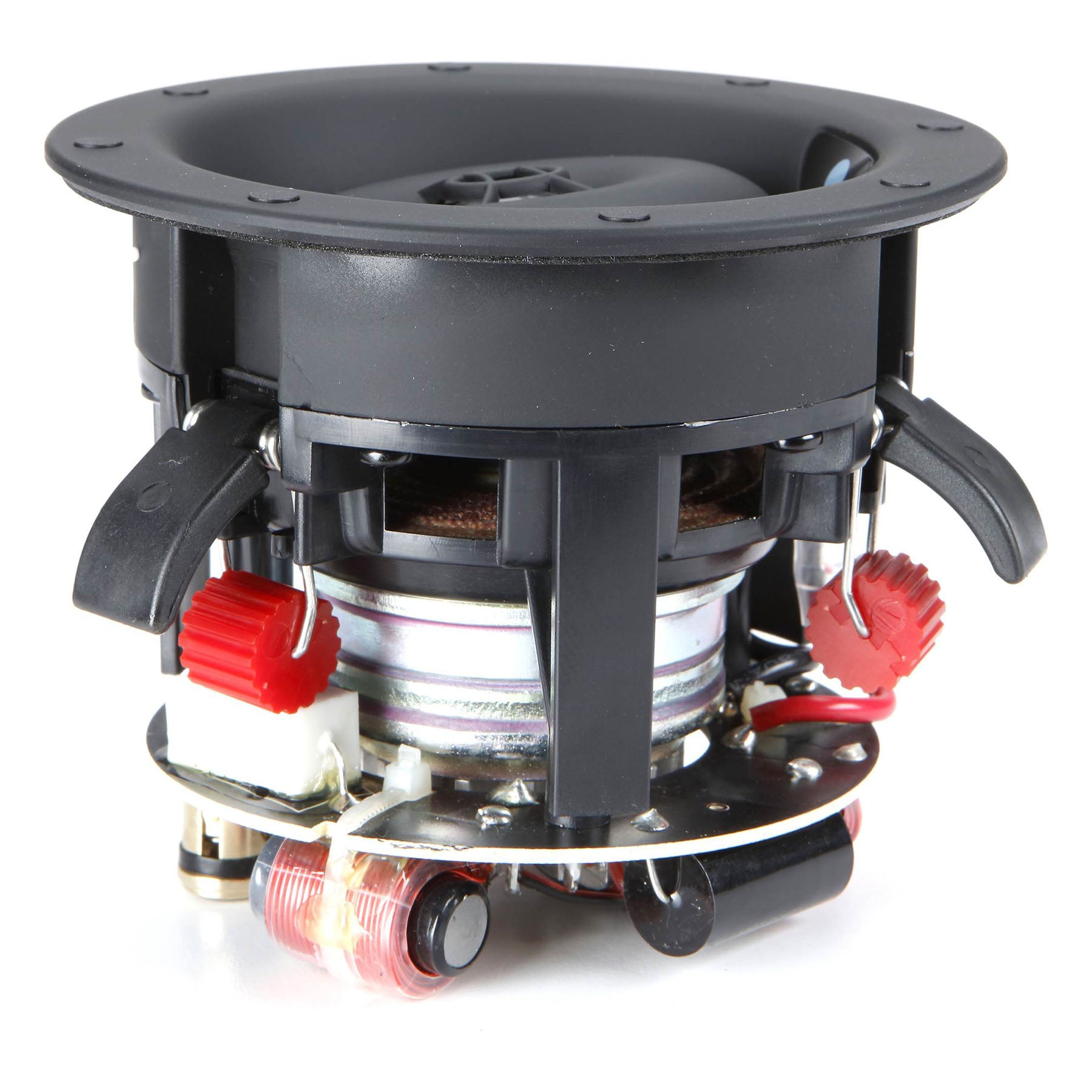

Installation is quick and easy with a patented installation mechanism that doesn’t require any tools for clamping to the drywall and accommodates a wide variety of wall thicknesses and construction types. For the finishing touch, frameless grilles attach magnetically giving the loudspeaker an elegant, yet unobtrusive look. All ten in-ceiling loudspeaker models include both round and square grilles to provide a perfect match for existing ceiling fixtures and lighting. With this new in-ceiling loudspeaker product line, there is a loudspeaker to suit any application from background audio to high-end multichannel home theater installations proving once again that Revel builds the World’s Finest Loudspeakers.
C540 Highlights
-

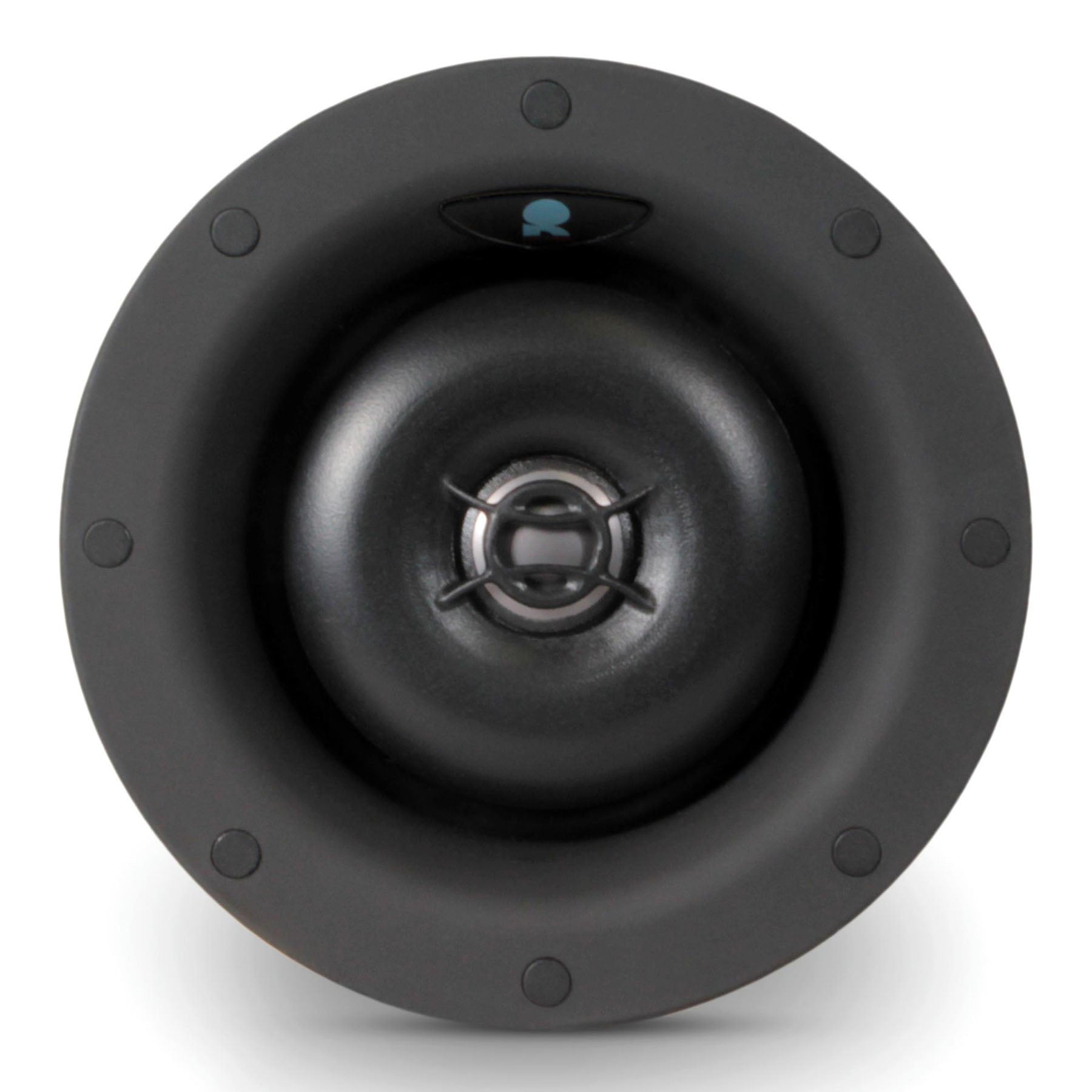

4” Micro-Ceramic Composite (MCC) Cone, Cast-aluminum Frame Woofer
-
1” AluminumDome Swiveling Tweeter with Waveguide
-
3-position HF Level Control
-

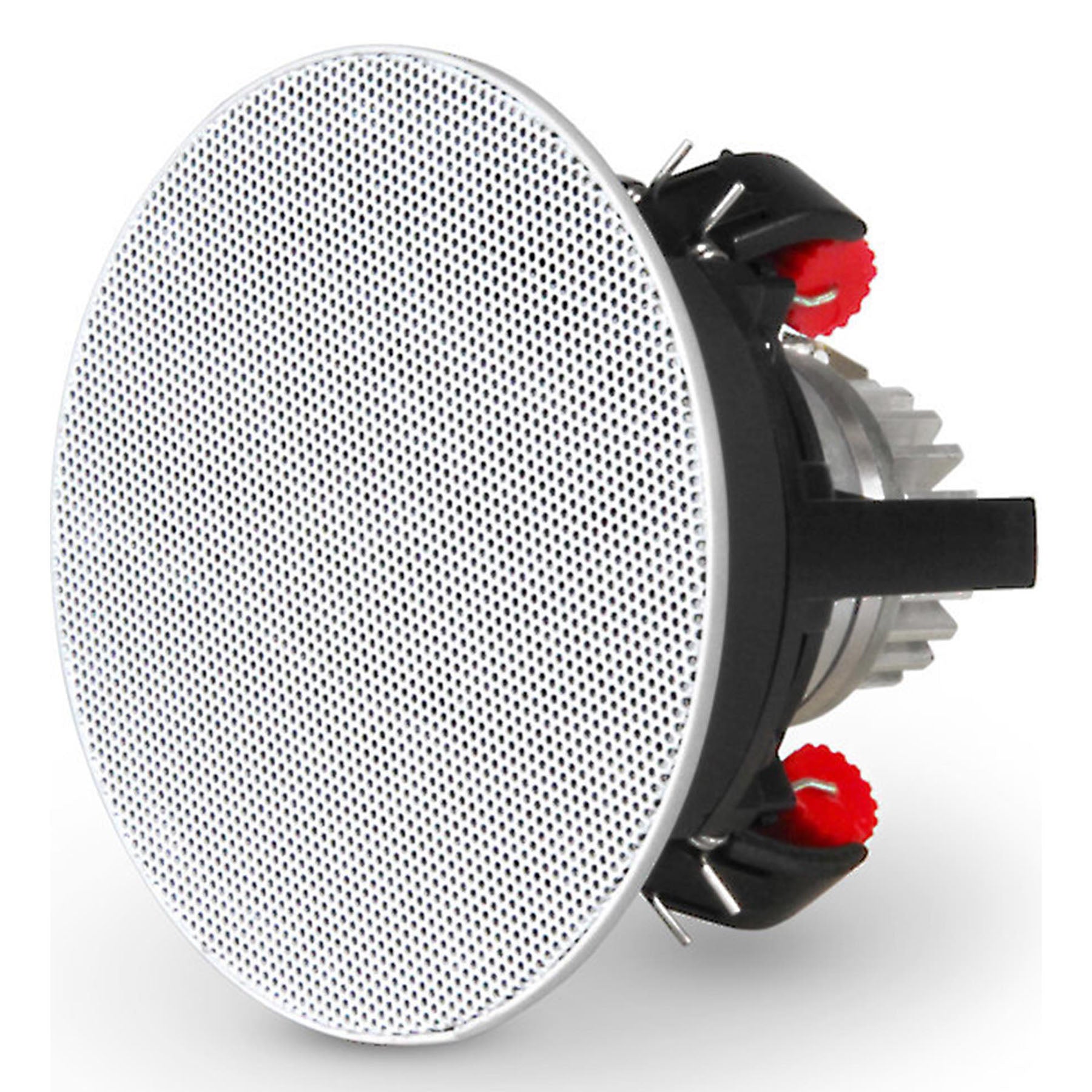

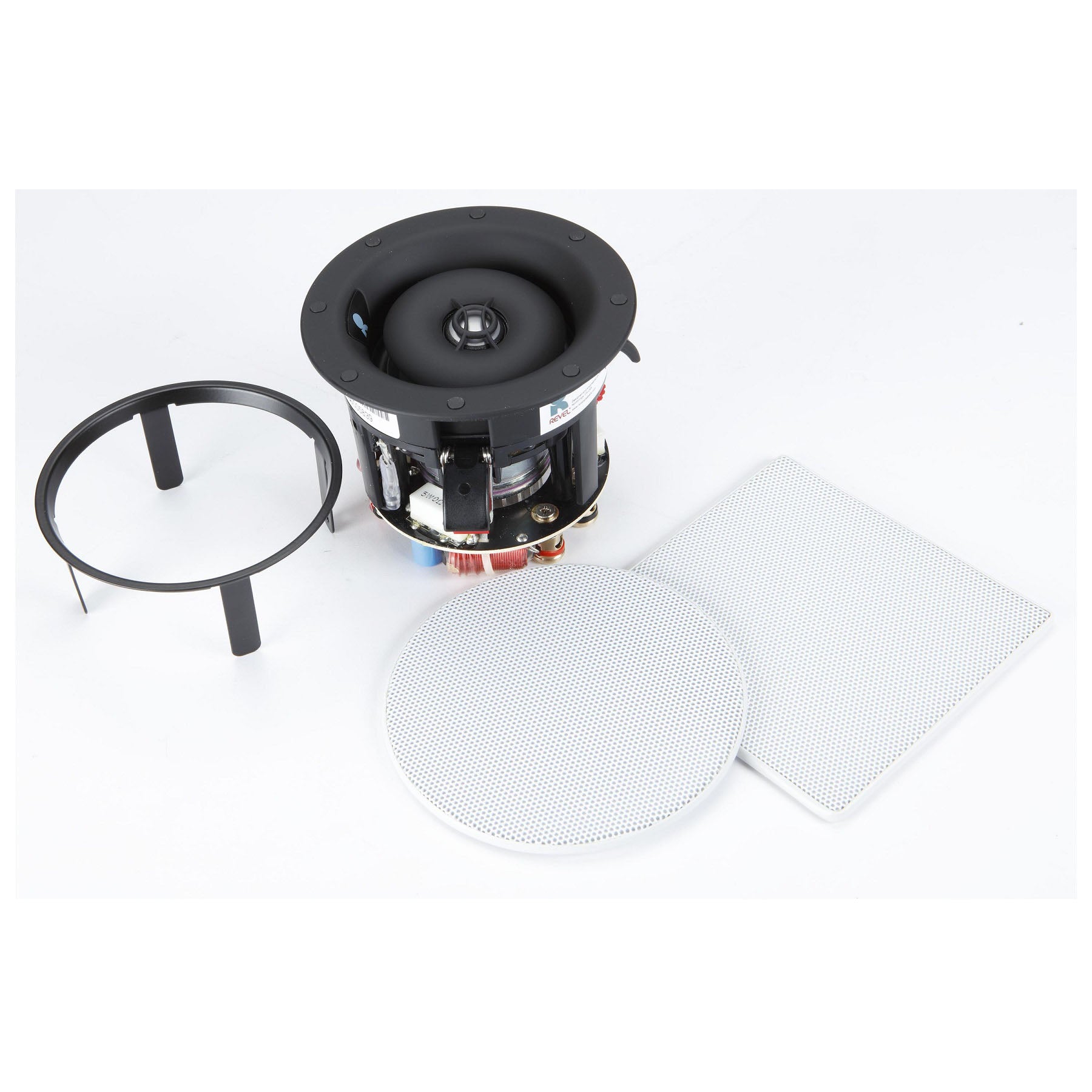

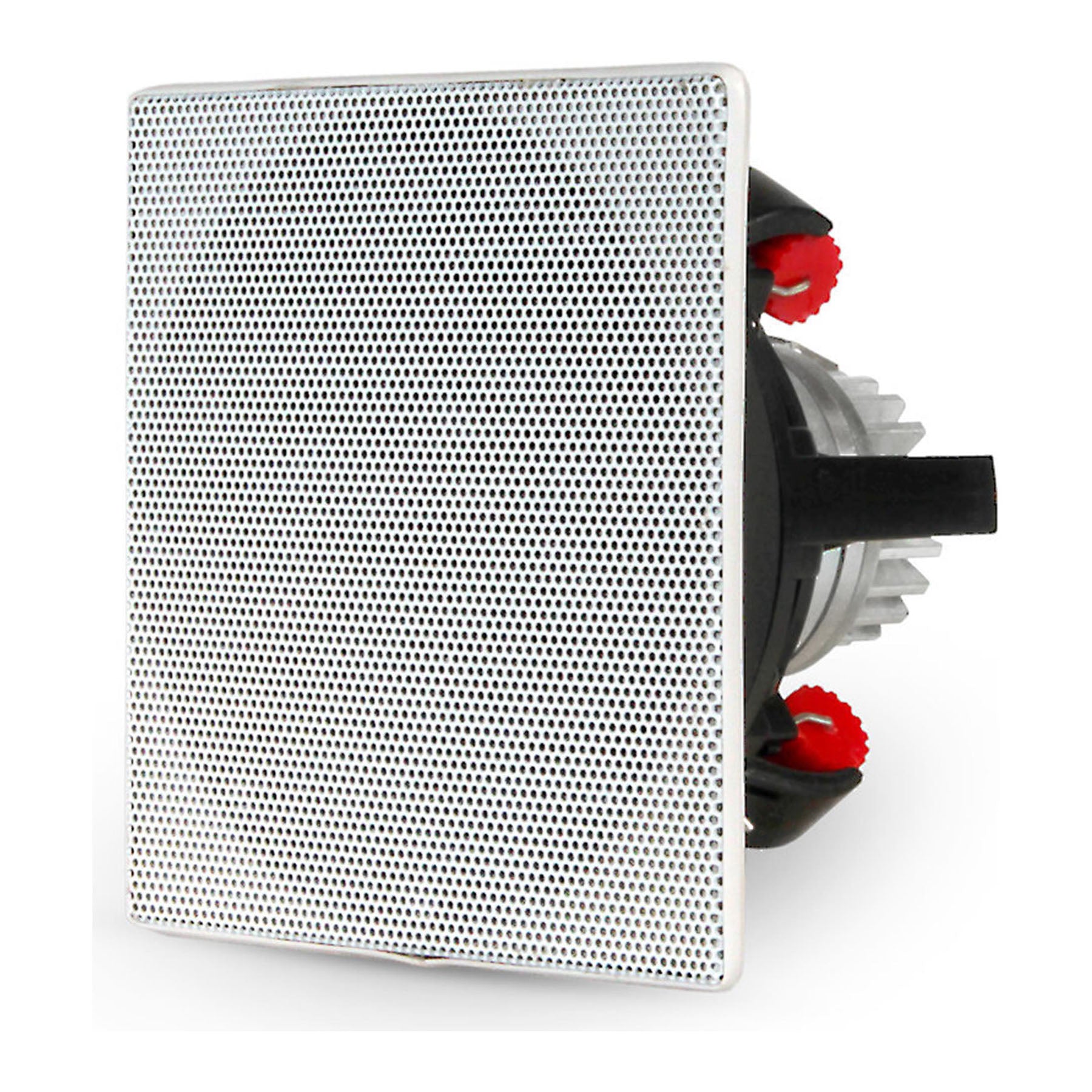

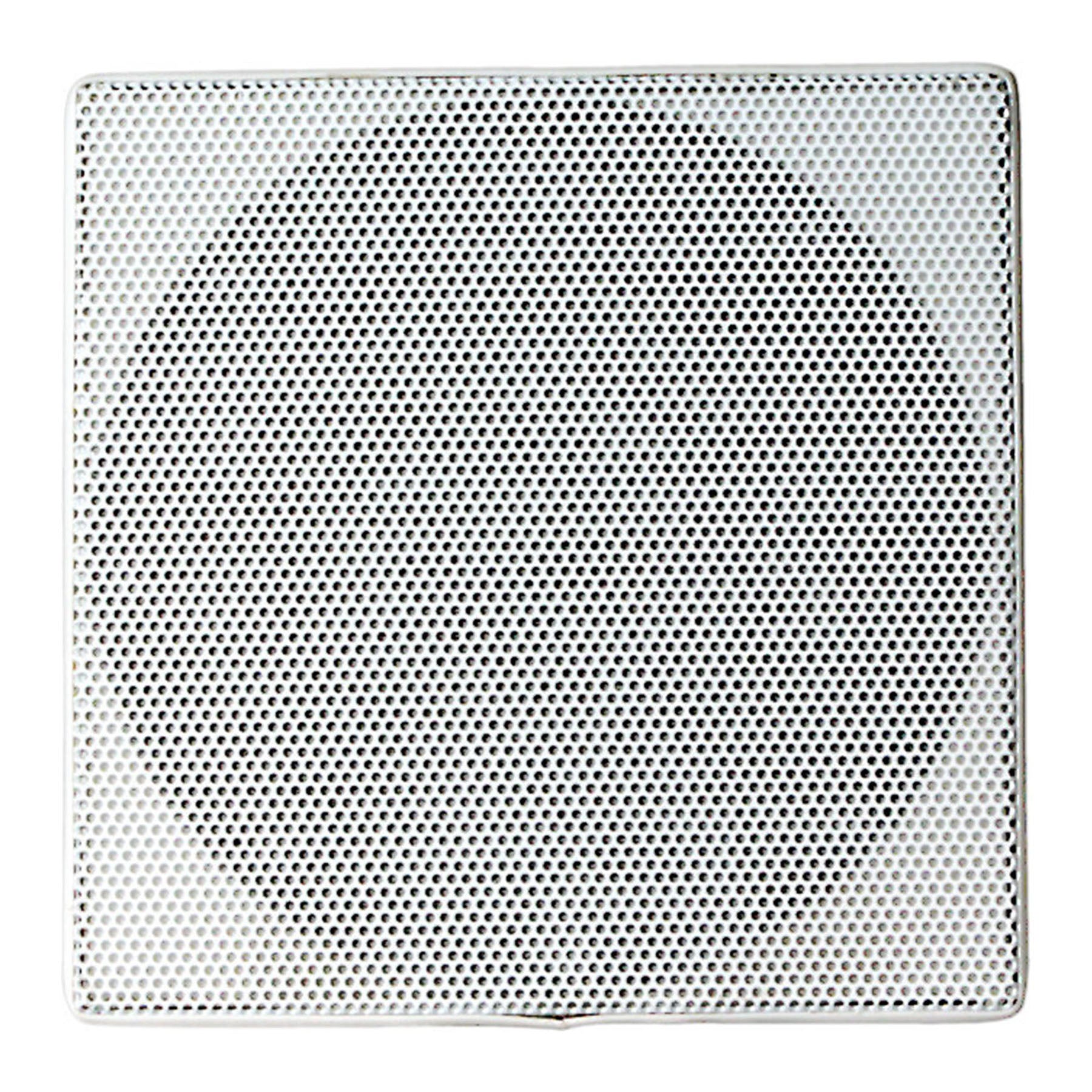

Includes Both Round and Square
-
Zero-bezel Magnetic Grilles
-
Sleek look integrates easily into any decor
| Height | Cutout dimensions (dia.) 3.5" (8.9 cm) |
|---|---|
| Depth | 3.3" (8.4 cm) |
| Weight | 1.5 lb (0.7 kg) / Shipping weight 1.9 lb (0.9 kg) |
| Included Accessories | Includes both round and square zero-bezel magnetic grilles • Round grille finished dimension (dia.) 4.4" (11.2 cm) • Square grille finished dimensions (h x w) 4.4" x 4.4" (11.2 cm x 11.2 cm) |
| Features | 4" Micro-Ceramic Composite (MCC) Cone, Cast-Aluminum |
| Mounting | RollerLock tool-free installation mechanism • Compatible with wall material thickness range 0.5" – 0.9" (1.3 cm – 2.3 cm) |
| Recommended Amplifier Power | 10 - 80 Watts RMS |
