C563

6 ½" In-Ceiling Loudspeaker

Revel in-ceiling loudspeakers draw upon the same research, resources, and unique perspectives that put all our loudspeakers in a class by themselves. Each model offers a standard-setting low sonic coloration and freedom from distortion over a wide dynamic range.

C563 Highlights

  • Long-throw woofers with cast frames and rubber surrounds provide high output with low distortion

  • 1-inch (25mm) angle-adjustable, metal-dome tweeter with an integrated waveguide provides optimized response both on and off axis

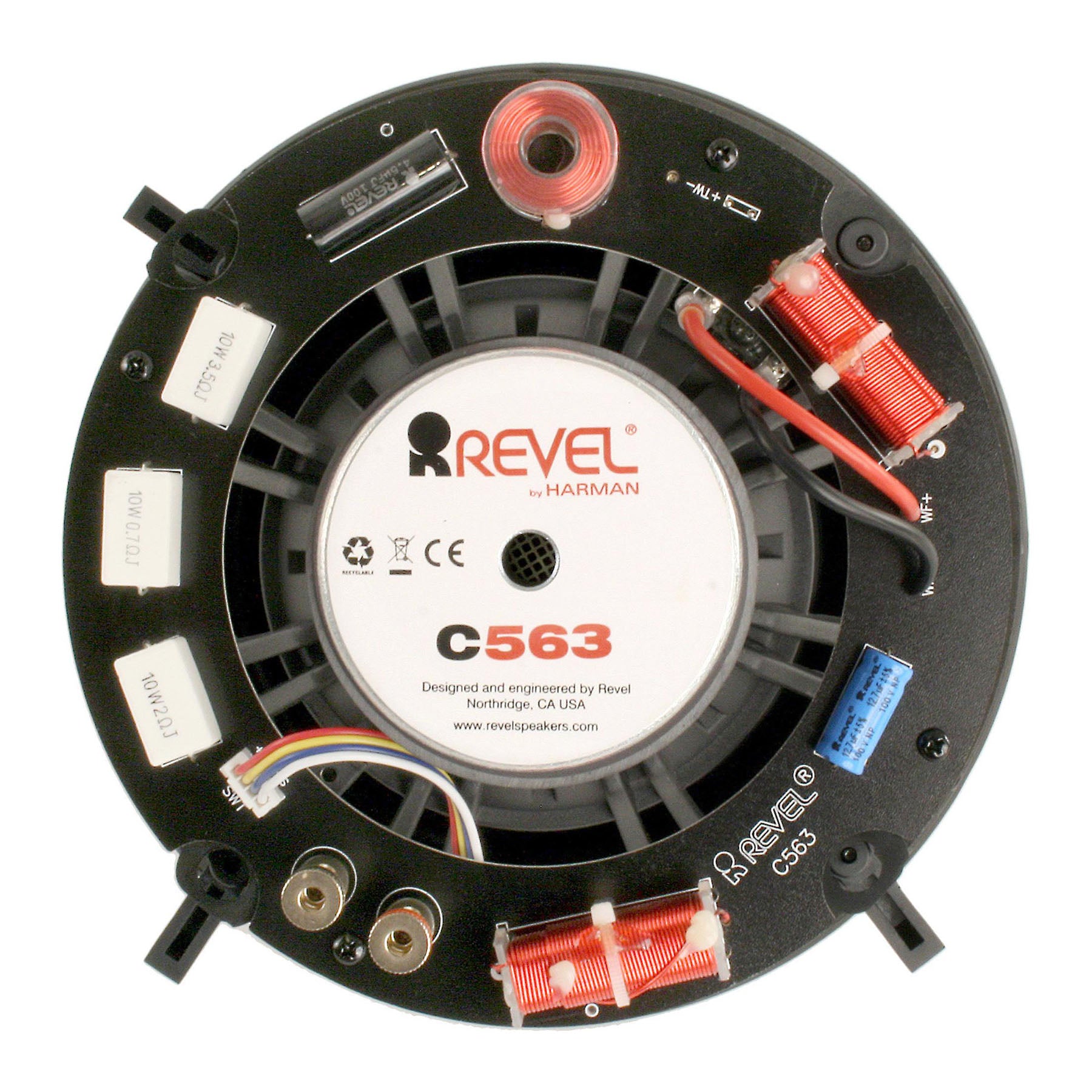

  • High-order crossover network with premium-quality components delivers extraordinarily accurate timbre reproduction

  • Boundary compensation switch (C783/C763) lets you adjust the speaker to maintain tonal accuracy when the speaker is placed near a wall

  • Three-position tweeter level control (C783/C763/C583/C563) lets you adjust for optimum response in a variety of acoustical environments, or for using the speakers without grilles

Features & Specifications

Height Cutout dimensions (dia.) 8" (20.3 cm) Square grille finished Height 9.1" (23.1 cm)
Width Square grille finished Width 9.1" (23.1 cm)
Depth 4.9" (12.5 cm)
Weight 2 lb (0.9 kg) / Shipping weight 2.7 lb (1.2 kg)

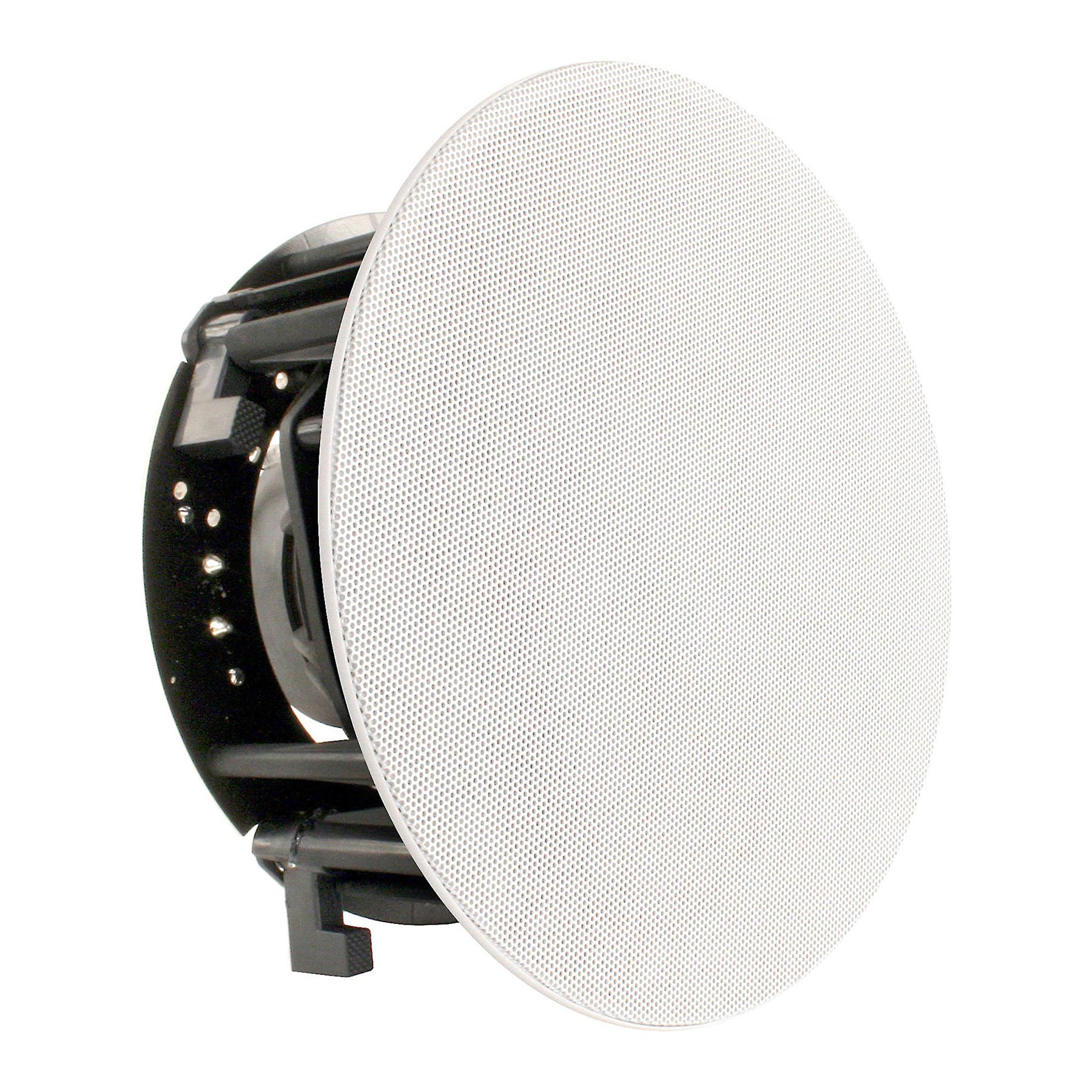

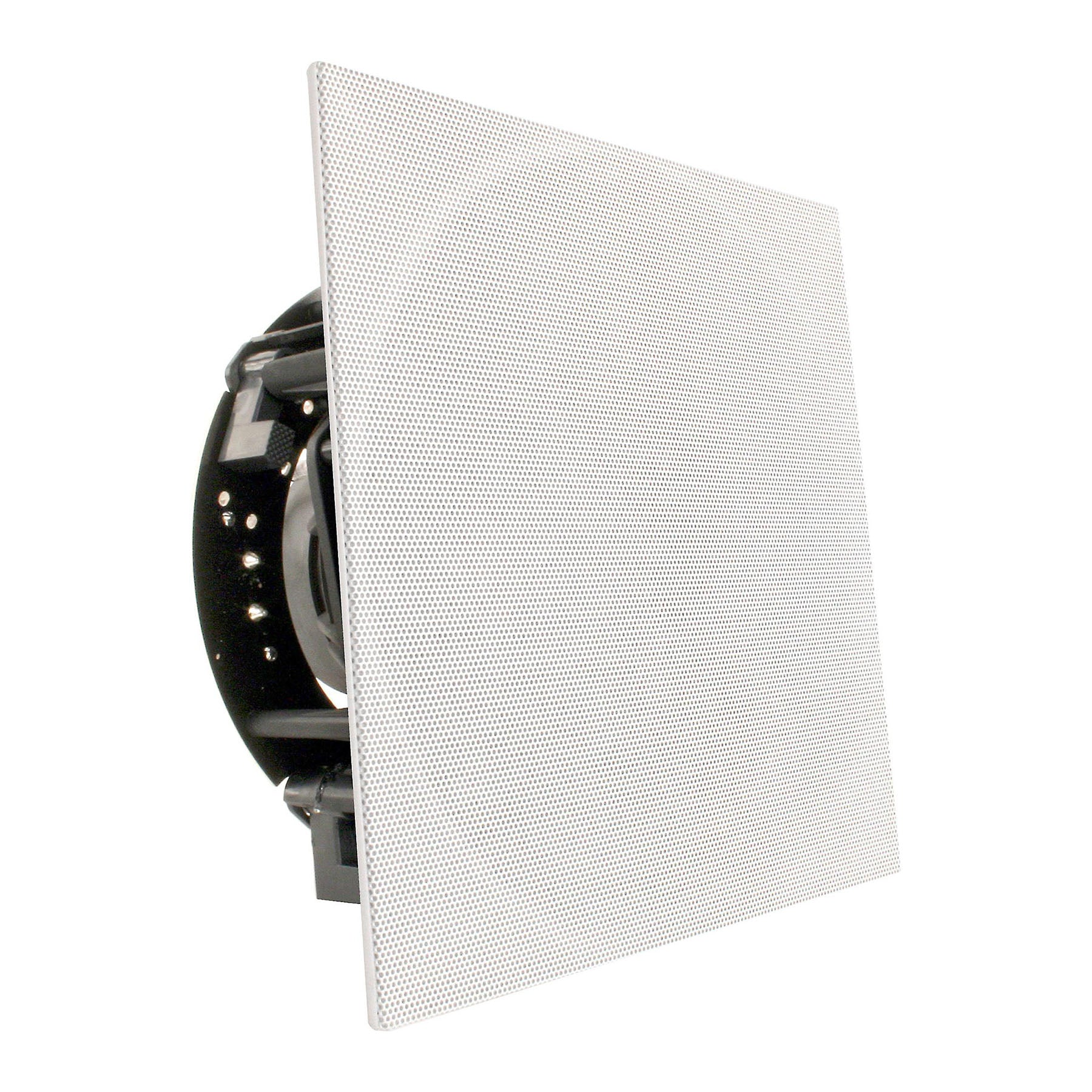

Features Includes both round and square zero-bezel magnetic grilles • Round grille finished dimension (dia.) 9.1" (23.1 cm)
High Frequency Driver Components 1" aluminum dome swiveling tweeter with waveguide
Low Frequency Extension High frequency Extension 3-position HF level control
Low Frequency Driver Components 6 ½" Micro-Ceramic Composite (MCC) Cone, Cast-Aluminum Frame Woofer
Mounting C-2 fastening mechanism • Compatible with wall material thickness range 0.5" – 2.0" (1.3 cm – 5.0 cm)
Recommended Amplifier Power 10 - 130 Watts RMS
