C563DT

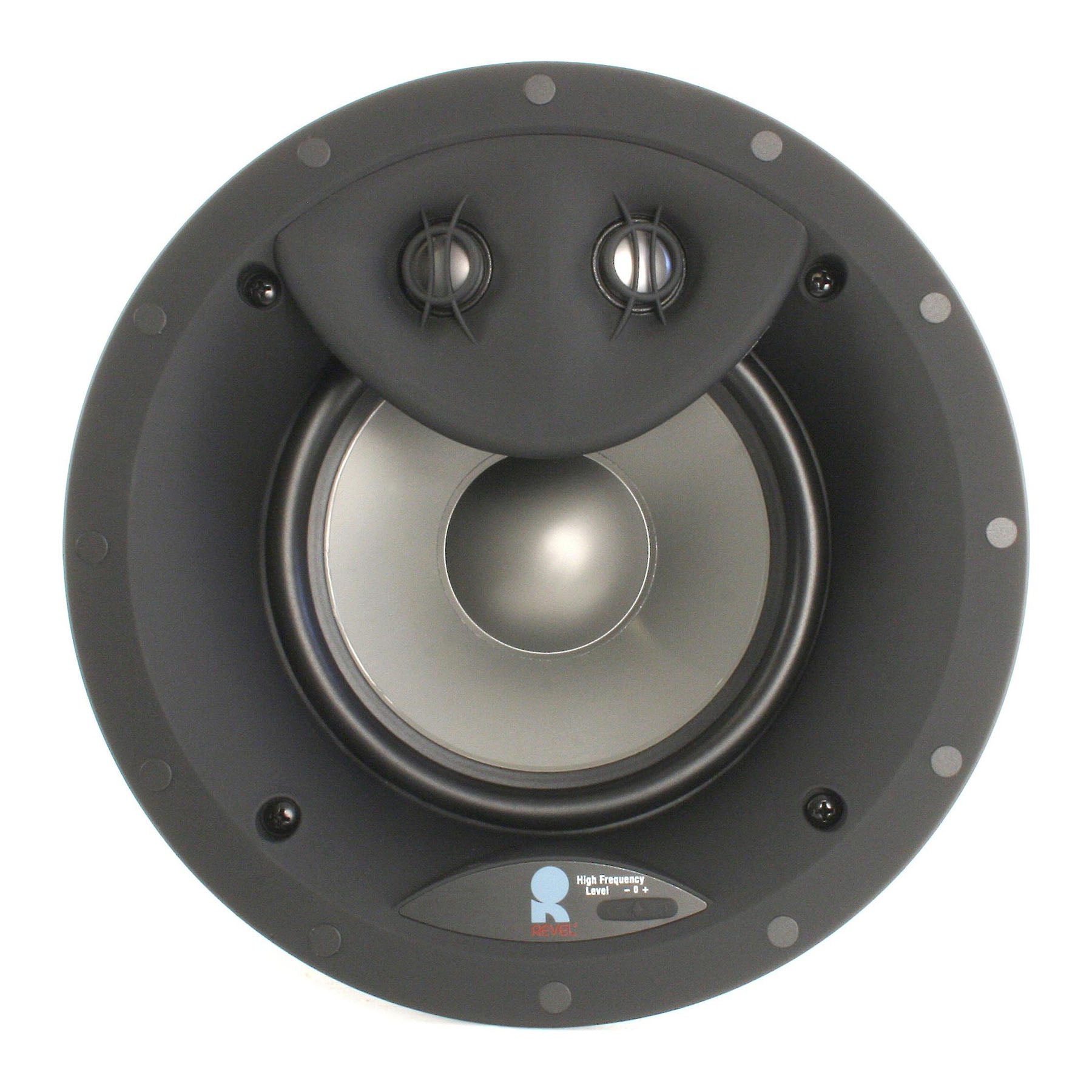

6-1/2" Dual-Tweeter In-ceiling Loudspeaker
Revel in-ceiling loudspeakers draw upon the same research, resources, and unique perspectives that put all our loudspeakers in a class by themselves. Each model offers a standard-setting low sonic coloration and freedom from distortion over a wide dynamic range.
C563DT Highlights
-
Long-throw woofers with cast frames and rubber surrounds provide high output with low distortion
-
1-inch (25mm) angle-adjustable, metal-dome tweeter with an integrated waveguide provides optimized response both on and off axis
-

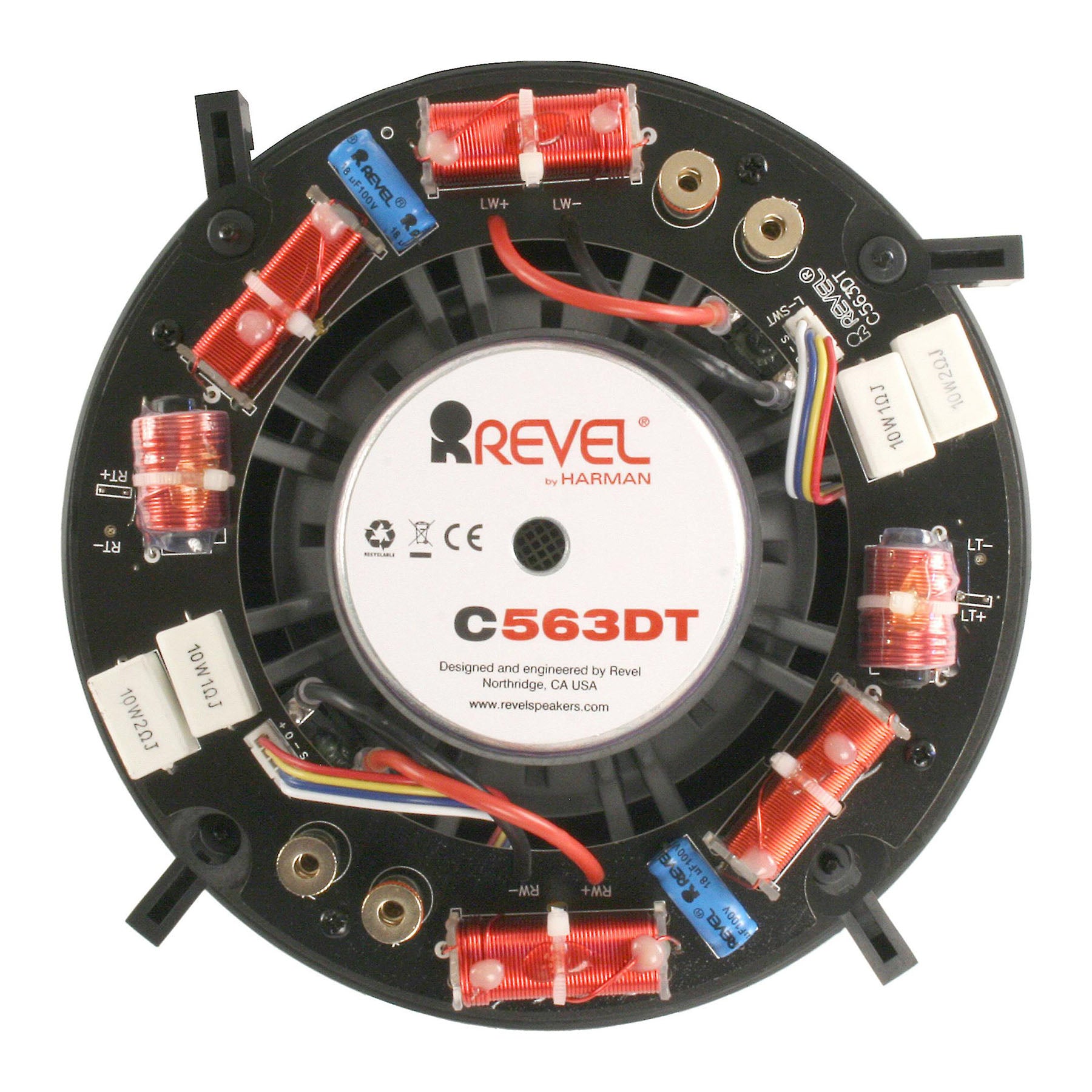

High-order crossover network with premium-quality components delivers extraordinarily accurate timbre reproduction
-
Boundary compensation switch (C783/C763) lets you adjust the speaker to maintain tonal accuracy when the speaker is placed near a wall
-
Three-position tweeter level control (C783/C763/C583/C563) lets you adjust for optimum response in a variety of acoustical environments, or for using the speakers without grilles
Features & Specifications
| Height | Cutout dimensions (dia.) 8" (20.3 cm) Square grille finished Height 9.1" (23.1 cm) |
|---|---|
| Width | Square grille finished Weight 9.1" (23.1 cm |
| Depth | Mounting depth 4.9” (12.5 cm) |
| Weight | 2.2 lb (1 kg) / Shipping weight 3 lb (1.4 kg) |

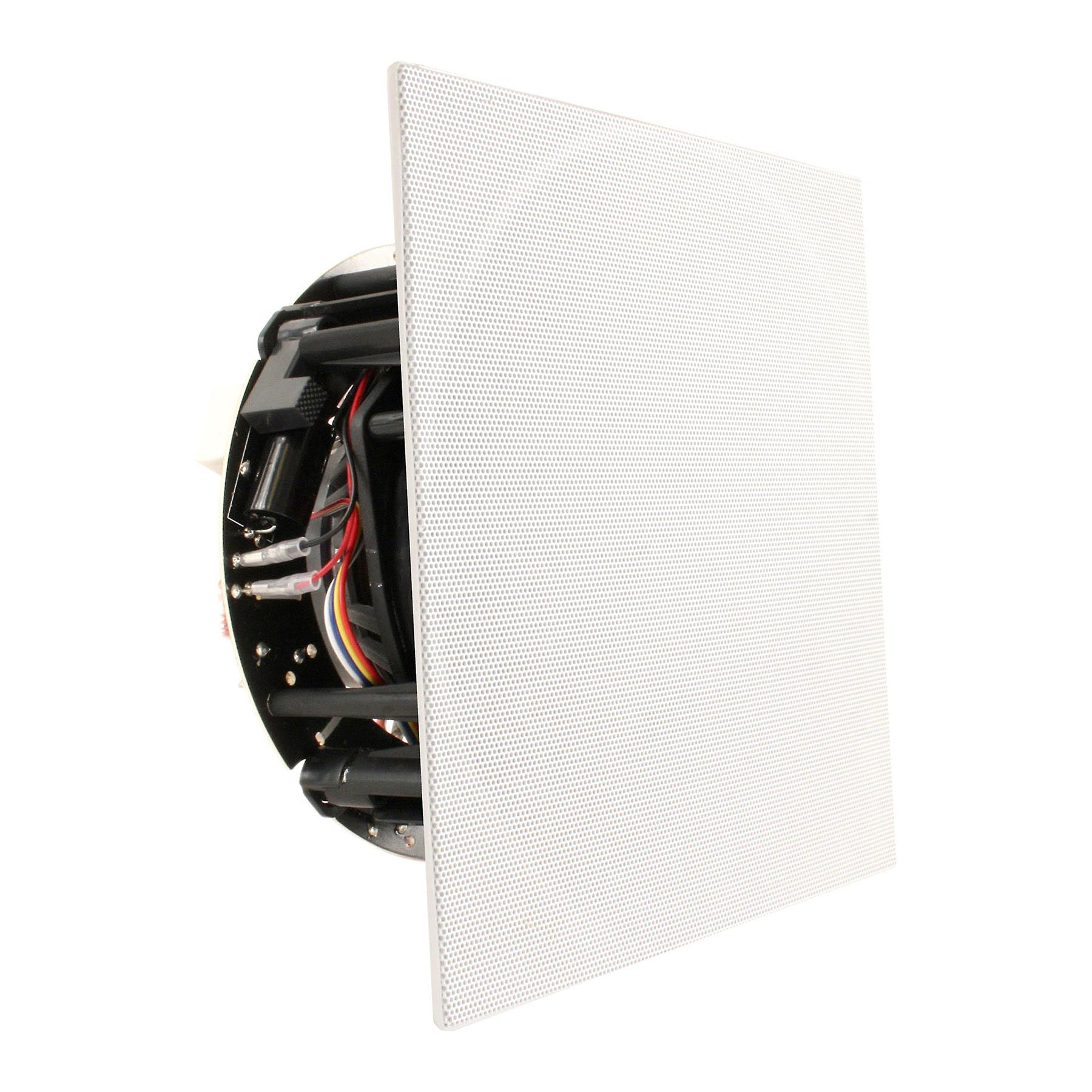

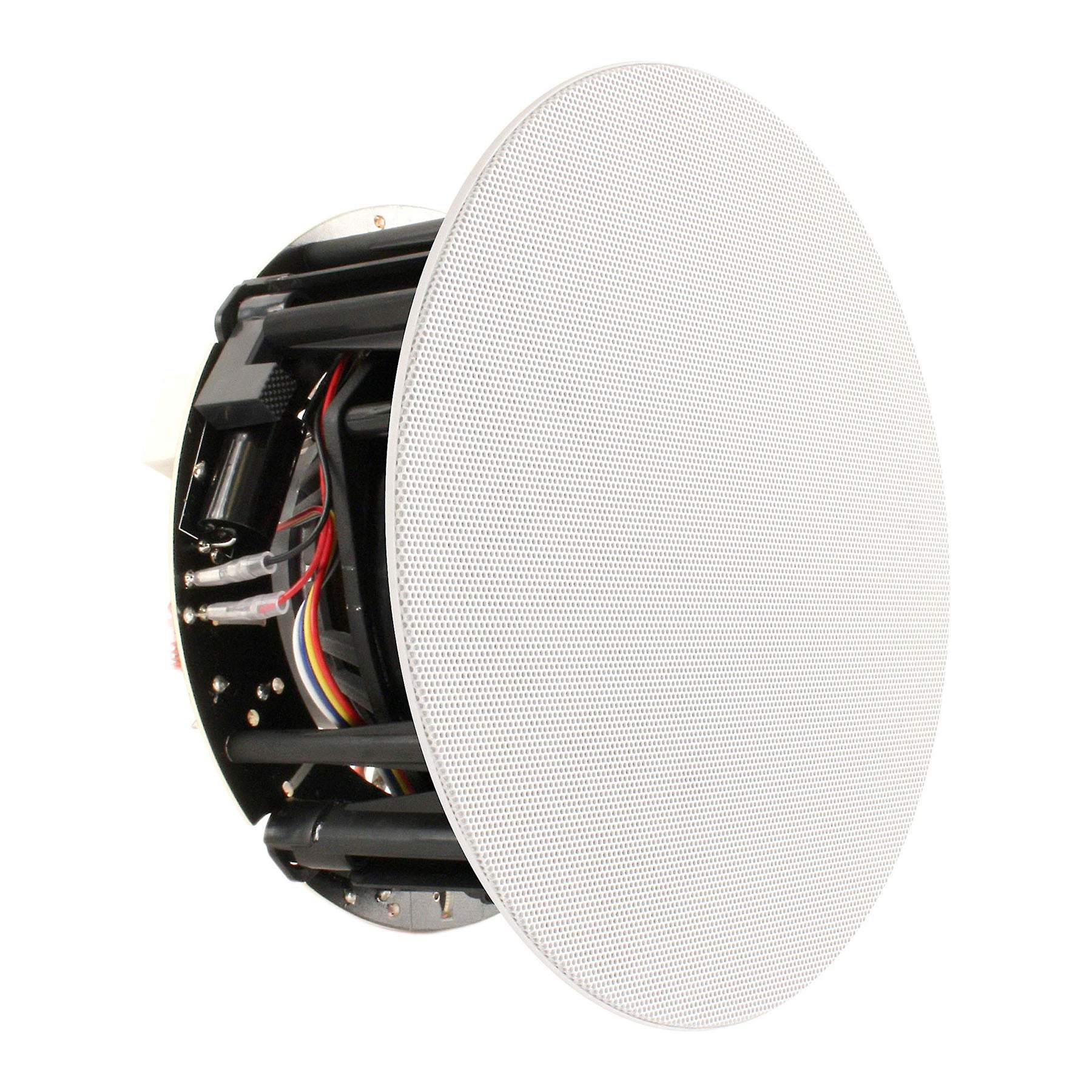

| Features | Includes both round and square zero-bezel magnetic grilles • Round grille finished dimension (dia.) 9.1" (23.1 cm) • |
| High Frequency Driver Components | Two 1" aluminum dome tweeters with waveguides |
| Low Frequency Extension | High Frequency Extension 3-position HF level control |
| Low Frequency Driver Components | 6 ½" Micro-Ceramic Composite (MCC) Cone, Cast-Aluminum Frame Woofer |
| Mounting | C-2 fastening mechanism • Compatible with wall material thickness range 0.5" – 2.0" (1.3 cm – 5.0 cm) |
| Recommended Amplifier Power | 10 - 130 Watts RMS (per channel) |
