Revel

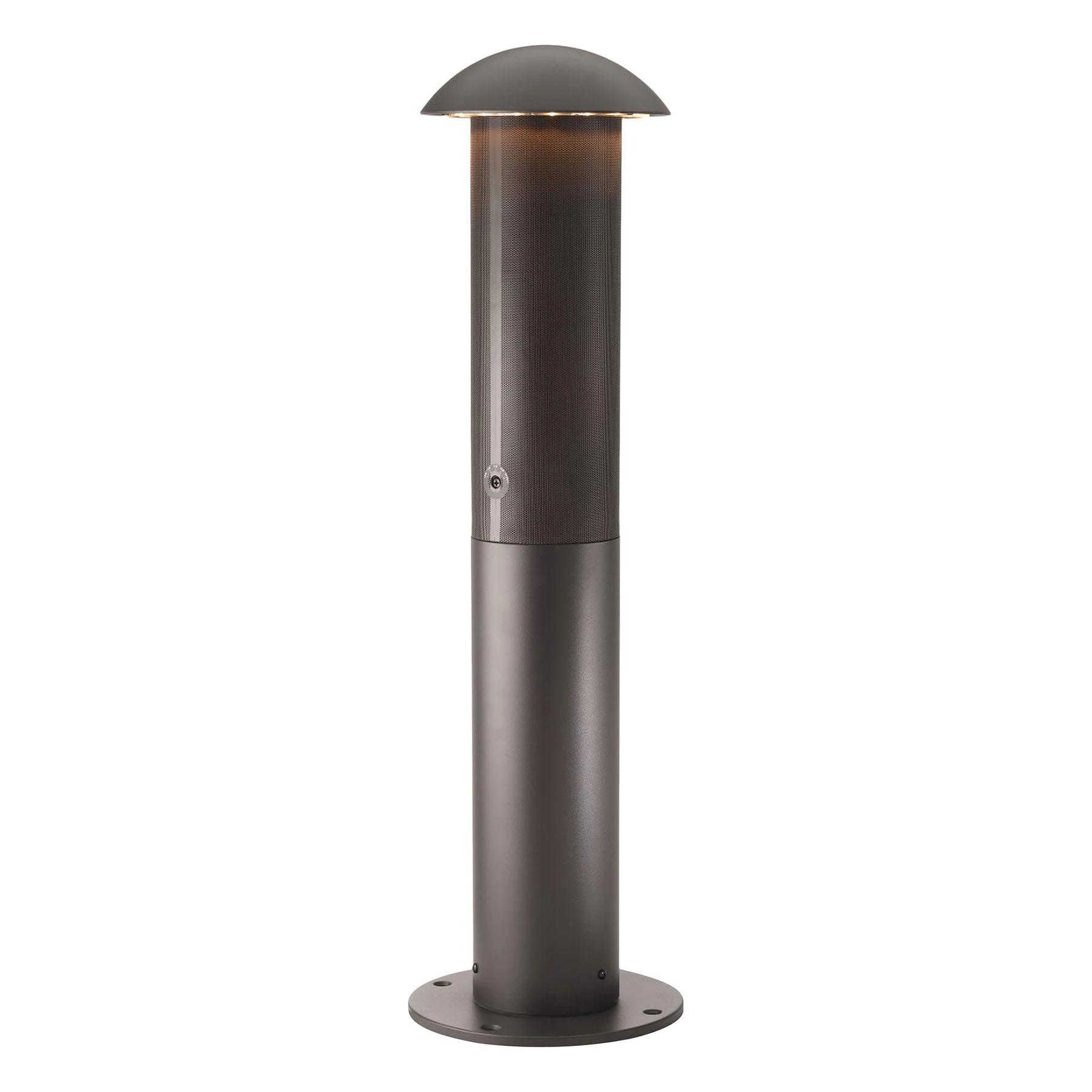

Revel L42XC 2-way Extreme Climate Bollard Speaker with Integrated LED Lighting
Revel L42XC 2-way Extreme Climate Bollard Speaker with Integrated LED Lighting
Black
22 Saint Kilda Road
22 Saint Kilda Road
Suite 2.02
St Kilda VIC 3182
Australia
Country of origin: USA
L42XC
2-way Extreme Climate Bollard Speaker with Integrated LED Lighting

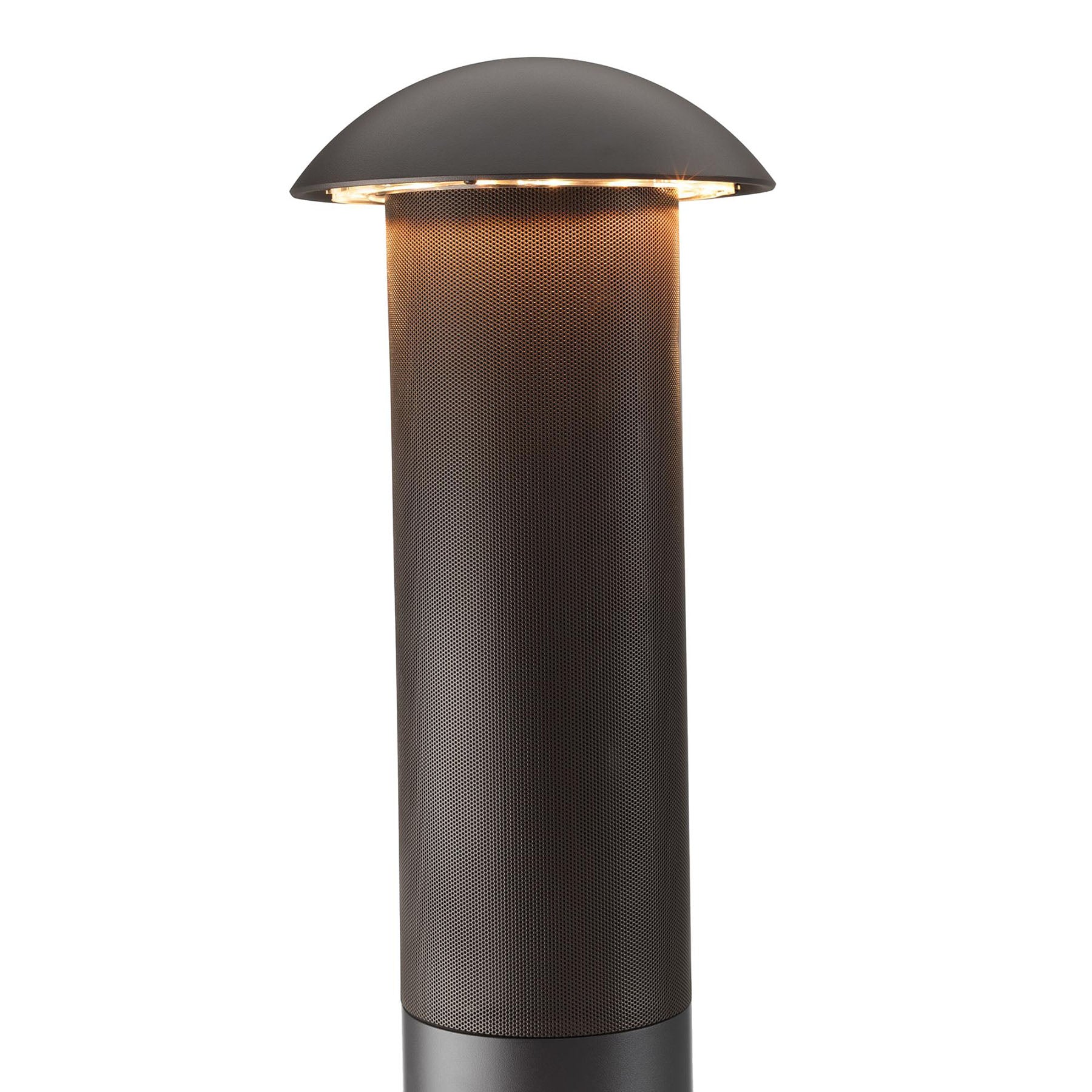

The L42XC is a 2-way bollard speaker featuring integrated low-voltage LED, 360° down lighting with independent control, making it one of the only landscape products in the world that combines the enjoyment value of pristine audio with the added safety and security of illumination for your entertainment space.
The sophisticated LED dimmable lighting can also be used in pathway or general landscape lighting applications, or to simply add relaxing ambience to your evening entertainment.
Premium components, including dual 4-inch aluminum cone woofers and a 1-inch aluminum dome tweeter provide the memorable sonic experience Revel is known for, while unparalleled build quality ensures lasting brilliant performance in even the most challenging climate conditions.

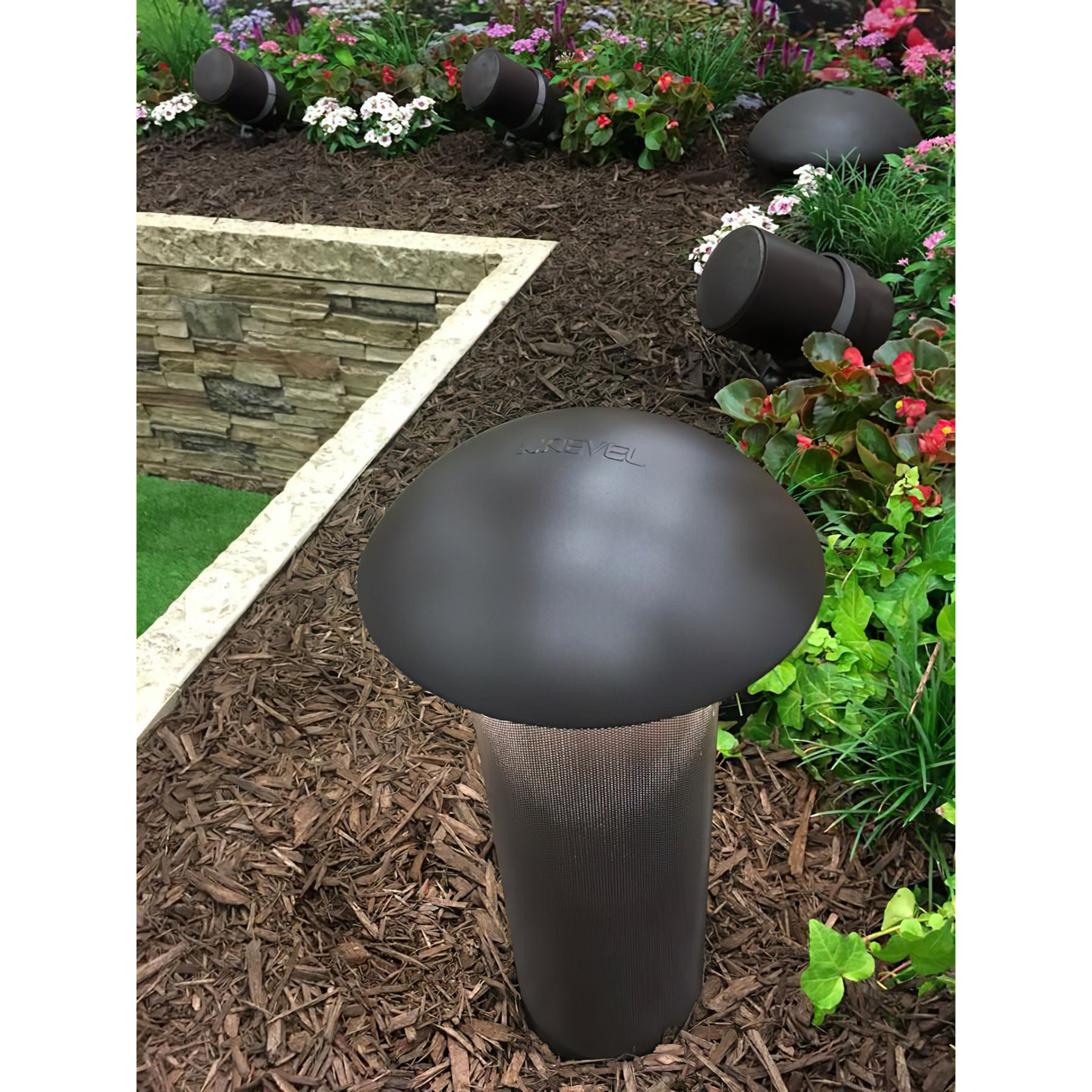

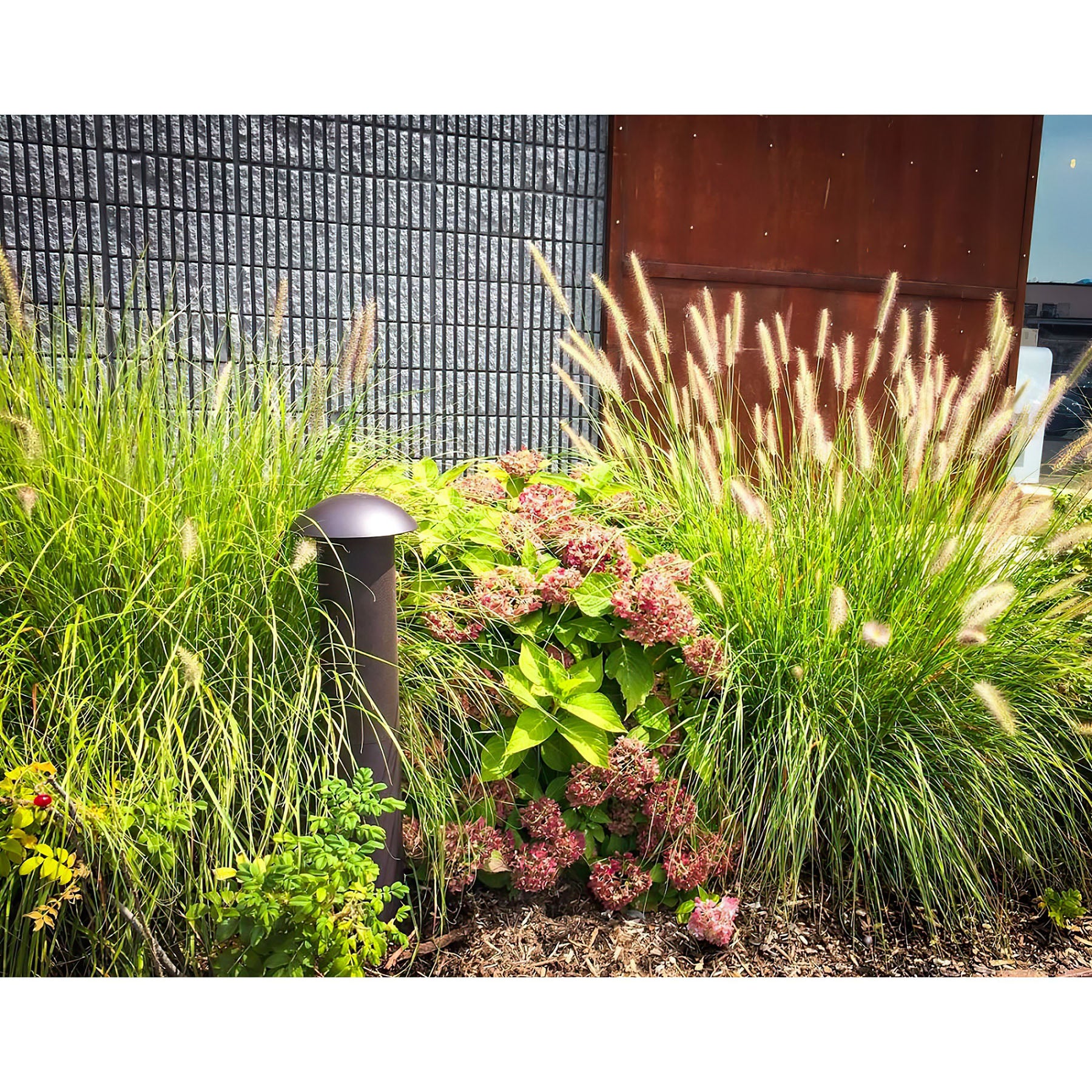

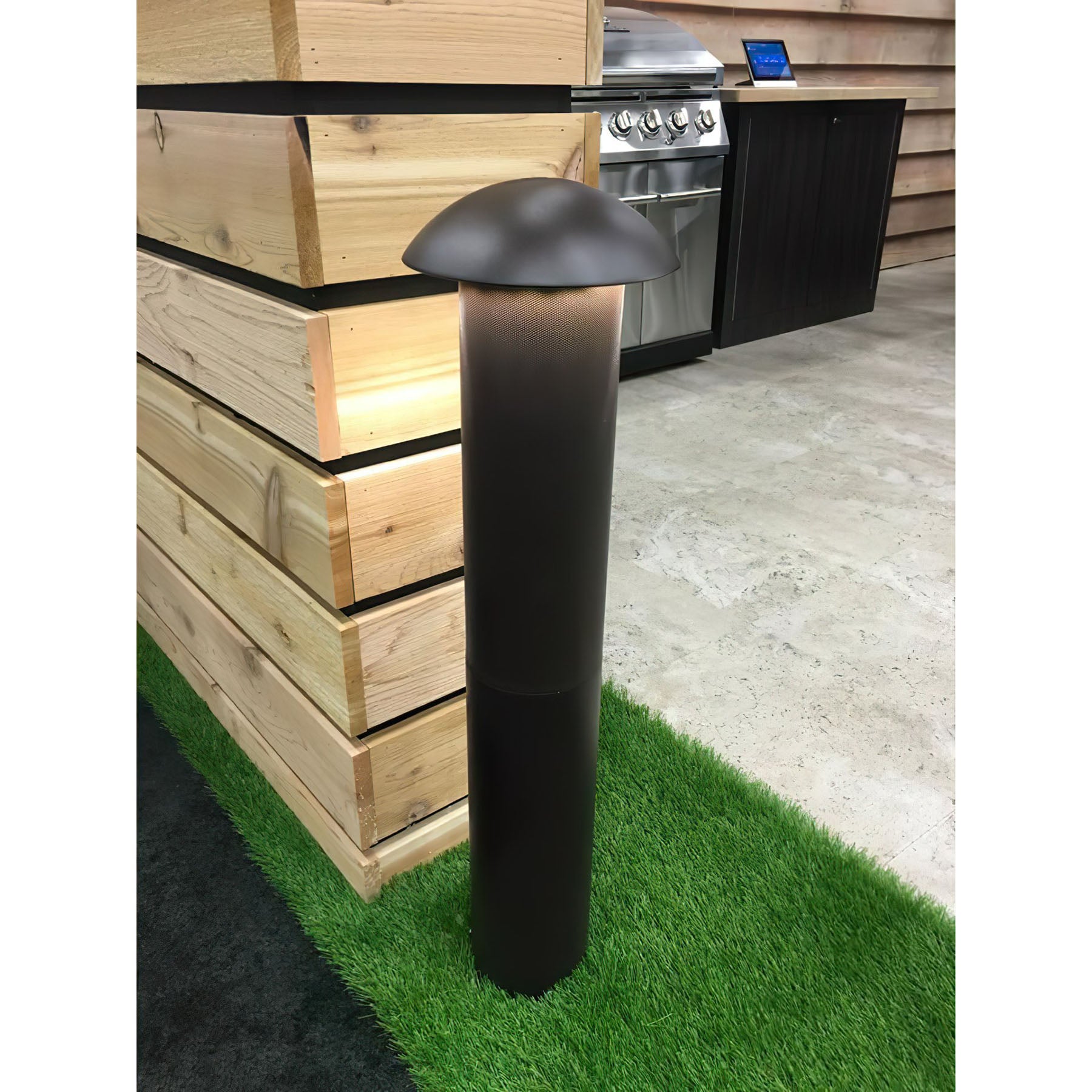

The L42XC can be buried up to half of its height for a reduced visual presence, or used with the optional deck mount as a freestanding tower on hard surfaces.
L42XC Highlights
-
Dual 4-inch/100mm Micro Ceramic Composite (MCC) aluminum diaphragm woofer
-
1-inch/25mm Micro Ceramic Composite (MCC) aluminum diaphragm tweeter
-
IP67 rating that certifies protection against dust, and strong water jets and waves
-
4-Ohm or 70V operation via integrated transformer with selectable power taps up to 60W
-
Integrated dimmable lighting for use as a path light, or general fill light with 3,000K color temperature
-
Compatible with 12V AC or DC lighting controllers
LED PCB Assembly Fixture Type | Custom weatherproof epoxy-sealed ring |
---|---|
LED PCB Assembly Light Source | LED |
LED PCB Assembly Number of LEDs | 16 (two rows of 8) |
LED PCB Assembly Watts | -3.5 lumens |
LED PCB Assembly Light Output | 130 lumens |
LED PCB Assembly Light Direction | Down lighting |
LED PCB Assembly Color Temperature (CCT) | 3000K |
LED PCB Assembly Color Rendering Index | 80 |
LED PCB Assembly Lifespan | 100,000 hours |
LED PCB Assembly Total Forward Voltage On LED String | 24VDC |
LED Driver Assembly Input Voltage (AC) | 12-15 +/- 10% |
LED Driver Assembly Input Voltage (DC) | 8-24 +/- 10% |
LED Driver Assembly Input Current | 500mA |
LED Driver Assembly Watts | 3.5W |
LED Driver Assembly Dimming Capability | Yes (MLV, ELV, and Universal Dimmer Compatible) |
LED Driver Assembly Type | Constant Current |
LED Driver Assembly Output Channels | 2 |
LED Driver Assembly Switching Frequency | 2.2MHz |
LED Driver Assembly Switcher Type | SEPIC |
LED Driver Assembly Operating Temperature | -40 to 125C |
LED Driver Assembly Safety Protection | Inrush Current Protection, ESD Input Voltage OVP, UVLO, and OCP Open and Shorted LED Fault Detection Thermal Shutdown |
Audio Specifications
Frequency Response | 80Hz – 20kHz @-3dB |
---|---|
Crossover Frequencies | 2.9kHz |
High-frequency Driver Components | 1” Micro Ceramic Composite Aluminum Dome Tweeter |
Low-frequency Driver Components | Dual 4” Micro Ceramic Composite Aluminum Cone Woofers |
Mounting | Optional Deck Mount |
Recommended Amplifier Power | 60W RMS; 125W RMS with High Pass Filter @80Hz |
Sensitivity | 86dB (2.83V @1M) in Bypass mode |
Voltage Gain | 70V |
Weight | 20.7 lbs / 9.4kg |
Dimensions (H x W x D) | 33.7”/8.58”/8.58” (85.5cm/21.8cm/21.8cm) |
Transformer Taps | 7.5W, 15W, 30W, 60W |
Impedance | 4 Ohm in Bypass mode |
