9" In-Wall Loudspeaker
Since the first Revel speakers in 1996, Revel products have stood at the forefront of loudspeaker design and performance. Revel in-wall loudspeakers draw upon the same research, resources and unique perspective that put all Revel loudspeakers in a class by themselves. Revel in-wall loudspeakers provide unparalleled value and are known for their standard-setting low sonic coloration and their freedom from distortion over an extraordinarily wide dynamic range.
Long-throw woofers with cast frames and rubber surrounds provide high output with low distortion.
1-inch (25mm) angle-adjustable, metal-dome tweeter with an integrated waveguide provides optimized response both on and off axis.

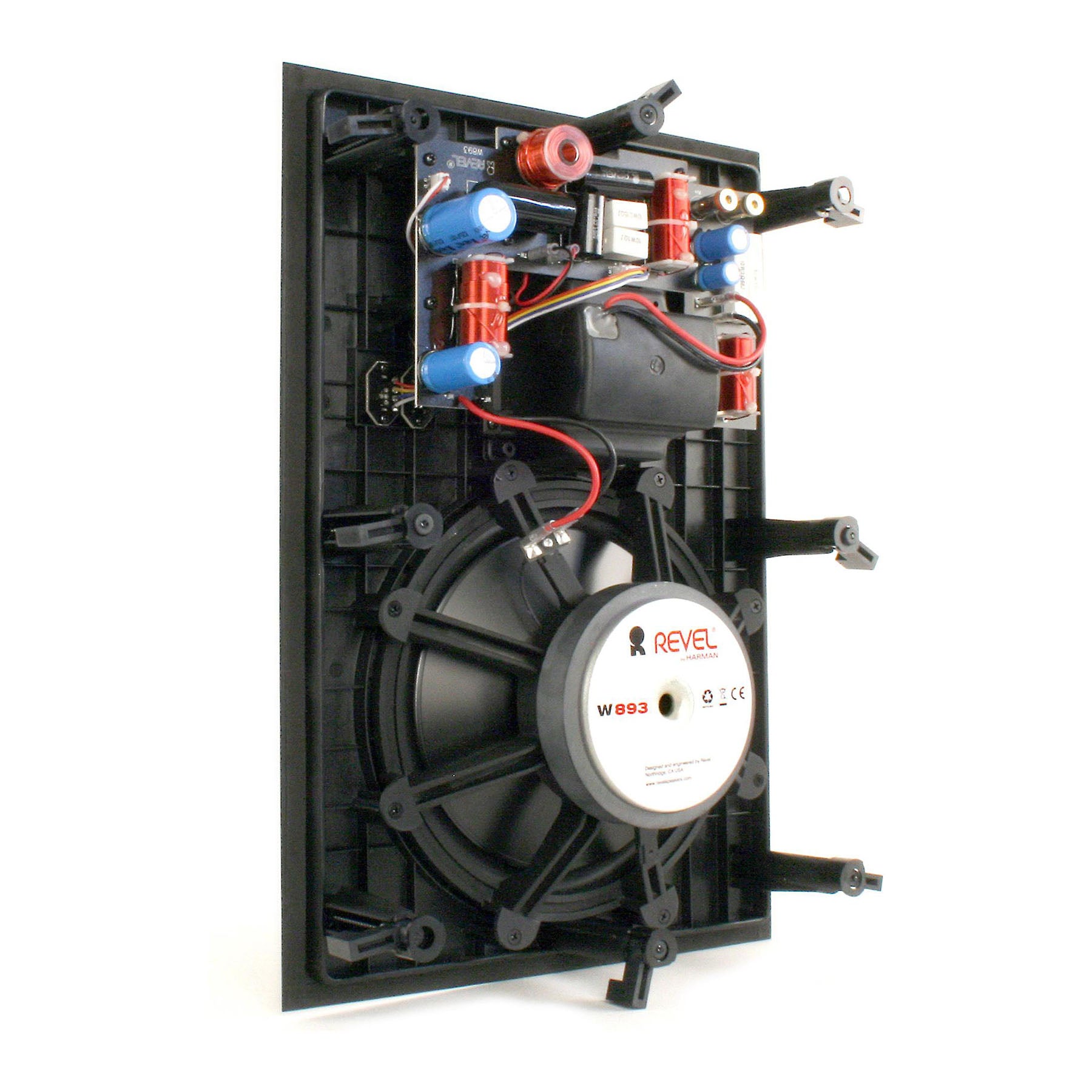

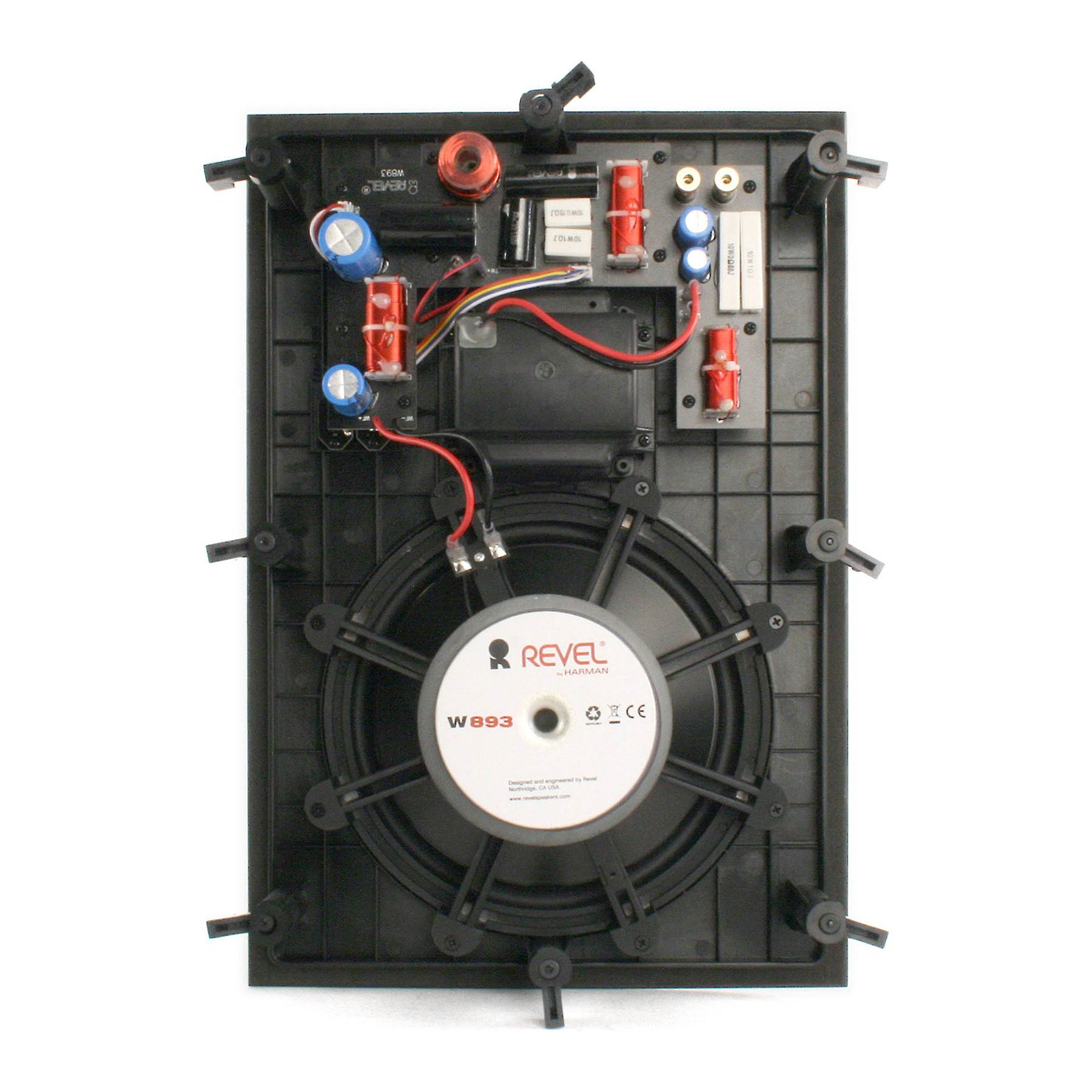

High-order crossover network with premium-quality components delivers extraordinarily accurate timbre reproduction.
Boundary compensation switch (W893/W873/W783/W763) lets you adjust the speaker to maintain tonal accuracy when the speaker is placed near an additional wall or the ceiling.
Three-position tweeter level control (W893/W873/W783/W763/W583/W563/W553L) lets you adjust for optimum response in a variety of acoustical environments, or for using the speakers without grilles.
Features & Specifications
|Depth||Mounting depth 3.7" (9.4 cm)|
|Weight||10.8 lb (4.9 kg) / Shipping weight 12.8 lb (5.8 kg)|
|Crossover Frequencies||Advanced high-order crossover network|

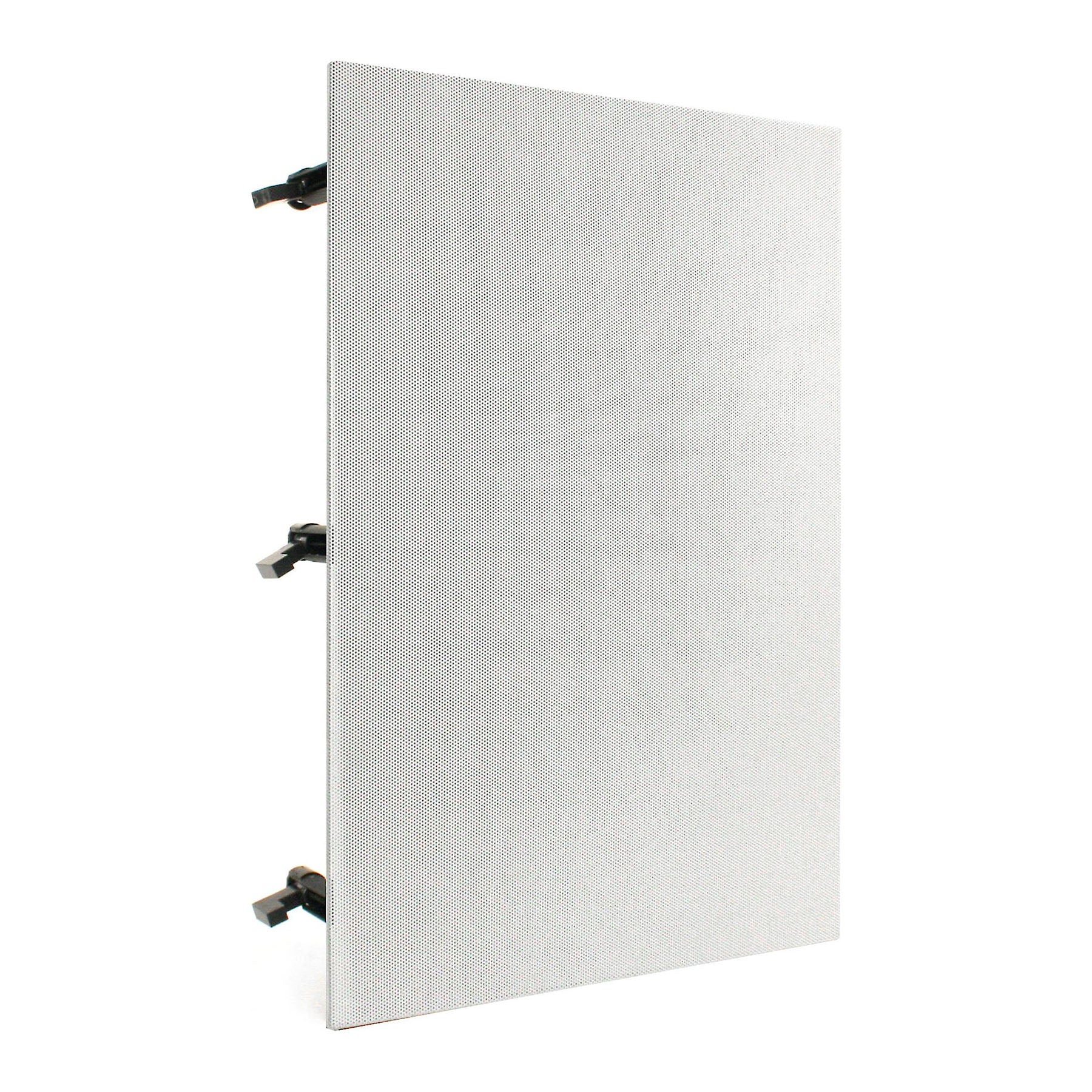

|Features||Cutout dimensions (H x W) 17.4" x 11.6" (44.3 cm x 29.5 cm) • Includes zero-bezel magnetic grille • Grille finished dimension (H x W) 18.5" x 12.7" (47.0 cm x 32.3 cm)|
|High Frequency Driver Components||1" aluminum dome swiveling high-output tweeter with waveguide|
|Low Frequency Extension||High Frequency Extension (-10dB) 3-position HF level control / Low Frequency Extension LF boundary compensation|

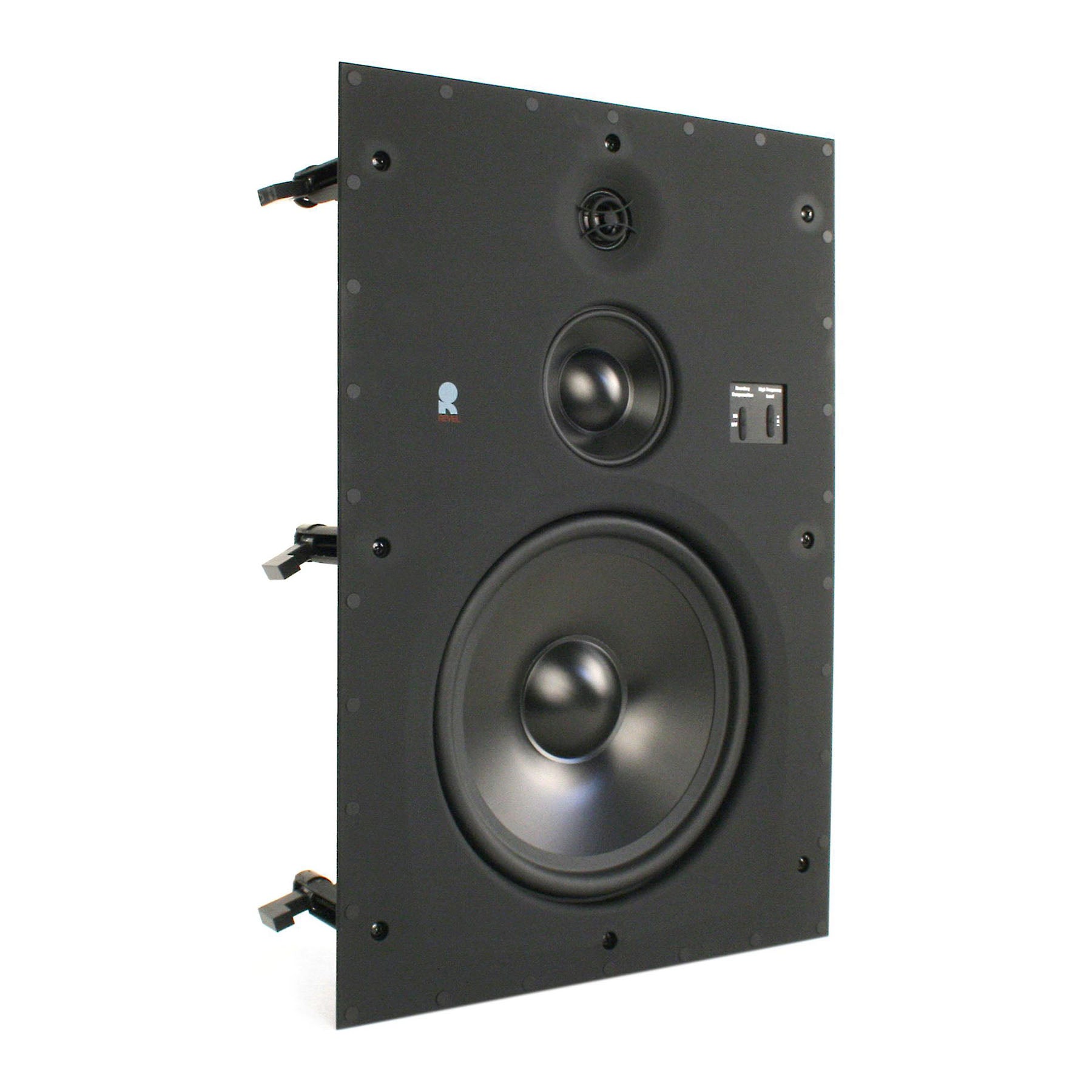

|Low Frequency Driver Components||9" Micro-Ceramic Composite (MCC) Cone, Cast-Aluminum Frame High-Output Woofer|
|Mid-Frequency Driver Components||3.5" micro-ceramic composite (MCC) cone, cast-aluminum frame high-output midrange|
|Mounting||C-2 mounting mechanism • Compatible with wall material thickness range 0.5" – 1.0" (1.3 cm – 2.5 cm)|
|Recommended Amplifier Power||10 - 200 Watts RMS|
