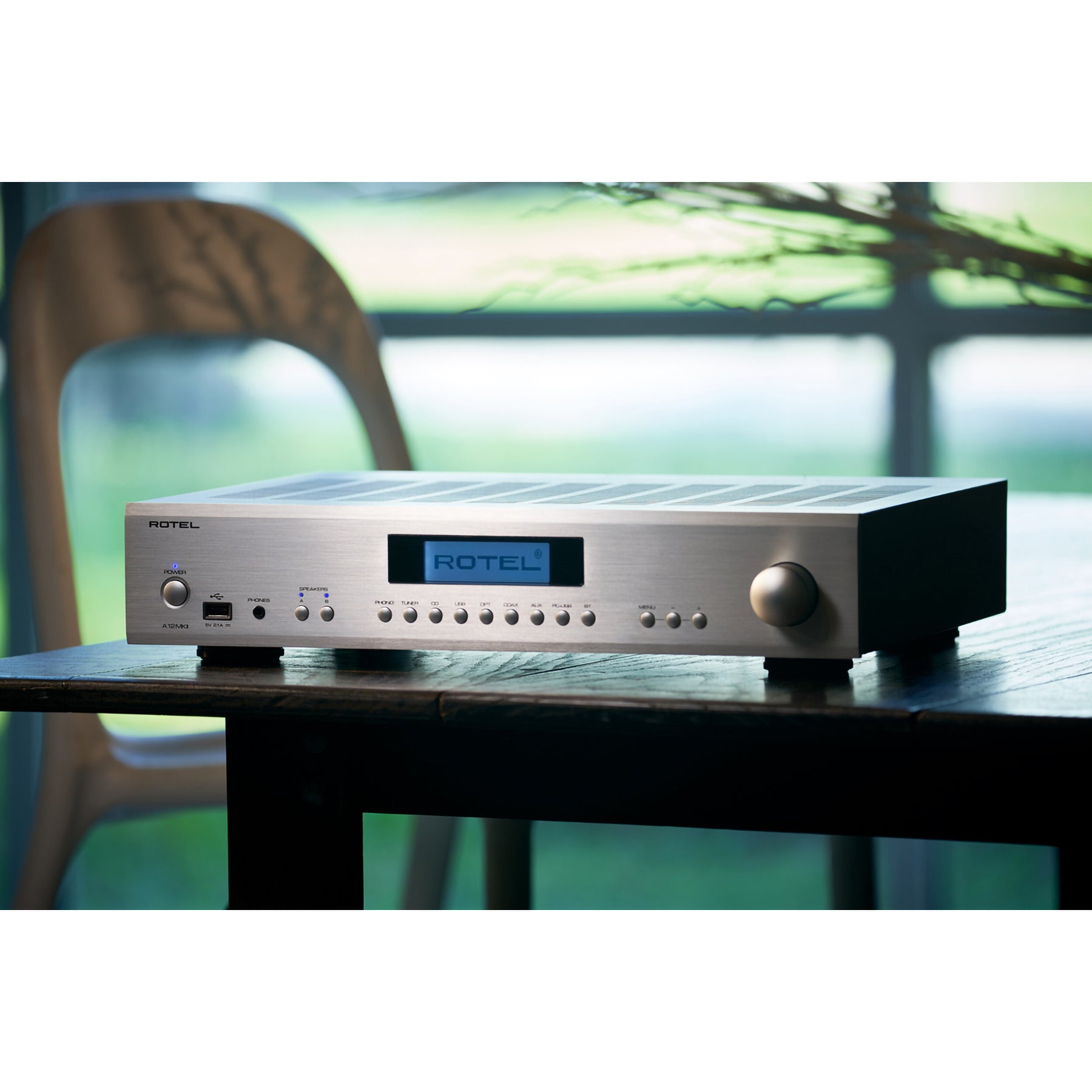

Rotel A12MKII Integrated Amplifier
Rotel A12MKII Integrated Amplifier
TThe A12MKII stands well above its sleek design delivering 60 Watts of dynamic Class AB output into 8 ohms. This integrated amplifier supports your favorite sources including MM Phono Stage, analog, digital, PC-USB and wireless Bluetooth. Optimized circuits and a 32-bit DAC deliver spacious and open reproduction of the music.
The A12MKII Integrated Amplifier stands well above its slim, sleek design profile designed and engineered for music lovers.
Powered by Rotel’s oversized in-house manufactured toroidal transformer the A12MKII delivers 60 Watts of clean, dynamic Class AB output power into 8 ohms.

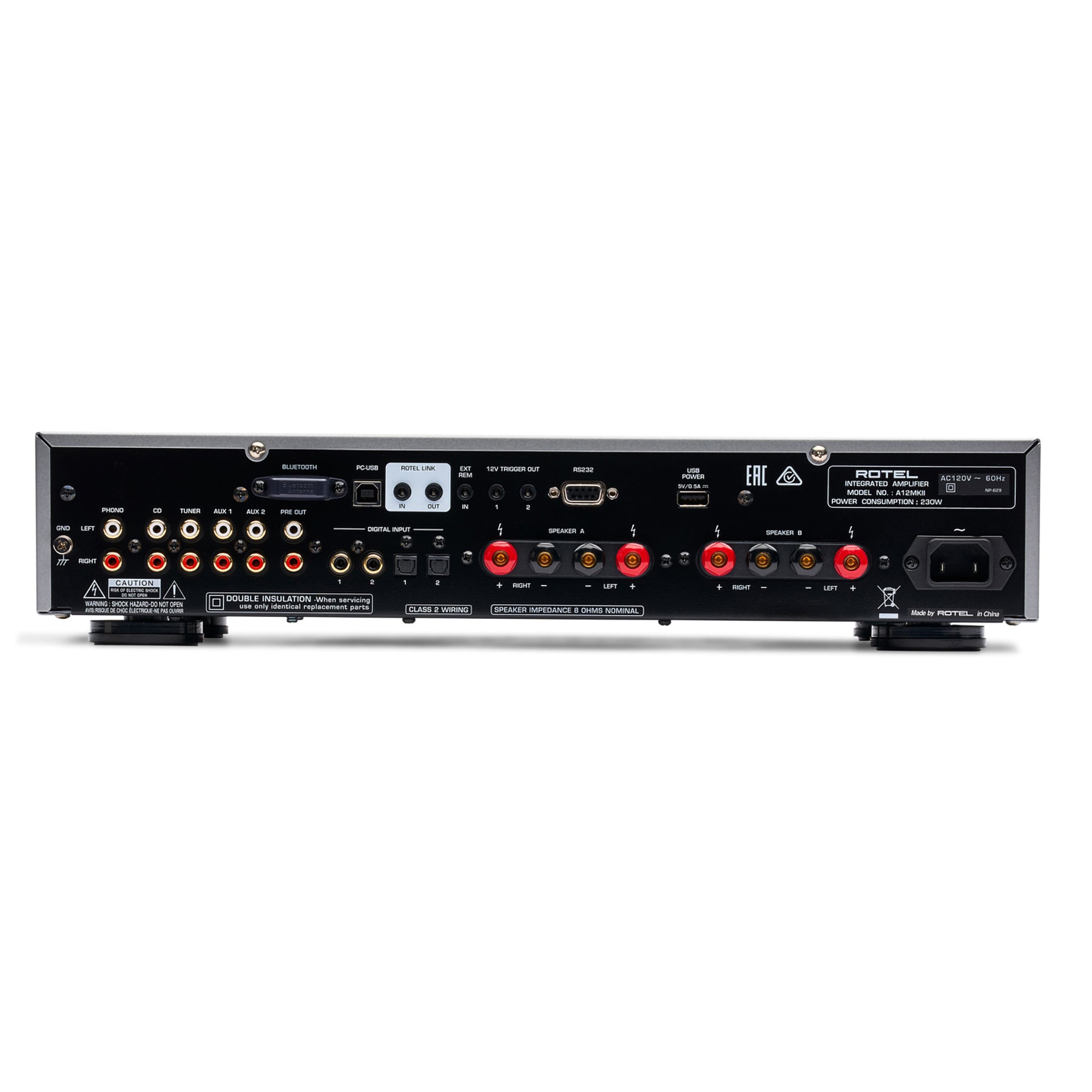

A Moving Magnet Phono Stage, 4 RCA analog, 4 digital, PC-USB and high quality wireless aptXTM Bluetooth input ensures connection to your favorite sources.
The premium 32-bit Texas Instruments DAC extracts genuine and accurate details of the music with optimized circuits preserving the integrity of the audio stream.
Slim and powerful the A12MKII delivers on Rotel’s iconic brand heritage.
Engineered with care.
DIMENSIONS (W × H × D)
430 × 98 × 312mm
17" × 3.8" × 12.3"
FRONT PANEL HEIGHT
80mm (3.15")
POWER REQUIREMENTS
120V, 60Hz
POWER CONSUMPTION
15W
STANDBY POWER CONSUMPTION
<0.5W
NET WEIGHT
5.9kg (13lbs.)
BTU RATING
51 BTU/h
TOTAL HARMONIC DISTORTION (THD)
0.002% @ 1kHz
FREQUENCY RESPONSE
20Hz - 20kHz ±0.5dB
S/N RATIO (IHF "A" Weighted)
>118dB
DYNAMIC RANGE
>99dB
DIGITAL TO ANALOG CONVERTERS
Wolfson 24-bit/192kHz
CHANNEL BALANCE
±0.5dB
CHANNEL SEPARATION
>115dB @ 10kHz
INTERMODULATION DISTORTION
0.002% @ 1kHz
PHASE LINEARITY
±0.5 degree
OUTPUT LEVEL
Digital (Coax): 0.5V
OUTPUT IMPEDANCE
Line Level: 100Ω
Digital (Coax): 75Ω
