Rotel A8 Integrated Amplifier
ChinaA8
Integrated Amplifier
The A8 Integrated Amplifier blends power, size, efficiency, and value for music lovers yearning to enhance their musical journey. Engineered with a robust Rotel-crafted toroidal transformer driving 40 Watts per channel of Class A/B potency into 4 ohms featuring three RCA analog inputs and a Moving Magnet Phono stage tailored for vinyl enthusiasts.
The A8 Integrated Amplifier is the perfect fusion of power, size, efficiency, and value tailored for music enthusiasts.

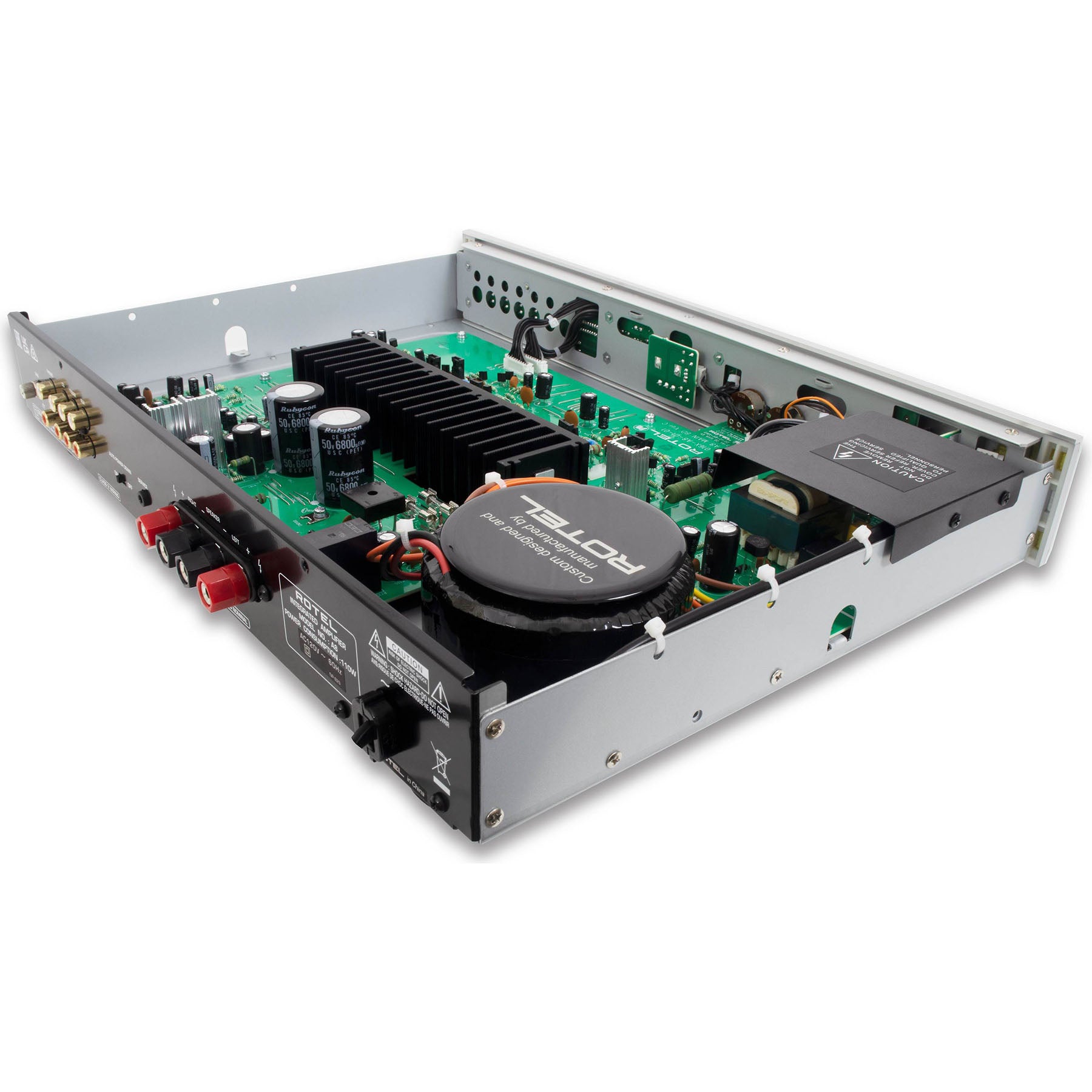

Built around an in-house manufactured, high current, Rotel-crafted toroidal power transformer, the A8 delivers a commanding 40 Watts per channel of Class A/B power into 4 ohms. The high efficiency output drive transistors ensure deep bass energy is controlled with ultimate precision while comfortably maintaining composure at all listening levels.
The A8 features three line-level RCA inputs connecting your favorite analogue sources complemented by a Moving Magnet compatible Phono Stage to spin classic vinyl albums. For private listening, a front panel 1/8” headphone jack is also included.

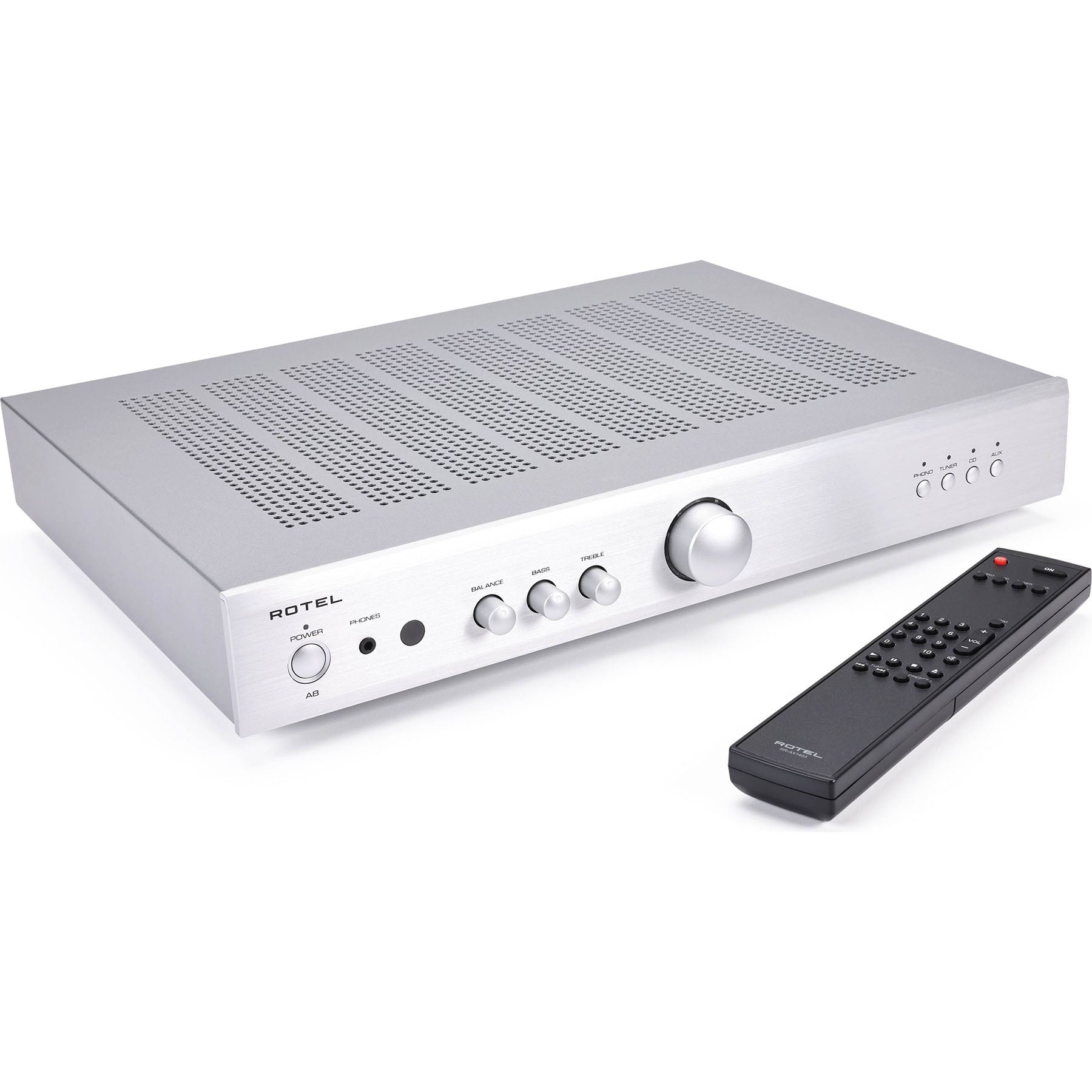

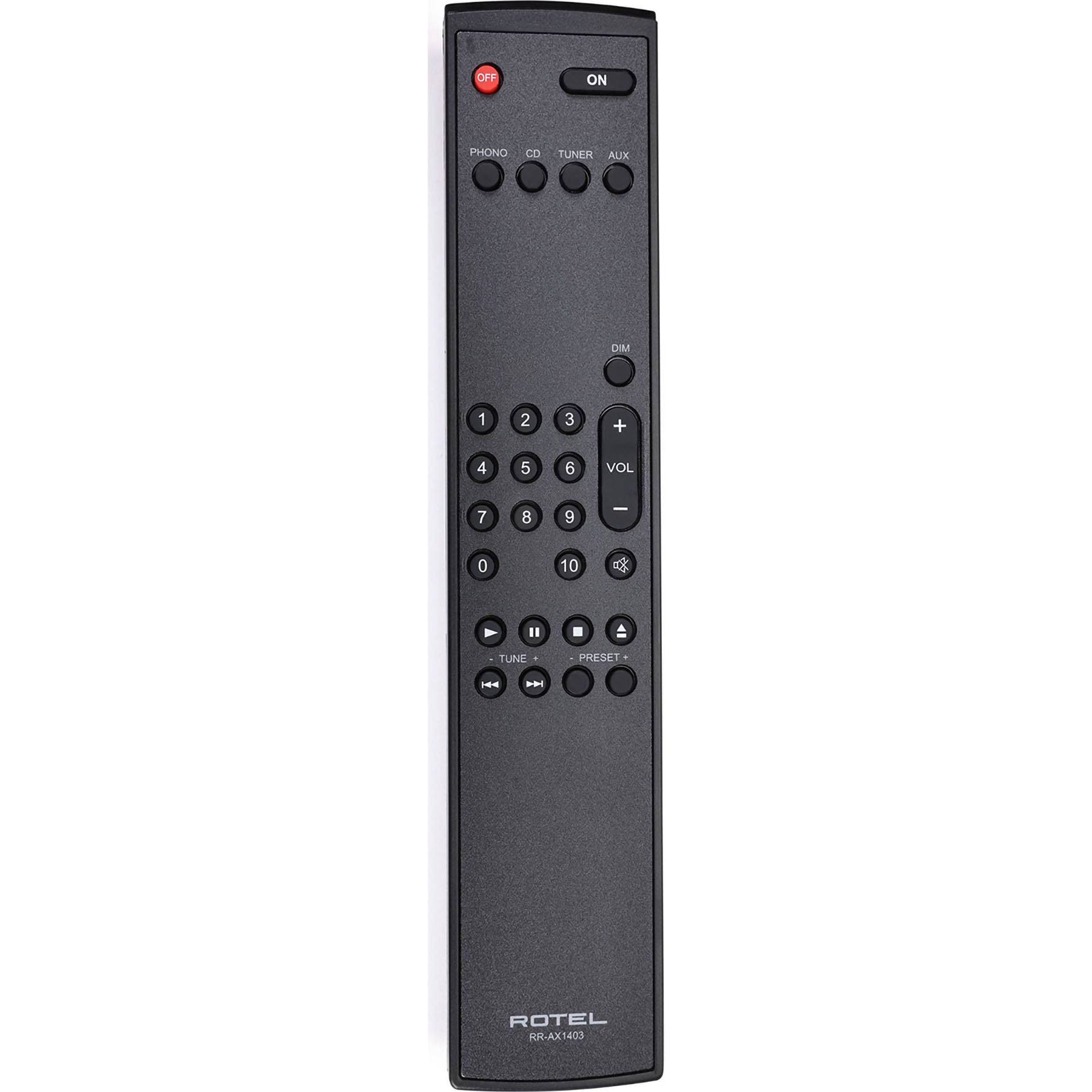

The included IR remote ensures precise and seamless operation of the volume level and selection of the desired source input all from your favorite listening position. The remote also conveniently includes CD transport control functions supporting Rotel CD players.

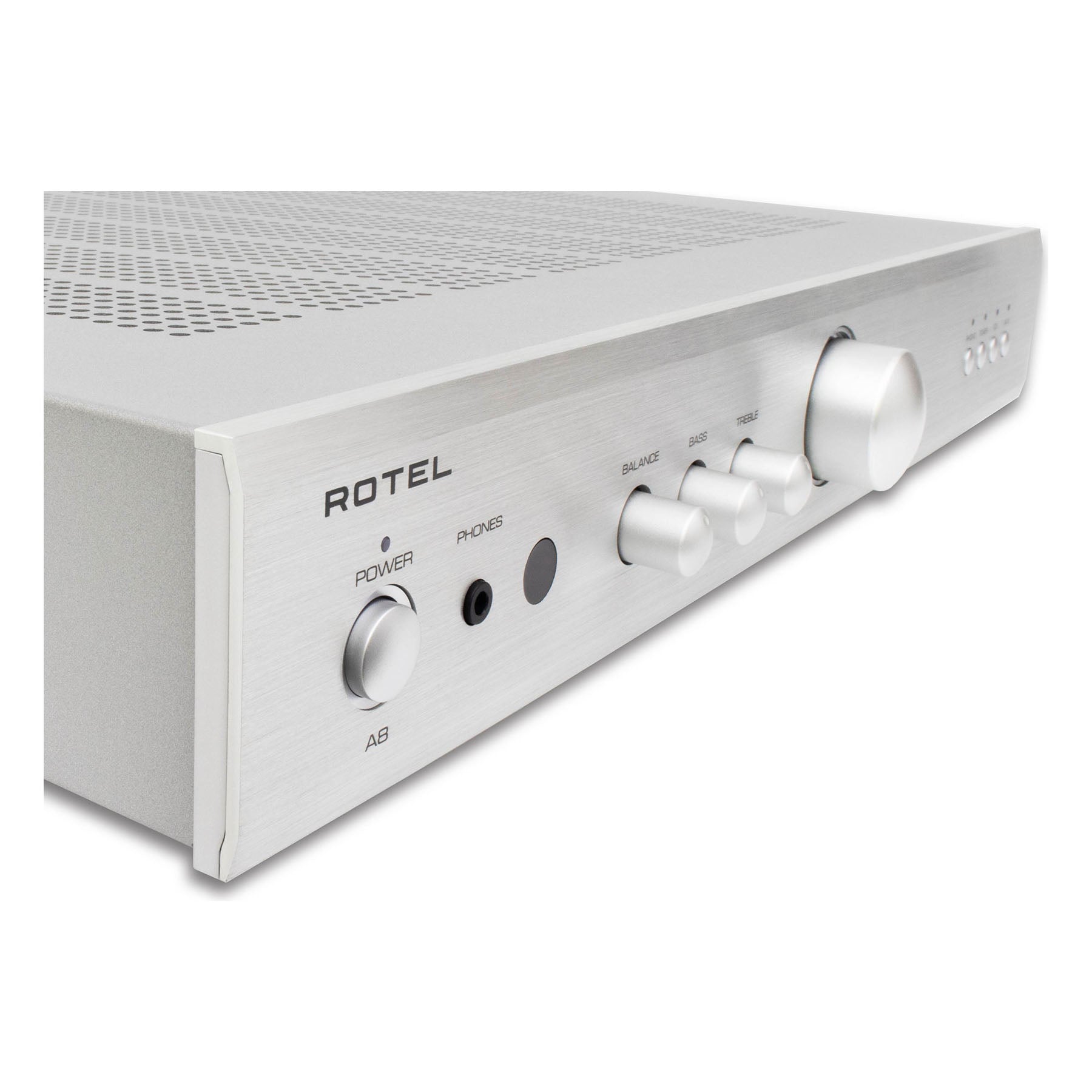

Personal selection of LED volume indicator color allows the A8 to be tailored to both mood and environment. Choose from Red, Green, Blue, or Purple LED colors fitting comfortably into any environment. Get hands-on with the front panel Bass, Treble and Balance controls to personalize the listening experience with your music.

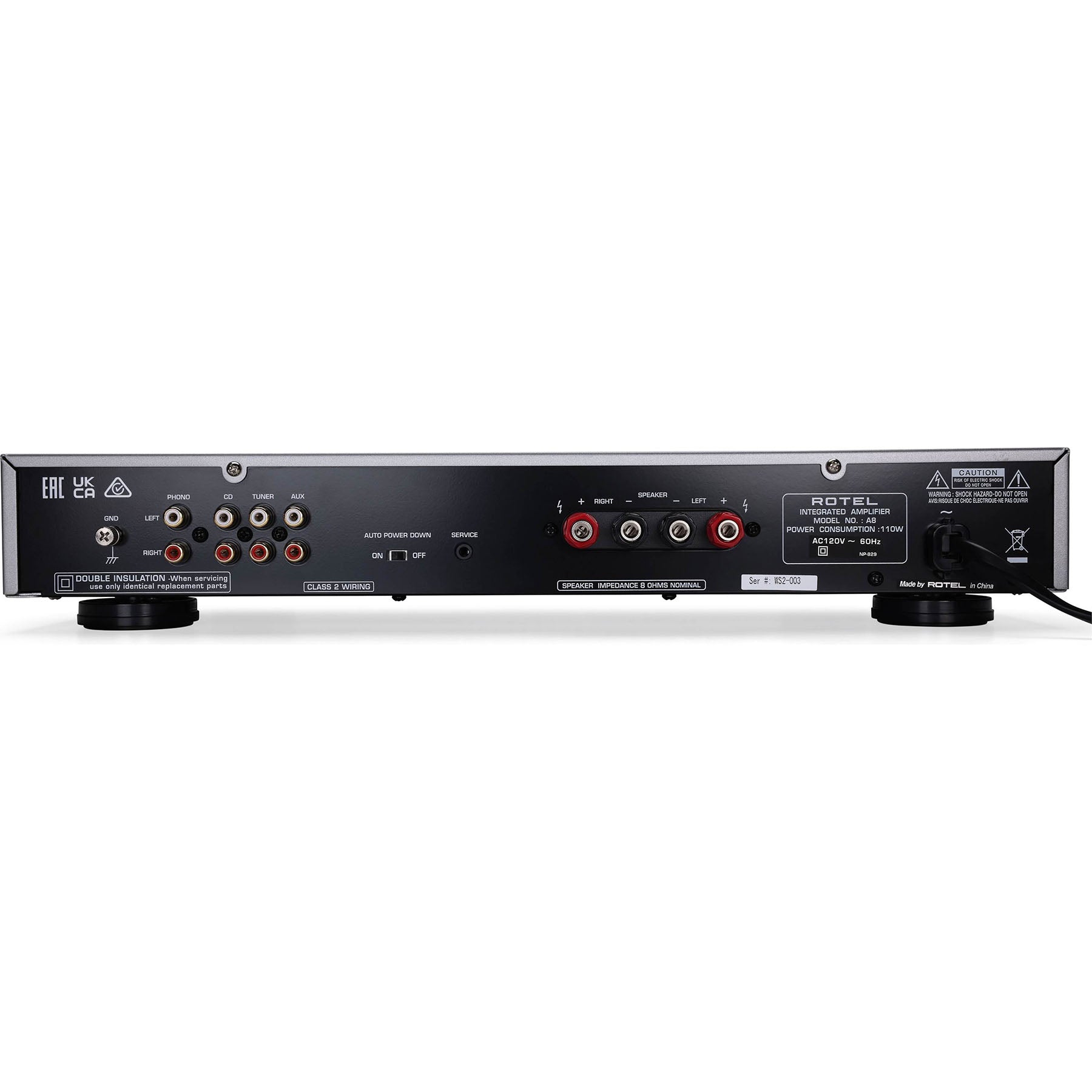

Rear panel 5-way speaker binding posts provide the ultimate installation flexibility and connection to your loudspeakers.

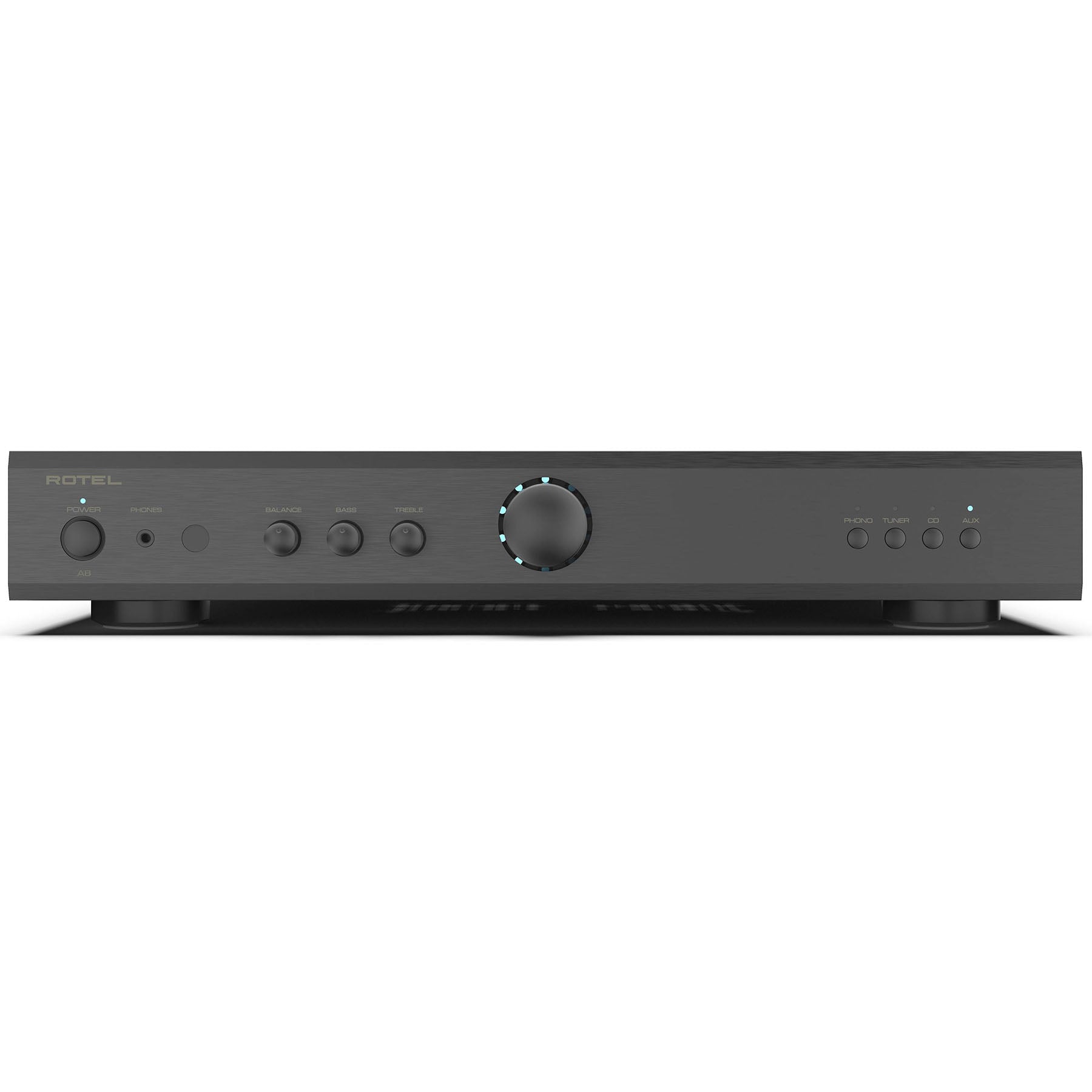

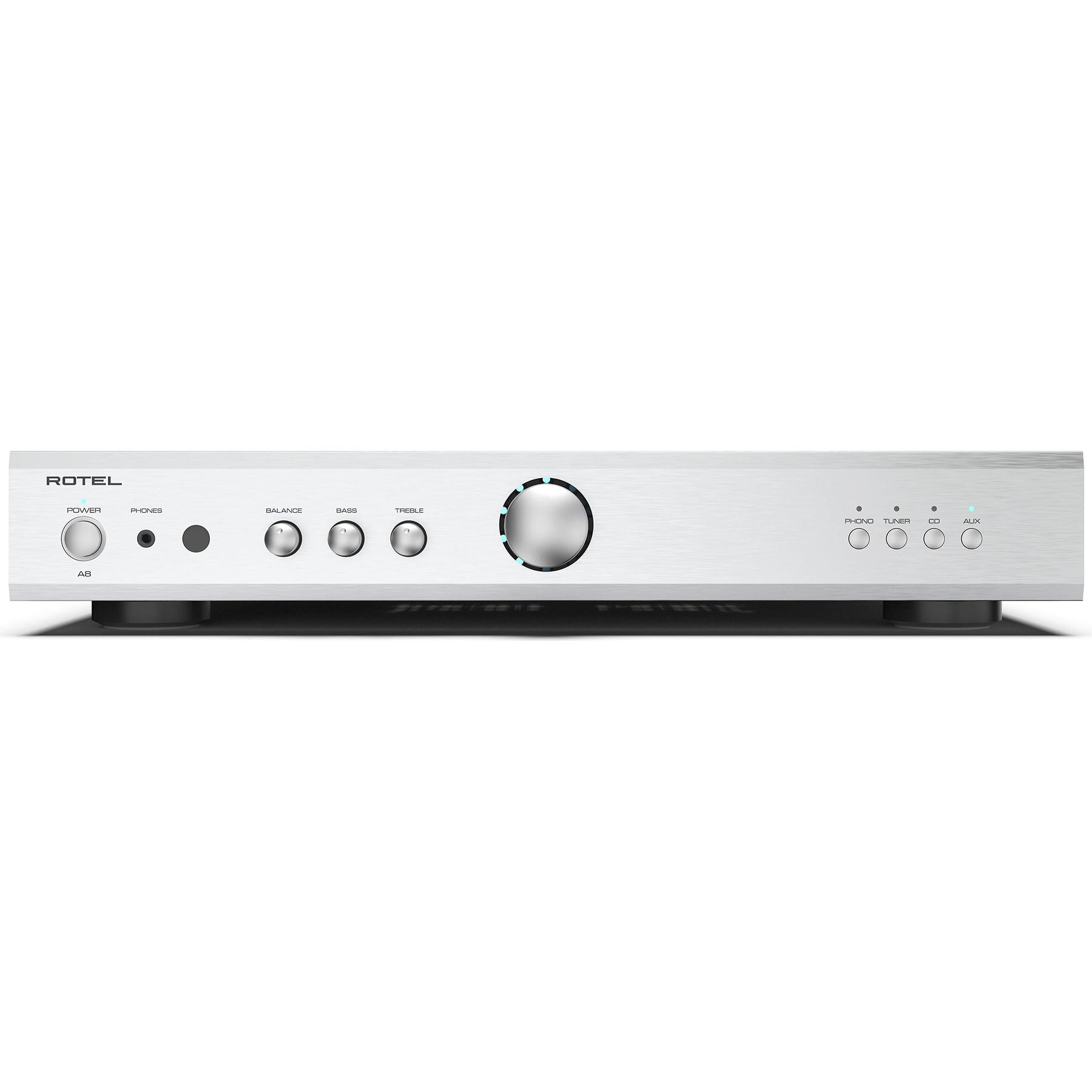

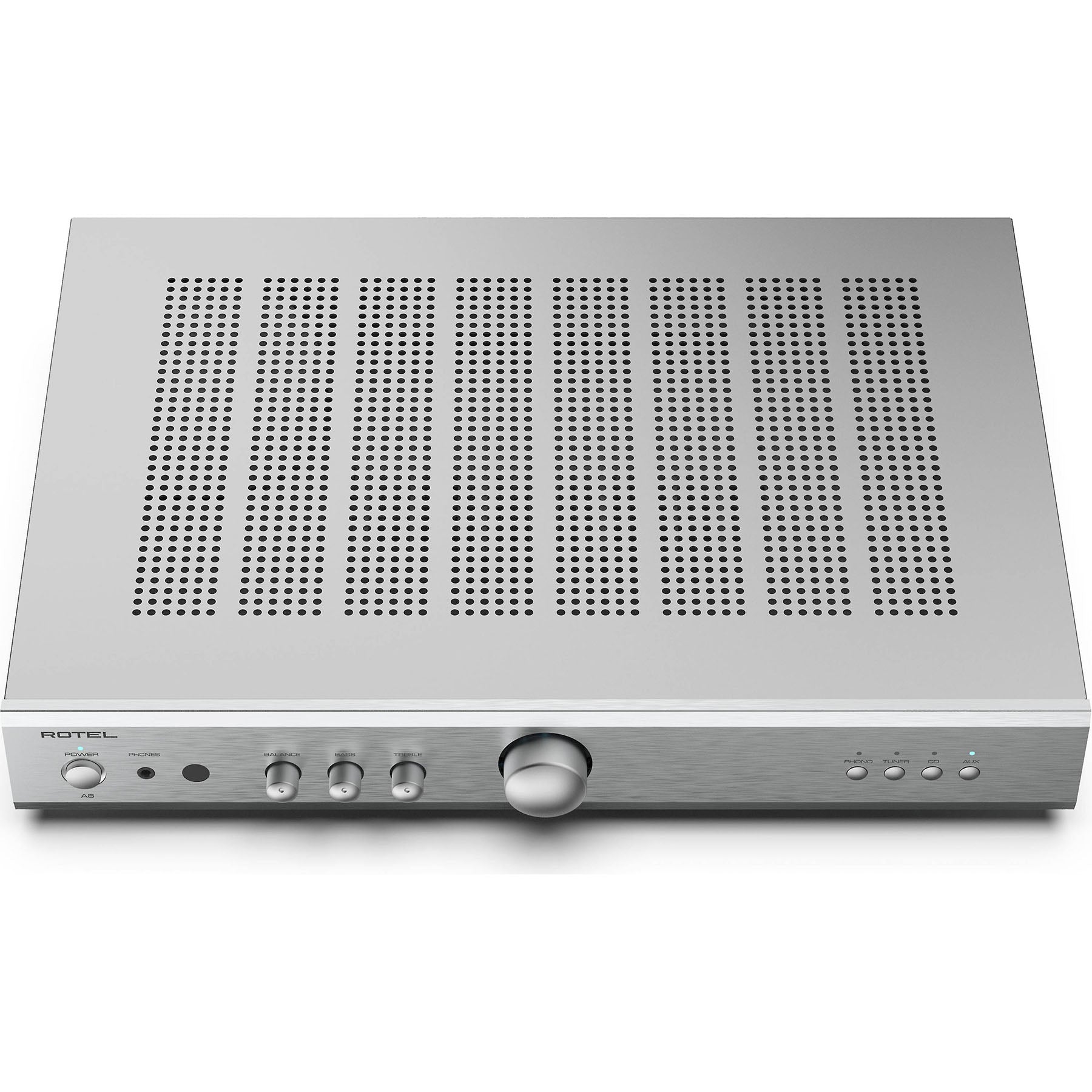

Available in both stylish black and sophisticated silver variants, the A8 integrates the power, versatility, and elegance of your audio experience.
Dimensions (W × H × D)
430 × 73 × 347 mm
17” x 2 7/8” x 13 5/8”
Front Panel Height
60 mm (2 3/8”)
Power Requirements
120 V, 60 Hz
Power Consumption
110 W
Standby Power Consumption
<0.5 W
Net Weight
5.8 kg, 12.8 lbs
BTU Rating (4 Ω, 1/8th power)
340 BTU/ h
Power Output
30 W/ Ch (8 Ω)
40 W/ Ch (4 Ω)
Total Harmonic Distortion (THD)
<0.03%
Frequency Response
Line Level Inputs: 10 Hz - 100k Hz, -0.5 dB, +0 dB
Phono Input: 20 Hz - 20k Hz, -0.5 dB, +0 dB
S/N Ratio (IHF "A" Weighted)
Line Level Inputs: 90 dB
Phono Input: 80 dB
Intermodulation Distortion (60 Hz:7k Hz, 4:1)
<0.03%
Damping Factor
80
Input Sensitivity
Line Level Inputs: 180 mV
Phono Input (MM): 2.5 mV
Input Impedance
Line Level Inputs: 60k Ω
Phono Input (MM): 40k Ω
Input Overload
Line Level Inputs: 4 V
Phono Input: 50 mV
Tone Controls
±6 dB at 100 Hz / 10k Hz
