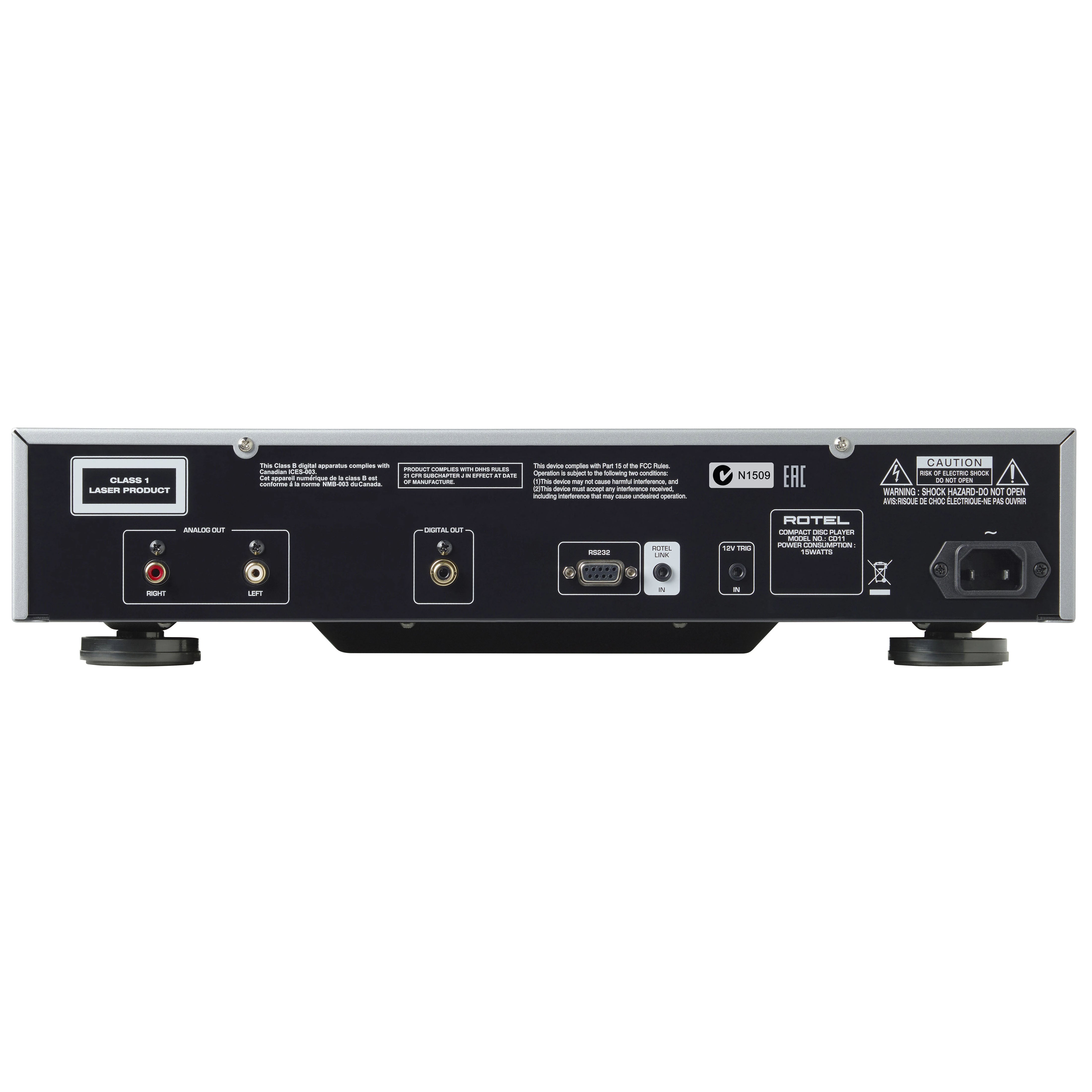

Rotel CD11MKII CD Player

Rotel has been designing and manufacturing CD players since 1989 and long confirmed it's digital audio expertise since the introduction of the first model, the RCD-855 CD player. Ever since Rotel has never looked back.

The CD11 continues this proud tradition with a carefully engineered power supply and Balanced Design topology of digital and analogue circuits. With clean lines and intuitive operation common with other 14 series models the CD11 brings musical details to life with ability beyond its modest price-point.

DIMENSIONS (W × H × D)

430 × 98 × 314mm
17" × 3.8" × 12.4"

FRONT PANEL HEIGHT

80mm (3.15")

POWER REQUIREMENTS

230V, 50Hz

POWER CONSUMPTION

15W

STANDBY POWER CONSUMPTION

<0.5W

NET WEIGHT

5.8kg (12,7lbs.)

BTU RATING

40 BTU/h

TOTAL HARMONIC DISTORTION (THD)

0.005% @ 1kHz

FREQUENCY RESPONSE

20Hz - 20kHz ±0.5dB

S/N RATIO (IHF "A" Weighted)

>125dB

DYNAMIC RANGE

>99dB

DIGITAL TO ANALOG CONVERTERS

Texas Instruments

CHANNEL BALANCE

±0.5dB

CHANNEL SEPARATION

>115dB @ 10kHz

OUTPUT LEVEL

Digital (Coax): 0.5V

OUTPUT IMPEDANCE

Line Level: 470Ω

Digital (Coax): 75Ω
