Description
DX-5
The Rotel DX-5 is the ultimate high-performance Personal Audio Integrated Amplifier packaged in a sleek, modern, elegant industrial design. Engineered with passion and driven by a precision Class AB amplifier powered by an in-house wound high-current toroidal transformer delivering 33 watts per channel into 4 ohms (25 watts into 8 ohms).

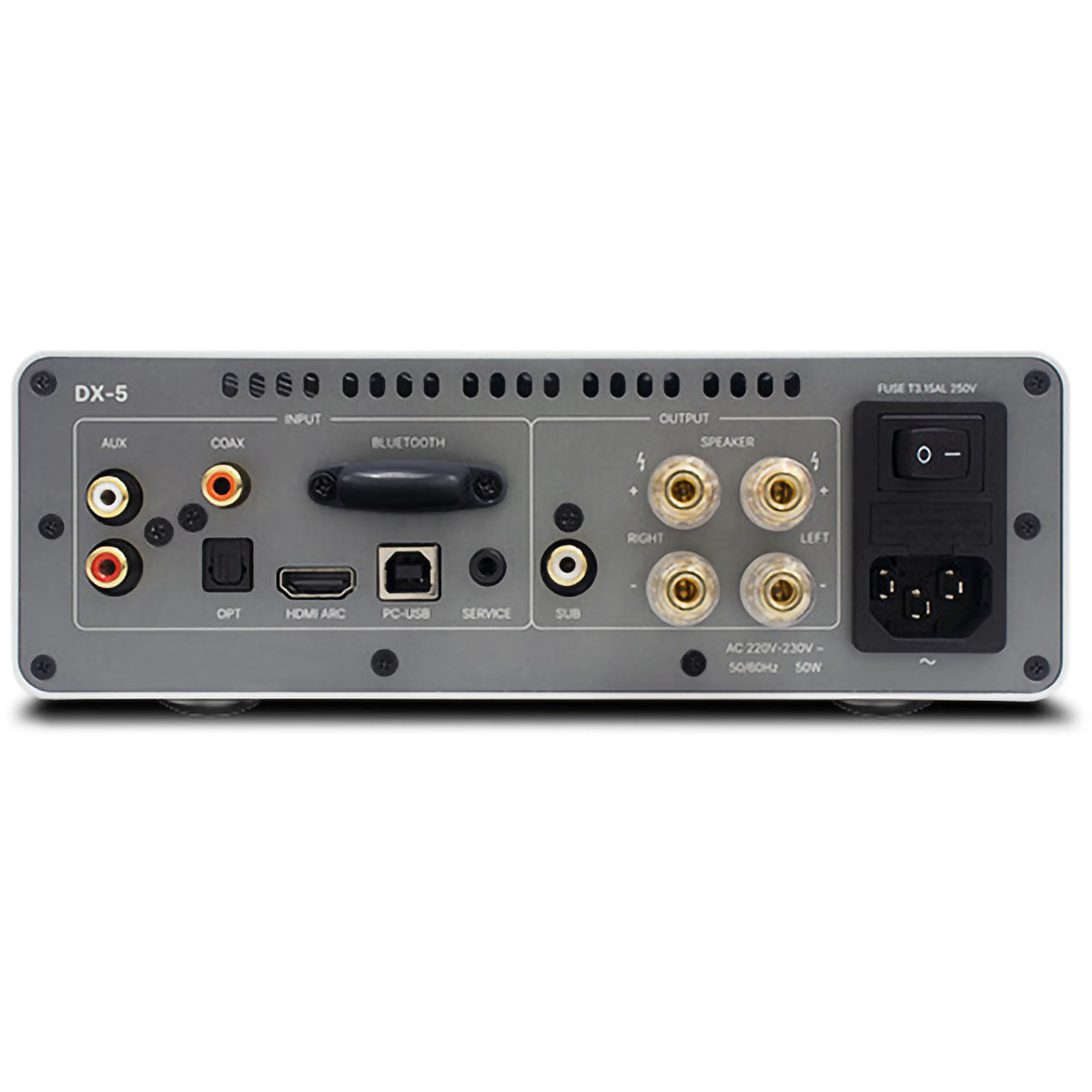

The premium ESS ES9039Q2M DAC renders the audio with precision and exceptional sound quality on an expansive sound stage. It supports PC-USB (32-bit/384kHz PCM, DSD 4x), Coaxial/Optical (24-bit/192kHz), aptX™ HD and AAC Wireless Bluetooth, legacy RCA analog, and HDMI ARC connectivity with CEC and a subwoofer output.

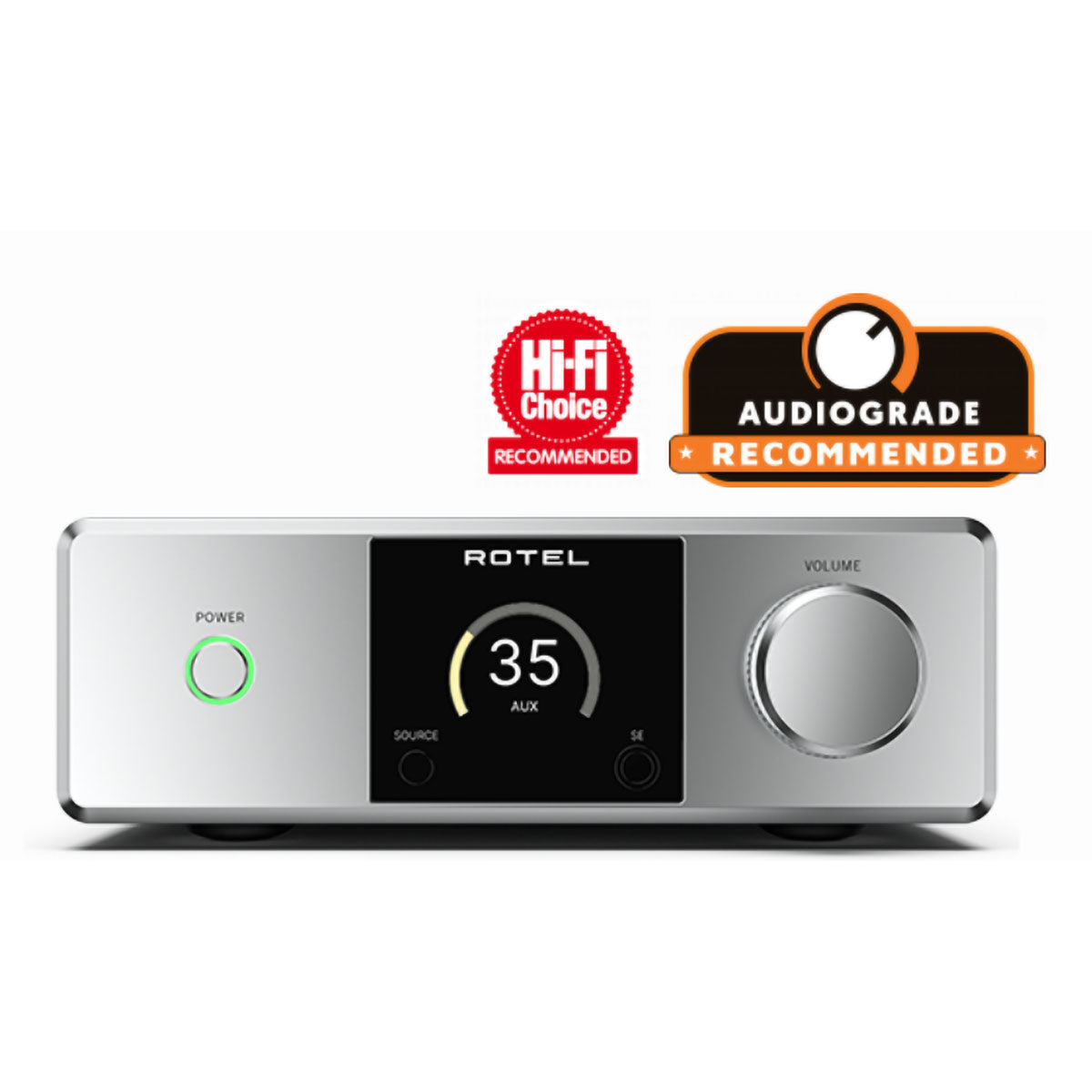

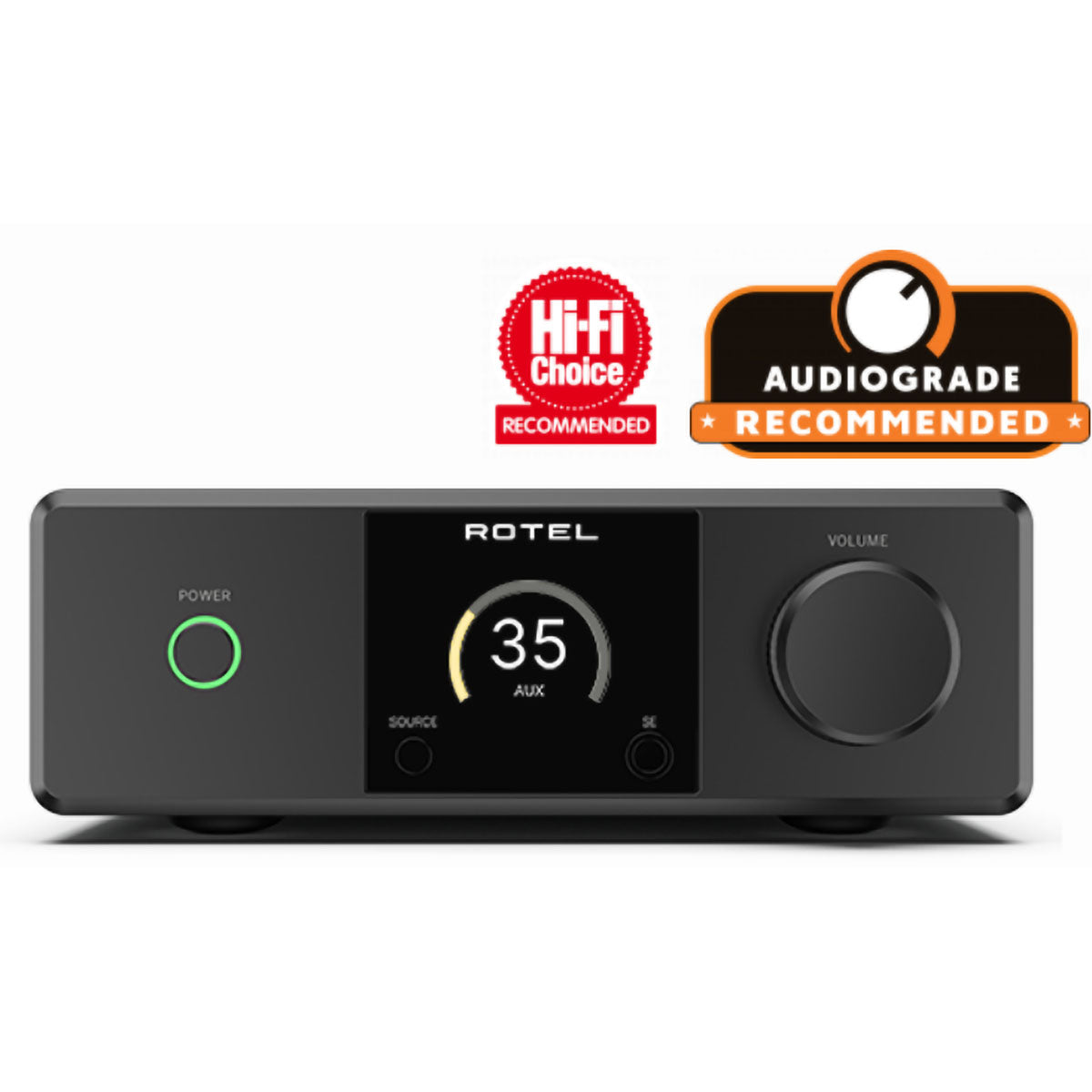

The DX-5 features a full-color TFT display, 1/4” (6.35mm) headphone jack, and includes an intuitive remote control perfect for music lovers and home entertainment enthusiasts.
Tech Specs
| Dimensions (W × H × D) | 215 × 76 × 251 mm / 8 1/2 × 3 × 10 in. |
| Front Panel Height | 70 mm (2 3/4 in.) |
| Power Requirements | 120 V, 60 Hz |
| Power Consumption | 80 W |
| Standby Power Consumption | <0.5 W |
| Net Weight | 4.1 kg (9.1 lbs.) |
| BTU | 241 BTU/h |
| Power Output (FTC) | 25 W/ch |
| Maximum Power Output (Non-FTC) | 33 W/ch (4 Ω) |
| Continuous Power Output (Non-FTC) | 25 W/ch (8 Ω) |
| Total Harmonic Distortion | <0.03% |
| Frequency Response – Amplifier | 10 Hz–100 kHz (0 ±0.19 dB) |
| Damping Factor (20 Hz–20 kHz, 8 Ω) | 140 |
| Input Sensitivity / Impedance – Analog | 680 mV / 100 kΩ |
| Input Overload | 4.2 V |
| S/N Ratio – Analog (IHF "A" Weighted) | >100 dB |
| Intermodulation Distortion (60 Hz : 7 kHz, 4:1) | <0.03% |
| Frequency Response – Digital (10 Hz–80 kHz) | 10 Hz–80 kHz (0 ±2 dB, max.) |
| Input Sensitivity / Impedance – Digital | -10.3 dBFS / 75 Ω |
| S/N Ratio – Digital (IHF "A" Weighted) | >100 dB |
| HDMI | Supports ARC function |
| Digital Inputs | SPDIF LPCM (up to 24-bit/192 kHz) |
| PC-USB | USB Audio Class 2.0 (up to 32-bit/384 kHz)* |
| DSD Support | Up to 4× DSD (11.2 MHz) |
| DoP Support | Up to 2× DoP (5.6 MHz) |
| Roon Compatibility | Roon Tested |
| Driver Requirement | *Driver installation required |
