Rotel RA-1572 MKII Integrated Amplifier
RA-1572 MKII Integrated Amplifier
The RA-1572MKII Integrated Amplifier is an essential component for music lovers leveraging the best of Rotel’s analog and digital technologies bringing music to life with exceptional fidelity. The role of an integrated amplifier continues to evolve with the RA-1572MKII optimised in every aspect including the power amplifier delivering 120 Watts of robust Class AB output into 8 ohms, audio circuit design innovations, premium audiophile Digital to Analog Converter and a full complement of source inputs.

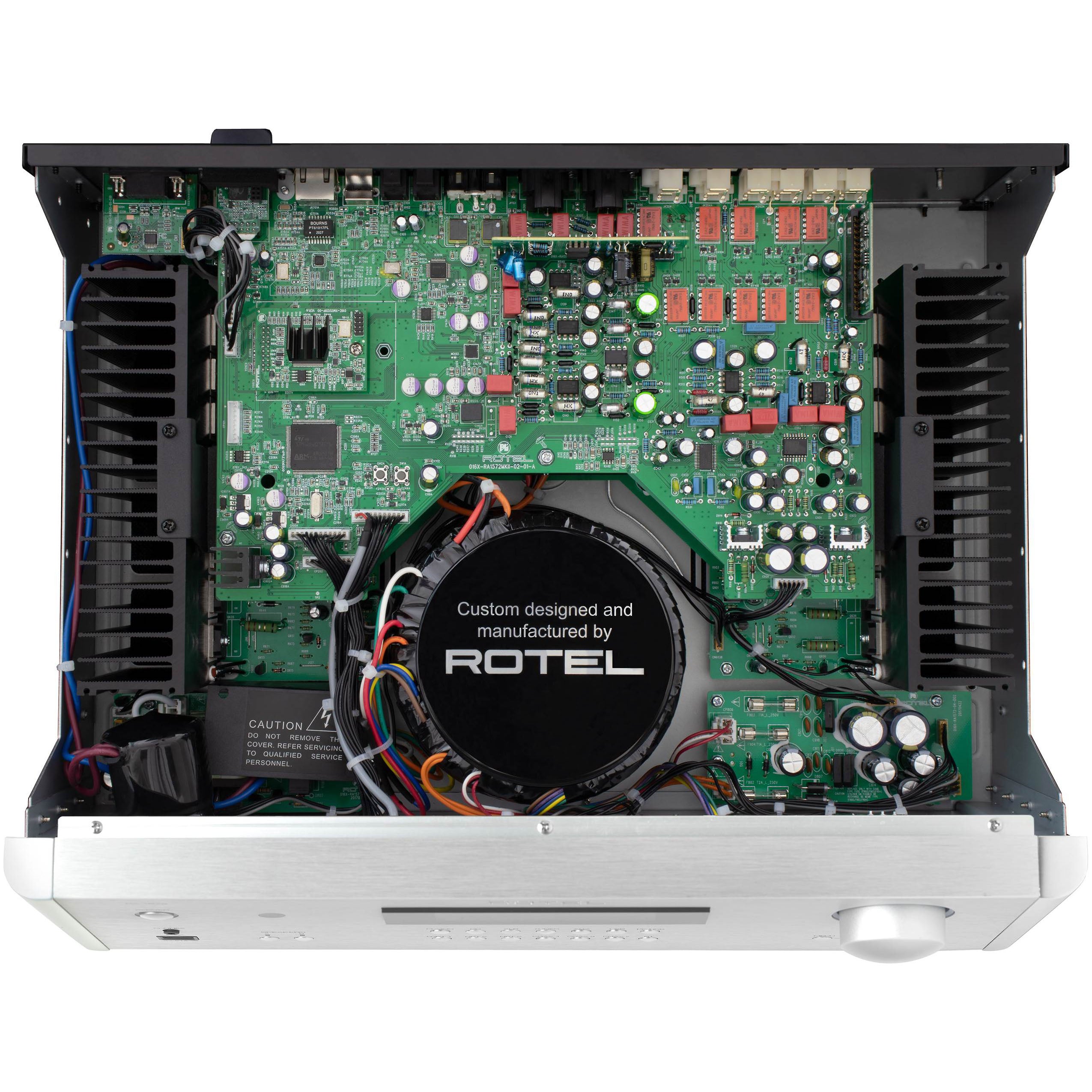

As typical of Rotel amplifiers, the RA-1572MKII utilises an in-house manufactured oversized toroidal transformer. The toroidal transformer’s shape helps prevent stray radiation patterns from corrupting audio signals as they pass through adjacent circuits. The transformer feeds a bank of 4 low ESR, high efficiency, T-Network slit-foil storage capacitors for deep, controlled bass energy.

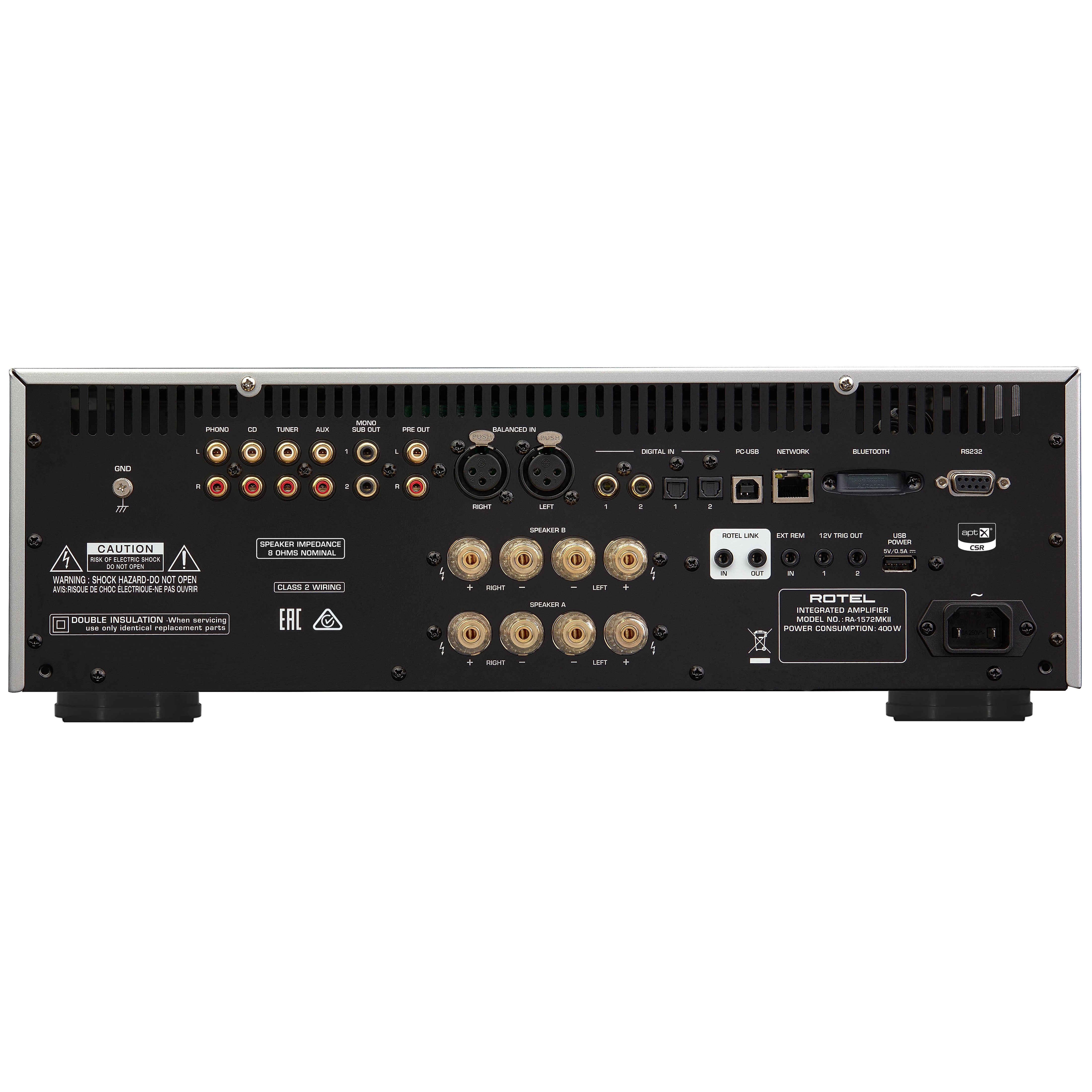

The RA-1572MKII support digital sources utilising a Texas Instruments 32-bit/384kHz DAC with critically tuned output filter circuits rendering even the most subtle detail. The preamplifier circuits and linear amplifier gain stages have been custom engineered ensuring natural detail, agility and an immersive soundstage. Analogue, digital, PC-USB supporting MQA, aptX™ and AAC wireless Bluetooth streaming, XLR Balanced and Moving Magnet Phono stage inputs ensures connection to your favourite sources.
The RA-1572MKII is certified Roon Tested delivering the best experience using Roon software so you can just enjoy the music.

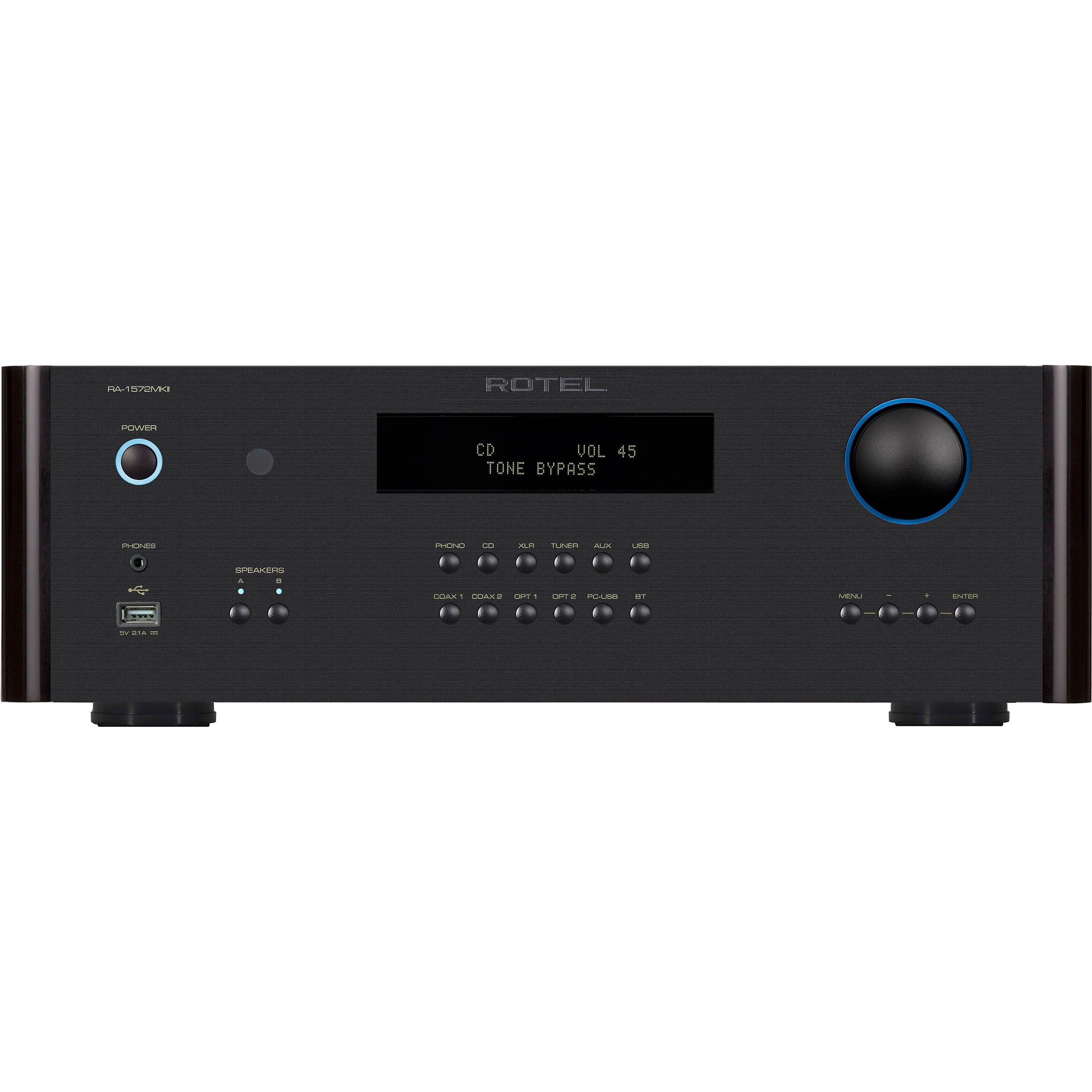

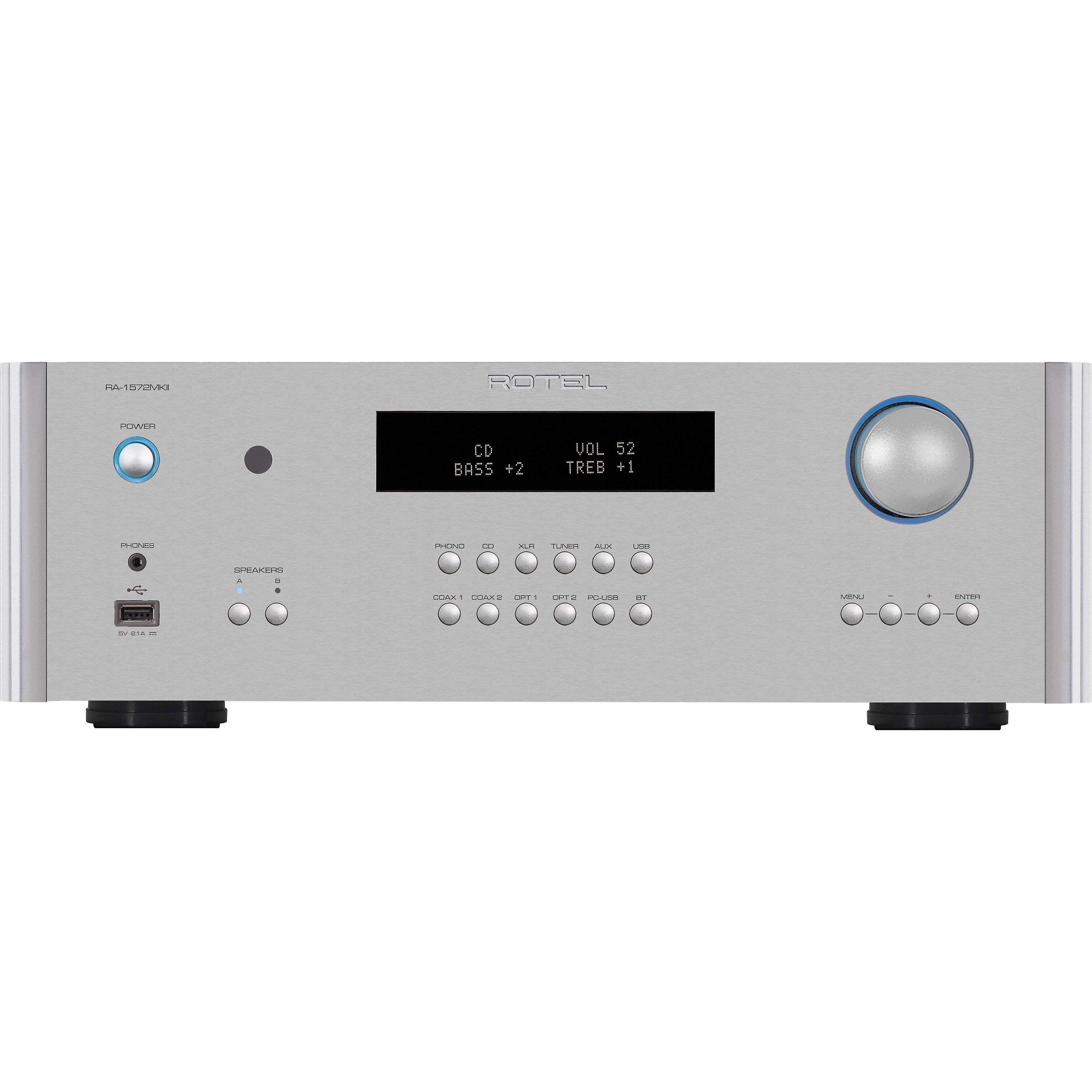

The front panel includes a status display, source and volume controls, Speaker A-B selection for Zone 2, and 3.5mm headphone jack. Ethernet and RS232 connections allow seamless integration with control systems and software updates.
Key Points
- Builds on the features of the hugely popular RA-1572
- DSD capable 32-bit Texas Instruments DAC
- aptX Bluetooth built-in
- MQA and MQA Studio 24-bit / 384k Hz
- MM Phono input
- RS-232 and IP control
Continuous Power Output (20Hz - 20kHz, < 0.03%, 8 ohms)
120 watts/channel
Total Harmonic Distortion
< 0.018%
Intermodulation Distortion (60Hz
7kHz, 4
1)
< 0.03%
Frequency Response
Phono Input
20Hz - 20kHz, ±0.5 dB
Line Level Inputs
10Hz - 100kHz, ±0.5 dB
Damping Factor (20Hz - 20kHz, 8 ohms)
300
Input Sensitivity / Impedance
Phono Input (MM)
2.1mV / 47k ohms
Line Level Inputs (RCA)
270mV / 100k ohms
Line Level Inputs (XLR)
440mV / 100k ohms
Input Overload
Phono Input (MM)
32mV
Line level Inputs (RCA)
4V
Line Level Inputs (XLR)
5.5V
Preamplifier Output / Impedance
1.5V / 470 ohms
Signal to Noise Ratio (IHF "A" weighted)
Phono Input (MM)
80dB
Line Level Inputs
100dB
Digital section
Frequency response
10Hz - 95kHz (±2.0 dB, Max)
Signal to Noise Ratio (IHF "A" weighted)
100dB
Input Sensitivity / Impedance
0 dBFs / 75 ohms
Preamplifier Output Level
1.42V (at -20 dB)
Coaxial / Optical Digital Signals
SPDIF LPCM (up to 192kHz 24bit)
PC-USB
USB Audio Class 1.0 (up to 96kHz 24bit)
USB Audio Class 2.0 (up to 384kHz 32bit) - Driver installation required
DSD and DoP support
MQA and MQA Studio (up to 384k Hz 24bit)
Power Consumption
400 watts
Standby Power Consumption
< 0.5 watts
BTU (4 ohms, 1/8th power)
810 BTU/h
Dimensions (WxHxD)
431 x 144 x 358mm
Front Panel Height
3U (132.6mm)
Weight (net)
13.63kg
Finish
Silver and Black
