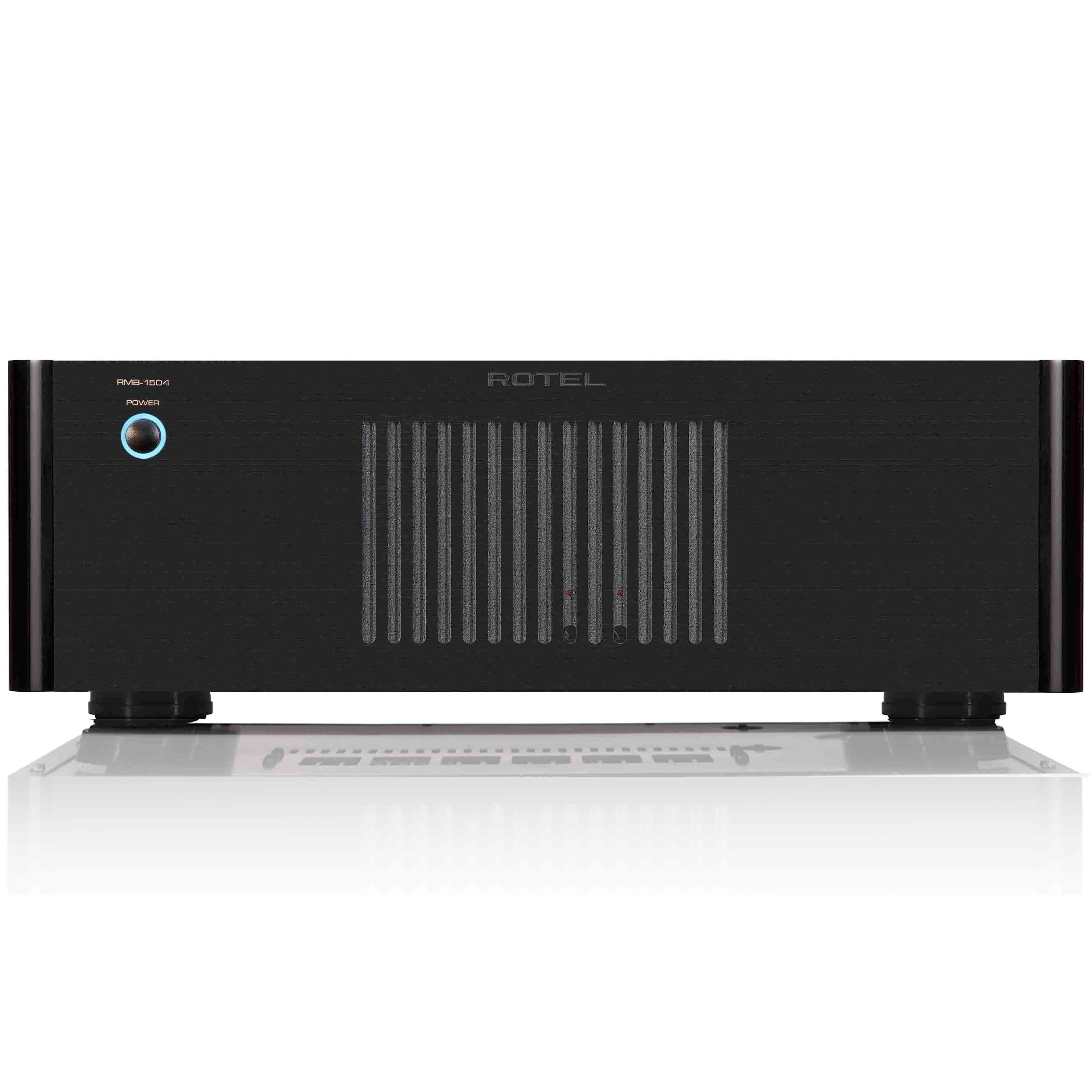

RMB-1504 Power Amplifier

The RMB-1504 Class AB 4-channel amplifier delivers 70 watts per channel into 8 ohms and 115 watts into 4 ohm loads with the ongoing commitment of performance without compromise building on over 55 years of Rotel amplifier engineering, design and manufacturing experience. This amplifier provides power and refinement for object based overhead speakers in home theater installations and the demanding drive required for custom installation and multi-room audio solutions.

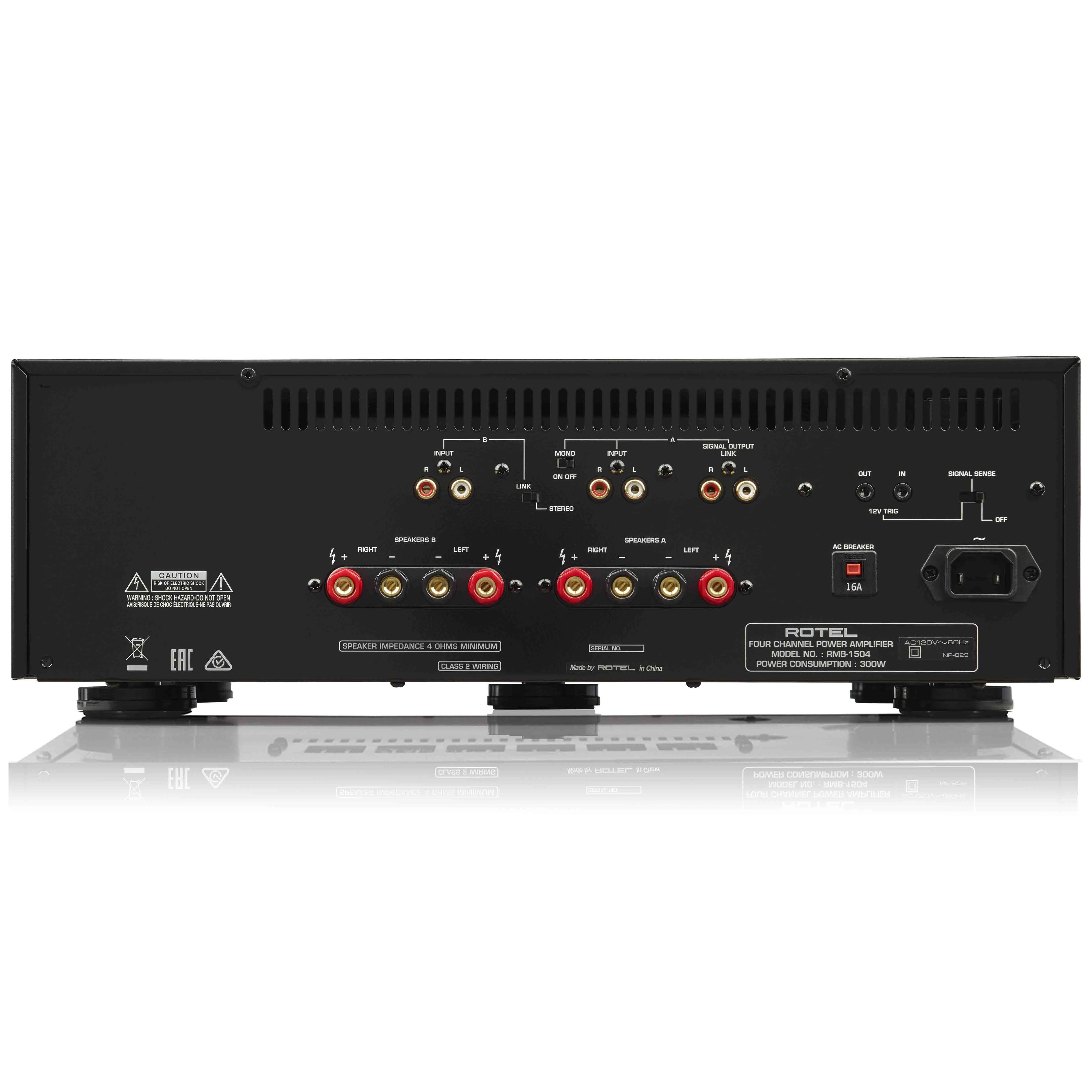

The 12 volt trigger input and output connections, user selected audio signal sense power control, front panel volume attenuators, audio output link connections, 5-way speaker binding posts and available rack mount kit provides ultimate installation flexibility.

An oversized factory built toroidal transformer and high efficiency capacitors drive an array of high current output transistors ensuring fast transient timing, accurate detail and controlled consistency of low frequency regardless of the loudspeakers load rating or cable run distance. Maintaining crucial timing and energy while delivering effortless power is a signature trait of this amplifier providing increased speaker
placement options.

Critical evaluation of the circuit design and meticulous selection of each acoustic audio components ensures accuracy, power and efficiency all coupled with an unsurpassed build quality ensuring this amplifier proudly wears the Rotel name.

Dimensions (W × H × D)

431 × 144 × 443mm
17" × 5.7" × 17.5"

Front Panel Height

3U / 132.6mm (5.25")

Power Consumption

450W

Standby Power Consumption

Standby < 0.5W

Signal Sense 1 W

Net Weight

14.9kg (32.8lbs.)

BTU Rating

810 BTU/h

Continuous Power Output

4 x 70W/Ch (All channels driven, 8Ω)

Total Harmonic Distortion (THD)

(20Hz–20kHz, 8Ω) <0.03%

Frequency Response

10Hz - 100kHz ±1dB

S/N Ratio (IHF "A" Weighted)

115dB

Gain

26dB

Intermodulation Distortion (60Hz:7kHz, 4:1)

<0.03%

Damping Factor

>200

Speaker Impedance

4Ω minimum

Input Sensitivity

1V

Input Impedance

20kΩ
