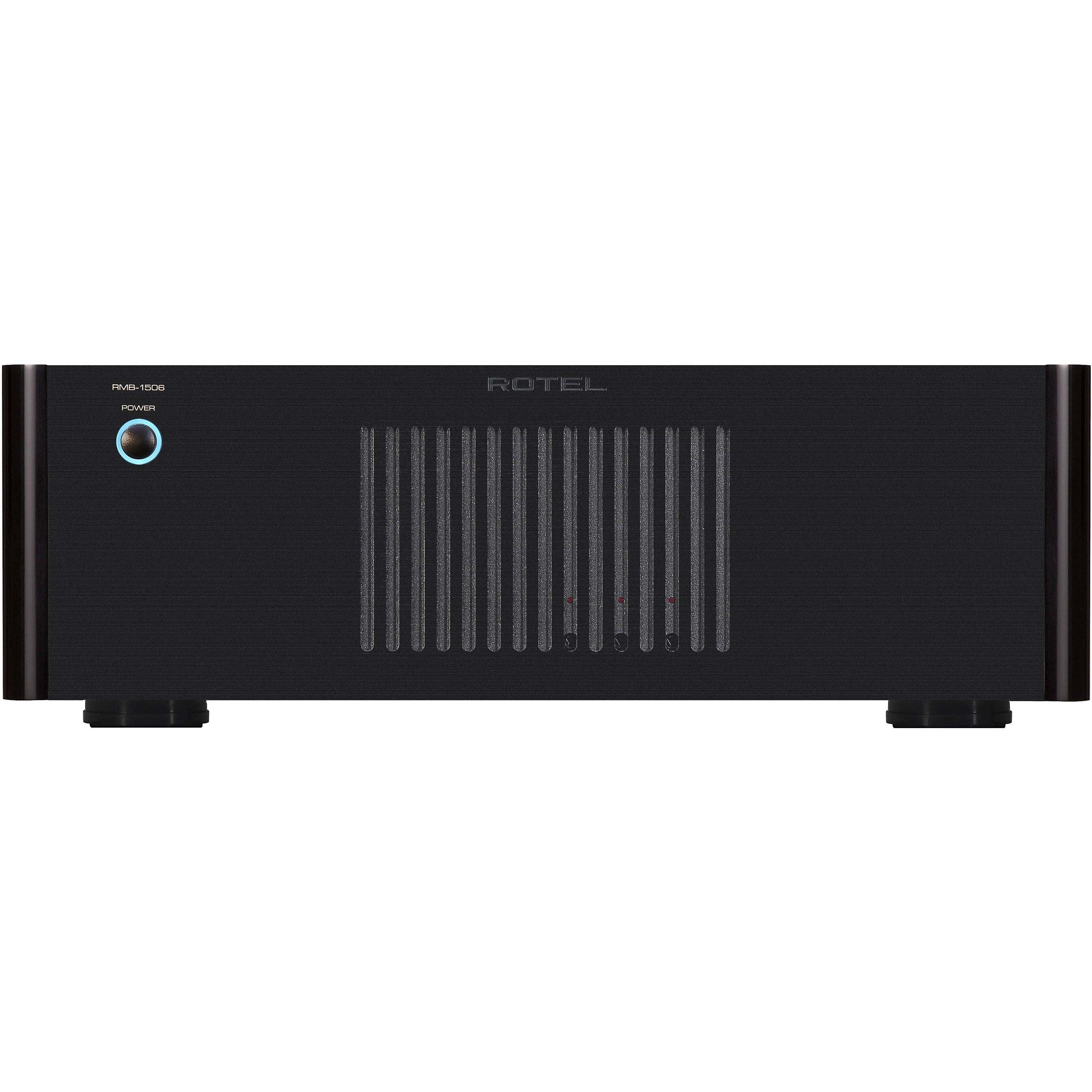

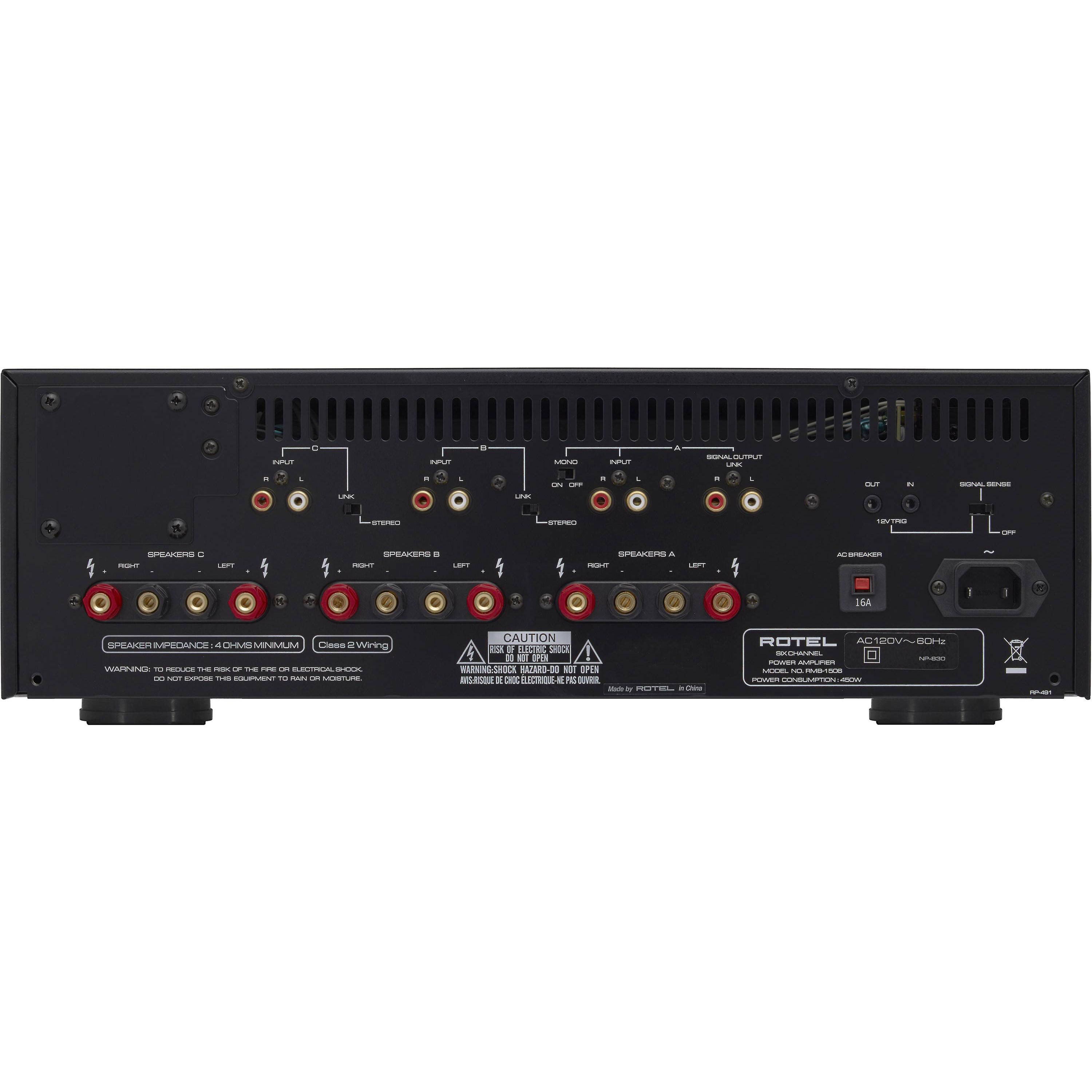

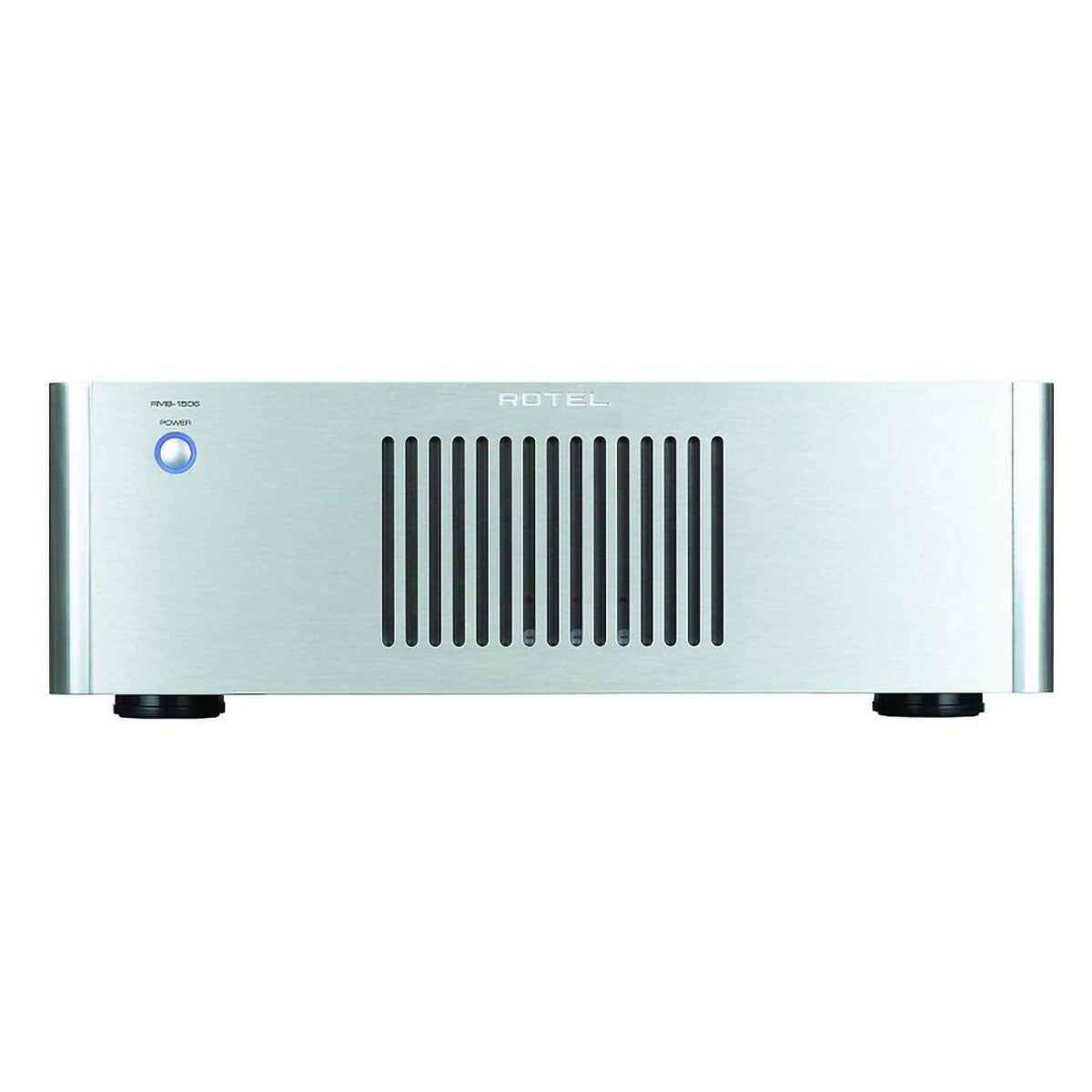

RMB-1506 6-Channel Distribution Amplifier

The RMB-1506 is perfect for less elaborate multizone audio systems and can be mated with our surround receiver or our preamp/processors to add music throughout three additional living areas or “zones” of your home. A buffered link output allows you to link additional amplifiers for larger multizone applications.

As with all Rotel custom amplifiers it includes the most wanted custom installation features such as front panel attenuation control, input linking, 12-volt trigger, buffered link output, five-way binding posts and an IEC detachable power cord.

This amplifier is perfect for less elaborate multizone audio systems and can be mated with any of our surround receivers or our preamp/processor to add music throughout three additional living areas or “zones” of your home. You can also add another RMB-1506 for larger multizone applications that don’t need the power output of the RMB-1512. As with all Rotel multichannel amplifiers it includes all of the most wanted custom installation features.

*Note – all Rotel 15 series components may be rack mounted and remotely controlled via RS-232, IR, or 12 volt (depending on model) for complete stealth operation.

For more detailed information on the Rotel RMB-1506 6-Channel Custom Installation Amplifier, click here.

DIMENSIONS (W × H × D)

431 × 144 × 424mm
17" × 5.7" × 16.7"

FRONT PANEL HEIGHT

3U / 132.6mm (5.25")

POWER REQUIREMENTS

120V, 60Hz

POWER CONSUMPTION

450W

STANDBY POWER CONSUMPTION

2.6W

NET WEIGHT

15.3kg (34lbs.)

BTU RATING (4Ω, 1/8th power)

1680 BTU/h

CONTINUOUS POWER OUTPUT

50W/Ch (All channels driven, 8Ω)

80W/Ch (All channels driven, 4Ω)

TOTAL HARMONIC DISTORTION (THD)

(20Hz–20kHz) <0.03%

FREQUENCY RESPONSE

10Hz - 100kHz ±1dB

S/N RATIO (IHF "A" Weighted)

115dB

GAIN

26dB

INTERMODULATION DISTORTION (60Hz:7kHz, 4:1)

<0.03%

DAMPING FACTOR

>200

SPEAKER IMPEDANCE

4Ω minimum

1V

INPUT IMPEDANCE

20kΩ
