Sorane ZA-12 Transcription Tonearm (Cylinder Base)
Offer Submitted!
Sorane
Japan
Sorane ZA-12 Transcription Tonearm (Cylinder Base)
FREE DELIVERY AUSTRALIA WIDE
Every order ships free to any address in Australia via fully tracked, insured delivery. You’ll receive a tracking link once your order is dispatched so you can follow it the whole way. Estimated delivery is 1-4 business days.
3 Years Limited Warranty
We handle your warranty so you don’t have to. If something isn’t right, simply get in touch and we will coordinate directly with the Australian importer on your behalf. Find out more. click here to lodge a warranty claim.
7-DAY EXPERT SUPPORT FOR YOUR PEACE OF MIND
Whether you’re browsing or already unboxing, Geoff is your friendly hi-fi guide available 7 days a week. From choosing the right system to setting up your new purchase, expert advice is always within reach. Contact Geoff today.
PRICE MATCH
Price is important, but building the right system synergy is equally so. If you’ve found a better price on one of our products or listings, simply get in touch with Geoff. Don’t let price stand in the way of working with HeyNow Hi-Fi to find the right result for your system.
Description
Sorane ZA-12 Transcription Tonearm
The purist 12" transcription tone-arm.
The NEW for 2018 ZA12 Transcription Arm takes the strengths of the Sorane SA1.2 tonearm (already recognized as a Class A component) and marry these strengths into a purist 'no compromise' purist tonearm, with a fair price.
No compromise meant giving up detachable headshells and lengthening the arm for lower tracking error. While the ZA12 is 3″ longer than the SA1.2, the total mass of the ZA12 is lower, guaranteeing that the new arm will be compatible with a broader range of high quality cartridges. And if you want more mass for very low compliance cartridges, you can easily add it.
There is an optional counter-weight accessory for balancing out very heavy cartridges.
Dual Pivot Suspension for exceptional sound quality!
The quality of a tone arm is measured by its sensitivity and stability in recovering delicate signals. The bearings play a crucial role in this. The ZA12 is equipped with a double-pivot suspension, which advantageously replaces two sets of thin radial bearings.
This ultra-fine and precise suspension allows extended sound reproduction up to high frequencies without limits, even for very low sounds. The sound is clear and detailed, for an unforgettable listening experience.
Counterbalance shaft damping for vibration-free listening
To dampen tone arm movements, the counterbalance shaft consists of two tubes: a brass tube on the inside and a Delrin tube on the outside. The two are connected by an outer rubber ring, fixed with rubber adhesive.
The rectangular arm is machined from a solid block of aluminium for rich, tight bass reproduction. The ZA-12's low resonant frequency allows for excellent bass reproduction.

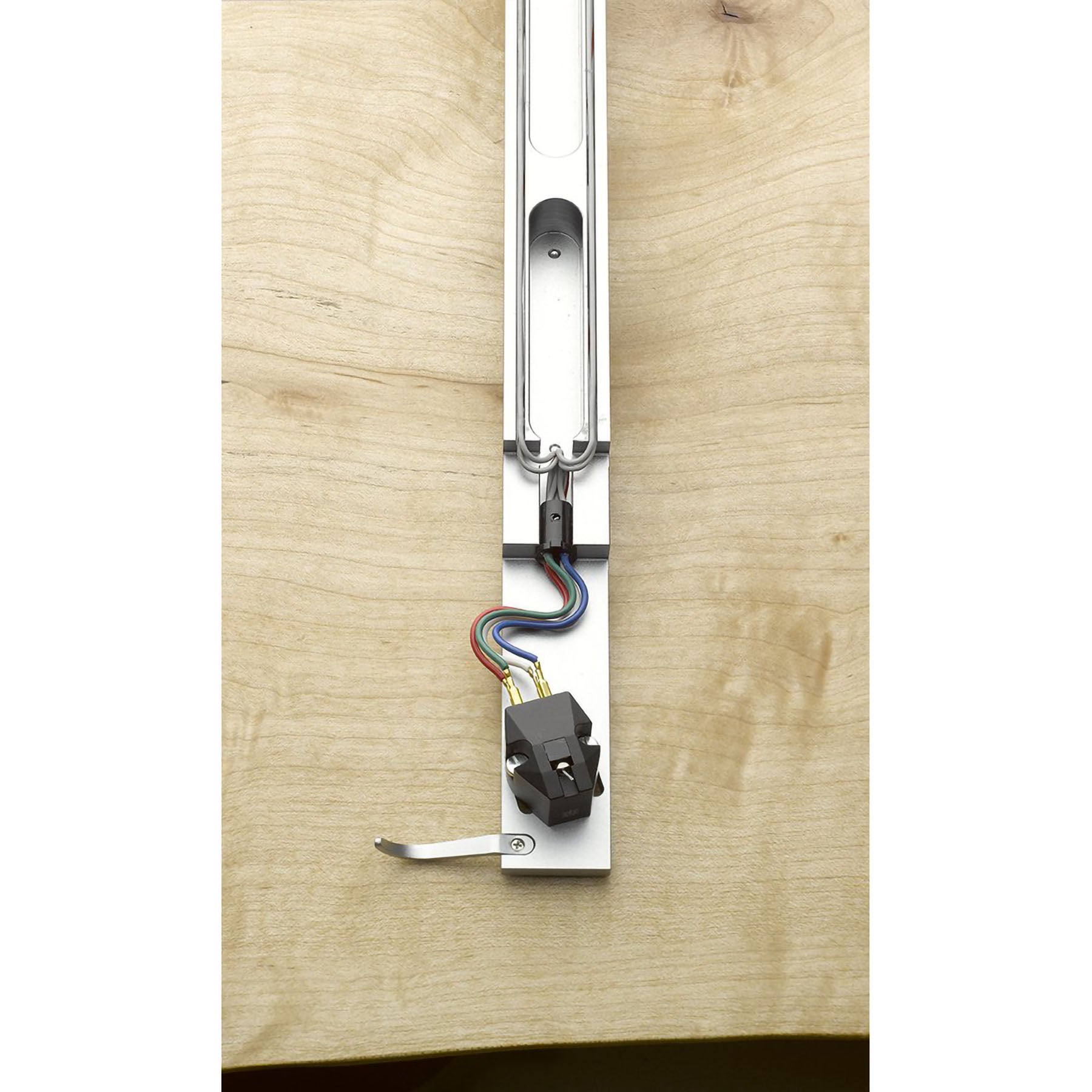

The tone arm wires are separated for maximum stereo separation. The geometry of the ZA12 has been chosen to give excellent sound for all types of music, from old classic recordings to new audiophile recordings.
This tone arm is specifically designed to deliver the best of all musical styles, from the oldest to the newest. Its shape allows it to find the right balance between the Stevenson geometry, perfect for classical music, and the Lofgren geometry, optimal for modern audiophile recordings. The SORANE ZA-12 is machined in one piece, which gives it an excellent stability and a good inertia. Its anodised aluminium arm guarantees optimal sound quality and excellent bass reproduction.
Manuals
Tech Specs
| - | ZA-12 |
|---|---|
| Whole Length | 416mm |
| Effective Length (Tonearm pivot - stylus) | 322mm |
| Practical Length (Tonearm pivot - Spindle) | 310mm |
| Overhang | 12mm |
| Offset angle | 16.5° |
| Horizontal moving sensitivity | 30mg |
| Vertical moving sensitivity | <20mg |
| Vertical Tracking Force (VTF) range | 0 - 5 g |
| Adaptable Cartridge Weight Range | 5 - 60 g |
| Height Adjustment（Plinth to arm wand centerline) | 19 -35 mm |
| Vertical Bearing | Double bearing pivot Miniature Radial Bearing(840 2 pieces）Pivot miniature bearing (TC-3 2pieces） |
| Horizontal Bearing | Miniature Radial Bearing 1280 |
| Output plug | RCA (XLR : Option) |
| Output cable | Shieled stranded copper wire |
| Tonearm Audio Lead wire | OFC 4N Copper |
| Headshell lead wire | Copper with gold plated terminal |
| Headshell | Machine tooled Aluminum |
| Azimuth control in headshell | All available by attached Allen key. |
| Tonearm Net Weight | 750 g |
| Standard Headshell Net Weight | 17g |
(*) : For more adaptable "cartridge + Headshell" weight than 28g, optional counter weight is available on cost base. (Values are subject to change)
